◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50760 - NHR/NKR TAIWAN ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-11 - CYLINDER HEAD ▶
0-11 — CYLINDER HEAD (#139004) — 254 parça

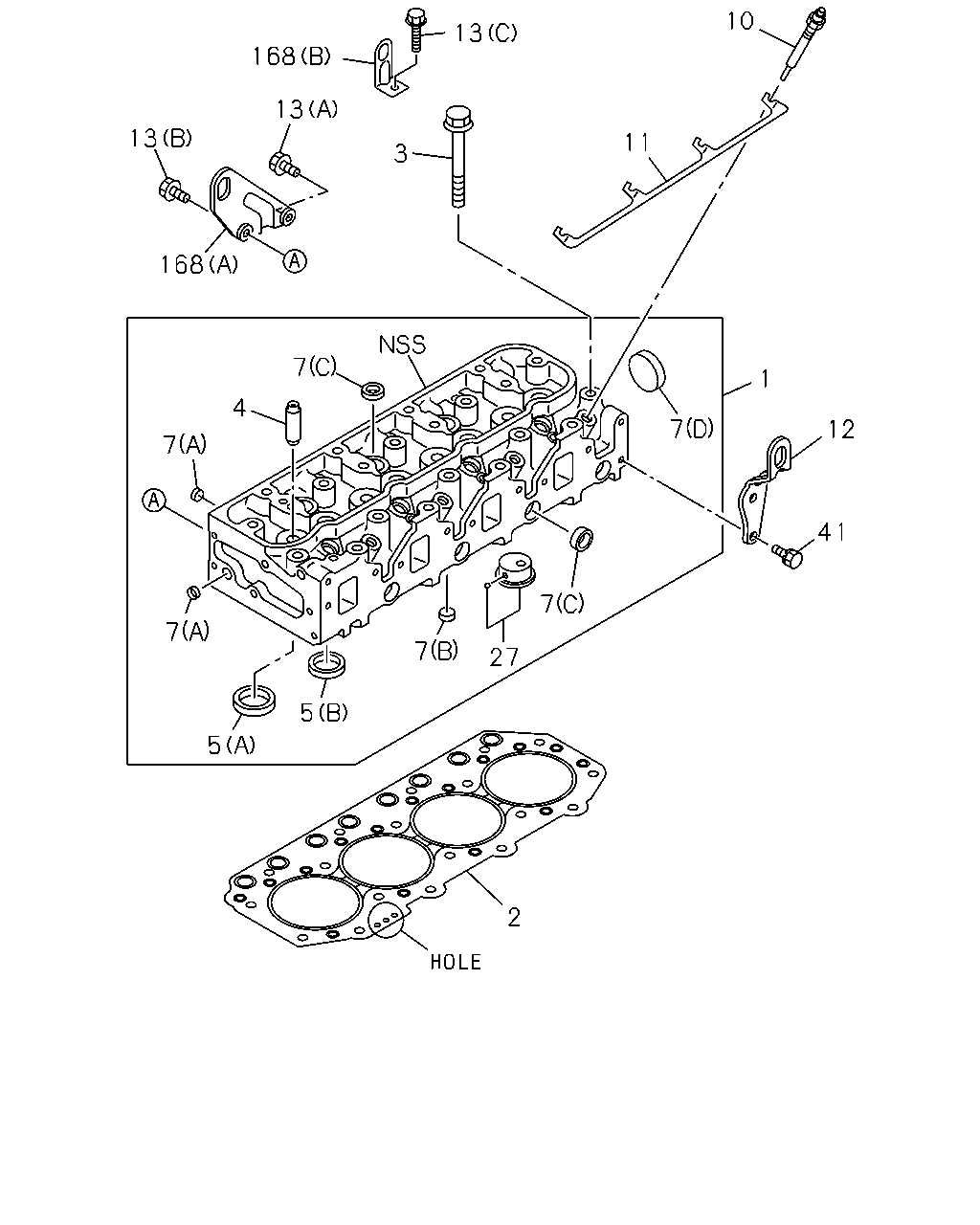

çizim 420354
10 13 168 13 13 11 3 168 7 1 4 12 7 7 41 7 7 7 27 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-97089-280-1 01 1 9701-9905 ●
1 HEAD ASM; CYL 8-97120-278-6 01 1 9906-0207 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0208-0511 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0512-0610 ●
1 HEAD ASM; CYL 8-97355-970-9 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0611- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9701-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9702-0207 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0208-0511 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0512-0610 ●
3 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-2 18 1 0611- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9701-0207 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0208-0511 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0512-0610 ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0611- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9701-0207 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208-0511 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0611- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9701-0003 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004-0207 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0208-0404 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0511 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0611- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208-0503 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0511 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(E) OD=18 		5-11219-008-0 13 1 0611- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9701-9905 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0207 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(G) OD=32 		1-09600-012-2 02 1 0611- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 		5-11219-011-0 07 1 0611- ●
10 PLUG; GLOW
NGK 		8-97043-744-2 04 1 9701-0207 ●
10 PLUG; GLOW 8-94133-759-8 04 1 0208-0511 ●
10 PLUG; GLOW 8-94133-759-9 04 1 0512-0610 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0611- ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0303-0511 ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9701-0207 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0208-0511 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0611- ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 9701-0207 ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0208-0511 ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0512-0610 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9701-0207 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 0208-0511 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 0512-0512 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-0610 ●
13 BOLT; HANGER
AIR CONDITIONER MANUAL CONT(C60) (C) M10X20 FLANGE 		0-28681-020-0 01 1 9701-0207 ●
13 BOLT; HANGER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9701-0207 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0208-0511 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0512-0512 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0610 ●
27 PLUG; HOT 8-97089-278-0 04 1 9701-9905 ●
27 PLUG; HOT 8-97120-280-0 04 1 9906-0207 ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9701-0207 ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0208-0410 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28080-816-0 02 1 0411-0511 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 9701-9701 ●
168 HANGER; ENG,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94379-714-1 01 1 9702-0207 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 0208-0511 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 0512-0610 ●
168 HANGER; ENG,FRT
AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) 		8-97177-035-0 01 1 9702-9905 ●
168 HANGER; ENG,FRT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97177-035-0 01 1 9906-0207 ●

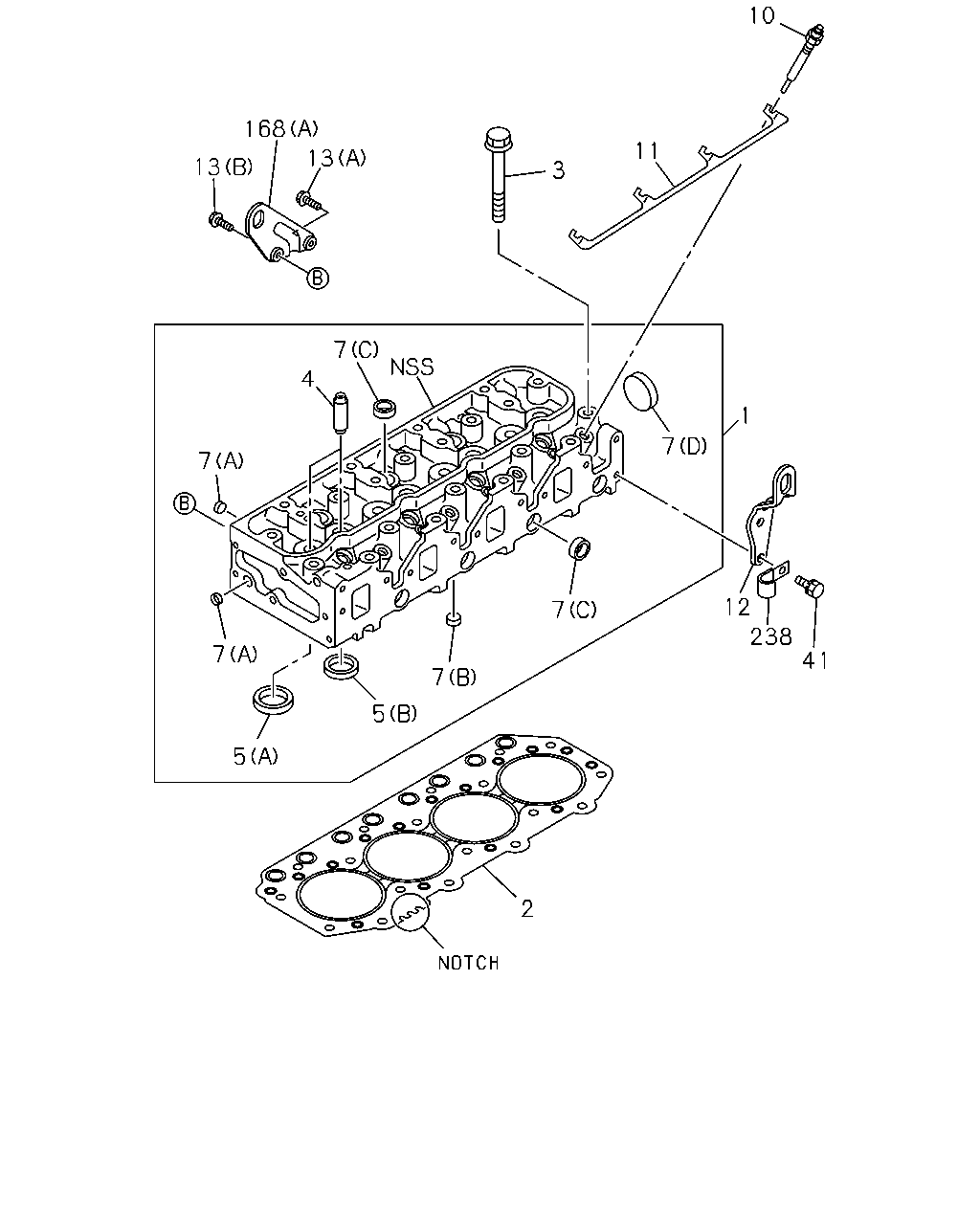

çizim 420355
10 168 11 13 13 3 7 4 1 7 7 12 7 238 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-97089-280-1 01 1 9701-9905 ●
1 HEAD ASM; CYL 8-97120-278-6 01 1 9906-0207 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0208-0511 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0512-0610 ●
1 HEAD ASM; CYL 8-97355-970-9 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0611- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9701-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9702-0207 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0208-0511 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0512-0610 ●
3 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-2 18 1 0611- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9701-0207 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0208-0511 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0512-0610 ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0611- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9701-0207 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208-0511 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0611- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9701-0003 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004-0207 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0208-0404 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0511 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0611- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208-0503 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0511 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(E) OD=18 		5-11219-008-0 13 1 0611- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9701-9905 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0207 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(G) OD=32 		1-09600-012-2 02 1 0611- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 		5-11219-011-0 07 1 0611- ●
10 PLUG; GLOW
NGK 		8-97043-744-2 04 1 9701-0207 ●
10 PLUG; GLOW 8-94133-759-8 04 1 0208-0511 ●
10 PLUG; GLOW 8-94133-759-9 04 1 0512-0610 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0611- ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0303-0511 ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9701-0207 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0208-0511 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0611- ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 9701-0207 ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0208-0511 ●
12 HANGER; ENG,RR 8-97107-739-0 01 1 0512-0610 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 9701-0207 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 0208-0511 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28081-025-0 01 1 0512-0512 ●
13 BOLT; HANGER
(B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-0610 ●
13 BOLT; HANGER
AIR CONDITIONER MANUAL CONT(C60) (C) M10X20 FLANGE 		0-28681-020-0 01 1 9701-0207 ●
13 BOLT; HANGER
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9701-0207 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0208-0511 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0512-0512 ●
13 BOLT; HANGER
(A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0610 ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 9701-0207 ●
41 BOLT; ENG HANGER
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0208-0410 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28080-816-0 02 1 0411-0511 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ●
41 BOLT; ENG HANGER
M8X16 FLANGE 		0-28050-816-0 02 1 0601-0610 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 9701-9701 ●
168 HANGER; ENG,FRT
EXC. AIR CONDITIONER MANUAL CONT(C60) (A) 		8-94379-714-1 01 1 9702-0207 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 0208-0511 ●
168 HANGER; ENG,FRT
(A) 		8-94379-714-1 01 1 0512-0610 ●
168 HANGER; ENG,FRT
AIR CONDITIONER MANUAL CONT(C60) POWER STEERING<N40> (B) 		8-97177-035-0 01 1 9702-9905 ●
168 HANGER; ENG,FRT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97177-035-0 01 1 9906-0207 ●
238 CLIP; GLOW HARNESS
L=60 		1-09700-304-0 01 1 0208-0511 ●
238 CLIP; GLOW HARNESS
L=60 		1-09700-304-0 01 1 0512-0610 ●

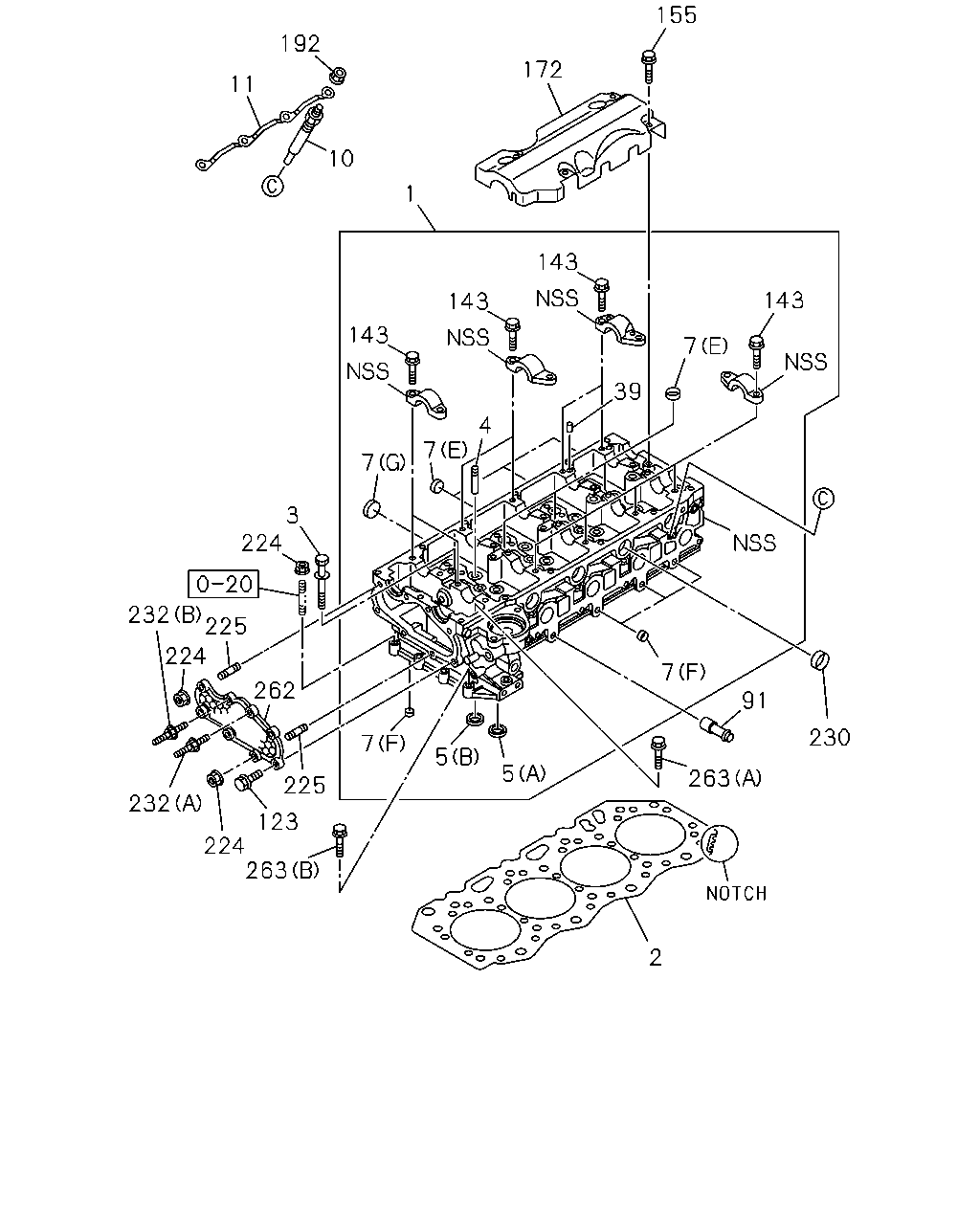

çizim 420739
155 192 172 11 10 1 143 143 143 143 7 39 4 7 7 3 224 20 232 225 224 7 262 91 7 230 5 225 5 263 232 123 224 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEAD ASM; CYL 8-97089-280-1 01 1 9701-9905 ●
1 HEAD ASM; CYL 8-97120-278-6 01 1 9906-0207 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0208-0511 ●
1 HEAD ASM; CYL 8-97239-922-3 01 1 0512-0610 ●
1 HEAD ASM; CYL 8-97355-970-9 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.60 1-HOLE 		8-97066-196-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.65 2-HOLE 		8-97066-197-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0611- ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.70 3-HOLE 		8-97066-198-0 01 1 9701-0207 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0208-0511 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0512-0610 ●
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0611- ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-94455-667-0 18 1 9701-9701 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 9702-0207 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0208-0511 ●
3 BOLT; CYL HD TO BLOCK
M11X122 		8-97133-416-1 18 1 0512-0610 ●
3 BOLT; CYL HD TO BLOCK
M11X114 		8-97144-583-2 18 1 0611- ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 9701-0207 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0208-0511 ●
4 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0512-0610 ●
4 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0611- ●
5 SEAT; VLV INSERT
(B) EXHAUST 		8-94130-559-0 04 1 9701-0207 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0208-0511 ●
5 SEAT; VLV INSERT
(B) EXHAUST OD=36.7 		8-97231-229-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(B) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0611- ●
5 SEAT; VLV INSERT
(A) INLET 		8-97083-162-0 04 1 9701-0003 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0004-0207 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97254-813-0 04 1 0208-0404 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0405-0511 ●
5 SEAT; VLV INSERT
(A) INLET OD=42.7 		8-97378-030-0 04 1 0512-0610 ●
5 SEAT; VLV INSERT
(A) INLET ID=29 OD=35 		8-97311-378-0 08 1 0611- ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-1 01 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0208-0503 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0511 ●
7 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(E) OD=18 		5-11219-008-0 13 1 0611- ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		1-09600-011-2 06 1 9701-9905 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 9906-0207 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(C) OD=22 		8-97209-609-0 06 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(A) OD=12.3 		5-09600-013-0 05 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(G) OD=32 		1-09600-012-2 02 1 0611- ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 9701-0207 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0208-0511 ●
7 CUP; SEALING,CYL HEAD
(B) OD=16 		5-11129-006-0 03 1 0512-0610 ●
7 CUP; SEALING,CYL HEAD
(F) OD=14 		5-11219-011-0 07 1 0611- ●
10 PLUG; GLOW
NGK 		8-97043-744-2 04 1 9701-0207 ●
10 PLUG; GLOW 8-94133-759-8 04 1 0208-0511 ●
10 PLUG; GLOW 8-94133-759-9 04 1 0512-0610 ●
10 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0611- ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0303-0511 ●
10 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-97146-518-0 01 1 9701-0207 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0208-0511 ●
11 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0512-0610 ●
11 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0611- ●
39 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0611- ●
91 PIPE; HTR 8-94343-211-1 01 1 0611- ●
123 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0611- ●
143 BOLT; FIX
M8X40 FLANGE 		0-28650-840-0 20 1 0611- ●
155 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0611- ●
172 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 0611- ●
192 NUT; GLOW PLUG
M4 FLANGE 		8-97368-853-0 04 1 0611- ●
224 NUT; COVER
M8 FLANGE 		0-91180-208-0 04 1 0611- ●
225 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 0611- ●
230 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-09639-034-0 04 1 0611- ●
232 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0611- ●
232 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0611- ●
262 COVER; CYL HEAD 8-97355-516-4 01 1 0611- ●
263 BOLT; CYL HD
(A) M8X60 FLANGE 		0-28050-860-0 01 1 0611- ●
263 BOLT; CYL HD
(B) M8X35 FLANGE 		0-28650-835-0 03 1 0611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
