0-05 — ENGINE GASKET KIT (#139002) — 144 parça

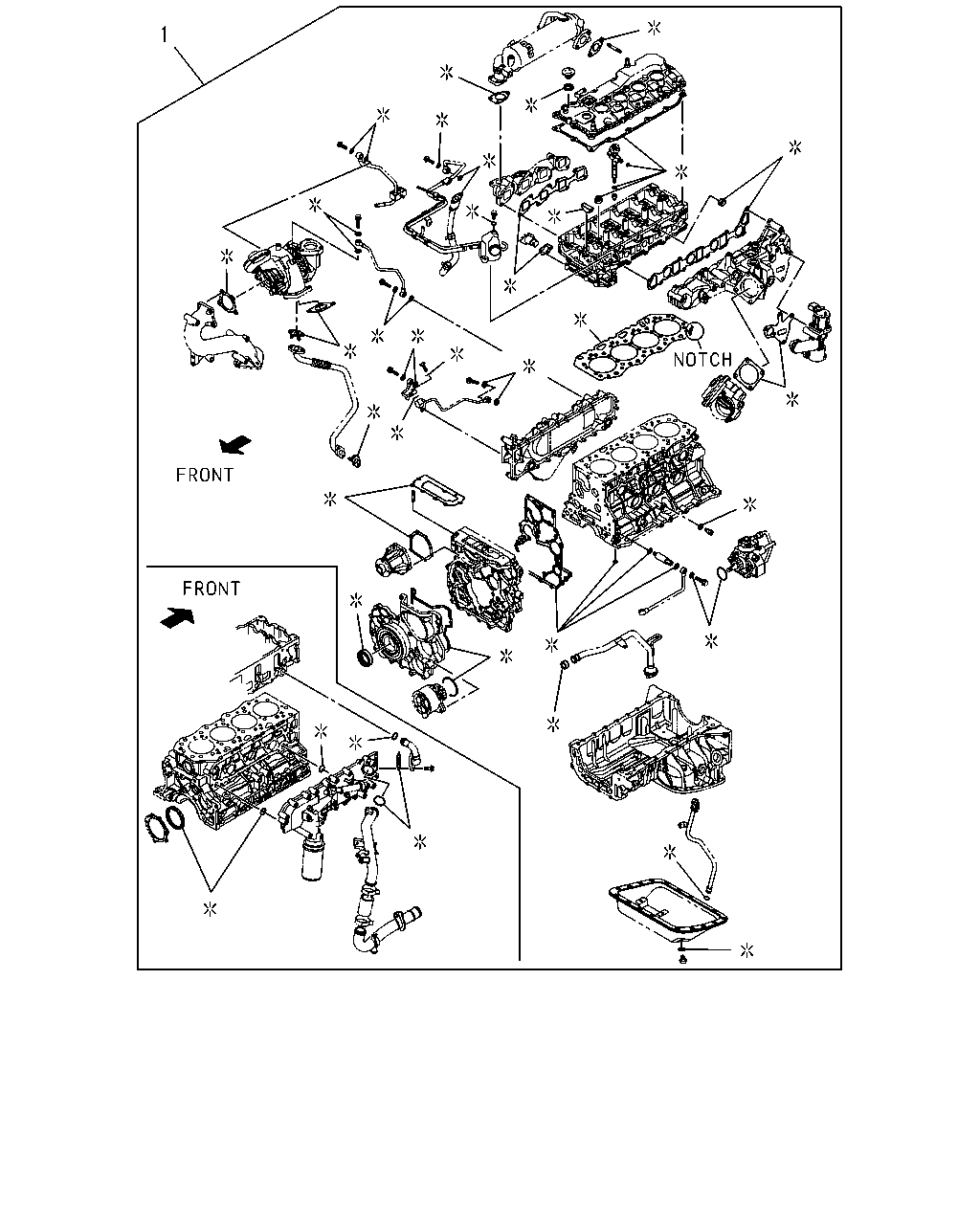

çizim 420645
1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-910-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-562-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-729-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-911-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-563-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-730-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-912-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-564-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-731-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709- ●

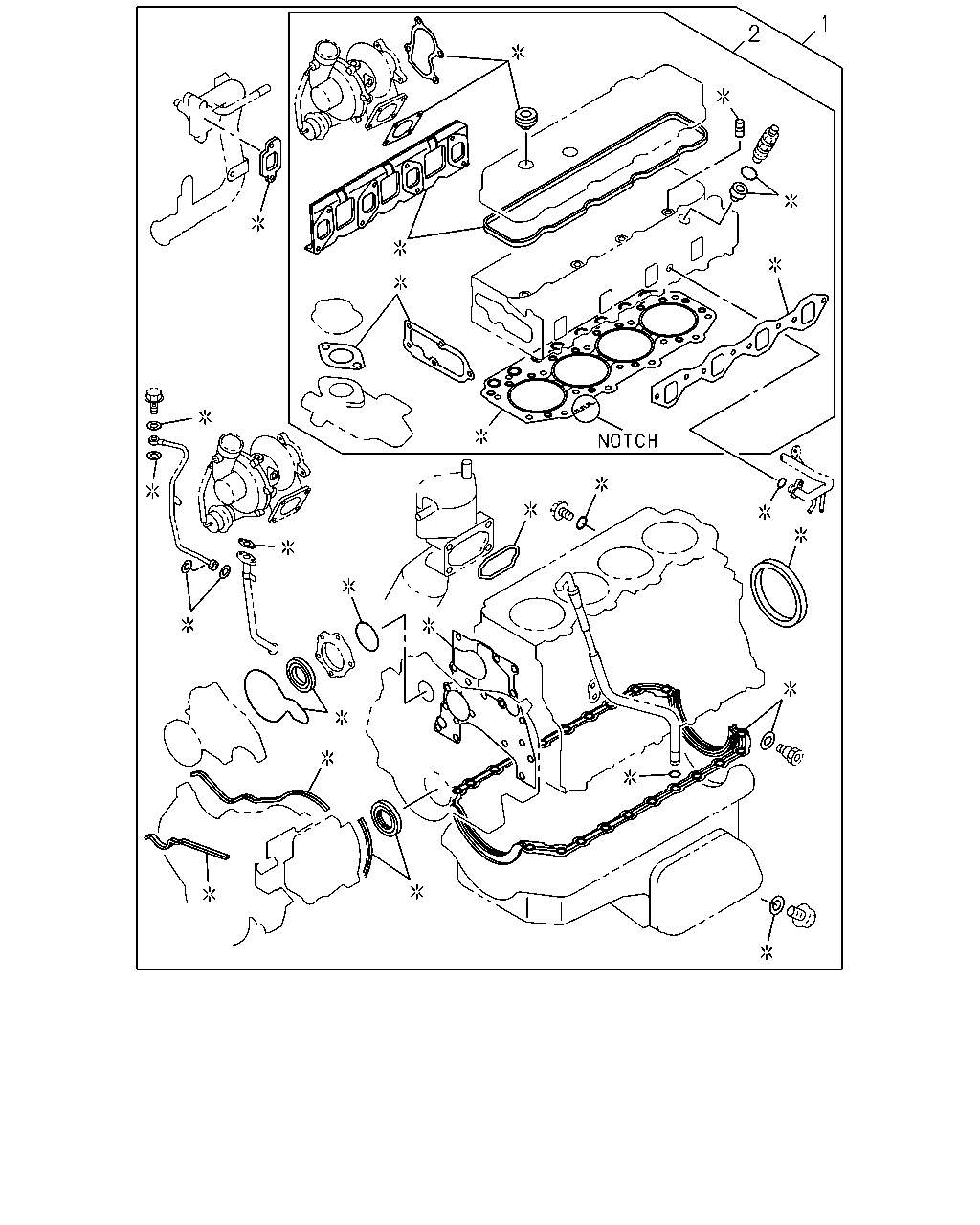

çizim 420716
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-910-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-562-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-729-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-911-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-563-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-730-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-912-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-564-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-731-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-907-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-939-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-908-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-940-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-909-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-941-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703- ●

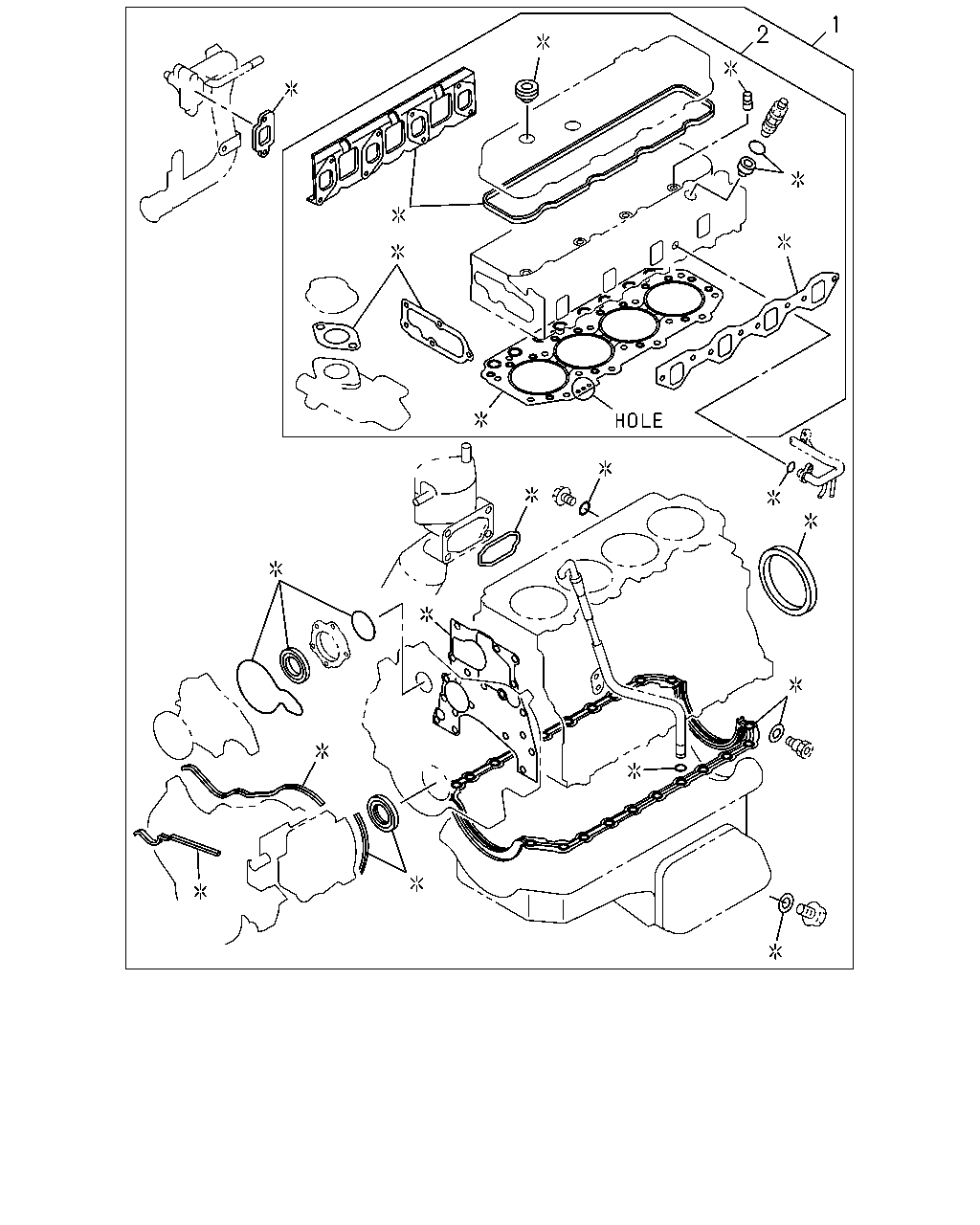

çizim 420726
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87812-910-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-562-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.60 1-HOLE 		5-87813-729-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87812-911-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-563-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.65 2-HOLE 		5-87813-730-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709- ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87812-912-0 01 1 9701-9905 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-564-1 01 1 9906-9906 ●
1 GASKET SET; ENG OVERHAUL
T=1.70 3-HOLE 		5-87813-731-2 01 1 9906-0207 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0208-0402 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0511 ●
1 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0512-0610 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0611-0702 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-907-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-939-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-908-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-940-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-909-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-941-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703- ●

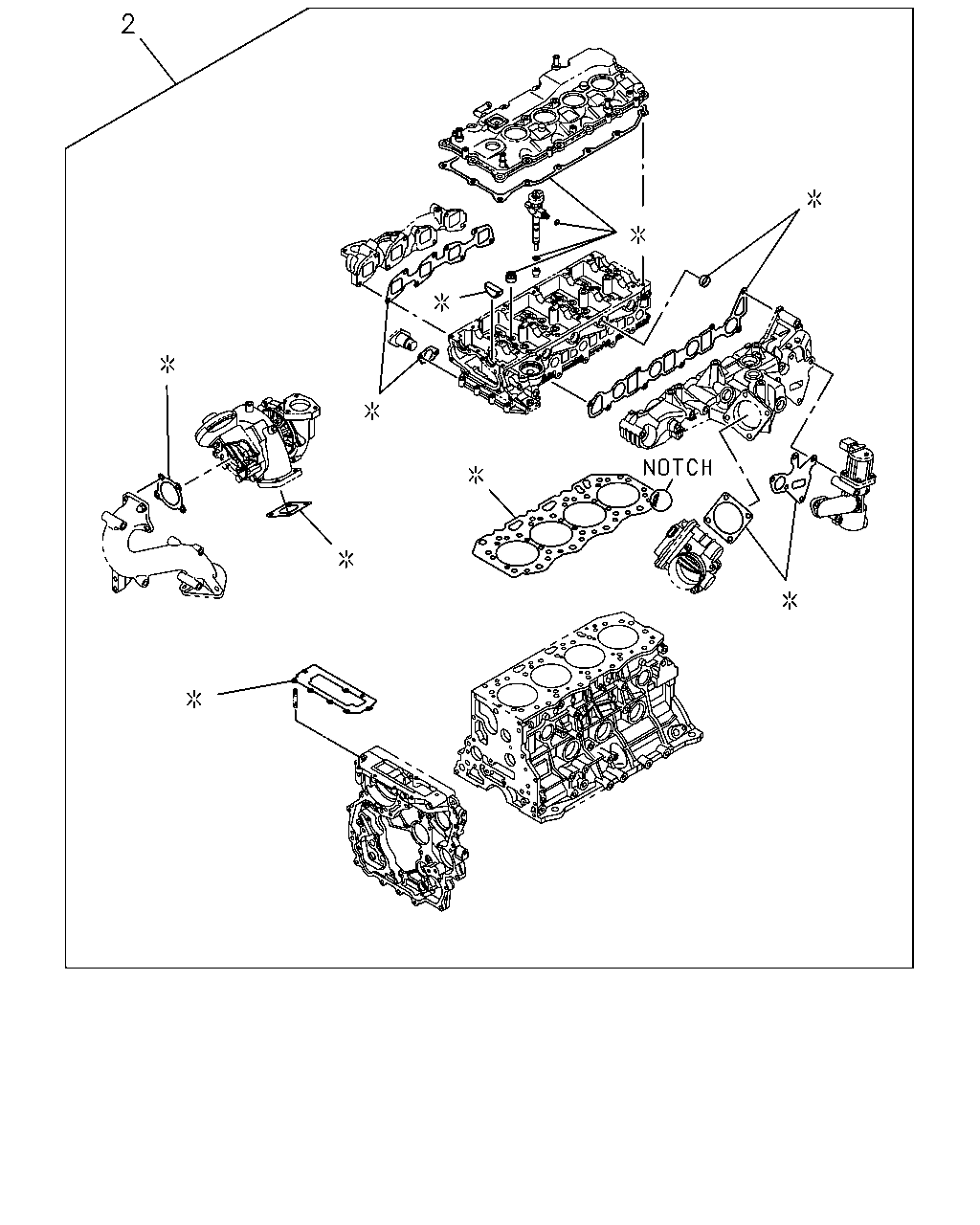

çizim 420749
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-907-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-HOLE 		5-87812-939-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.60 1-NOTCH 		5-87813-694-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-908-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-HOLE 		5-87812-940-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.65 2-NOTCH 		5-87813-695-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703- ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-909-0 01 1 9701-9905 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-HOLE 		5-87812-941-1 01 1 9906-9906 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.70 3-NOTCH 		5-87813-696-1 01 1 9906-0207 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0208-0511 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0512-0610 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0611-0702 ●
2 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
