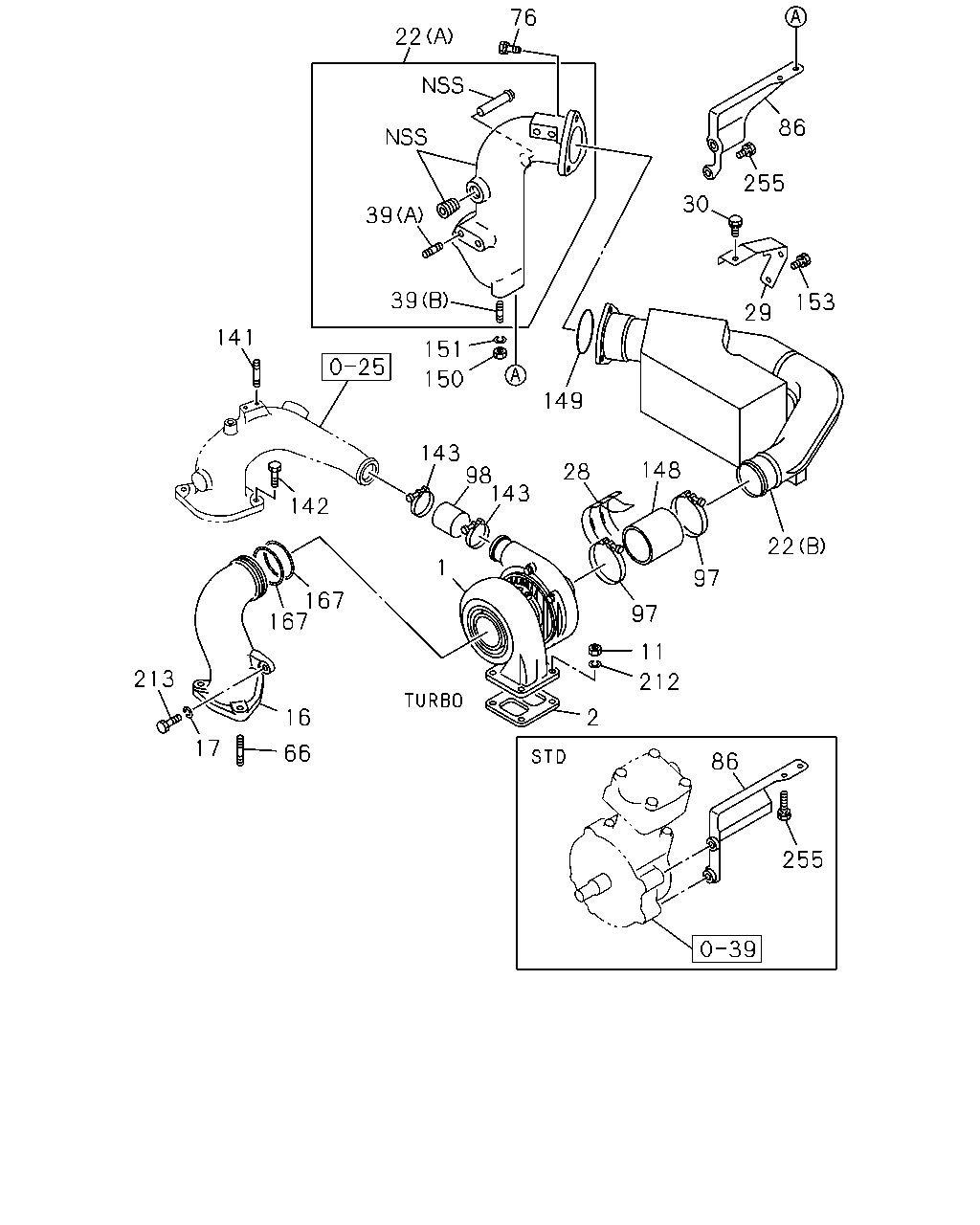

TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT.
|
1-14400-173-1 |
01 |
1 |
9203- |
● |
|
| |
2 |
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14145-140-0 |
01 |
1 |
9203- |
● |
|
| |
11 |
NUT; TURBOCHARGER
H=10
|
1-09420-005-0 |
01 |
1 |
9203- |
● |
|
| |
11 |
NUT; TURBOCHARGER
M10 P=1.5 H=8
|
9-09842-007-0 |
03 |
1 |
9203- |
● |
|
| |
16 |
ADAPTER; EXH PIPE
|
1-14144-450-0 |
01 |
1 |
9203- |
● |
|
| |
17 |
WASHER; PL,ADAPTER
ID=10
|
1-09503-033-1 |
02 |
1 |
9203- |
● |
|
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
(A)
|
1-14110-363-3 |
01 |
1 |
9203- |
● |
|
| |
22 |
DUCT; INL,ACL TO TURBOCHARGER
(B)
|
1-14112-181-2 |
01 |
1 |
9203- |
● |
|
| |
28 |
PROTECTOR; HEAT,HOSE,AIR DUCT
|
1-14181-123-0 |
01 |
1 |
9203- |
● |
|
| |
29 |
BRACKET; INL PIPE,ACL TO TURBOCHARGER
|
1-14119-203-3 |
01 |
1 |
9203- |
● |
|
| |
30 |
BOLT; PIPE TO BRKT
M10X20 W/LK WASHER
|
0-50041-020-0 |
01 |
1 |
9203- |
● |
|
| |
39 |
STUD; AIR DUCT
(A)
M8X14 L=26
|
9-04110-814-0 |
02 |
1 |
9203- |
● |
|
| |
39 |
STUD; AIR DUCT
(B)
M10X20 L=35
|
9-04411-020-0 |
02 |
1 |
9203- |
● |
|
| |
66 |
STUD; EXH PIPE
M12X90 L=110
|
1-09302-035-0 |
03 |
1 |
9203- |
● |
|
| |
76 |
BOLT; AIR DUCT
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
03 |
1 |
9203- |
● |
|
| |
86 |
BRACKET; INL PIPE
|
1-14119-205-2 |
01 |
1 |
9203- |
|
● |
| |
86 |
BRACKET; INL PIPE
|
1-14119-247-1 |
01 |
1 |
9203- |
● |
|
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=80
|
9-09915-589-0 |
02 |
1 |
9203-9411 |
● |
|
| |
97 |
CLIP; HOSE,TURBOCHARGER,INL
ID=77-95
|
1-09707-114-0 |
02 |
1 |
9412- |
● |
|
| |
98 |
HOSE; RUBBER,TURBOCHARGER OUTLET
|
1-09360-782-0 |
01 |
1 |
9203- |
● |
|
| |
141 |
STUD; INL PIPE TO BRKT
M10X18 L=33
|
9-04411-018-0 |
02 |
1 |
9203- |
● |
|
| |
142 |
BOLT; INL COVER TO DUCT
M10X25 W/LK&PL WASHER
|
0-50141-025-0 |
02 |
1 |
9203- |
● |
|
| |
143 |
CLIP; HOSE,TURBOCHARGER OUTLET
|
9-09915-551-1 |
02 |
1 |
9203- |
● |
|
| |
148 |
HOSE; TURBOCHARGER,INL
|
5-09360-846-0 |
01 |
1 |
9203- |
● |
|
| |
149 |
GASKET; AIR DUCT TO INL PIPE
|
9-09561-385-0 |
01 |
1 |
9203- |
● |
|
| |
150 |
NUT; INL DUCT
M10
|
9-09110-410-0 |
02 |
1 |
9203- |
● |
|
| |
151 |
WASHER; LK,AIR DUCT
ID=10.2
|
9-09150-510-0 |
02 |
1 |
9203- |
● |
|
| |
153 |
BOLT; BRKT,INL PIPE
M10X22 W/LK WASHER
|
0-50051-022-0 |
02 |
1 |
9203- |
● |
|
| |
167 |
RING
|
1-14149-040-1 |
02 |
1 |
9203- |
● |
|
| |
212 |
WASHER; PL,TURBOCHARGER
ID=10
|
1-09503-033-1 |
04 |
1 |
9203- |
● |
|
| |
213 |
BOLT; ADAPTER TO EXH MANIF
|
9-09804-206-0 |
02 |
1 |
9203- |
● |
|
| |
255 |
BOLT; INL PIPE
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
01 |
1 |
9203- |
|
● |
| |
255 |
BOLT; INL PIPE
M10X20 W/LK WASHER
|
0-50041-020-0 |
02 |
1 |
9203- |
● |
|
