Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

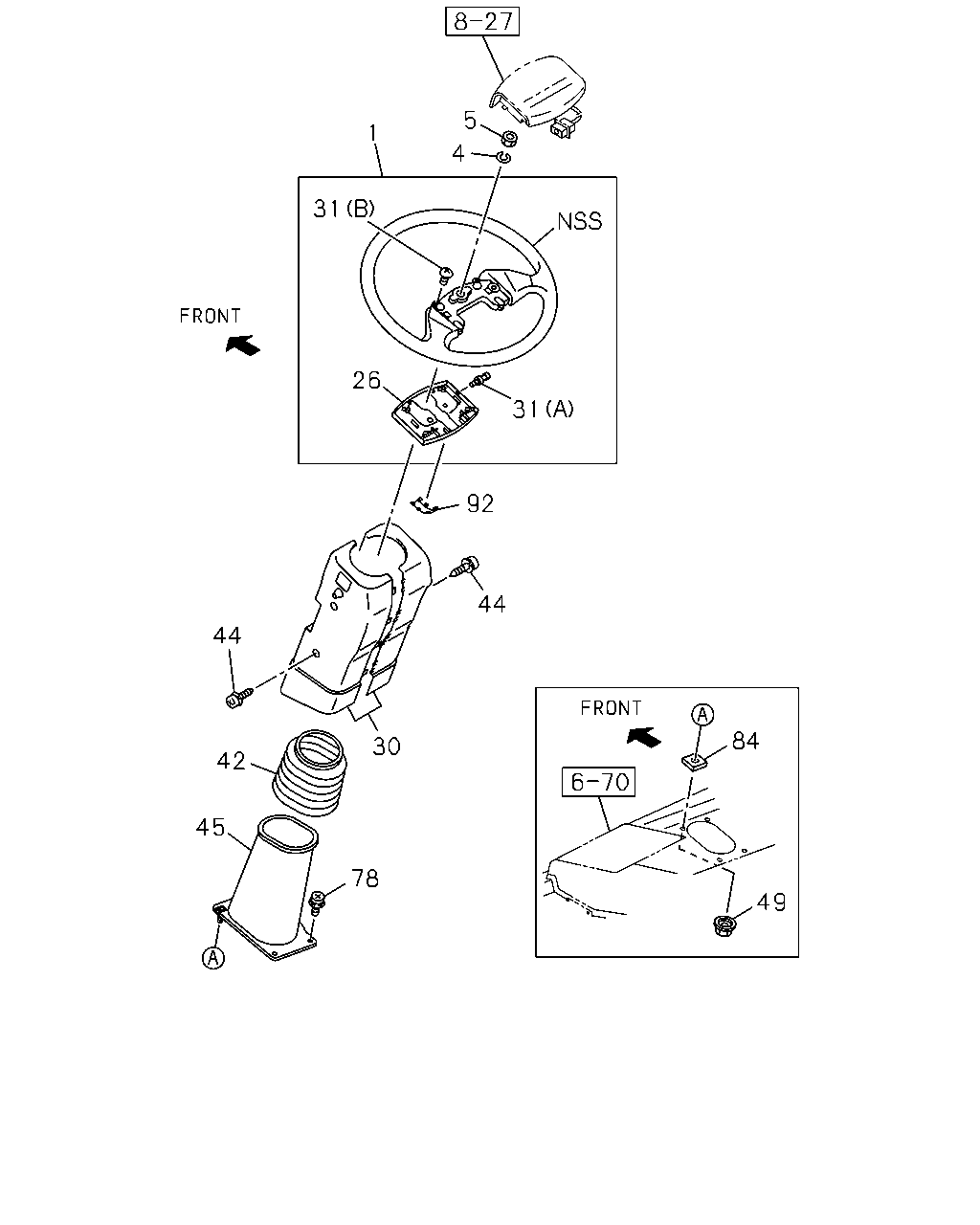

4-30 — STEERING WHEEL AND COWL
(#13893) — 15 parça
84
49
78
30
42
45
44
44
92
26
31
31
4
5
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
WHEEL; STRG
1-44110-167-2
01
1
0710-
4
WASHER; LK,STRG WHEEL
ID=20.2
0-91510-520-0
01
1
0710-
5
NUT; STRG WHEEL TO SHAFT
M20
0-91111-520-0
01
1
0710-
26
COVER; STRG WHEEL,LWR
1-44129-057-1
01
1
0710-
30
COWL; STEERING
1-79907-142-2
01
1
0710-
31
SCREW; BOSS TO COVER
(A)
1-09169-005-0
02
1
0710-
31
SCREW; BOSS TO COVER
(B) M4X14 TAPPING
9-07066-414-0
04
1
0710-
42
BOOT; STEERING COLUMN
1-79996-385-1
01
1
0710-
44
SCREW; STRG COWL
M6X12
8-97094-854-0
04
1
0710-
45
BOOT; STRG SHAFT
1-79998-738-2
01
1
0710-
49
NUT; BOOT,STRG SHAFT
M6 FLANGE
1-09984-141-0
02
1
0710-1205
49
NUT; BOOT,STRG SHAFT
M6 FLANGE W/RUBBER
1-09984-180-0
02
1
1206-
78
BOLT; STRG
M6X28 W/LK&PL WASHER
1-09980-543-0
02
1
0710-
84
SEAL; WATER
25X25
8-94272-533-0
02
1
0710-1205
92
LID; WHEEL COVER
1-44119-001-1
01
1
0710-
