◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#13887) — 74 parça

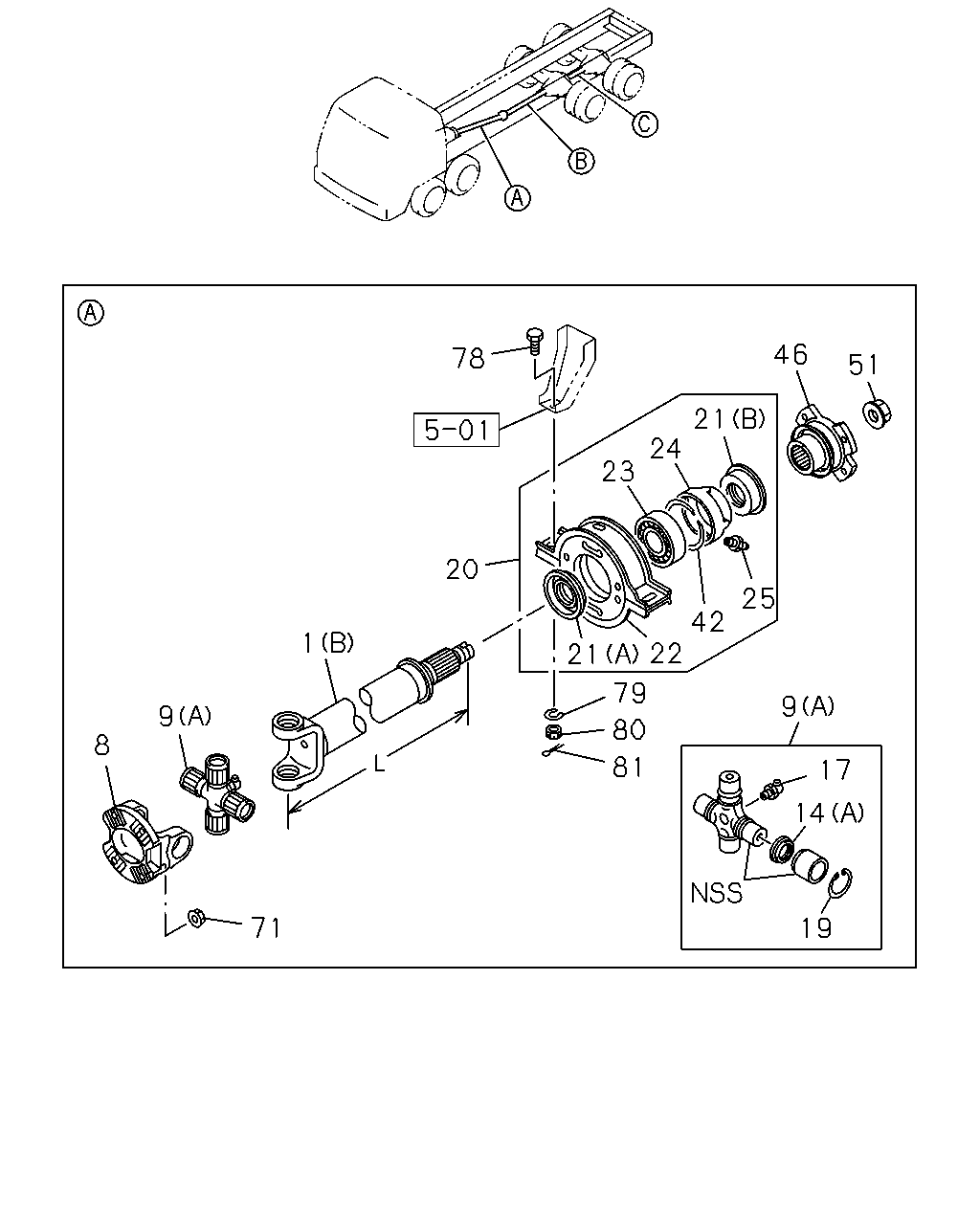

çizim 93527
71 8 1 9 81 80 79 19 14 17 9 22 42 25 20 23 24 21 46 51 78 21
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1685 		1-37125-401-0 01 1 0710-
1 SHAFT; PROP
(B) L=799 		1-37153-640-0 01 1 0710-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0710-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0710-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0710-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0710-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0710-
20 BEARING ASM; CTR,PROP SHAFT
ID=65 		1-37510-116-0 01 1 0710-
21 SEAL; OIL,CENTER BRG
(A) OD=114 		1-09625-222-1 01 1 0710-
21 SEAL; OIL,CENTER BRG
(B) OD=106 		1-09625-622-0 01 1 0710-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-056-0 01 1 0710-
23 BEARING; CENTER,PROP SHAFT 1-09800-210-0 01 1 0710-
24 RETAINER; CENTER BRG,1ST 1-37529-110-0 01 1 0710-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0710-
42 RING; SNAP,CTR BRG 1-09587-085-0 01 1 0710-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-349-0 01 1 0710-
51 NUT; FLANGE,SPLINED
M45 FLAMGE 		1-09449-040-0 01 1 0710-
71 NUT; YOKE
M14 FLANGE 		1-09440-048-0 04 1 0710-0805
71 NUT; YOKE
M14 FLANGE 		8-97365-444-0 04 1 0806-
78 BOLT; HOLDER SET,CENTER BRG,1ST PROP
M16X45 		1-09042-030-0 02 1 0710-
79 WASHER; PL,HOLDER SET,CENTER BRG
ID=17 		1-09503-241-1 02 1 0710-
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		0-91116-516-0 02 1 0710-1204
80 NUT; HOLDER SET,CENTER BRG,1ST PROP
M16 SLOTTED 		8-98049-689-0 02 1 1205-
81 PIN; SPLIT,HOLDER SET,CENTER BRG
OD=3.7 L=25 		0-81124-025-0 02 1 0710-

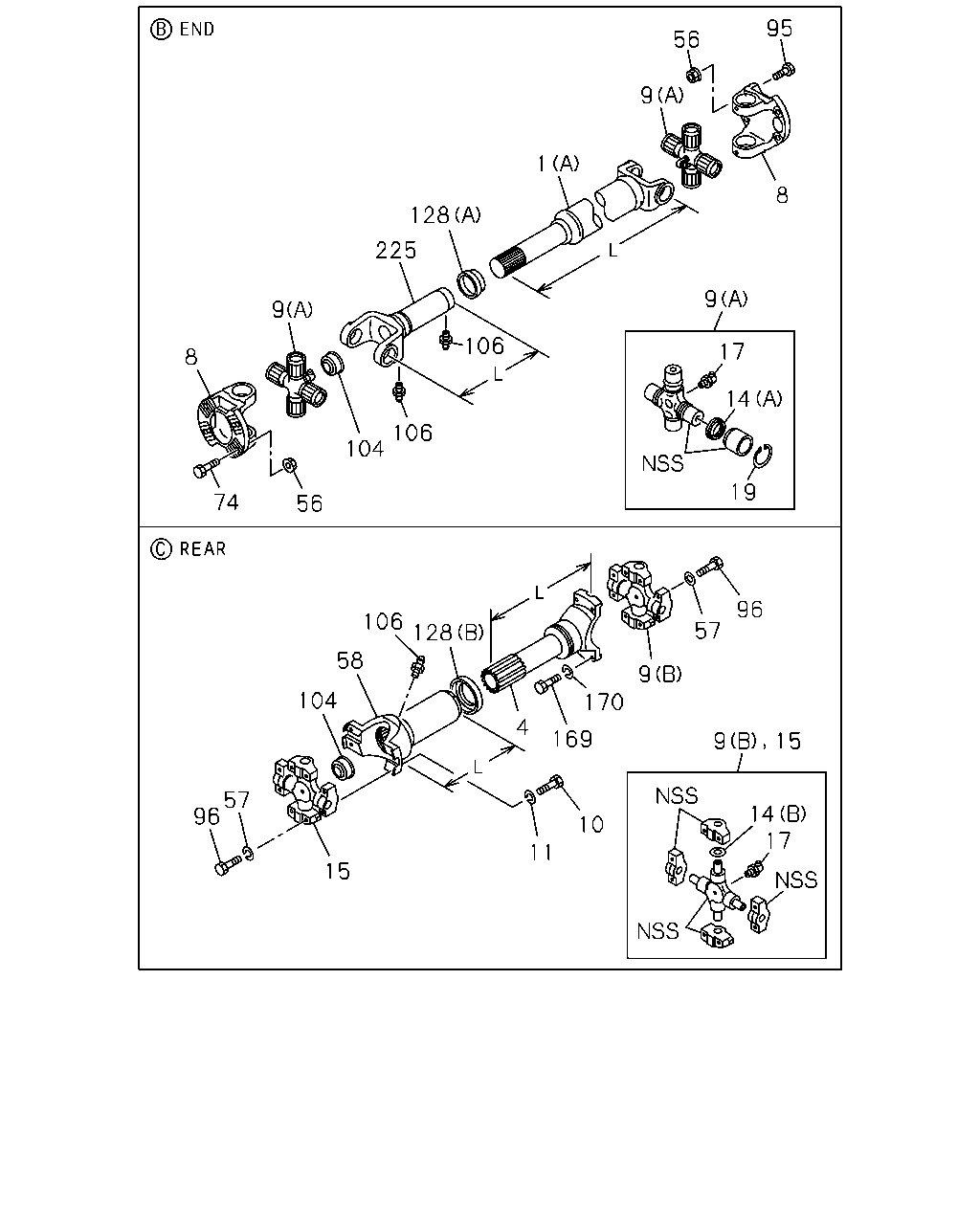

çizim 106704
95 56 9 1 128 225 9 8 74 56 104 106 106 9 17 14 19 96 57 104 58 106 128 15 11 10 169 4 170 9 57 96 9 15 14 17 8
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1685 		1-37125-401-0 01 1 0710-
1 SHAFT; PROP
(B) L=799 		1-37153-640-0 01 1 0710-
4 SHAFT; PROP
L=406 		1-37171-157-2 01 1 0710-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 01 1 0710-
8 YOKE; FLANGE,PROP SHAFT 1-37211-084-0 02 1 0710-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-100-1 01 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 01 1 0710-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-112-0 02 1 0710-
10 BOLT; UJT
M12X45 		9-91066-245-0 04 1 0710-0805
10 BOLT; UJT
M12X45 		8-98036-382-0 04 1 0806-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 		0-91510-612-0 04 1 0710-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 04 1 0710-
14 COVER; DUST,SPIDER
(A) 		1-37249-133-0 08 1 0710-
14 COVER; DUST,SPIDER
(B) 		1-37319-004-0 08 1 0710-
15 UNIVERSAL CENTER 1-37300-100-1 01 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 04 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.2 		1-09587-103-1 08 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 04 1 0710-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
T=2.17 		1-09587-107-0 08 1 0710-
56 NUT; YOKE
M14 FLANGE 		1-09440-048-0 08 1 0710-0805
56 NUT; YOKE
M14 FLANGE 		8-97365-444-0 08 1 0806-
57 WASHER; LK,YOKE
ID=12.2 		0-91510-612-0 08 1 0710-
58 FLANGE; SPLINED
L=265 		1-37245-317-0 01 1 0710-
74 BOLT; YOKE,TRANS
M14X50 		1-09000-645-0 04 1 0710-
95 BOLT; YOKE,FINAL
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M14X50 		1-09000-645-0 04 1 0710-
96 BOLT; PROP SHAFT
M12X45 		9-91066-245-0 08 1 0710-0805
96 BOLT; PROP SHAFT
M12X45 		8-98036-382-0 08 1 0806-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0710-
104 PLUG; SLEEVE YOKE 1-09600-049-0 01 1 0710-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0710-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710-
128 SEAL; SLEEVE
(A) 		1-37247-020-0 01 1 0710-
128 SEAL; SLEEVE
(B) 		8-97603-618-0 01 1 0710-
169 BOLT; YOKE,SLEEVE
M12X45 		9-91066-245-0 04 1 0710-0805
169 BOLT; YOKE,SLEEVE
M12X45 		8-98036-382-0 04 1 0806-
170 WASHER; LK,YOKE,SLEEVE
ID=12.2 		0-91510-612-0 04 1 0710-
225 YOKE; SLEEVE,PROP SHAFT
L=339 		1-37241-140-0 01 1 0710-
