3-80 — BRAKE PIPING; TRAILER
(#13885) — 26 parça
◀

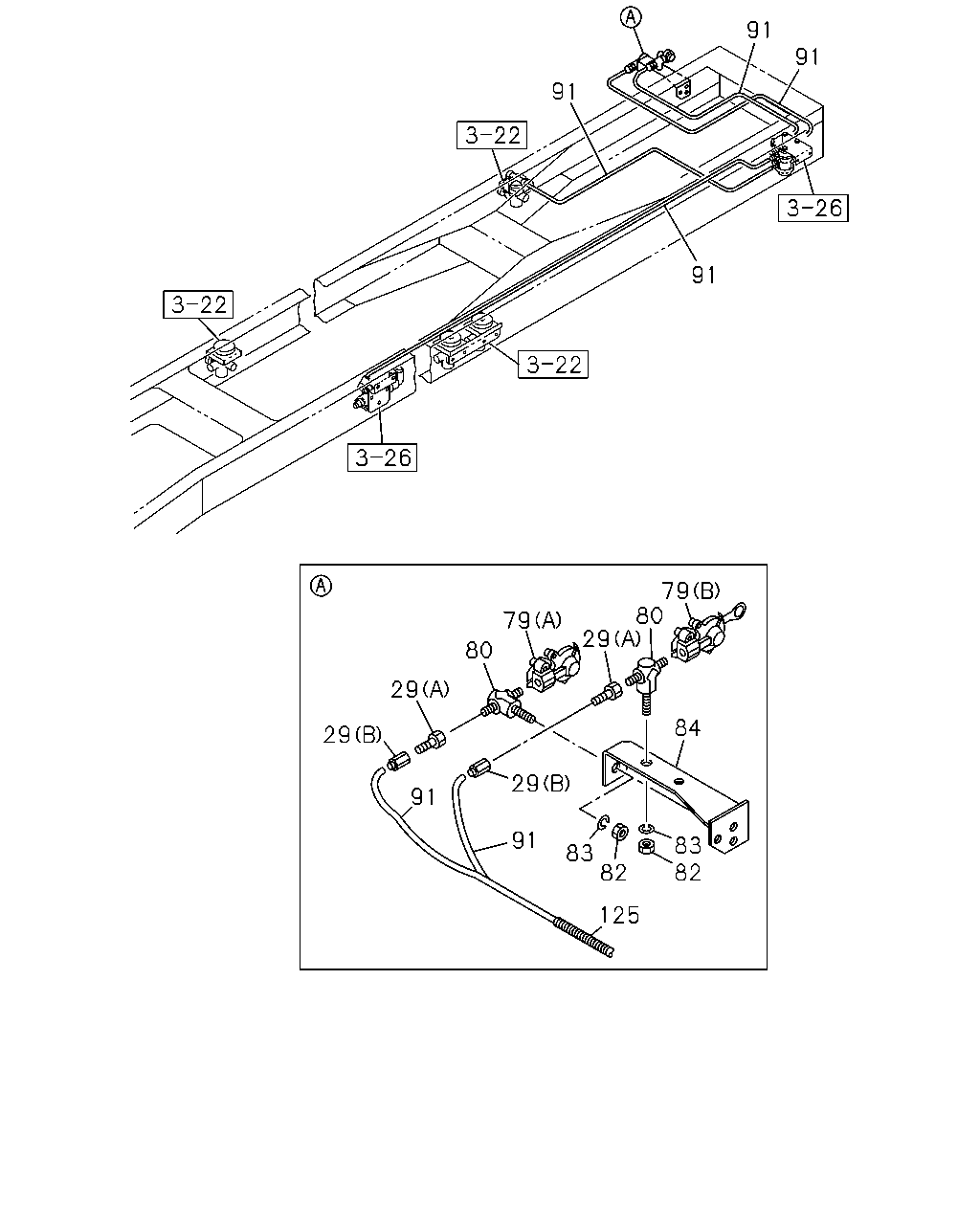

[380A] FRAME SIDE (13 parça)

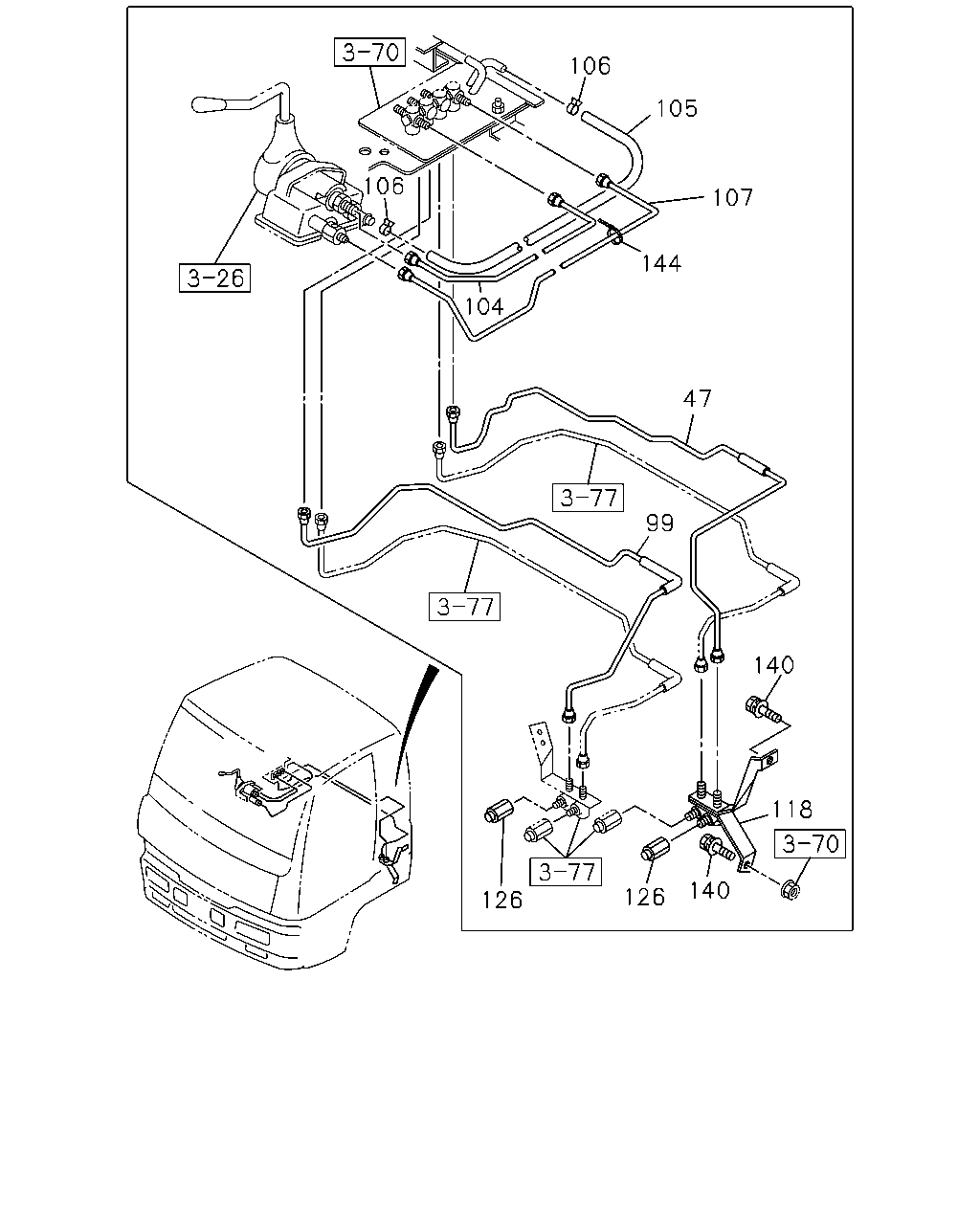

[380A] CAB SIDE (13 parça)
▶
125
82
83
82
83
84
91
29
91
29
29
80
79
29
80
79
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CONNECTOR; COCK
(A)
1-09650-222-1
02
1
0710-
29
CONNECTOR; COCK
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0710-
79
COUPLING; AIR,TRAILER
(A) RED
1-47478-466-1
01
1
0710-
79
COUPLING; AIR,TRAILER
(B) YELLOW
1-47478-467-1
01
1
0710-
80
NIPPLE; AIR COUPLING
1-09656-377-1
02
1
0710-
82
NUT; LK,CONNECTOR
M16
0-91111-516-0
02
1
0710-
83
WASHER; LK,CONNECTOR
ID=16.2
0-91510-516-0
02
1
0710-
84
BRACKET; COUPLER
1-47465-883-1
01
1
0710-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0710-
91
TUBE; NYLON
SERVICED BY L=6000 OD=8
1-87411-008-0
AR
1
0710-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0710-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0710-
126
126
140
118
140
99
47
104
144
107
105
106
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
47
PIPE; AIR,UNION TO UNION
L=1910 SERVICED BY L=1950
1-47428-854-0
01
1
0710-
99
PIPE; AIR,JOINT TO JOINT
1-49122-057-1
01
1
0710-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49121-477-0
01
1
0710-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000
9-09914-701-0
01
1
0710-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0710-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-47495-160-0
01
1
0710-
118
JOINT; AIR PIPE
1-47470-608-1
01
1
0710-
126
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0901-
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
0710-0812
126
CONNECTOR; NYLON TUBE
DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0901-
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0710-0904
140
BOLT; UNION
M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
144
CLIP; BAND
L=140
5-09707-031-1
01
1
0710-
