◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#13884) — 287 parça

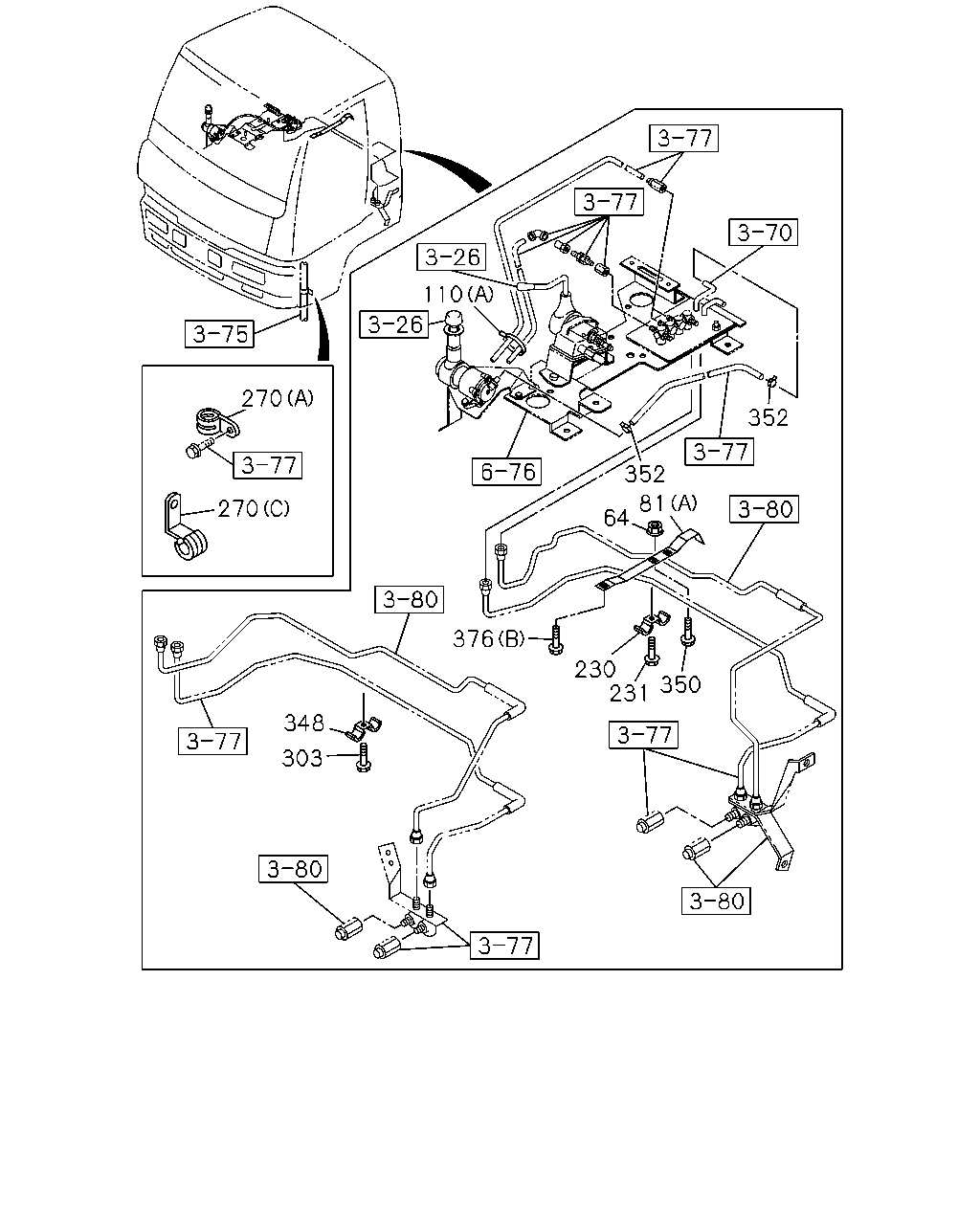

çizim 92910
270 270 110 352 352 81 64 348 303 376 230 231 350
BalonParca AdiParca NoAdetTipApplied Date
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 01 1 0806-
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(D) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
(G) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0710-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0710-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0710-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 02 1 0710-
350 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0710-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-

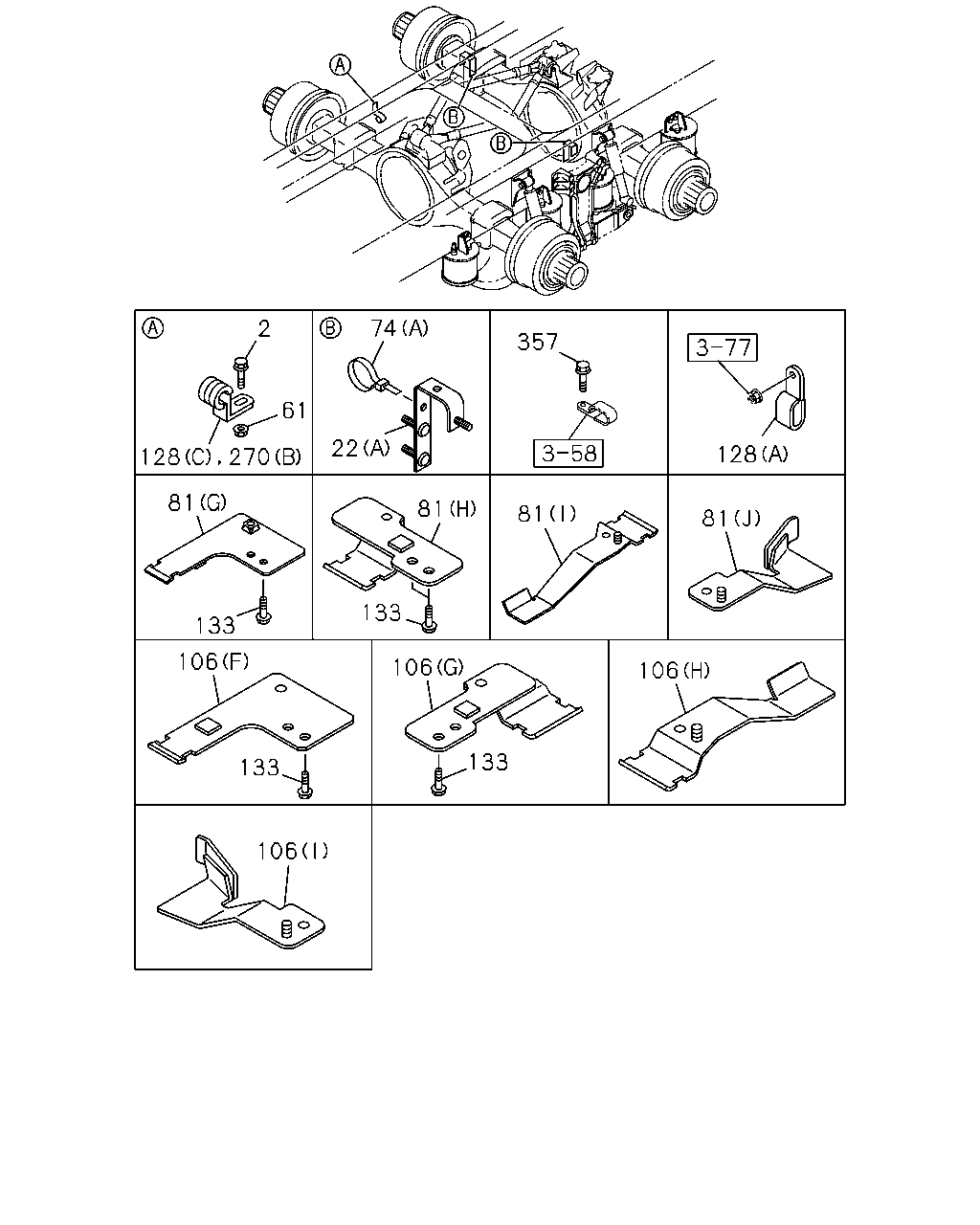

çizim 93194
74 2 357 61 22 128 81 81 81 81 133 133 106 106 106 133 133 106
BalonParca AdiParca NoAdetTipApplied Date
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
22 BRACKET; CLIP
(F) L=160 H=30 		1-47479-759-0 04 1 0710-
22 BRACKET; CLIP
(J) 		1-47479-800-0 01 1 0710-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0710-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0710-
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0710-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0710-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0710-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0710-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0710-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0710-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0710-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0710-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 01 1 0806-
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(D) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
(G) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0710-
106 BRACKET; TUBE CLIP
(G) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
(H) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
(I) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
106 BRACKET; TUBE CLIP
(F) 		8-98052-408-0 01 1 0806-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0710-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 03 1 0710-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0710-
128 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806-
357 BOLT; CLIP FIX
M8X10 FLANGE 		0-28050-810-0 02 1 0710-

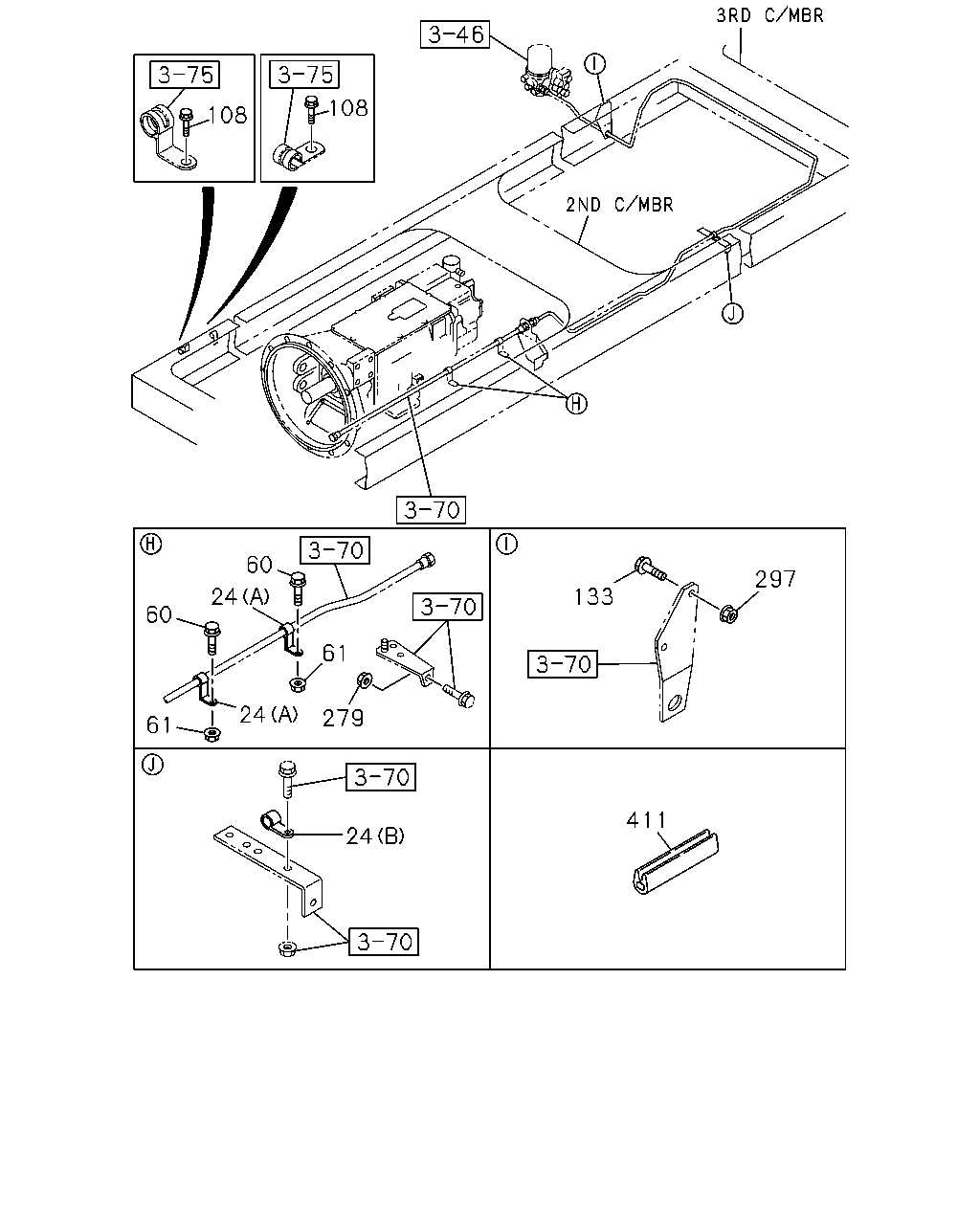

çizim 93538
108 108 60 24 61 279 24 60 61 24 411 133 297
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
(B) ID=19 L=20 		0-95235-836-0 01 1 0710-
24 CLIP; PIPE
(A) ID=25 H=30 L=35 		1-09700-875-0 02 1 0710-
60 BOLT; CLIP FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
60 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
61 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 10 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710-
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 10 1 0710-0805
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 08 1 0806-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
411 SLEEVE; RUBBER
L=60 		8-97865-346-0 01 1 0710-

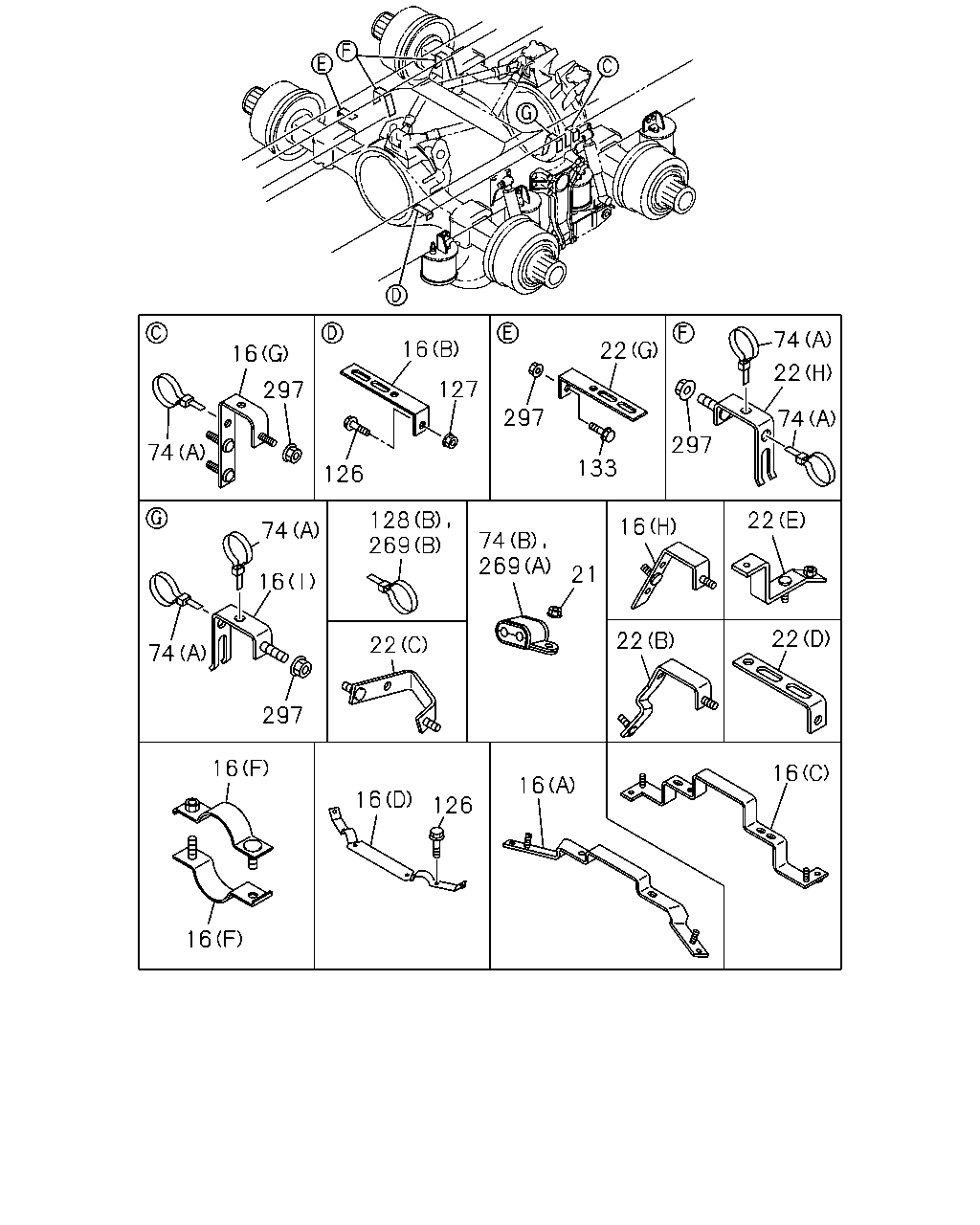

çizim 94626
16 74 297 126 127 16 297 133 22 74 22 74 297 74 16 74 297 128 269 22 74 269 21 16 22 22 22 16 16 16 126 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0710-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0710-1002
16 BRACKET; PIPE CLIP
(B) L=30 		1-47479-481-0 01 1 1003-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0710-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0710-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 15 1 0710-
16 BRACKET; PIPE CLIP
(E) 		1-47479-693-0 03 1 0710-
16 BRACKET; PIPE CLIP
(L) 		1-47479-800-0 01 1 0710-
16 BRACKET; PIPE CLIP
(H) 		1-47479-837-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47479-846-0 01 1 0710-
16 BRACKET; PIPE CLIP
(A) 		1-47479-896-0 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0710-
22 BRACKET; CLIP
(F) L=160 H=30 		1-47479-759-0 04 1 0710-
22 BRACKET; CLIP
(J) 		1-47479-800-0 01 1 0710-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0710-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0710-
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0710-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0710-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0710-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0710-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0710-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0710-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0710-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
126 BOLT; CLIP BRKT
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
126 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
126 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
127 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 27 1 0710-
128 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 36 1 0710-
128 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 01 1 0710-
128 CLIP; NYLON TUBE
(A) ID=18 L=28 		1-09701-067-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
269 CLIP; BAND,NYLON TUBE
(A) ID=11X2 L=42 		1-09701-306-0 04 1 0710-
269 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 04 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-

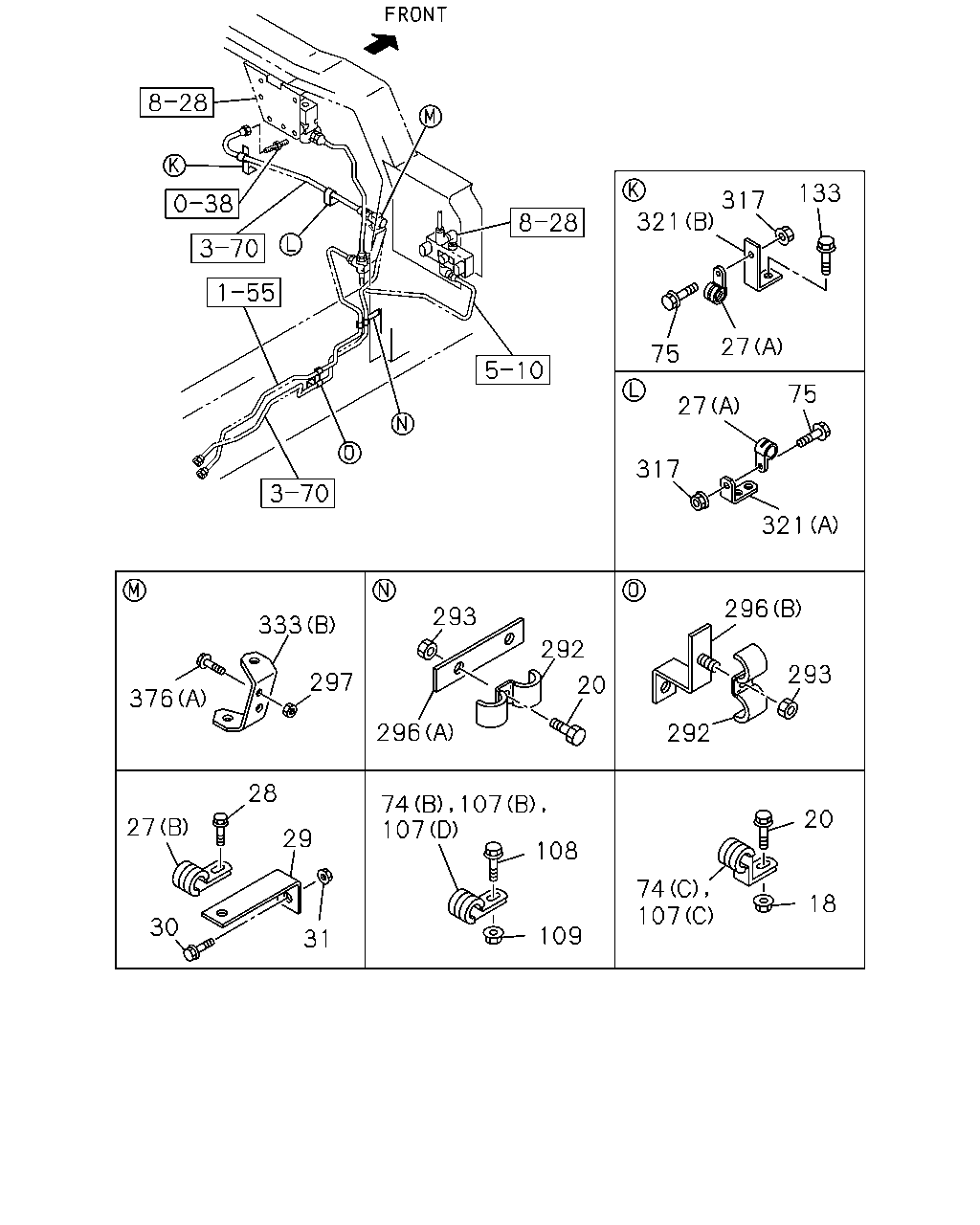

çizim 94655
321 317 133 75 27 75 27 317 321 333 297 376 293 292 20 292 293 296 27 28 29 31 30 74 107 107 108 109 107 74 18 20 296
BalonParca AdiParca NoAdetTipApplied Date
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
20 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-
27 CLIP; FLEX HOSE
(B) ID=26 L=27 		1-09701-006-0 01 1 0710-
27 CLIP; FLEX HOSE
(A) ID=15 L=28 		1-09701-216-0 02 1 0710-
28 BOLT; CLIP,FLEX HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
29 BRACKET; CLIP,AIR PIPE
L=145 B=25 		1-47479-123-0 01 1 0710-
30 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
31 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
74 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 39 1 0710-
74 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09700-947-0 02 1 0710-
74 CLIP; NYLON TUBE
(B) ID=11X2 L=42 		1-09701-306-0 03 1 0710-
74 CLIP; NYLON TUBE
(C) ID=45 H=31 L=35 		1-09701-308-0 01 1 0710-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0710-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0710-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 10 1 0710-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 05 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 02 1 0710-
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
296 BRACKET; CLIP
(A) 		1-47475-648-0 01 1 0710-
296 BRACKET; CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 23 1 0710-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0710-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0710-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-
376 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
376 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-

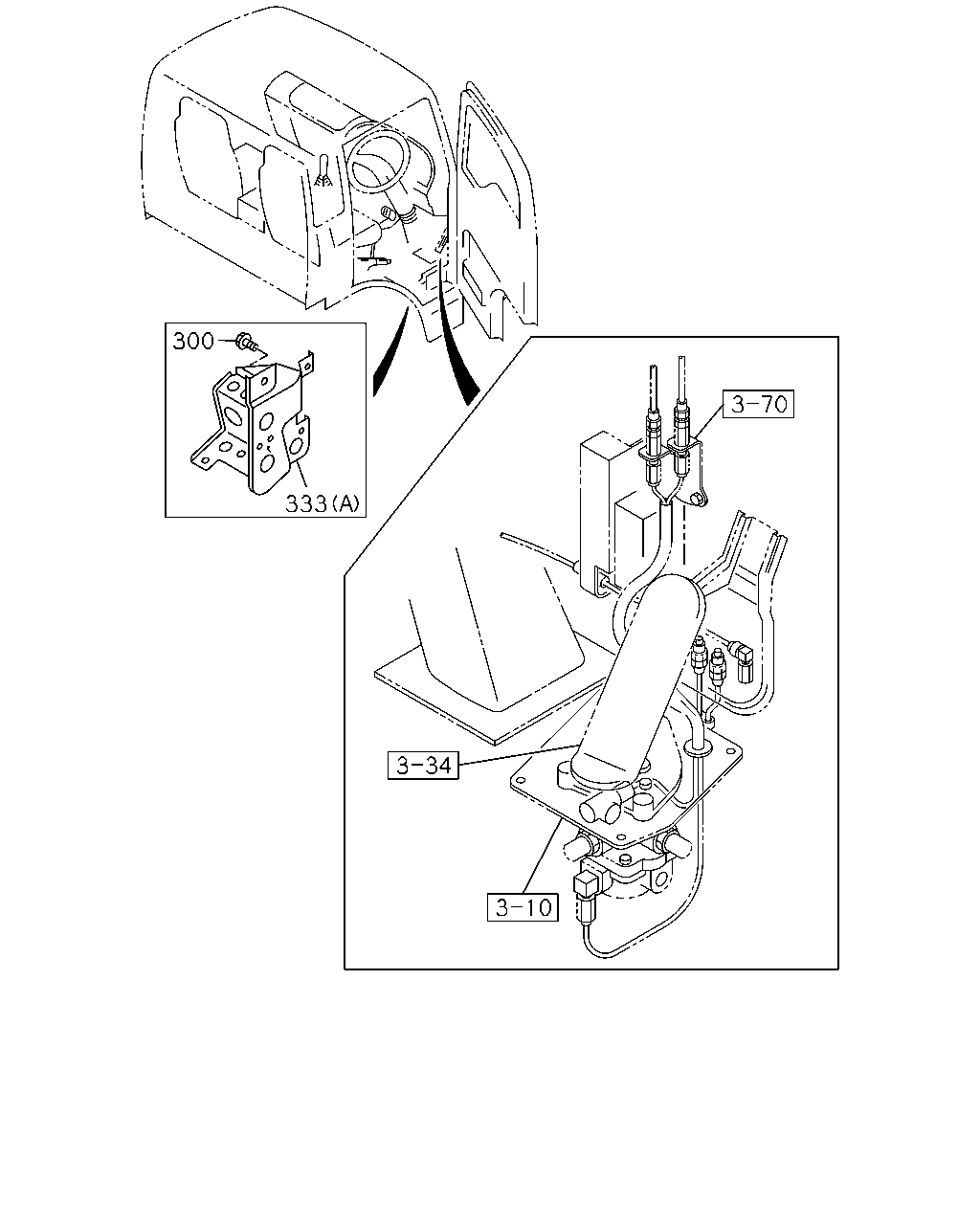

çizim 106683
333 300
BalonParca AdiParca NoAdetTipApplied Date
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0710-0904
300 BOLT; TUBE CLIP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 03 1 0905-
333 BRACKET; BRK AIR PIPE
(B) 		1-47477-045-0 01 1 0710-
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-131-0 01 1 0710-0801
333 BRACKET; BRK AIR PIPE
(A) 		1-79907-150-0 01 1 0802-

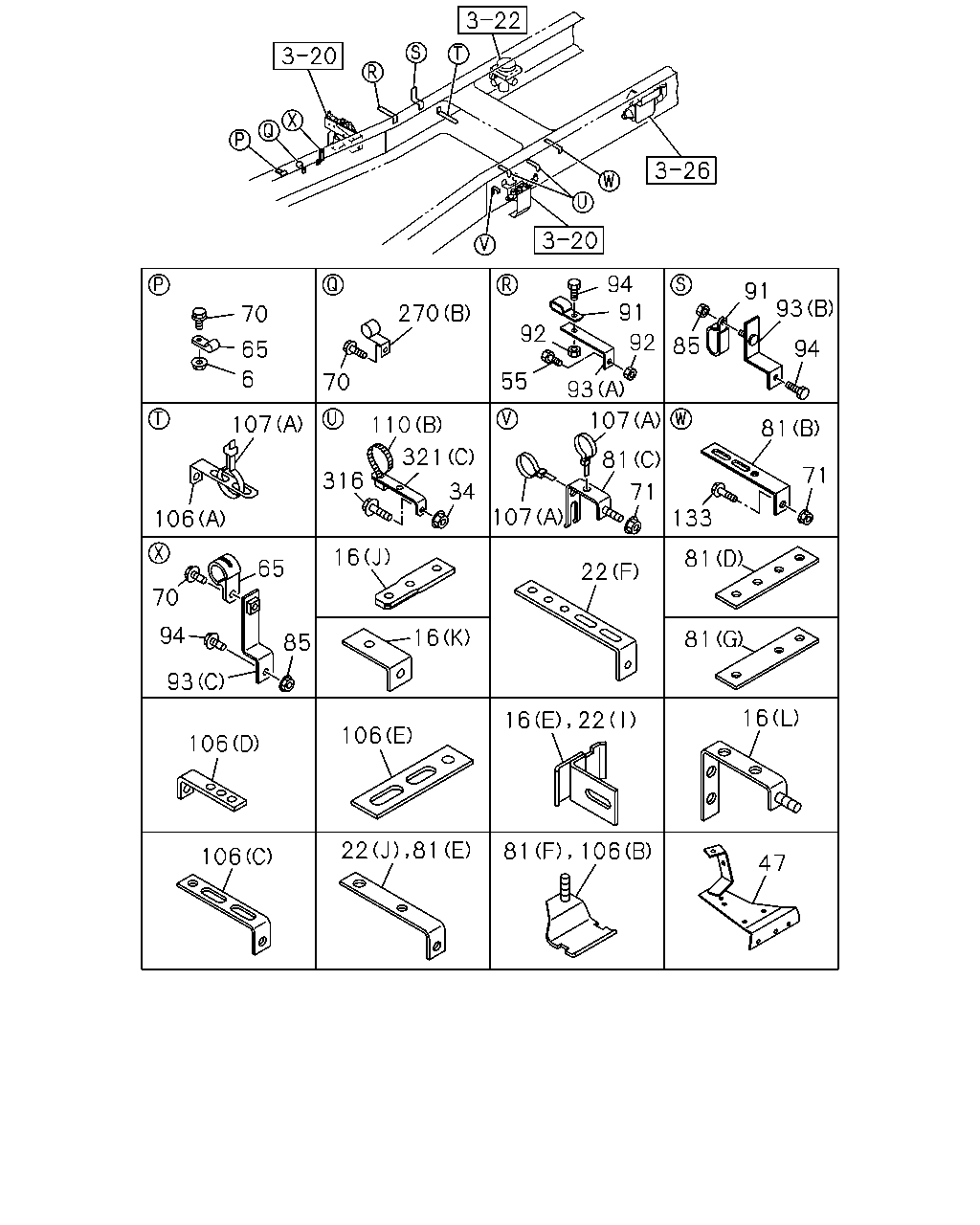

çizim 106687
94 91 91 93 270 70 92 92 85 94 65 6 55 70 93 107 107 110 81 321 81 71 316 34 71 107 133 106 16 81 65 22 70 94 16 81 85 93 16 106 106 81 106 106 47 16 22 22 81
BalonParca AdiParca NoAdetTipApplied Date
6 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0710-
16 BRACKET; PIPE CLIP
(J) L=100 		1-47477-620-1 01 1 0710-
16 BRACKET; PIPE CLIP
(B) L=100 H=30 		1-47477-645-2 01 1 0710-1002
16 BRACKET; PIPE CLIP
(B) L=30 		1-47479-481-0 01 1 1003-
16 BRACKET; PIPE CLIP
(K) L=65 		1-47477-713-0 01 1 0710-
16 BRACKET; PIPE CLIP
(G) 		1-47479-329-0 02 1 0710-
16 BRACKET; PIPE CLIP
(I) 		1-47479-381-2 15 1 0710-
16 BRACKET; PIPE CLIP
(E) 		1-47479-693-0 03 1 0710-
16 BRACKET; PIPE CLIP
(L) 		1-47479-800-0 01 1 0710-
16 BRACKET; PIPE CLIP
(H) 		1-47479-837-0 01 1 0710-
16 BRACKET; PIPE CLIP
(F) 		1-47479-845-0 02 1 0710-
16 BRACKET; PIPE CLIP
(D) 		1-47479-846-0 01 1 0710-
16 BRACKET; PIPE CLIP
(A) 		1-47479-896-0 01 1 0710-
16 BRACKET; PIPE CLIP
(C) 		1-47479-898-0 01 1 0710-
22 BRACKET; CLIP
(F) L=160 H=30 		1-47479-759-0 04 1 0710-
22 BRACKET; CLIP
(J) 		1-47479-800-0 01 1 0710-
22 BRACKET; CLIP
(G) L=100 H=30 		1-47477-645-2 01 1 0710-
22 BRACKET; CLIP
(A) 		1-47479-329-0 02 1 0710-
22 BRACKET; CLIP
(H) 		1-47479-381-2 09 1 0710-
22 BRACKET; CLIP
(I) 		1-47479-693-0 03 1 0710-
22 BRACKET; CLIP
(E) 		1-47479-746-1 01 1 0710-
22 BRACKET; CLIP
(D) 		1-47479-754-0 01 1 0710-
22 BRACKET; CLIP
(B) 		1-47479-836-0 01 1 0710-
22 BRACKET; CLIP
(C) 		1-47479-838-0 01 1 0710-
34 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0710-
47 BRACKET; PIPE CLIP 1-47479-325-0 01 1 0710-
55 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
65 CLIP; AIR PIPE
ID=13 L=20 		0-95235-235-0 02 1 0710-
70 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
70 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0710-0805
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 07 1 0806-
81 BRACKET; CLIP
(H) 		8-98052-413-0 01 1 0806-
81 BRACKET; CLIP
(I) 		8-98052-414-0 01 1 0806-
81 BRACKET; CLIP
(J) 		8-98052-415-0 01 1 0806-
81 BRACKET; CLIP
(C) 		1-47479-381-2 02 1 0710-0805
81 BRACKET; CLIP
(C) 		1-47479-381-2 01 1 0806-
81 BRACKET; CLIP
(F) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
81 BRACKET; CLIP
(G) 		8-98052-412-0 01 1 0806-
81 BRACKET; CLIP
(D) 		1-47471-322-0 02 1 0710-0805
81 BRACKET; CLIP
(G) L=130 		1-47478-959-0 02 1 0806-
81 BRACKET; CLIP
(A) 		1-47477-483-0 01 1 0710-
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 02 1 0710-0805
81 BRACKET; CLIP
(B) L=100 H=30 		1-47477-645-2 04 1 0806-
81 BRACKET; CLIP
(E) L=30 		1-47479-481-0 01 1 0710-
85 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0710-
91 CLIP; AIR PIPE
ID=13X2 L=20 		0-95325-236-0 02 1 0710-
92 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
93 BRACKET; PIPE CLIP
(B) L=85 H=40 		1-47476-676-0 01 1 0710-
93 BRACKET; PIPE CLIP
(A) L=175 H=30 		1-47479-386-1 01 1 0710-
93 BRACKET; PIPE CLIP
(C) L=80 H=20 		1-82699-304-0 01 1 0710-
94 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0710-
106 BRACKET; TUBE CLIP
(G) 		8-98052-409-0 01 1 0806-
106 BRACKET; TUBE CLIP
(H) 		8-98052-410-0 01 1 0806-
106 BRACKET; TUBE CLIP
(I) 		8-98052-411-0 01 1 0806-
106 BRACKET; TUBE CLIP
(B) W/STUD M8X20 		1-47471-209-0 02 1 0710-0805
106 BRACKET; TUBE CLIP
(F) 		8-98052-408-0 01 1 0806-
106 BRACKET; TUBE CLIP
(E) 		1-47477-514-3 01 1 0710-
106 BRACKET; TUBE CLIP
(A) L=100 H=30 		1-47477-645-2 03 1 0710-
106 BRACKET; TUBE CLIP
(C) 		1-47479-598-0 03 1 0710-
106 BRACKET; TUBE CLIP
(D) L=120 H=35 		1-82699-970-0 01 1 0710-0905
106 BRACKET; TUBE CLIP
(D) 		1-82698-358-0 01 1 0906-
107 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09700-995-1 01 1 0710-
107 CLIP; NYLON TUBE
(C) ID=31 H=30 L=35 		1-09700-994-0 02 1 0710-
107 CLIP; NYLON TUBE
(D) ID=25 L=50 		1-09701-019-0 01 1 0710-
107 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 17 1 0710-
110 CLIP; BAND,NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0710-
110 CLIP; BAND,NYLON TUBE
(A) L=140 		5-09707-031-1 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0806-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0710-0805
133 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0806-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 12 1 0710-
133 BOLT; BRKT
M6X10 FLANGE 		0-28050-610-0 01 1 0710-
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 05 1 0710-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0710-0805
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 03 1 0806-
270 CLIP; NYLON TUBE
(C) ID=27.5 H=23 L=24 		1-09700-863-0 01 1 0710-
270 CLIP; NYLON TUBE
(A) ID=28 L=40 		1-09700-995-1 01 1 0710-
270 CLIP; NYLON TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 02 1 0710-
316 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
321 BRACKET; CLIP
(A) 		1-47477-337-1 01 1 0710-
321 BRACKET; CLIP
(B) L=75 		1-47478-328-0 01 1 0710-
321 BRACKET; CLIP
(C) L=59 B=20 		1-47479-048-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
