3-75 — BRAKE PIPING; AIR,FRONT (#13882) — 87 parça

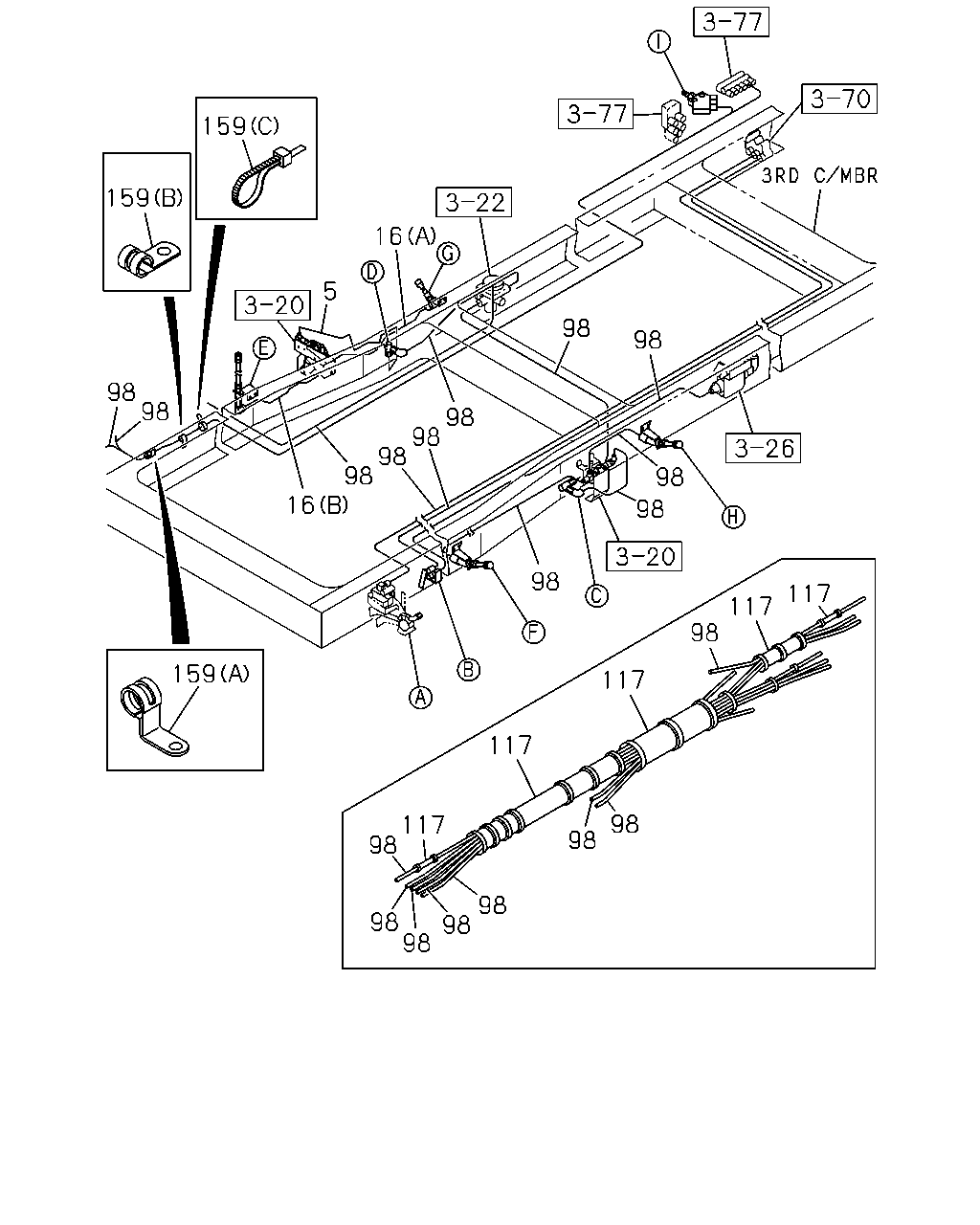

çizim 93222
98 98 98 98 98 98 98 117 117 117 98 117 117 98 98 98 98 98 98 98 98 98 16 98 98 16 159 159 5 159
BalonParca AdiParca NoAdetTipApplied Date
5 PIPE; AIR,UNION TO UNION
L=1438 		8-98098-030-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(B) L=1205 SERVICED BY L=1300 		1-49115-465-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1590 SERVICED BY L=1600 		1-49115-467-0 01 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=4000 ID=22 		1-87411-030-0 AR 1 0710-
117 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0710-
159 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 02 1 0710-
159 CLIP; NYLON TUBE
(B) ID=28 L=40 		1-09701-261-0 03 1 0710-
159 CLIP; NYLON TUBE
(C) L=350 		1-09707-183-0 13 1 0710-

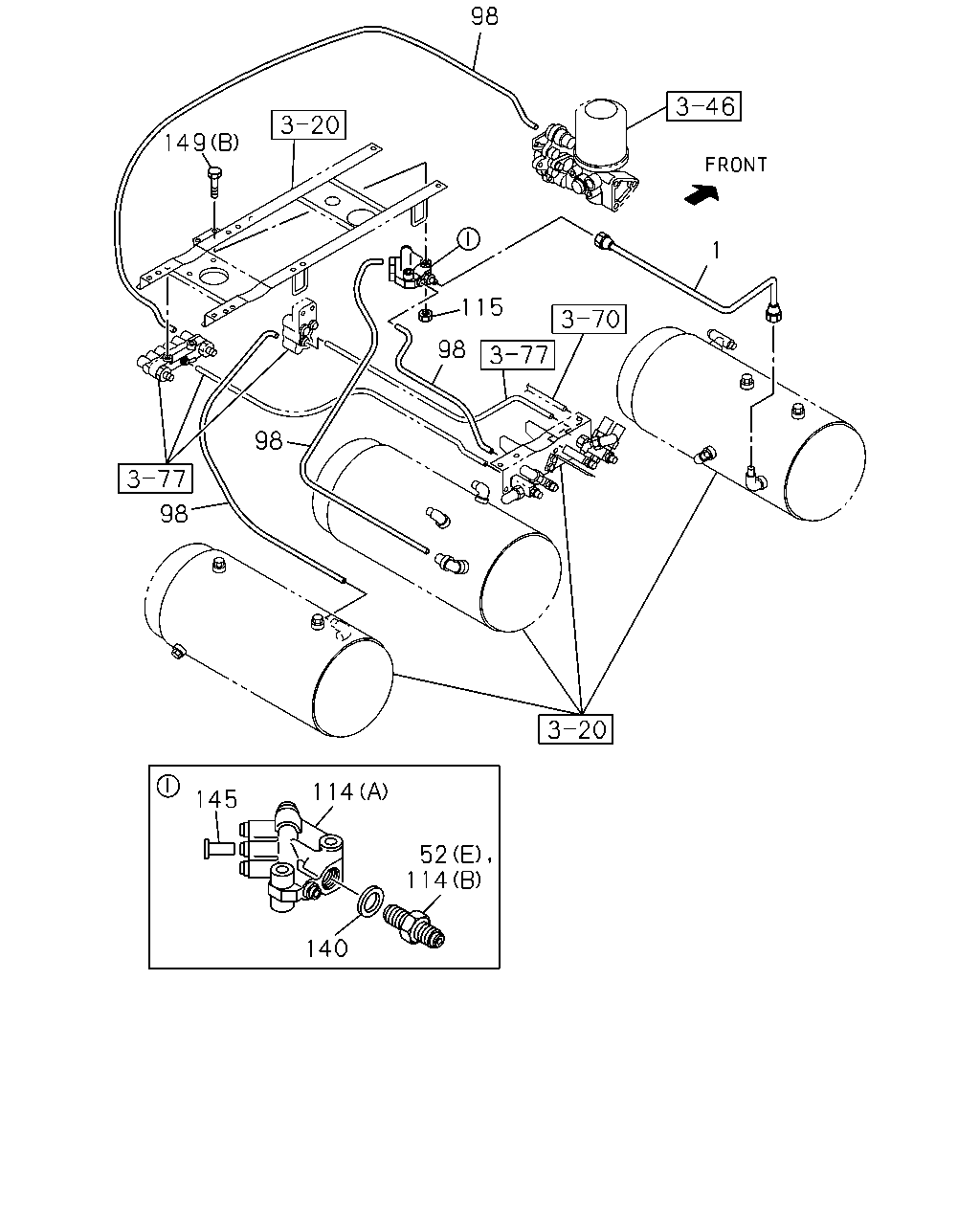

çizim 93428
98 149 1 115 98 98 98 114 145 52 114 140
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; AIR,AIR TANK TO UNION 1-49123-983-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(C) 		1-09661-128-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0710-
52 CONNECTOR; NYLON TUBE
(E) 		8-97618-539-0 01 1 0710-0803
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
114 UNION; NYLON TUBE
(B) DIN12 M22 STRAIGHT 		8-98107-103-0 01 1 0804-
114 UNION; NYLON TUBE
(A) 		1-09661-611-0 01 1 0710-
115 NUT; TUBE UNION
M8 FLANGE 		0-91180-108-0 02 1 0710-
140 GASKET; CONNECTOR 9-09572-022-0 01 1 0710-0803
145 PLUG
OD=12 		1-09661-617-0 01 1 0710-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710-

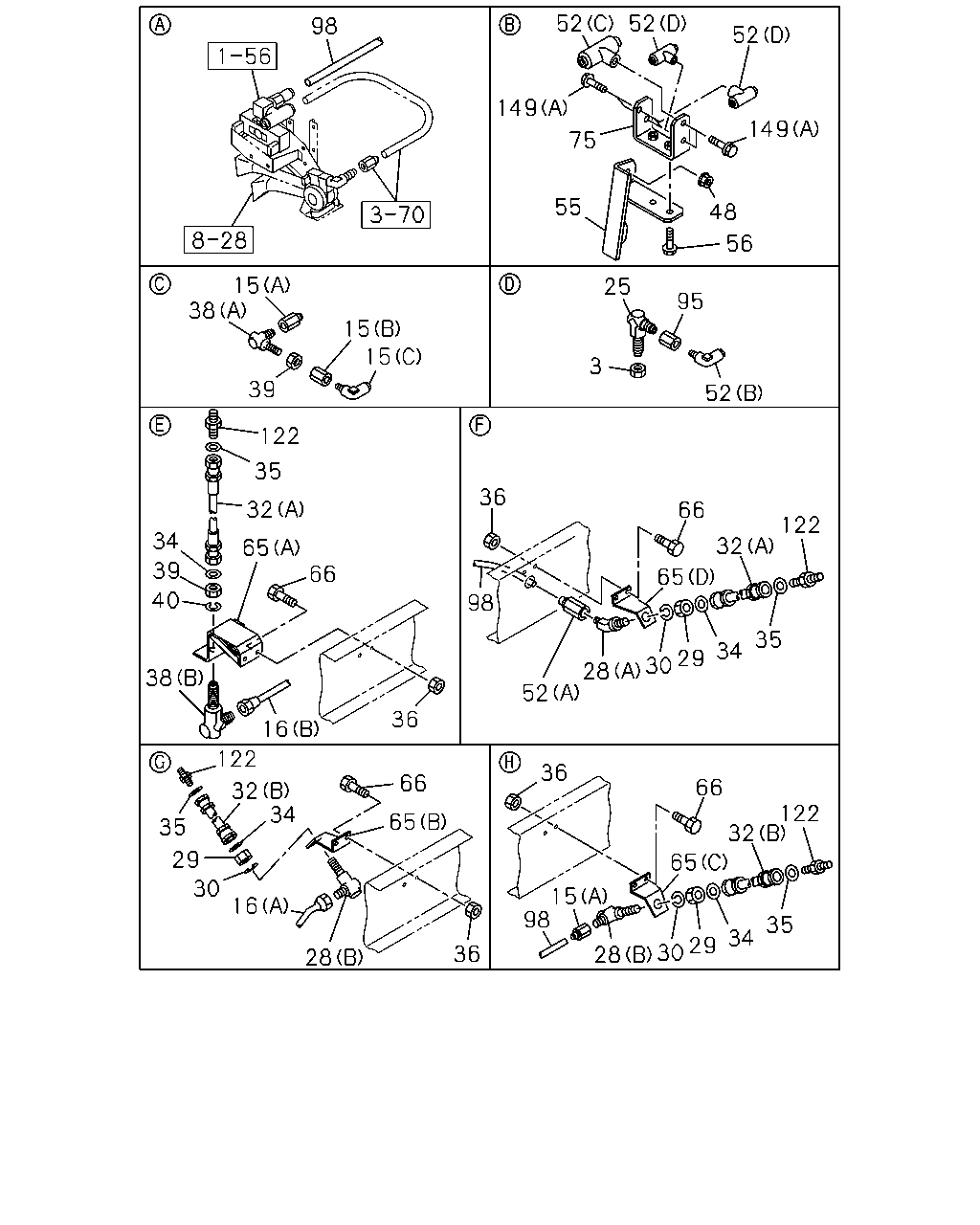

çizim 106688
98 52 52 52 149 149 75 48 55 56 15 38 15 15 39 25 95 52 3 122 35 32 65 66 34 39 40 38 16 35 36 66 122 32 65 98 52 28 30 29 34 35 122 32 34 66 65 35 29 30 16 28 36 36 66 122 32 65 15 98 28 30 29 34 35
BalonParca AdiParca NoAdetTipApplied Date
3 NUT; PIPE UNION
M20 		0-91111-520-0 01 1 0710-
15 CONNECTOR; AIR PIPE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 02 1 0710-
15 CONNECTOR; AIR PIPE
(B) M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-
15 CONNECTOR; AIR PIPE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(B) L=1205 SERVICED BY L=1300 		1-49115-465-0 01 1 0710-
16 PIPE; AIR,UNION TO MODULATOR
(A) L=1590 SERVICED BY L=1600 		1-49115-467-0 01 1 0710-
25 UNION; AIR PIPE
M20 		0-92135-212-0 01 1 0710-
28 NIPPLE; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 02 1 0710-
28 NIPPLE; AIR PIPE
(A) M20 		1-09654-199-2 01 1 0710-
29 NUT; NIPPLE
M20 		0-91111-520-0 03 1 0710-
30 WASHER; LK,NIPPLE
ID=20.2 		0-91510-520-0 03 1 0710-
32 HOSE; FLEX,FRT
(B) L=430 		0-57847-430-1 02 1 0710-
32 HOSE; FLEX,FRT
(A) L=500 		0-57847-500-1 02 1 0710-
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710-
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 04 1 0710-
36 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 08 1 0710-
38 UNION; AIR PIPE
(A) M20 		0-92135-212-0 01 1 0710-
38 UNION; AIR PIPE
(B) M20 & M20 ELBOW 		1-09654-128-1 01 1 0710-
39 NUT; PIPE UNION
M20 		0-91111-520-0 02 1 0710-
40 WASHER; LK,PIPE UNION
ID=20.2 		0-91510-520-0 01 1 0710-
48 NUT; UNION BRKT
M12 FLANGE 		0-91180-212-0 02 1 0710-
52 CONNECTOR; NYLON TUBE
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(C) 		1-09661-128-0 01 1 0710-
52 CONNECTOR; NYLON TUBE
(D) DIN8X2 & M8 2WAY 		1-09661-133-0 03 1 0710-
52 CONNECTOR; NYLON TUBE
(E) 		8-97618-539-0 01 1 0710-0803
55 BRACKET; TUBE UNION 1-47478-381-1 01 1 0710-
56 BOLT; UNION BRKT
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
65 BRACKET; FLEX HOSE
(A) 		1-47471-247-1 01 1 0710-
65 BRACKET; FLEX HOSE
(D) 		1-47477-369-1 01 1 0710-
65 BRACKET; FLEX HOSE
(B) 		1-47479-605-0 01 1 0710-
65 BRACKET; FLEX HOSE
(C) 		1-47479-676-0 01 1 0710-
66 BOLT; HOSE BRKT
M8X30 FLANGE 		0-28650-830-0 08 1 0710-
75 BRACKET; UNION 1-47478-382-0 01 1 0710-
95 ADAPTER; BRKT
M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=6 		1-87411-004-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0710-
98 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0710-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0710-
122 CONNECTOR; FLEX HOSE
M20 & PT3/8 		1-09660-731-1 02 1 0710-
149 BOLT; UNION
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0710-
149 BOLT; UNION
(B) M8X45 FLANGE 		0-28050-845-0 02 1 0710-
