Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#13880) — 12 parça
◀

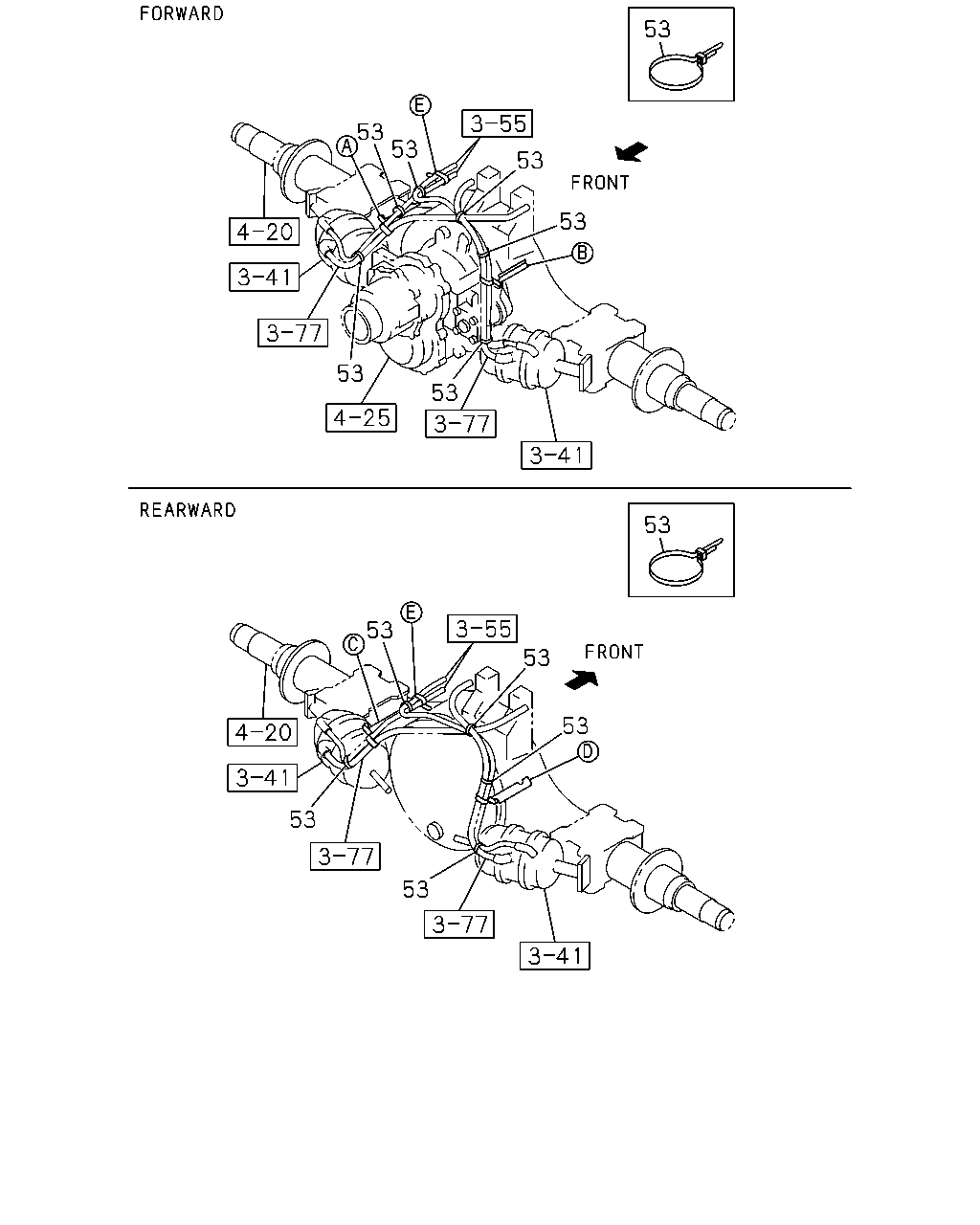

[358A] NO.1 (1 parça)

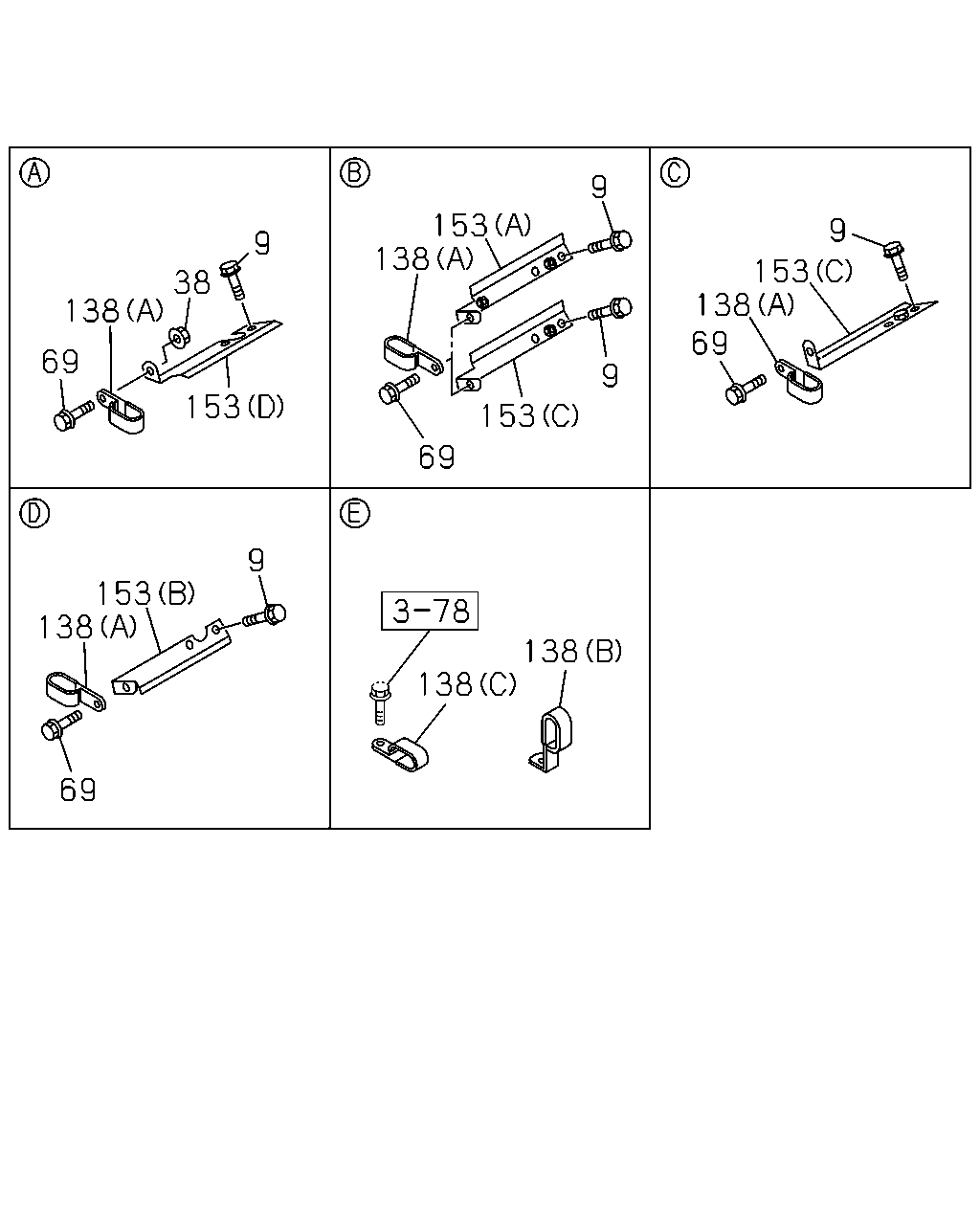

[358A] NO.2 (11 parça)
▶
53
53
53
53
53
53
53
53
53
53
53
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
L=250
1-09707-126-0
12
1
0710-
69
138
38
9
153
69
153
138
153
69
138
153
9
9
9
69
138
153
9
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
08
1
0710-
38
NUT; CLIP FIX
M8 FLANGE
0-91180-108-0
01
1
0710-
69
BOLT; CLIP
M8X20 FLANGE
0-28050-820-0
05
1
0710-
138
CLIP; TUBE
(C) ID=11X2 L=20
0-95325-035-0
01
1
0710-
138
CLIP; TUBE
(B) ID=11X2 H=35 L=20
1-09700-847-0
01
1
0710-
138
CLIP; TUBE
(A) ID=35 L=33
1-09700-945-0
05
1
0710-
153
BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) FORWARD
1-42129-494-0
01
1
0710-
153
BRACKET; NYLON TUBE
(B) REARWARD
1-42129-489-1
01
1
0710-
153
BRACKET; NYLON TUBE
(D) FORWARD
1-42129-499-0
01
1
0710-
153
BRACKET; NYLON TUBE
(C) REARWARD
1-42129-488-1
01
1
0710-
153
BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) FORWARD
1-42129-488-1
01
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
