Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#13878) — 38 parça
◀

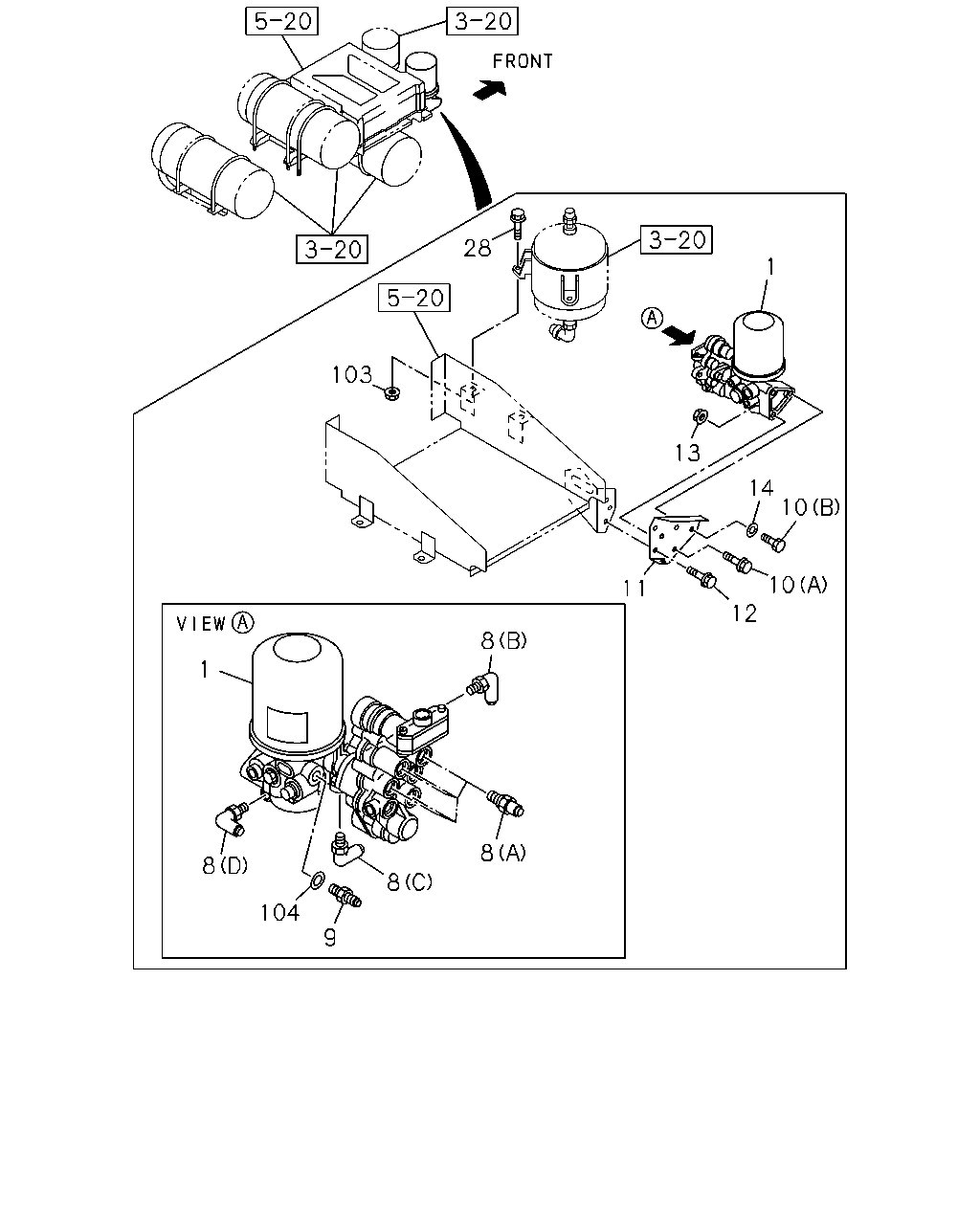

[346A] FIXING (17 parça)

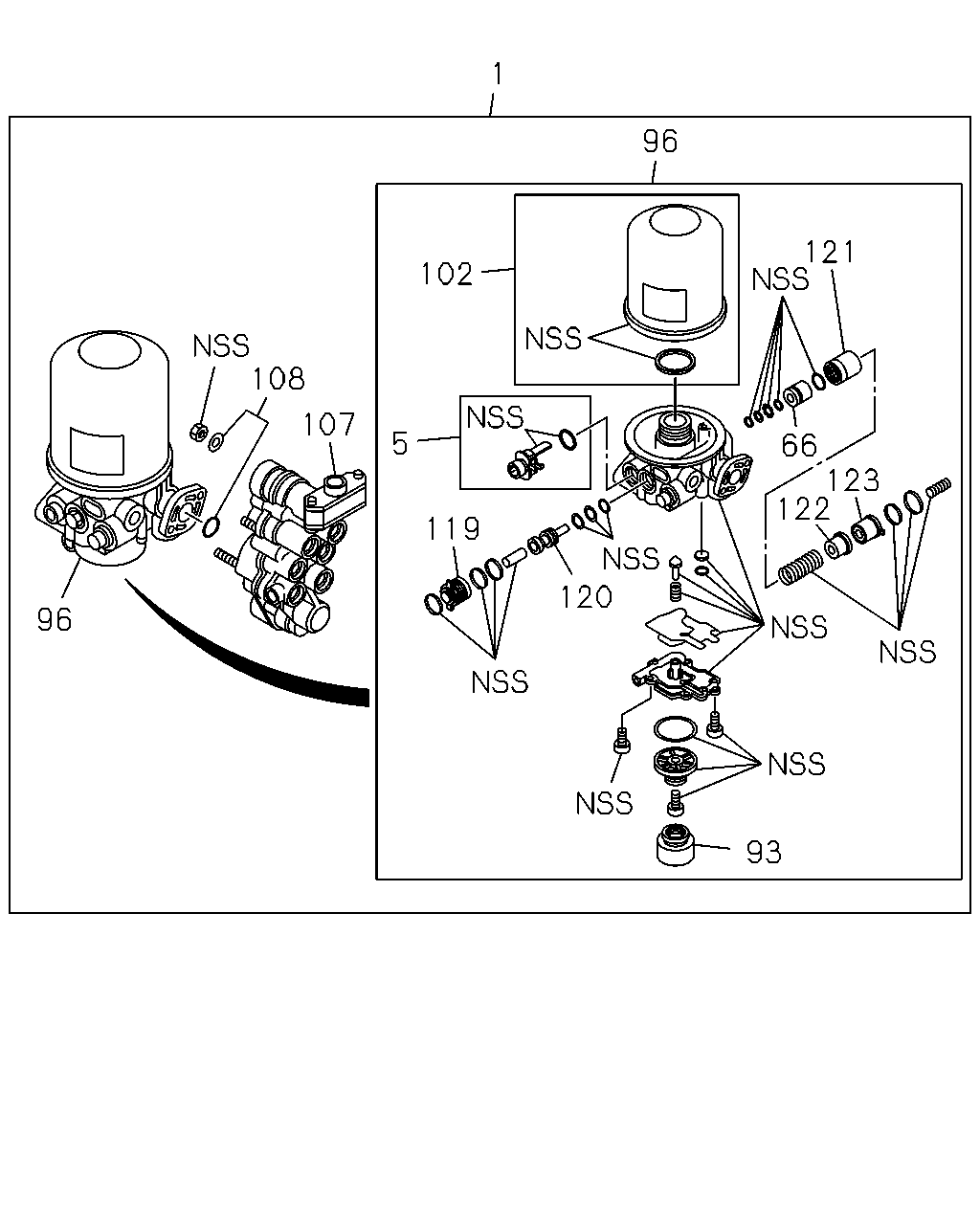

[346A] COMPONENT (16 parça)

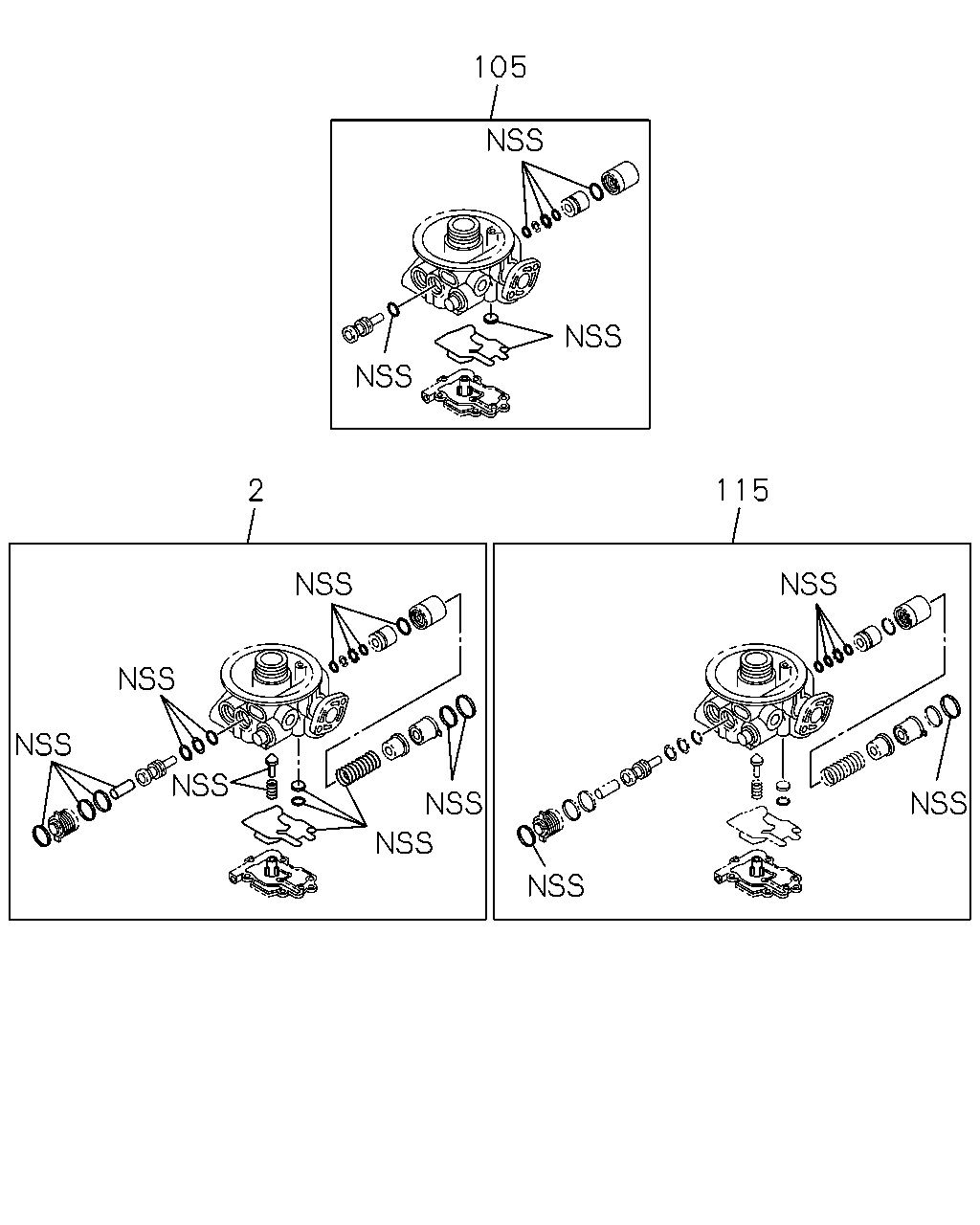

[346A] KIT SET (5 parça)
▶
28
13
12
10
10
14
8
8
8
9
104
8
103
1
1
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-368-4
01
1
0710-1102
1
DRYER; AIR
8-98180-492-1
01
1
1103-
8
CONNECTOR; OUT,AIR DRYER
(A) DIN12 & M22 STRAIGHT
1-09661-050-0
05
1
0710-
8
CONNECTOR; OUT,AIR DRYER
(B) DIN8 & M16 ELBOW
1-09661-520-0
01
1
0710-
8
CONNECTOR; OUT,AIR DRYER
(C) DIN12 & M22 ELBOW
1-09661-521-0
01
1
0710-
8
CONNECTOR; OUT,AIR DRYER
(D) DIN6 & M10 ELBOW
1-09661-574-0
01
1
0710-
9
CONNECTOR; PIPE,AIR DRYER
8-97618-539-0
01
1
0710-0803
9
CONNECTOR; PIPE,AIR DRYER
DIN12 M22 STRAIGHT
8-98107-103-0
01
1
0804-
10
BOLT; AIR DRYER
(A) M12X50 FLANGE
0-28051-250-0
01
1
0710-
10
BOLT; AIR DRYER
(B) M12X25
1-09009-081-0
02
1
0710-
11
BRACKET; AIR DRYER
1-48316-019-0
01
1
0710-
12
BOLT; BRKT
M12X30 FLANGE
0-28651-230-0
03
1
0710-
13
NUT; AIR DRYER
M12 FLANGE
0-91180-212-0
01
1
0710-
14
WASHER; PL,AIR DRYER
ID=12.5 OD=22
0-91610-512-0
02
1
0710-
28
BOLT; PURGE TANK
M10X25 FLANGE
0-28651-025-0
02
1
0710-
103
NUT; PURGE TANK
M10 FLANGE
0-91180-210-0
02
1
0710-
104
GASKET
9-09572-022-0
01
1
0710-0803
1
96
121
102
108
107
5
66
123
122
119
120
96
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
1-48190-368-4
01
1
0710-1102
1
DRYER; AIR
8-98180-492-1
01
1
1103-
5
HEATER ASM; AIR DRYER
1-85576-363-0
01
1
0710-
66
PISTON; AIR DRYER
1-85576-475-0
01
1
0710-
93
SILENCER; AIR DRYER
1-85576-362-0
01
1
0710-
96
DRYER KIT; AIR
1-85576-455-1
01
1
0710-1102
96
DRYER KIT; AIR
8-98185-663-1
01
1
1103-
102
CARTRIDGE; AIR DRYER
1-85576-450-2
01
1
0710-
107
VALVE ASM; PROTECTION,AIR DRYER
1-85576-369-3
01
1
0710-
108
FIXING KIT; PROTECTION,AIR DRYER
1-85576-371-0
01
1
0710-
119
COVER; PURGE VALVE
1-85576-473-0
01
1
0710-
120
TAPPET
1-85576-474-0
01
1
0710-1102
120
TAPPET
8-98185-666-0
01
1
1103-
121
HOLDER; SPRING
1-85576-476-0
01
1
0710-
122
SEAT; SPRING
1-85576-477-0
01
1
0710-
123
COVER; GOVERNER
1-85576-478-0
01
1
0710-
105
2
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
1-85576-398-0
01
1
0710-1102
2
REPAIR KIT; AIR DRYER
8-98185-664-0
01
1
1103-
105
SEAL KIT; AIR DRYER
1-85576-397-0
01
1
0710-1102
105
SEAL KIT; AIR DRYER
8-98185-665-0
01
1
1103-
115
REPAIR KIT; GOVERNOR,AIR DRYER
1-85576-400-0
01
1
0710-
