◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#13856) — 172 parça

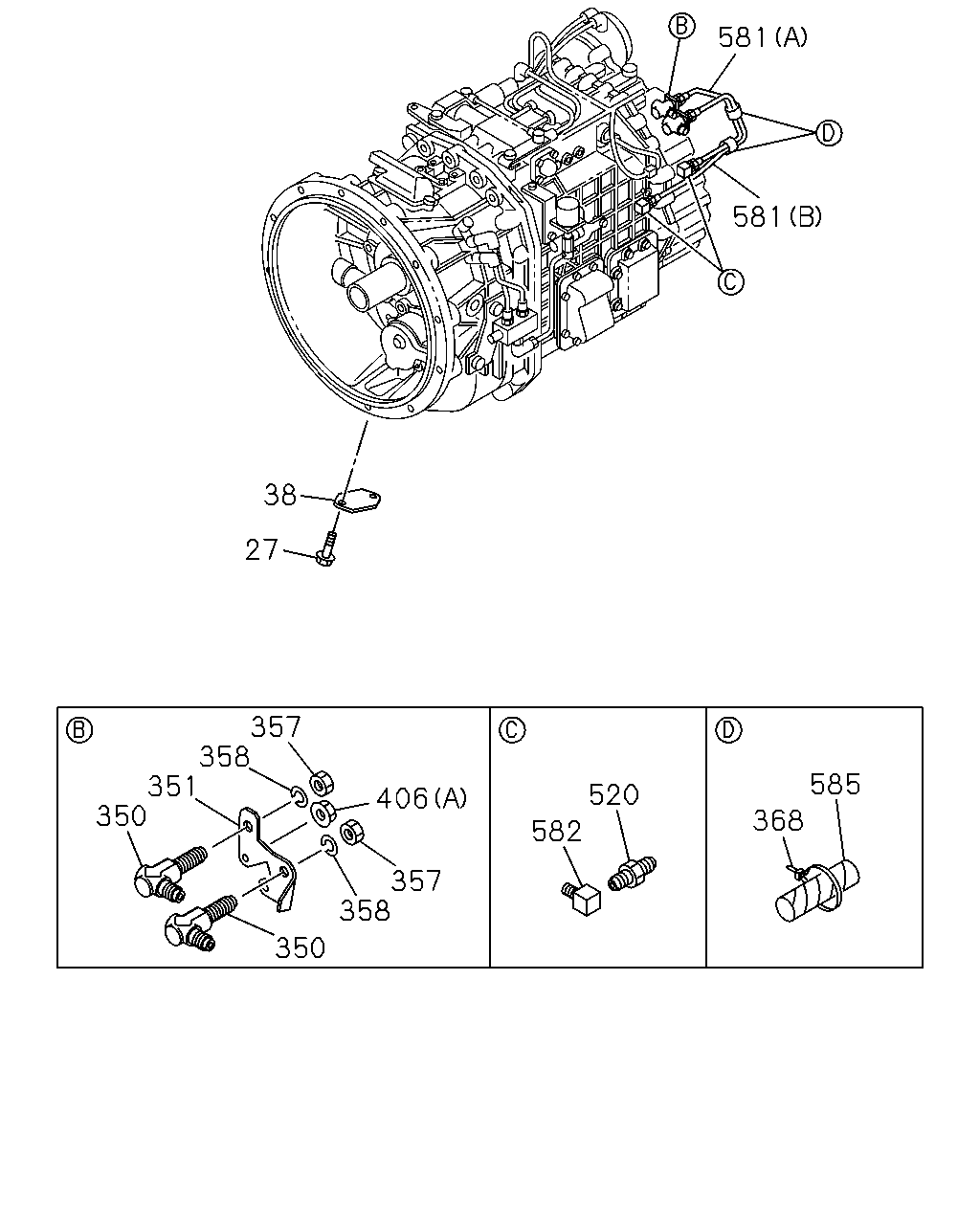

çizim 93192
581 581 38 27 357 358 351 350 406 357 358 350 582 520 368 585
BalonParca AdiParca NoAdetTipApplied Date
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
38 COVER; CHECK HOLE,LWR 1-31131-003-0 01 1 0710-
350 UNION; FLEX HOSE,BRKT 1-09664-257-0 02 1 0710-
351 BRACKET; UNION,FLEX HOSE 1-46147-308-1 01 1 0710-
357 NUT; UNION,FLEX HOSE
M22 		0-91111-522-0 02 1 0710-
358 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0710-
368 CLIP; BAND,CABLE
L=250 		1-09707-126-0 02 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0806-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1003-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
520 CONNECTOR
R1/4 & M20 		0-92306-010-0 02 1 0710-
581 HOSE; OIL COOLER
(A) L=520 		1-09365-144-0 01 1 0710-
581 HOSE; OIL COOLER
(B) L=650 		1-09365-145-0 01 1 0710-
582 NIPPLE; ELBOW
R1/4 & RC1/4 ELBOW 		1-09660-501-0 02 1 0710-
585 BAND; FLEX HOSE
L=175 		1-09707-178-0 02 1 0710-

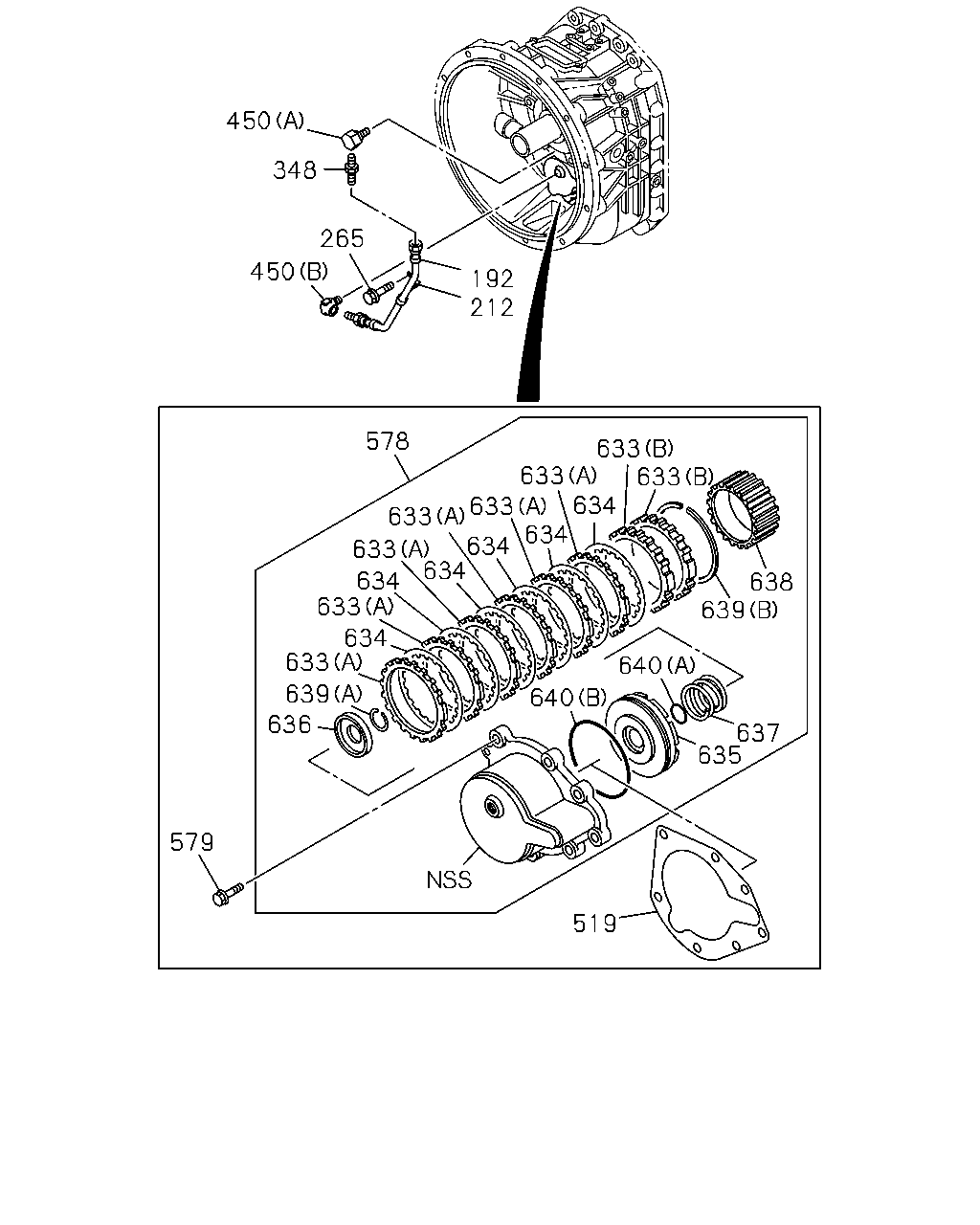

çizim 94654
450 348 450 265 212 192 578 633 633 634 633 633 633 634 634 633 634 634 633 634 633 639 636 640 640 638 639 637 635 519 579
BalonParca AdiParca NoAdetTipApplied Date
192 HOSE; FLEX,TRANS
L=252 		1-09365-062-0 01 1 0710-
212 CLIP; FLEX HOSE
ID=9 H=20 L=25 		1-09701-073-0 01 1 0710-
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0805
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0806-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1002
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1003-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
348 NIPPLE; GREASE,SHAFT 9-09902-299-0 01 1 0710-
450 ADAPTER; OIL
(A) 		1-09660-012-0 01 1 0710-
450 ADAPTER; OIL
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
519 GASKET; SHAFT 1-34142-034-0 01 1 0710-
578 BRAKE; COUNTER SHAFT 1-33316-005-1 01 1 0710-
579 BOLT; COUNTER SHAFT
M10X30 FLANGE 		0-28151-030-0 07 1 0710-
633 PLATE; SEPARATE,BRAKE
(A) 		1-33319-208-0 06 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.6 		1-33319-209-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=3.8 		1-33319-210-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.0 		1-33319-211-0 02 1 0710-
633 PLATE; SEPARATE,BRAKE
(B) T=4.2 		1-33319-212-0 02 1 0710-
634 PLATE; FRICTION,BRAKE 1-33319-207-0 06 1 0710-
635 PISTON; BRAKE
T=4.90 		1-33319-230-0 01 1 0710-
636 PLATE; PRESSURE,BRAKE 1-33319-213-1 01 1 0710-
637 SPRING; BRAKE 1-33319-215-0 01 1 0710-
638 HUB; BRAKE 1-33319-220-0 01 1 0710-
639 RING; BRAKE
(A) 		1-33319-216-0 01 1 0710-
639 RING; BRAKE
(B) 		1-33319-217-0 01 1 0710-
640 GASKET; BRAKE
(A) 		1-33319-218-0 01 1 0710-
640 GASKET; BRAKE
(B) 		1-33319-219-0 01 1 0710-
çizim 106626
511 303 290 265 439 406 150
BalonParca AdiParca NoAdetTipApplied Date
150 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710-1002
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0805
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0806-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1002
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1003-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
290 BRACKET; CLIP
(C) 		8-98101-509-0 01 1 0806-
290 BRACKET; CLIP
(B) 		1-47479-779-0 01 1 0710-
290 BRACKET; CLIP
(A) 		8-97609-042-0 01 1 0710-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 1003-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0710-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 03 1 0710-1002
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1003-
303 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0806-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1003-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0806-
439 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0710-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 02 1 0710-

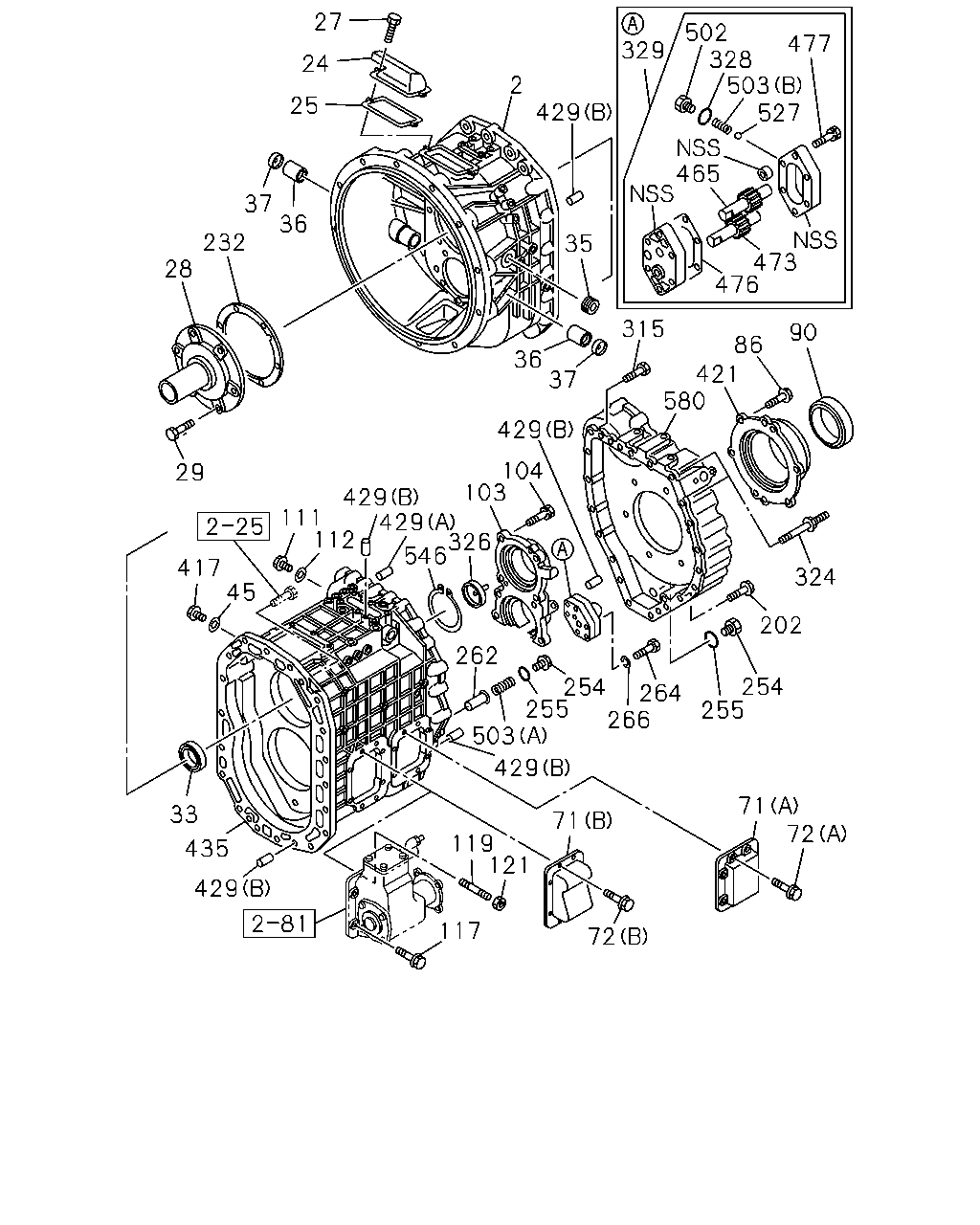

çizim 106630
27 24 25 37 36 232 28 29 429 2 329 502 328 477 503 527 465 473 476 35 315 36 37 90 86 421 580 429 104 103 429 111 112 429 546 326 417 45 262 254 264 255 254 202 324 255 266 503 429 71 71 72 72 121 119 117 429 435 33
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98052-280-0 01 1 0710-1003
2 HOUSING; CLU 8-98168-737-0 01 1 1004-
24 COVER; CHECK HOLE,DUST 1-31131-037-0 01 1 0710-
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-31139-008-0 01 1 0710-1406
25 GASKET; COVER
ALSO INCLUDED IN GASKET SET(M/T). 		8-98283-291-0 01 1 1407-
27 BOLT; COVER TO CLU HSG
M8X12 FLANGE 		0-28050-812-0 04 1 0710-
28 COVER; FRT,TRANS CASE 1-33121-153-0 01 1 0710-
29 BOLT; FRT COVER
M10X40 FLANGE 		0-28161-040-0 06 1 0710-1211
29 BOLT; FRT COVER
M10X40 FLANGE 		8-98230-249-0 06 1 1212-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-624-0 01 1 0710-
35 GROMMET; CLU HSG 9-09575-796-0 01 1 0710-
36 BEARING; NEEDLE,CLU HSG 1-09811-087-0 02 1 0710-
37 SEAL; DUST,CLU HSG
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-003-0 02 1 0710-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0710-
71 COVER; SIDE,TRANS CASE
(A) 		1-33141-066-0 01 1 0710-
71 COVER; SIDE,TRANS CASE
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-33141-057-1 01 1 0710-
72 BOLT; SIDE COVER
(A) M10X35 FLANGE 		0-28751-035-0 08 1 0710-
72 BOLT; SIDE COVER
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M12X30 FLANGE 		1-09044-086-0 08 1 0710-
86 BOLT; RR COVER
M17X35 		1-09044-076-0 06 1 0710-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-625-0 01 1 0710-
103 RETAINER; BRG 1-33151-062-0 01 1 0710-0910
103 RETAINER; BRG 1-33151-060-1 01 1 0911-
104 BOLT; BRG RET
M10X38 FLANGE 		1-09049-029-1 08 1 0710-
111 PLUG; DRAIN FILLER
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
112 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 01 1 0710-
117 BOLT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X35 FLANGE 		0-28751-235-0 04 1 0710-
119 STUD; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12X30 L=48 		8-98059-951-0 04 1 0710-
121 NUT; PTO FIX
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M12 FLANGE 		0-91180-212-0 04 1 0710-
202 BOLT; PLATE
M12X35 FLANGE 		0-28751-235-0 09 1 0710-
232 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(M/T). 		1-33142-051-1 01 1 0710-
254 PLUG; DRAIN,OIL
M24X17 FLANGE 		1-09604-023-0 02 1 0710-
255 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=26.8 		1-09623-058-0 02 1 0710-
262 STRAINER; OIL PUMP 1-41383-003-0 01 1 0710-
264 BOLT; OIL PUMP
M8X65 		0-10805-865-0 02 1 0710-
264 BOLT; OIL PUMP
M8X50 		0-10855-850-0 02 1 0710-
266 WASHER; LK
ID=8.2 		0-91510-508-0 04 1 0710-
315 BOLT; CASE
M12X50 FLANGE 		0-28151-250-0 11 1 0710-
315 BOLT; CASE
M12X110 FLANGE 		0-28156-211-0 05 1 0710-
315 BOLT; CASE
M12X35 FLANGE 		0-28751-235-0 02 1 0710-
324 STUD; RR COVER
M10X18,M12X110 L=139.5 		1-09049-033-1 02 1 0710-
326 NOZZLE; OIL,OUTLET 1-33219-272-0 01 1 0710-
328 GASKET; PLUG 1-34159-100-0 01 1 0710-
329 PUMP ASM; OIL 1-34150-117-0 01 1 0710-1408
329 PUMP ASM; OIL 8-98283-996-0 01 1 1409-
417 PLUG; OIL FILLER,TRANS
M24X17 FLANGE 		1-09604-022-0 01 1 0710-
421 COVER; RR,TRANS 1-33131-238-0 01 1 0710-
429 PIN; STRAIGHT
(B) OD=10 L=18 		9-08151-018-0 06 1 0710-
429 PIN; STRAIGHT
(A) OD=12 L=32 		9-08161-232-0 01 1 0710-
435 CASE; TRANS 8-98049-690-1 01 1 0710-
465 GEAR; IDLE,OIL PUMP 1-34151-013-0 01 1 0710-1408
473 GEAR; OUTPUT,OIL PUMP 1-34151-012-0 01 1 0710-1408
476 GASKET; COVER,OIL PUMP 1-34159-099-0 01 1 0710-
477 BOLT; OIL PUMP
M8X32 W/LK WASHER 		9-01900-832-0 02 1 0710-1408
502 PLUG; OIL PUMP 1-34159-101-0 01 1 0710-
503 SPRING; OIL PUMP
(A) 		1-09580-504-0 01 1 0710-
503 SPRING; OIL PUMP
(B) 		1-34159-102-0 01 1 0710-
527 BALL; OIL PUMP 9-00097-531-0 01 1 0710-
546 RING; SNAP,BRG
T=2.00 		1-09588-150-1 01 1 0710-
580 CASE; RANGE 1-33115-051-2 01 1 0710-

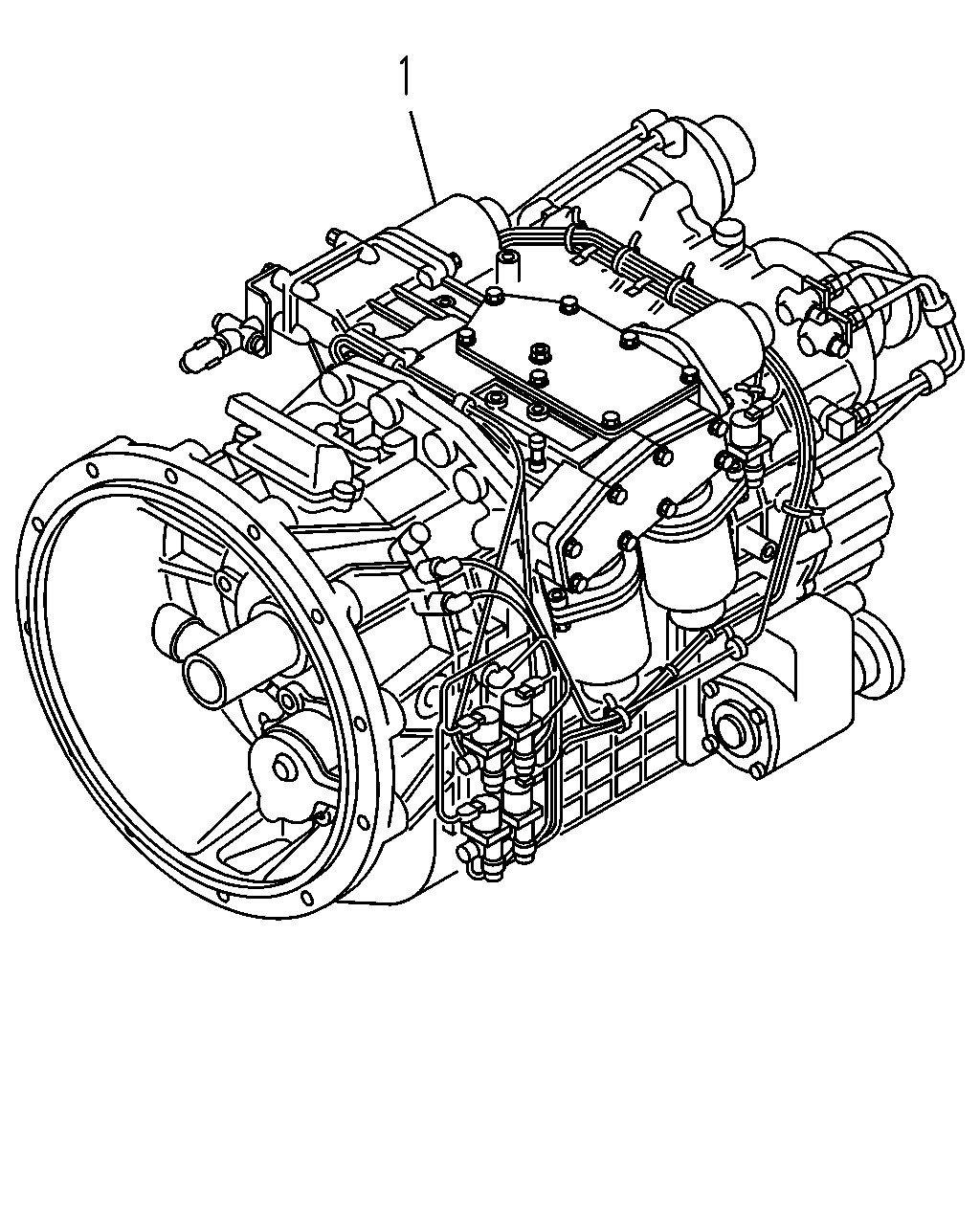

çizim 106649
1
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-33044-066-0 01 1 0710-
1 TRANSMISSION ASM; MANUAL
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-33044-066-0 01 1 0710-
çizim 106660
353 511 511 303 511 303 303 303 406 2 353 449 576 265 353 271 265 576 406 353 449 353 271 265 265 290 406 353 353 406 265 290 439
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING; CLU 8-98052-280-0 01 1 0710-1003
2 HOUSING; CLU 8-98168-737-0 01 1 1004-
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-0805
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0806-
265 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0710-1002
265 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1003-
265 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
271 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 1003-
290 BRACKET; CLIP
(C) 		8-98101-509-0 01 1 0806-
290 BRACKET; CLIP
(B) 		1-47479-779-0 01 1 0710-
290 BRACKET; CLIP
(A) 		8-97609-042-0 01 1 0710-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 02 1 1003-
303 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0710-
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 03 1 0710-1002
303 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1003-
303 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0710-
353 CLIP; NYLON TUBE
(A) ID=20 H=23 L=27 		1-09700-861-0 03 1 0806-
353 CLIP; NYLON TUBE
(B) L=350 		1-09707-183-0 01 1 0710-1002
353 CLIP; NYLON TUBE
(D) ID=16 H=25 L=25 		1-09701-162-0 01 1 1003-
353 CLIP; NYLON TUBE
(B) L=256 		1-09707-189-0 01 1 0710-
353 CLIP; NYLON TUBE
(A) ID=16 L=50 H=25 		1-09700-838-0 02 1 0710-1002
353 CLIP; NYLON TUBE
(C) ID=18 L=28 		1-09701-067-0 01 1 1003-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0806-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 1003-
406 NUT; BRKT
(A) M10 FLANGE 		0-91180-110-0 02 1 0710-
406 NUT; BRKT
(C) M10 FLANGE 		0-91180-210-0 01 1 0710-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-1002
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
406 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 1003-
439 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0806-
439 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0710-
449 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-1002
449 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 1003-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 03 1 0710-
511 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 02 1 0710-
576 BRACKET; NYLON TUBE
(B) 		1-47479-773-0 01 1 1003-
576 BRACKET; NYLON TUBE
(A) 		1-47477-694-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
