0-30 — WATER PUMP AND CORROSION RESISTOR (#1385) — 75 parça

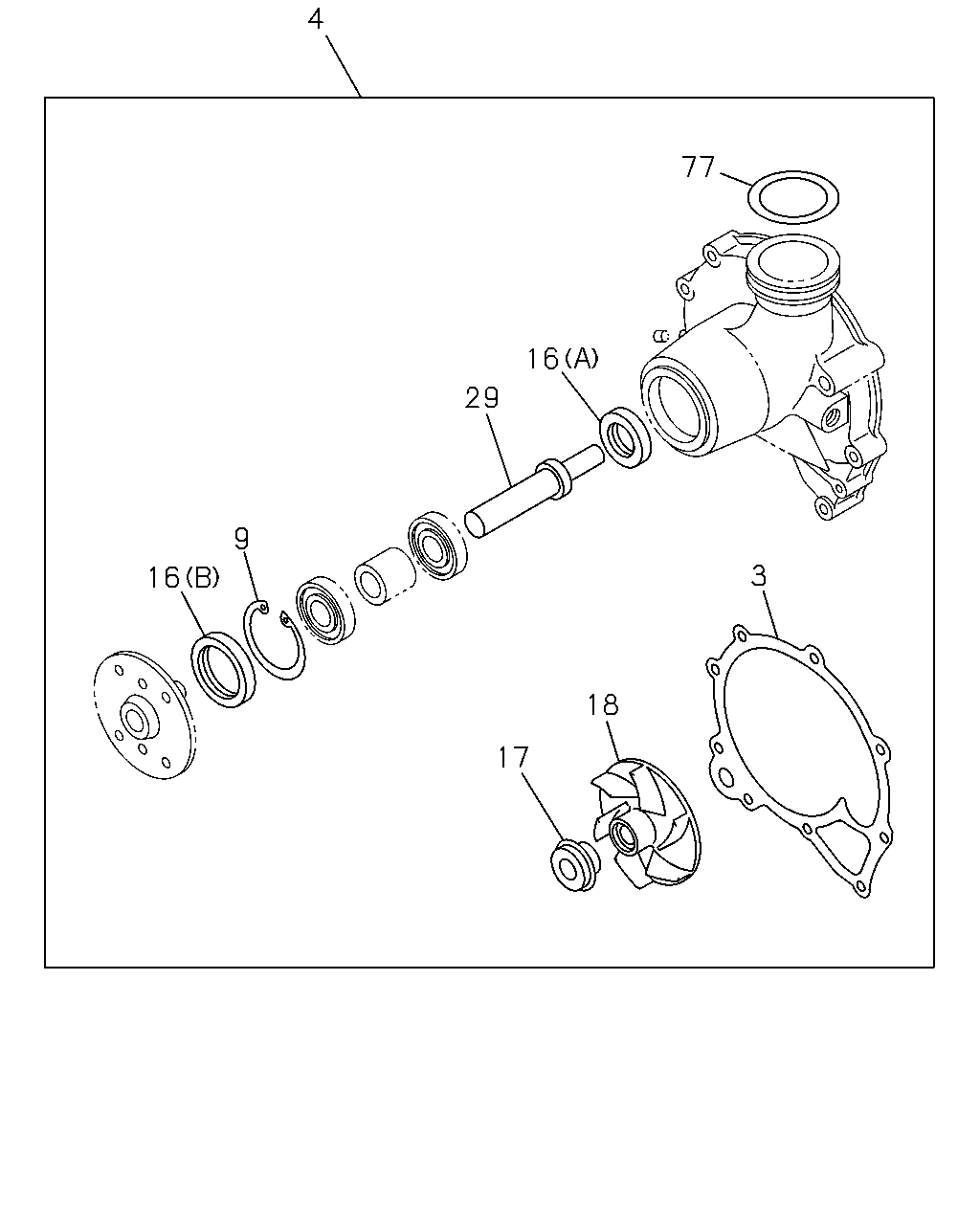

çizim 29390
4 77 16 29 9 3 16 18 17
BalonParca AdiParca NoAdetTipApplied Date A B
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-012-1 01 1 9203-9203 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-017-0 01 1 9204- ● ●
4 REPAIR KIT; WATER PUMP 1-87810-386-2 01 1 9203- ●
4 REPAIR KIT; WATER PUMP 1-87810-416-2 01 1 9203- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9203- ● ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-381-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-382-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP 1-09625-277-0 01 1 9203- ●
17 SEAL UNIT; WATER PUMP 1-13620-015-0 01 1 9203- ● ●
18 IMPELLER; WATER PUMP 1-13621-041-0 01 1 9203- ●
18 IMPELLER; WATER PUMP 1-13621-043-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-051-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-054-0 01 1 9203- ●
77 GASKET; PLUG,WATER PUMP
ID=59.6 		1-09623-307-0 01 1 9203- ● ●

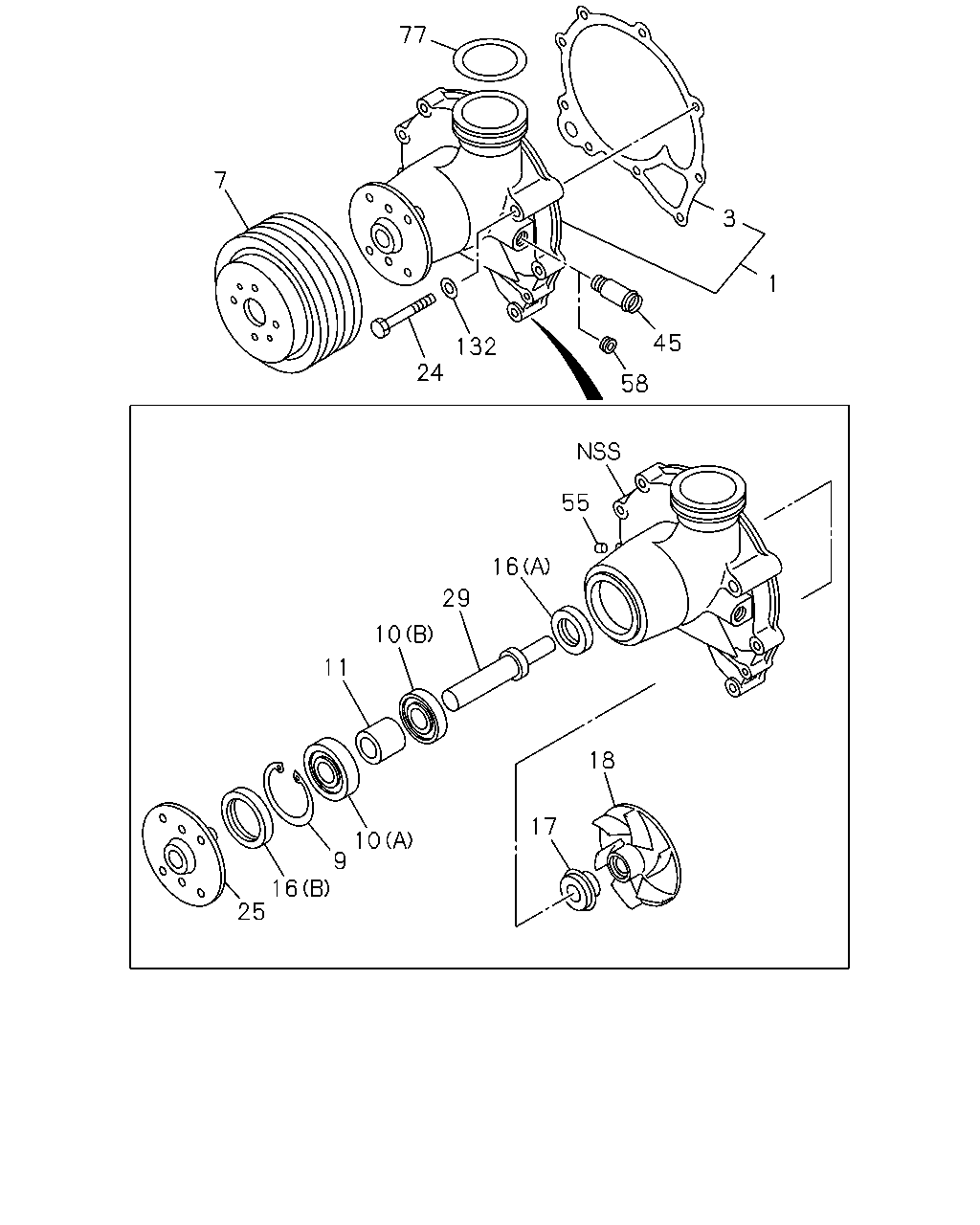

çizim 94178
77 7 3 1 45 132 24 58 55 16 29 10 11 18 17 10 9 16 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; WATER,W/GASKET 1-13610-842-0 01 1 9203- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-012-1 01 1 9203-9203 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-017-0 01 1 9204- ● ●
7 PULLEY; WATER PUMP
2 GROOVES 		1-13641-119-1 01 1 9203- ●
7 PULLEY; WATER PUMP
2 GROOVES 		1-13641-129-0 01 1 9203- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9203- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9203- ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 01 1 9203- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 01 1 9203- ●
10 BEARING; WATER PUMP
(D) 		1-09800-012-0 01 1 9203- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9203- ●
11 SPACER; BRG,WATER PUMP 1-13634-027-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-381-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-382-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP 1-09625-277-0 01 1 9203- ●
17 SEAL UNIT; WATER PUMP 1-13620-015-0 01 1 9203- ● ●
18 IMPELLER; WATER PUMP 1-13621-041-0 01 1 9203- ●
18 IMPELLER; WATER PUMP 1-13621-043-0 01 1 9203- ●
24 BOLT; WATER PUMP
M10X70 		0-16806-070-0 02 1 9203- ● ●
24 BOLT; WATER PUMP
M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9203- ● ●
25 CENTER; WATER PUMP 1-13642-013-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-051-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-054-0 01 1 9203- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9203- ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9203- ●
55 NOZZLE; OIL FEED,WATER PUMP 1-13619-046-0 01 1 9203- ●
58 PLUG; HTR
EXC. HEATER & DEFROSTER(C41) PT3/8 T=8.0 		1-09605-066-0 01 1 9203- ●
77 GASKET; PLUG,WATER PUMP
ID=59.6 		1-09623-307-0 01 1 9203- ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9203- ● ●

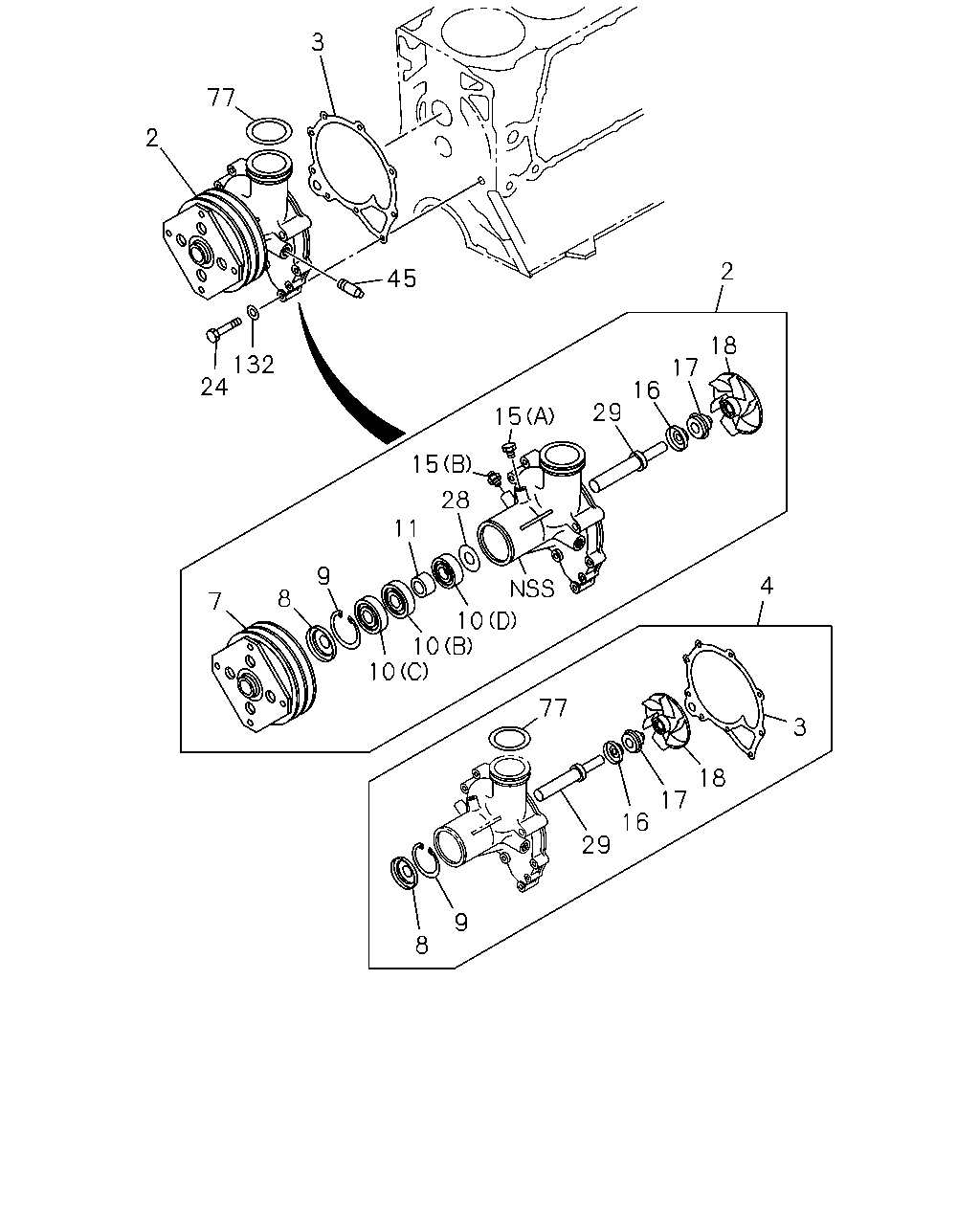

çizim 95324
3 77 2 2 45 18 132 24 17 16 29 15 15 28 11 9 4 8 7 10 10 10 77 3 18 17 16 29 9 8
BalonParca AdiParca NoAdetTipApplied Date A B
2 PUMP ASM; WATER 1-13610-978-0 01 1 9203- ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-012-1 01 1 9203-9203 ● ●
3 GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13614-017-0 01 1 9204- ● ●
4 REPAIR KIT; WATER PUMP 1-87810-386-2 01 1 9203- ●
4 REPAIR KIT; WATER PUMP 1-87810-416-2 01 1 9203- ●
7 PULLEY; WATER PUMP
2 GROOVES 		1-13641-119-1 01 1 9203- ●
7 PULLEY; WATER PUMP
2 GROOVES 		1-13641-129-0 01 1 9203- ●
8 THROWER; DUST,WATER PUMP 1-13639-021-0 01 1 9203- ●
9 RING; SNAP,WATER PUMP
ID=57.9 		9-09180-162-0 01 1 9203- ● ●
10 BEARING; WATER PUMP
(A) 		1-09800-196-0 01 1 9203- ●
10 BEARING; WATER PUMP
(B) 		1-09800-155-0 01 1 9203- ● ●
10 BEARING; WATER PUMP
(C) 		1-09800-011-0 01 1 9203- ●
10 BEARING; WATER PUMP
(D) 		1-09800-012-0 01 1 9203- ●
11 SPACER; BRG,WATER PUMP 1-13634-025-0 01 1 9203- ●
11 SPACER; BRG,WATER PUMP 1-13634-027-0 01 1 9203- ●
15 NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT 		1-09380-002-0 01 1 9203- ●
15 NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT 		9-09031-010-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP
(A) 		1-09625-381-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP
(B) 		1-09625-382-0 01 1 9203- ●
16 SEAL; OIL,WATER PUMP 1-09625-277-0 01 1 9203- ●
17 SEAL UNIT; WATER PUMP 1-13620-015-0 01 1 9203- ● ●
18 IMPELLER; WATER PUMP 1-13621-041-0 01 1 9203- ●
18 IMPELLER; WATER PUMP 1-13621-043-0 01 1 9203- ●
24 BOLT; WATER PUMP
M10X70 		0-16806-070-0 02 1 9203- ● ●
24 BOLT; WATER PUMP
M8X45 W/LK&PL WASHER 		0-50140-845-0 07 1 9203- ● ●
28 WASHER; WATER PUMP 1-09503-024-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-051-0 01 1 9203- ●
29 SHAFT; WATER PUMP 1-13631-054-0 01 1 9203- ●
45 JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41) PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9203- ●
45 JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47 		9-09903-631-0 01 1 9203- ●
77 GASKET; PLUG,WATER PUMP
ID=59.6 		1-09623-307-0 01 1 9203- ● ●
132 WASHER; PL,WATER PUMP
ID=10.5 OD=18 		9-09160-510-0 02 1 9203- ● ●
