1-41 — FUEL PIPING; CHASSIS (#13845) — 22 parça

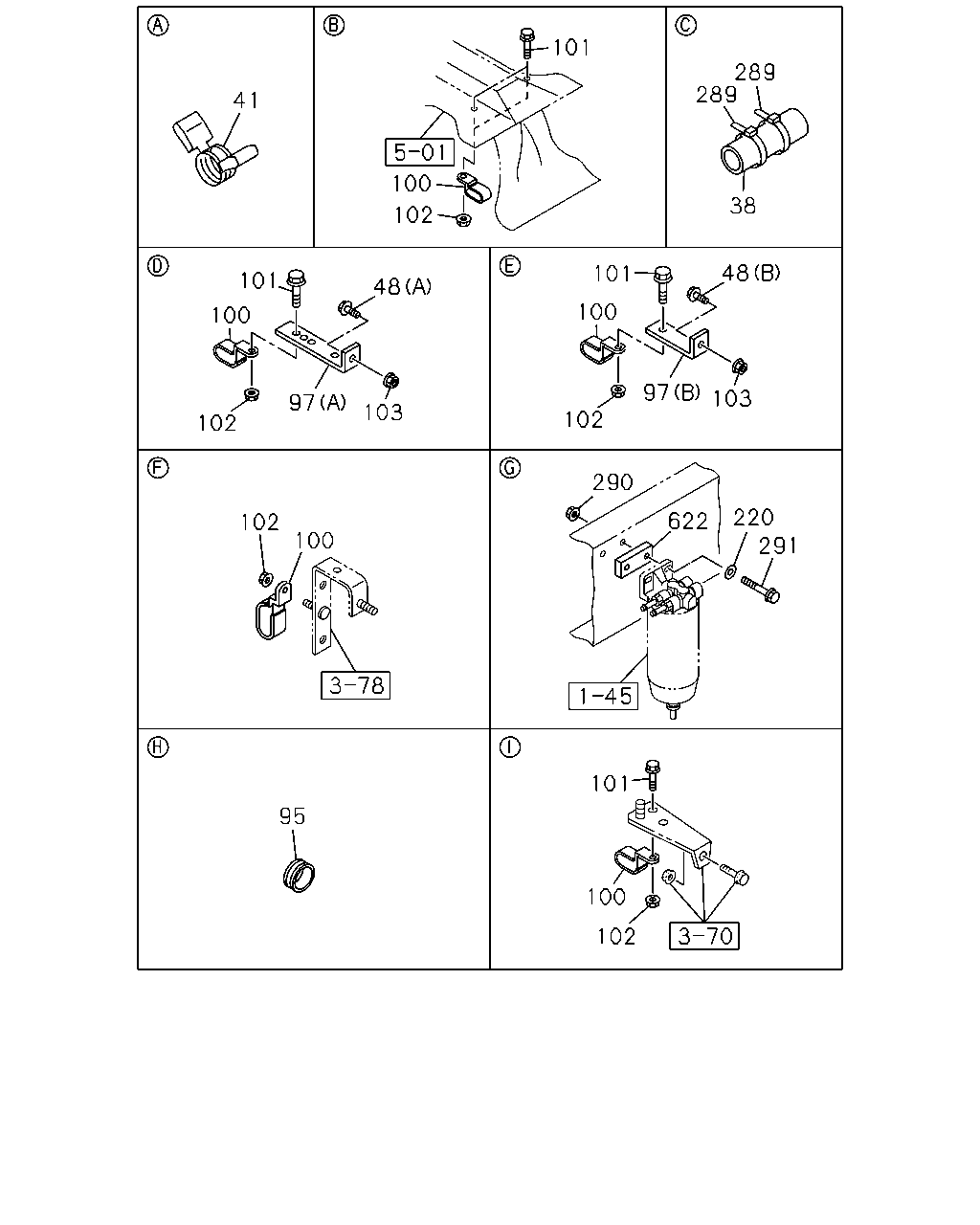

çizim 93405
41 100 102 101 289 289 38 101 100 48 97 102 103 101 48 100 97 103 102 102 100 290 220 291 622 95 101 100 102
BalonParca AdiParca NoAdetTipApplied Date
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 03 1 0710-
41 CLIP; FUEL PIPE,FUEL TANK
ID=14 		1-09704-102-0 04 1 0710-
41 CLIP; FUEL PIPE,FUEL TANK
ID=19 		8-94238-569-0 02 1 0710-
48 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
48 BOLT; BRKT
(A) M8X35 FLANGE 		0-28650-835-0 02 1 0710-
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0710-
97 BRACKET; CLIP
(B) L=55 		1-47475-304-0 01 1 0710-
97 BRACKET; CLIP
(A) 		1-82698-358-0 02 1 0710-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 09 1 0710-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 06 1 0710-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 09 1 0710-
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0710-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 06 1 0710-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0710-
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0710-
622 SPACER; BRKT 1-53168-492-0 01 1 0710-0909
622 SPACER; BRKT 8-98124-944-0 01 1 0910-

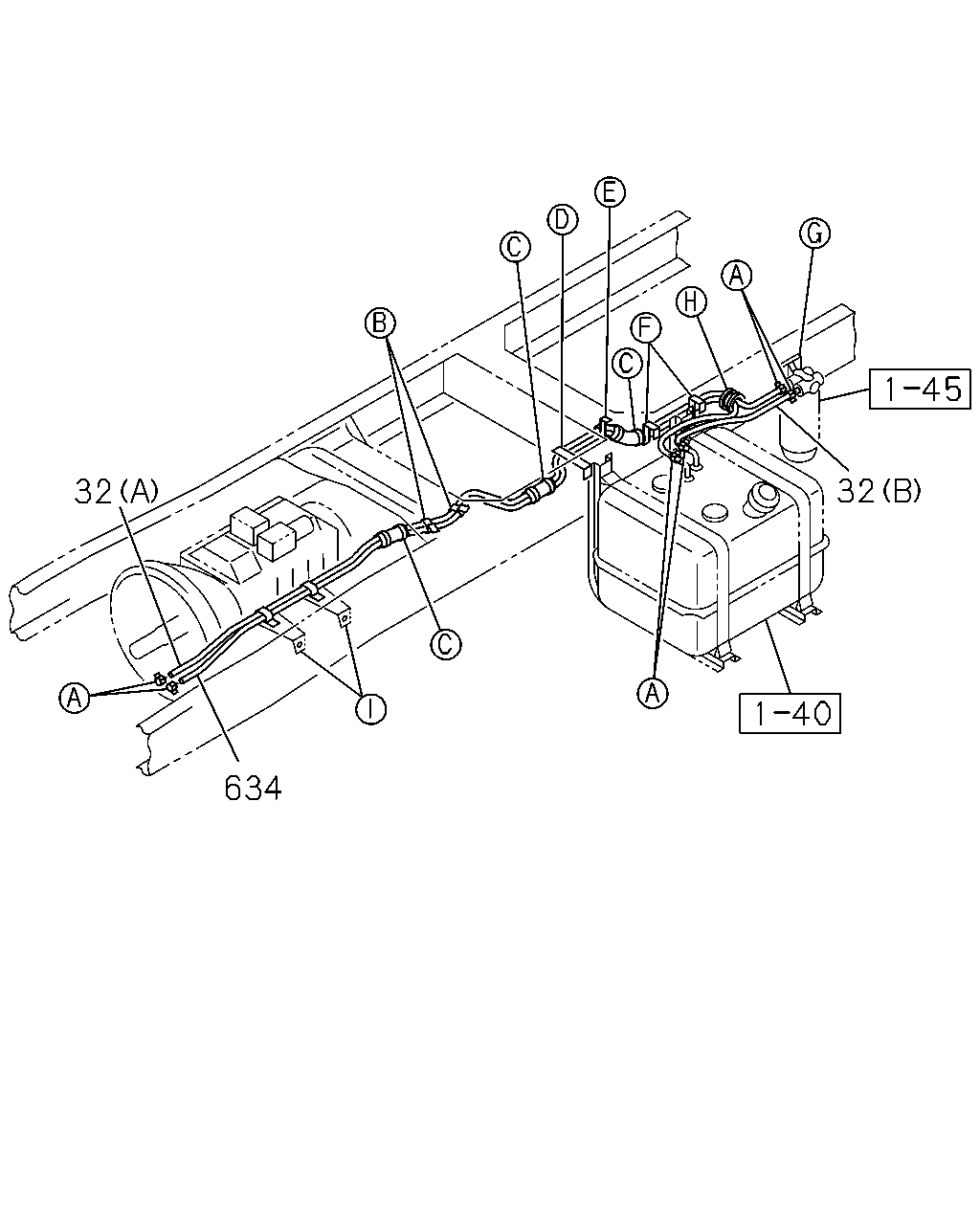

çizim 106609
32 32 634
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 0710-
32 PIPE; DELIVERY,FUEL TANK
(A) L=3750 SERVICED BY L=5350 		0-01262-535-0 01 1 0710-
634 HOSE; RUBBER RETURN
L=3250 SERVICED BY L=8000 		0-01260-800-0 01 1 0710-
