1-31 — AIR DUCT (#13842) — 38 parça

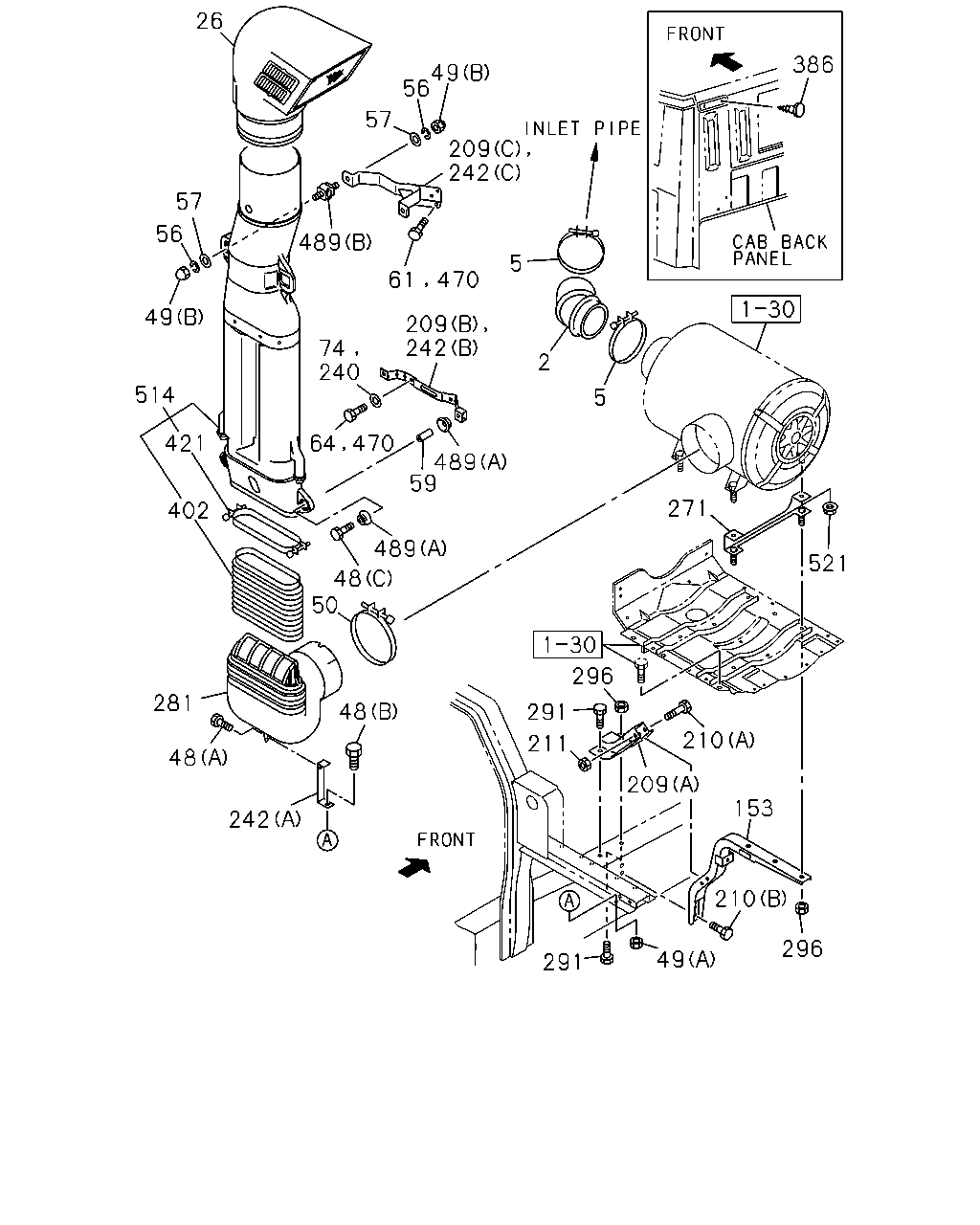

çizim 106607
26 386 49 56 57 209 242 57 56 489 5 61 470 49 209 242 74 240 2 514 5 421 64 489 59 271 402 489 521 48 50 296 281 48 291 210 211 48 209 153 242 210 296 49 291 470
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOSE; ACL 1-14231-955-1 01 1 0710- ● ●
5 CLIP; AIR DUCT
ID=130-169 		1-09707-157-0 02 1 0710- ● ●
26 DUCT; AIR INT 1-14219-258-1 01 1 0710- ● ●
48 BOLT; AIR DUCT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
48 BOLT; AIR DUCT
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0710- ● ●
48 BOLT; AIR DUCT
(C) M10X60 		1-09030-044-1 02 1 0710- ● ●
49 NUT; AIR DUCT
(A) M10 FLANGE 		0-91180-210-0 01 1 0710- ● ●
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-126-0 04 1 0710- ● ●
50 CLIP; JOINT HOSE
ID=183.5 		1-09707-098-2 01 1 0710- ● ●
56 WASHER; LK,AIR INT DUCT
ID=8.2 		1-09985-177-0 04 1 0710- ● ●
57 WASHER; PL,AIR INT DUCT
ID=8.4 OD=22 		1-09985-188-0 04 1 0710- ● ●
59 TUBE; DIST,AIR INT DUCT 1-79998-228-0 02 1 0710- ● ●
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0710-0807 ● ●
64 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 0710-0807 ● ●
74 WASHER; PL,ACL
ID=8.4 OD=22 		1-09985-188-0 01 1 0808- ● ●
153 BRACKET; ACL,FRT 1-53419-309-0 01 1 0710- ● ●
209 BRACKET; ACL
(C) 		1-79990-045-2 01 1 0808- ● ●
209 BRACKET; ACL
(B) 		8-98115-405-1 01 1 0808- ● ●
209 BRACKET; ACL
(A) 		1-53419-276-0 01 1 0710- ● ●
210 BOLT; ACL BRKT
(A) M8X70 FLANGE 		0-28050-870-0 02 1 0710- ● ●
210 BOLT; ACL BRKT
(B) M12X30 FLANGE 		0-28051-230-0 01 1 0710- ● ●
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
240 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09985-188-0 01 1 0710-0807 ● ●
242 BRACKET; AIR DUCT
(A) 		1-23957-006-0 01 1 0710- ● ●
242 BRACKET; AIR DUCT
(B) 		1-79990-041-0 01 1 0710-0807 ● ●
242 BRACKET; AIR DUCT
(C) 		1-79990-045-1 01 1 0710-0807 ● ●
271 SPACER; BRKT,ACL 1-53419-343-1 02 1 0710- ● ●
281 DUCT; AIR,VERTICAL INT 1-14230-194-0 01 1 0710- ● ●
291 BOLT; ACL
M12X30 FLANGE 		0-28051-230-0 02 1 0710- ● ●
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
386 PLUG; DUCT BRKT,AIR INT
OD=15 L=14.5 		1-76378-157-0 04 1 0710- ● ●
402 GASKET; RUBBER 1-14230-149-2 01 1 0710- ● ●
421 CLAMP; AIR DUCT 1-14239-237-0 01 1 0710- ● ●
470 BOLT; BRKT
M8X25 FLANGE 		8-98074-570-0 04 1 0808- ● ●
489 RUBBER; SUPPORT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 0710- ● ●
489 RUBBER; SUPPORT
(B) 		8-97080-149-0 02 1 0710- ● ●
514 DUCT; PRE CLEANER 1-14230-170-1 01 1 0710- ● ●
521 NUT; SPACER
M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
