Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#13840) — 31 parça
Tümü
A - 6WG1 TC-C
B - 6WG1 TC-S
◀

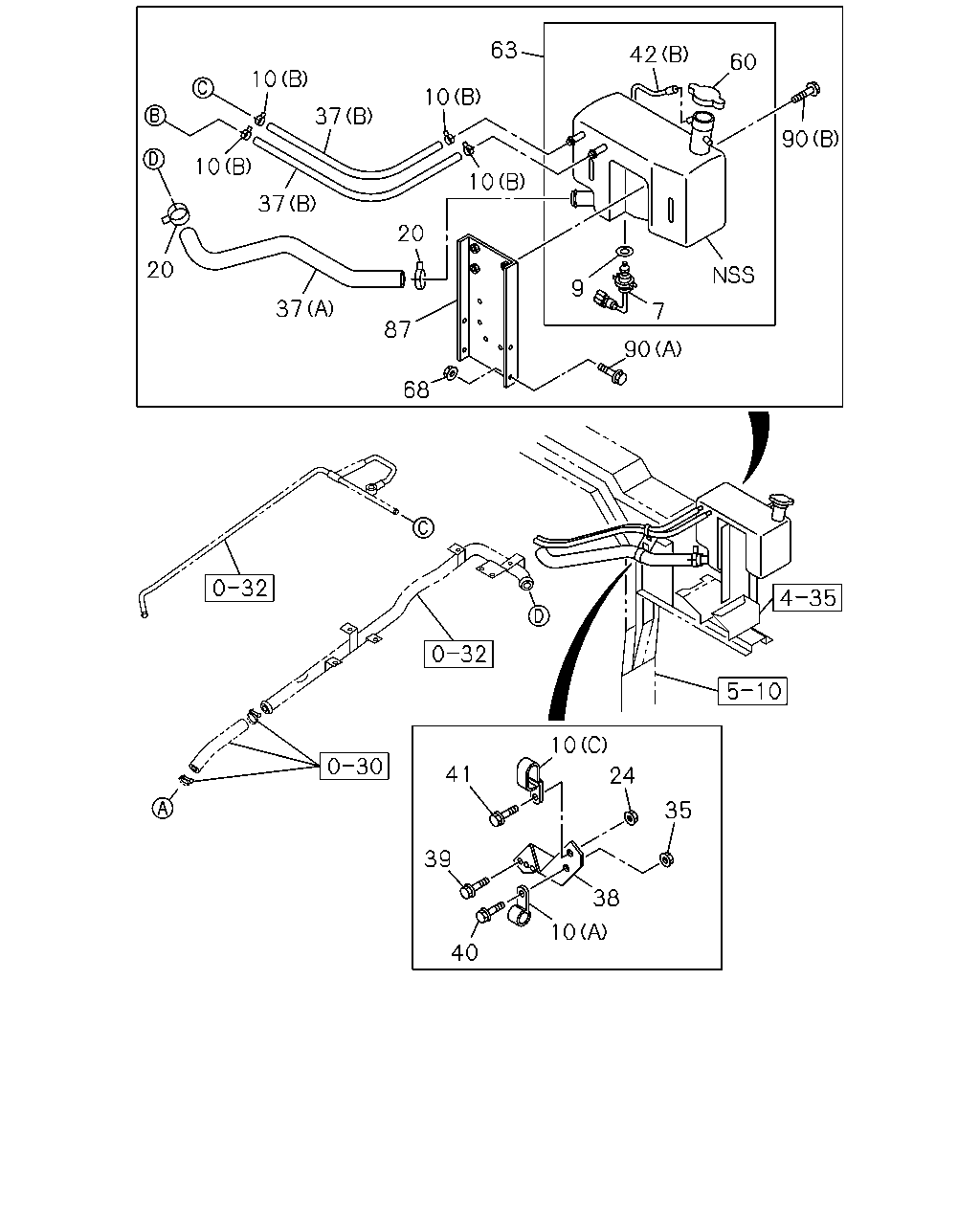

[111A] SUB TANK SIDE (23 parça)

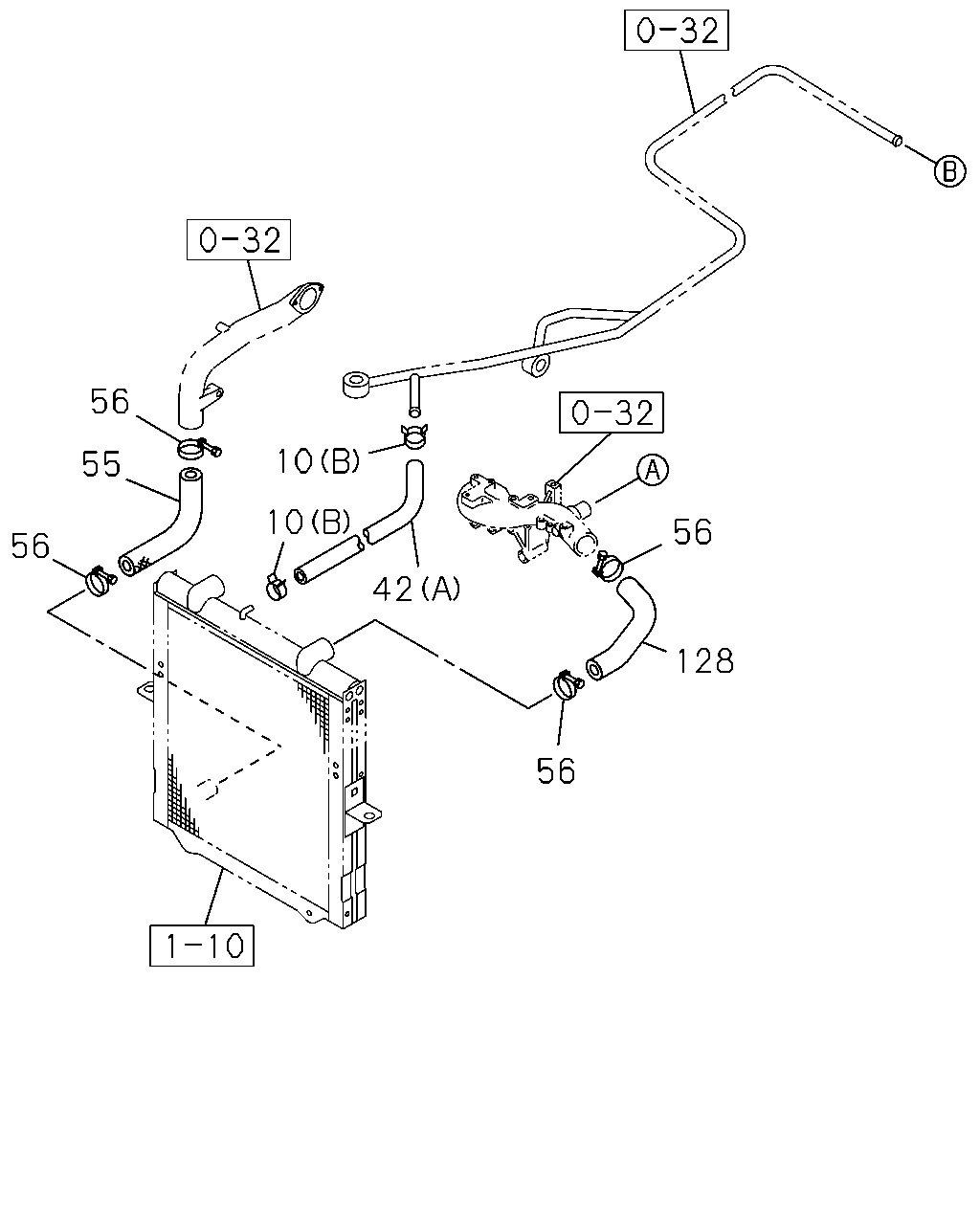

[111A] RADIATOR SIDE (8 parça)
▶
63
42
60
10
10
37
90
10
10
37
20
20
9
37
7
87
90
68
10
41
24
35
39
38
10
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0710-1206
●
●
7
SWITCH ASM; TANK
8-97640-800-0
01
1
1207-
●
●
9
GASKET; SWITCH
ID=28 OD=35
1-09630-130-0
01
1
0710-
●
●
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0710-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0710-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0710-
●
●
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0710-
●
●
24
NUT
M8 FLANGE
0-91180-108-0
01
1
0710-
●
●
35
NUT
M10 FLANGE
0-91180-210-0
01
1
0710-
●
●
37
HOSE; RUBBER
(A)
1-21437-975-1
01
1
0710-
●
●
37
HOSE; RUBBER
(B) L=680
8-98052-531-0
02
1
0710-
●
●
38
BRACKET; RUBBER HOSE
1-21489-198-0
01
1
0710-
●
●
39
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
02
1
0710-
●
●
40
BOLT; CLIP
M10X25 FLANGE
0-28651-025-0
01
1
0710-
●
●
41
BOLT
M8X25 FLANGE
0-28650-825-0
01
1
0710-
●
●
42
HOSE; RUBBER
(A) L=380 SERVICED BY L=3000
0-03559-300-0
01
1
0710-
●
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
0710-
●
●
60
CAP; SUB TANK
1-21450-137-0
01
1
0710-
●
●
63
TANK ASM; SUB
1-21481-147-2
01
1
0710-
●
●
68
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0710-
●
●
87
BRACKET; SUB TANK
1-21489-193-2
01
1
0710-
●
●
90
BOLT; SUB TANK TO BRKT
(A) M8X25 FLANGE
0-28650-825-0
04
1
0710-
●
●
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0710-
●
●
56
10
55
10
56
56
42
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
10
CLIP; RUBBER HOSE
(A) ID=43 L=40
1-09700-624-2
01
1
0710-
●
●
10
CLIP; RUBBER HOSE
(C) ID=14X29 H=15 L=20
1-09700-744-0
01
1
0710-
●
●
10
CLIP; RUBBER HOSE
(B) ID=14
1-09704-102-0
06
1
0710-
●
●
42
HOSE; RUBBER
(A) L=380 SERVICED BY L=3000
0-03559-300-0
01
1
0710-
●
●
42
HOSE; RUBBER
(B) L=650
1-21489-186-0
01
1
0710-
●
●
55
HOSE; WATER,RAD OUTLET
1-21437-979-2
01
1
0710-
●
●
56
CLIP; WATER HOSE,RAD
ID=72
1-09704-068-0
04
1
0710-
●
●
128
HOSE; WATER,RAD INL
1-21437-977-1
01
1
0710-
●
●
