7-50 — FRONT SEAT (#13833) — 122 parça

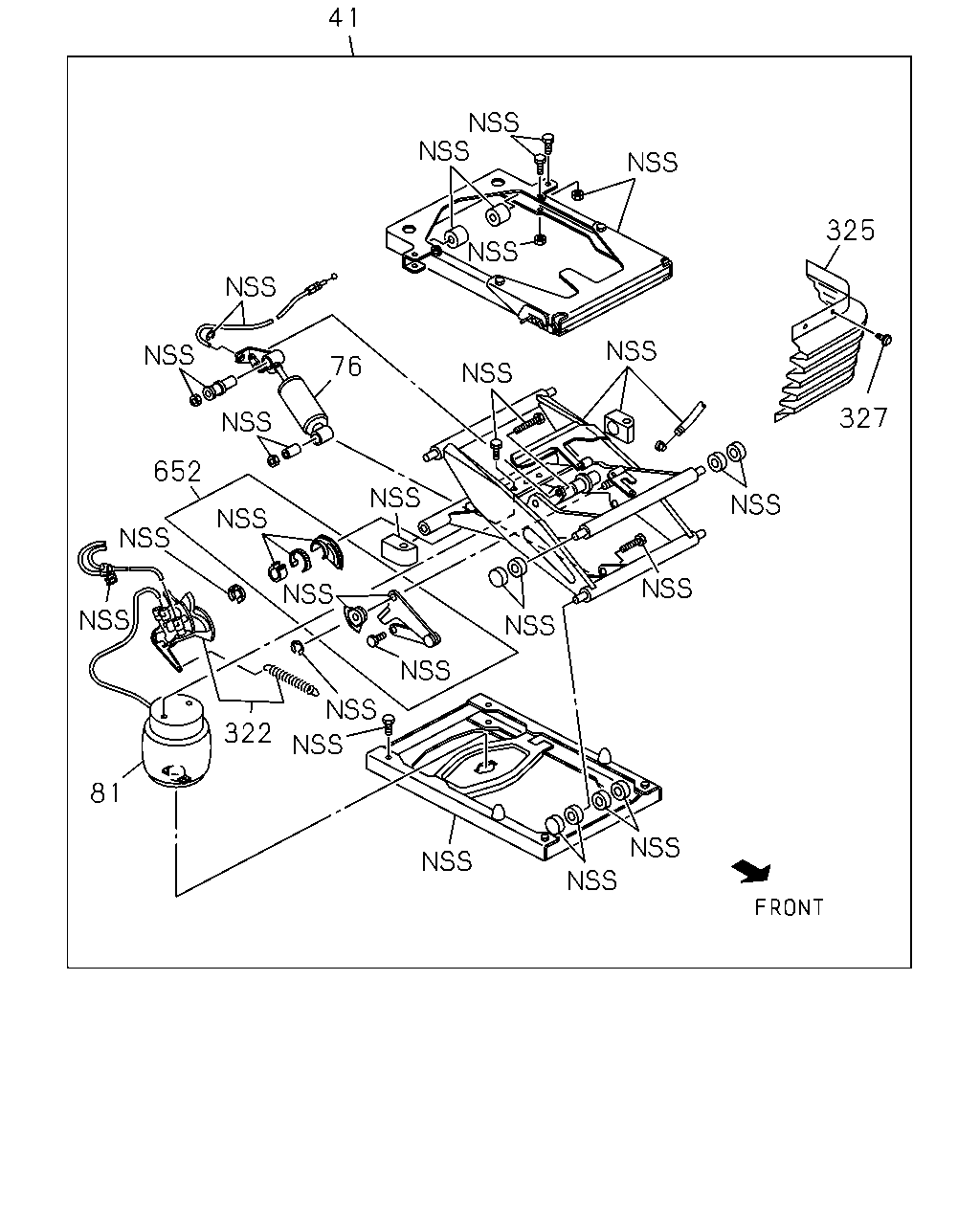

çizim 141879
41 76 652 81 322 327 325
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
76 DAMPER; AIR SUSP 8-98097-999-0 01 1 0710- ● ●
81 SPRING; AIR 8-98098-000-0 01 1 0710- ● ●
322 VALVE; AIR SPRING 8-98098-001-0 01 1 0710-1508 ● ●
322 VALVE; AIR SPRING 8-98331-314-0 01 1 1509- ● ●
325 COVER; SUSPENSION DEVICE 8-98098-003-0 01 1 0710- ● ●
327 CLIP; COVER 8-98098-004-0 01 1 0710- ● ●
652 LOCK ASM; HEIGHT 8-98098-002-0 01 1 0710- ● ●

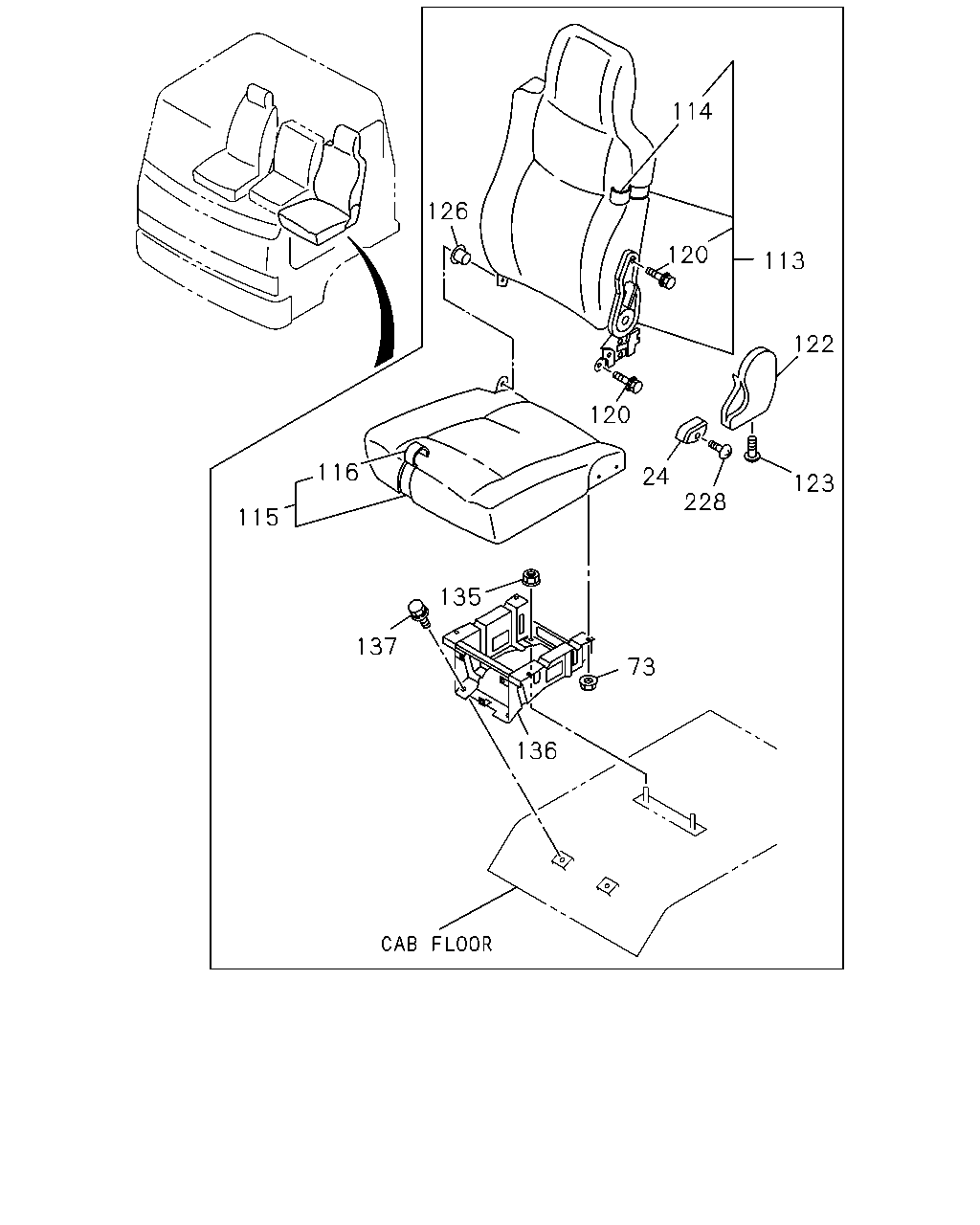

çizim 142231
114 113 122 123 24 228 126 116 115 137 135 73 136 120 120
BalonParca AdiParca NoAdetTipApplied Date A B
24 KNOB; RECLINING,FRT,SEAT 1-75418-067-0 01 1 0710- ● ●
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0710- ● ●
113 BACK ASM; SEAT 8-98054-773-0 01 1 0710- ● ●
114 COVER; TRIM,PASSENGER SEAT,BACK 8-98054-777-0 01 1 0710- ● ●
115 CUSHION ASM; PASSENGER SEAT 8-98054-770-0 01 1 0710- ● ●
116 COVER; TRIM,PASSENGER SEAT,CUSHION 8-98054-775-0 01 1 0710- ● ●
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0710- ● ●
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97859-018-0 01 1 0710- ● ●
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710- ● ●
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0710- ● ●
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
136 STAND; PASSENGER SEAT 1-75558-601-3 01 1 0710-1305 ● ●
136 STAND; PASSENGER SEAT 8-98242-298-0 01 1 1306- ● ●
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
228 SCREW; KNOB
M4 		8-98062-662-0 01 1 0710- ● ●

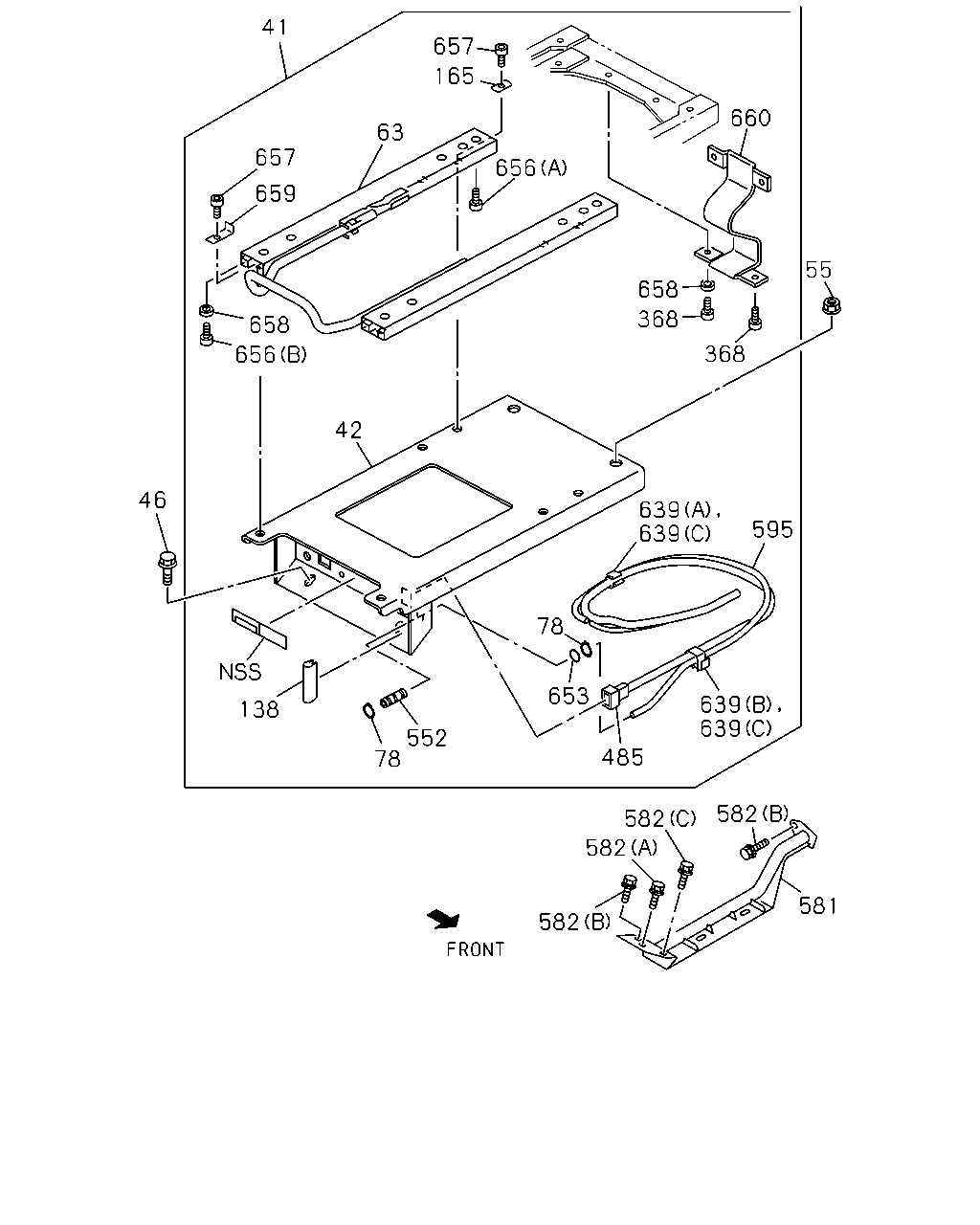

çizim 142246
582 582 582 582 581 639 485 639 653 78 639 639 595 552 78 138 46 42 656 658 659 657 63 41 657 660 165 55 658 368 368 656
BalonParca AdiParca NoAdetTipApplied Date A B
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
42 STAND; DRIVER SEAT 8-98106-347-0 01 1 0710- ● ●
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0710- ● ●
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0710- ● ●
63 ADJUSTER; SEAT SLIDE 8-98098-005-0 01 1 0710- ● ●
78 RING; SNAP 8-98101-900-0 02 1 0710- ● ●
138 PROTECTOR; SEAT STAND 8-98106-351-0 01 1 0710- ● ●
165 WASHER; PL 1-75590-086-0 04 1 0710- ● ●
368 BOLT; SEAT 8-98106-353-0 04 1 0710- ● ●
485 HARNESS; FRT SEAT 8-98106-360-0 01 1 0710- ● ●
552 CONNECTOR 8-98101-902-0 01 1 0710-1508 ● ●
552 CONNECTOR 8-98308-101-0 01 1 1509- ● ●
581 PIPE; SEAT 1-73907-605-2 01 1 0710- ● ●
582 BOLT; PIPE,SEAT
(B) 		1-09980-619-1 02 1 0710- ● ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904 ● ●
582 BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ● ●
582 BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER 		8-94279-210-0 01 1 0710- ● ●
595 TUBE; NYLON 8-98106-348-0 01 1 0710- ● ●
639 CLIP; SEAT
(A) 		8-98106-349-0 01 1 0710-1508 ● ●
639 CLIP; SEAT
(C) 		8-98308-100-0 02 1 1509- ● ●
639 CLIP; SEAT
(B) 		8-98106-350-0 01 1 0710-1508 ● ●
653 GASKET 8-98101-901-0 01 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(A) 		1-75590-085-0 04 1 0710- ● ●
656 BOLT; SLIDER TO SEAT
(B) 		8-98106-354-0 02 1 0710- ● ●
657 BOLT; SLIDER TO STAND 1-75590-085-0 06 1 0710- ● ●
658 SPACER; BOLT 8-98106-355-0 02 1 0710- ● ●
659 STOPPER 8-98106-356-0 02 1 0710- ● ●
660 BELT; TETHER 8-98106-357-0 01 1 0710- ● ●

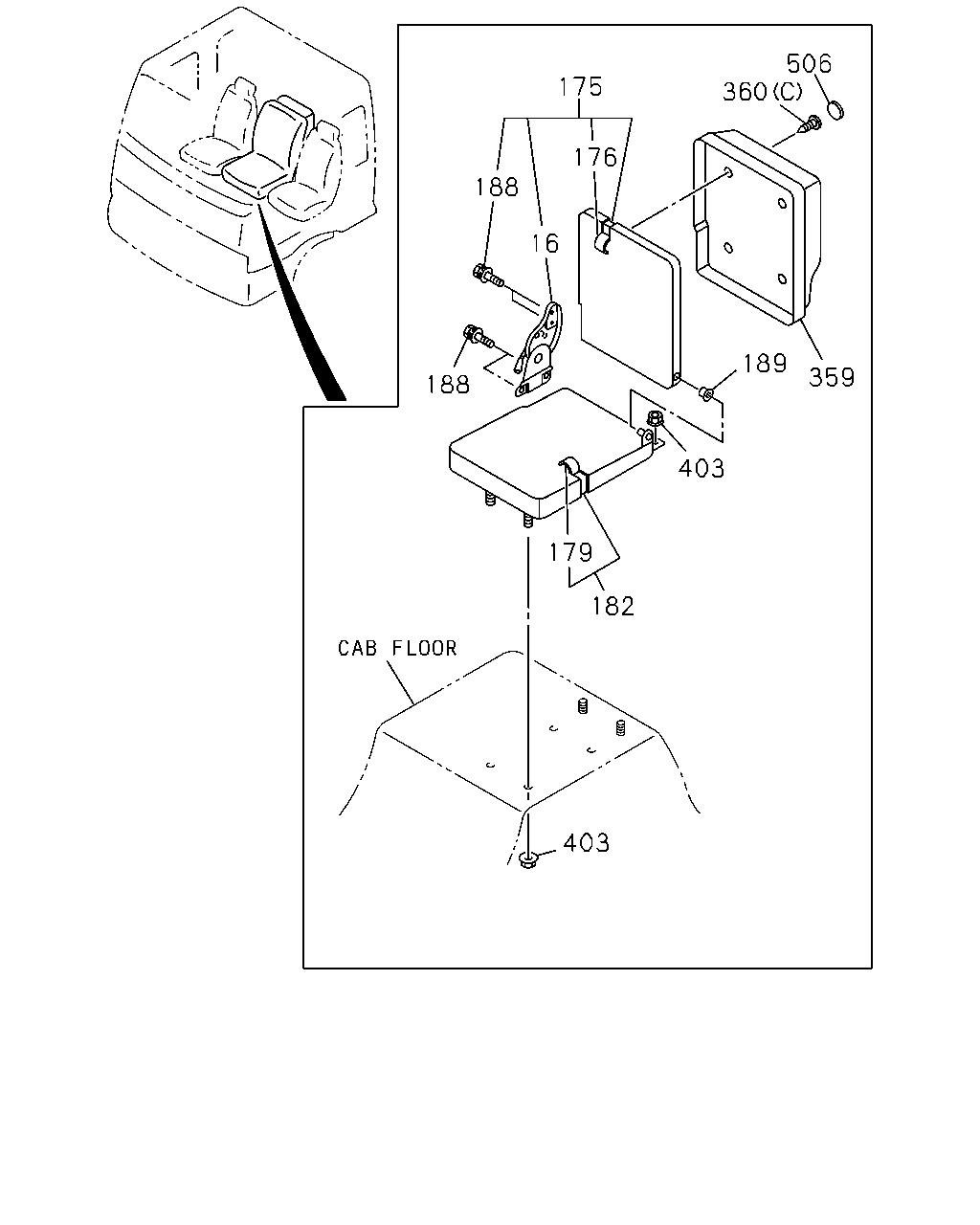

çizim 142254
506 360 175 176 188 16 188 189 359 403 179 182 403
BalonParca AdiParca NoAdetTipApplied Date A B
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0710- ● ●
175 BACK ASM; PASSENGER CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-774-1 01 1 0710- ● ●
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. CENTER SEAT DELETE(SP9) 		8-98054-779-0 01 1 0710- ● ●
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. CENTER SEAT DELETE(SP9) 		8-98054-778-0 01 1 0710- ● ●
182 CUSHION ASM; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) 		8-98054-772-2 01 1 0710- ● ●
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0710- ● ●
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0710- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0710-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0710-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0710-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0710- ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0710-1006 ● ●
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007- ● ●

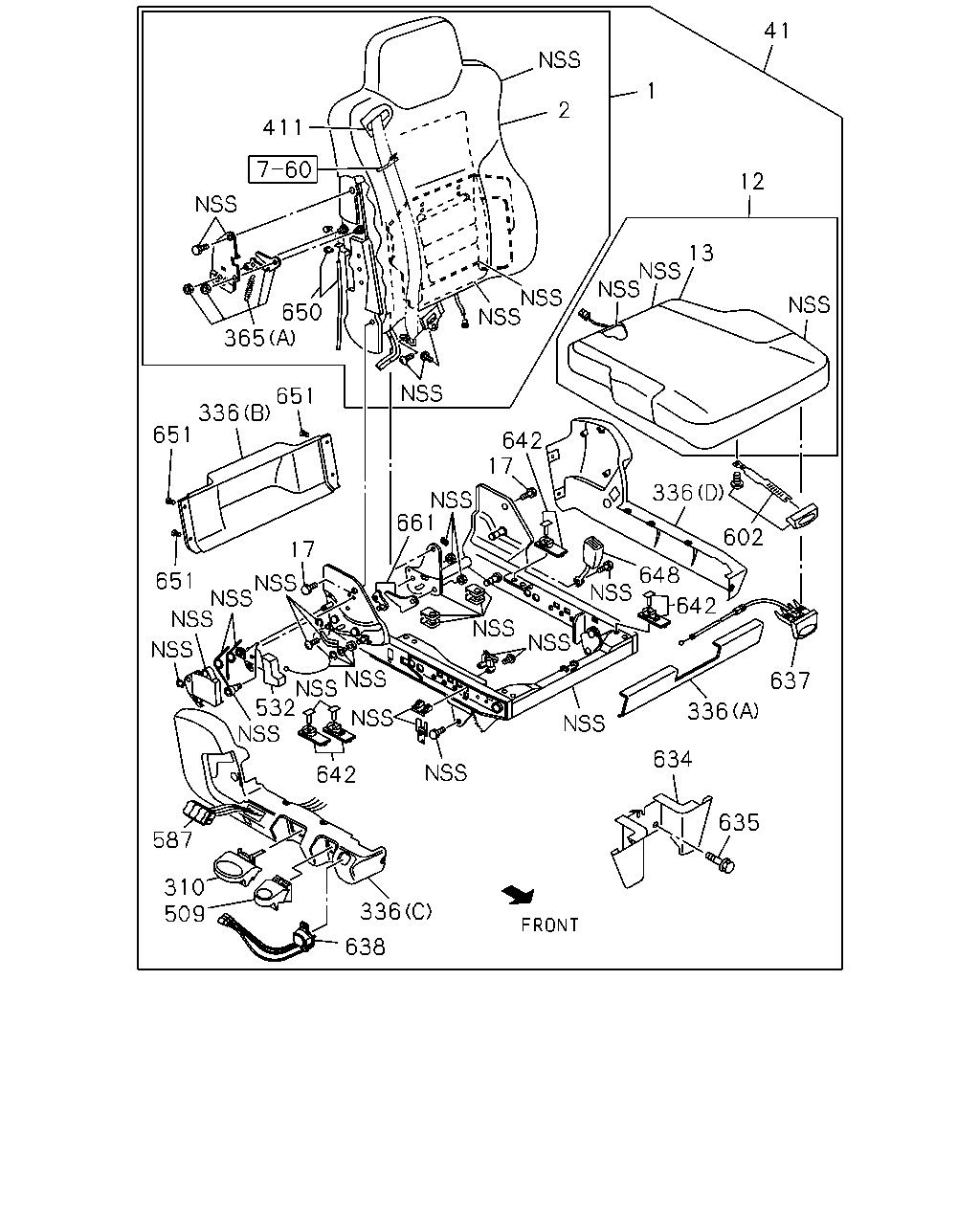

çizim 142256
41 1 2 12 13 411 650 365 651 336 651 17 661 17 642 336 602 648 642 637 336 634 635 532 642 587 310 509 336 638 651
BalonParca AdiParca NoAdetTipApplied Date A B
1 BACK ASM; SEAT 8-98097-964-0 01 1 0710- ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98097-966-0 01 1 0710-1212 ● ●
2 COVER; TRIM,FRT SEAT,BACK 8-98232-353-0 01 1 1301- ● ●
12 CUSHION; SEAT,FRT 8-98098-006-0 01 1 0710- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION 8-98098-007-0 01 1 0710- ● ●
17 BOLT; RECLINING 8-98097-974-0 02 1 0710- ● ●
41 SEAT ASM; DRIVER 8-98036-942-2 01 1 0710-1212 ● ●
41 SEAT ASM; DRIVER 8-98195-067-1 01 1 1301- ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT 8-98097-992-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(D) 		8-98097-978-0 01 1 0710-1508 ● ●
336 COVER; DRIVER SEAT
(D) 		8-98331-313-0 01 1 1509- ● ●
336 COVER; DRIVER SEAT
(C) 		8-98097-984-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(A) 		8-98097-995-0 01 1 0710- ● ●
336 COVER; DRIVER SEAT
(B) 		8-98097-996-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 0710- ● ●
411 GUIDE; SEAT BELT 8-98097-967-0 01 1 0710- ● ●
509 LEVER; DAMPER 8-98097-988-0 01 1 0710- ● ●
532 LEVER ASM; TILT 8-98097-982-0 01 1 0710- ● ●
587 VALVE; LUMBAR SUPPORT 8-98097-986-0 01 1 0710- ● ●
602 KNOB; ADJ,SEAT 8-98098-008-0 01 1 0710- ● ●
634 COVER; CONNECTOR,SEAT 8-98088-279-0 01 1 0710- ● ●
635 BOLT; COVER
M6X16 		0-52000-616-0 02 1 0710- ● ●
637 LEVER; SLOPE ADJ 8-98097-989-0 01 1 0710- ● ●
638 VALVE; LOWERING 8-98097-994-0 01 1 0710- ● ●
642 SLIDER; CUSHION 8-98192-932-0 04 1 0710- ● ●
648 BUCKLE; SEAT BELT 8-98097-976-0 01 1 0710- ● ●
650 CABLE 8-98097-973-0 01 1 0710-1212 ● ●
650 CABLE 8-98232-354-0 01 1 1301- ● ●
651 RIVET 8-98194-075-0 04 1 0710- ● ●
661 LOCK ASM; RECLINING 8-98097-980-0 01 1 0710- ● ●

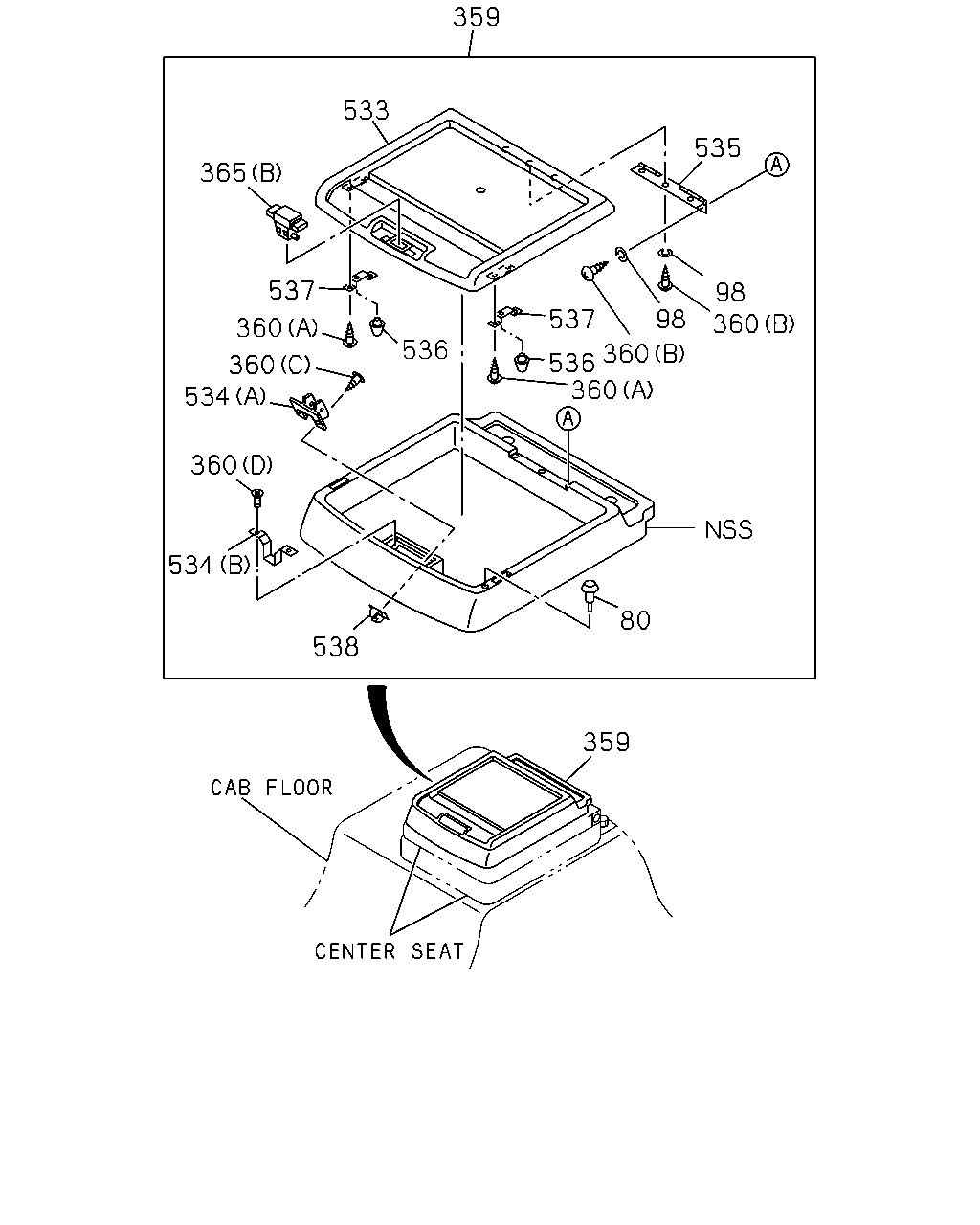

çizim 336637
535 359 533 365 537 536 360 360 534 360 534 538 80 359 360 98 98 537 536 360 360
BalonParca AdiParca NoAdetTipApplied Date A B
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) 		1-72538-187-0 02 1 1007- ● ●
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0710- ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0710-1006 ● ●
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0710-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0710-1104 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105- ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0710-1006 ● ●
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007- ● ●
365 LOCK ASM; SEAT
(A) 		8-98097-972-0 01 1 0710- ● ●
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-180-0 01 1 0710- ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0710-1006 ● ●
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007- ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0710-1006 ● ●
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007- ● ●
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0710- ● ●
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0710-1006 ● ●
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0710-1006 ● ●
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0710-1006 ● ●
