◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-57 - EMISSION PIPING ▶
0-57 — EMISSION PIPING (#13831) — 22 parça
çizim 106921
49
BalonParca AdiParca NoAdetTipApplied Date A B
49 CLIP; HOSE
ID=10 & 10 		1-09709-277-1 01 1 0710- ● ●

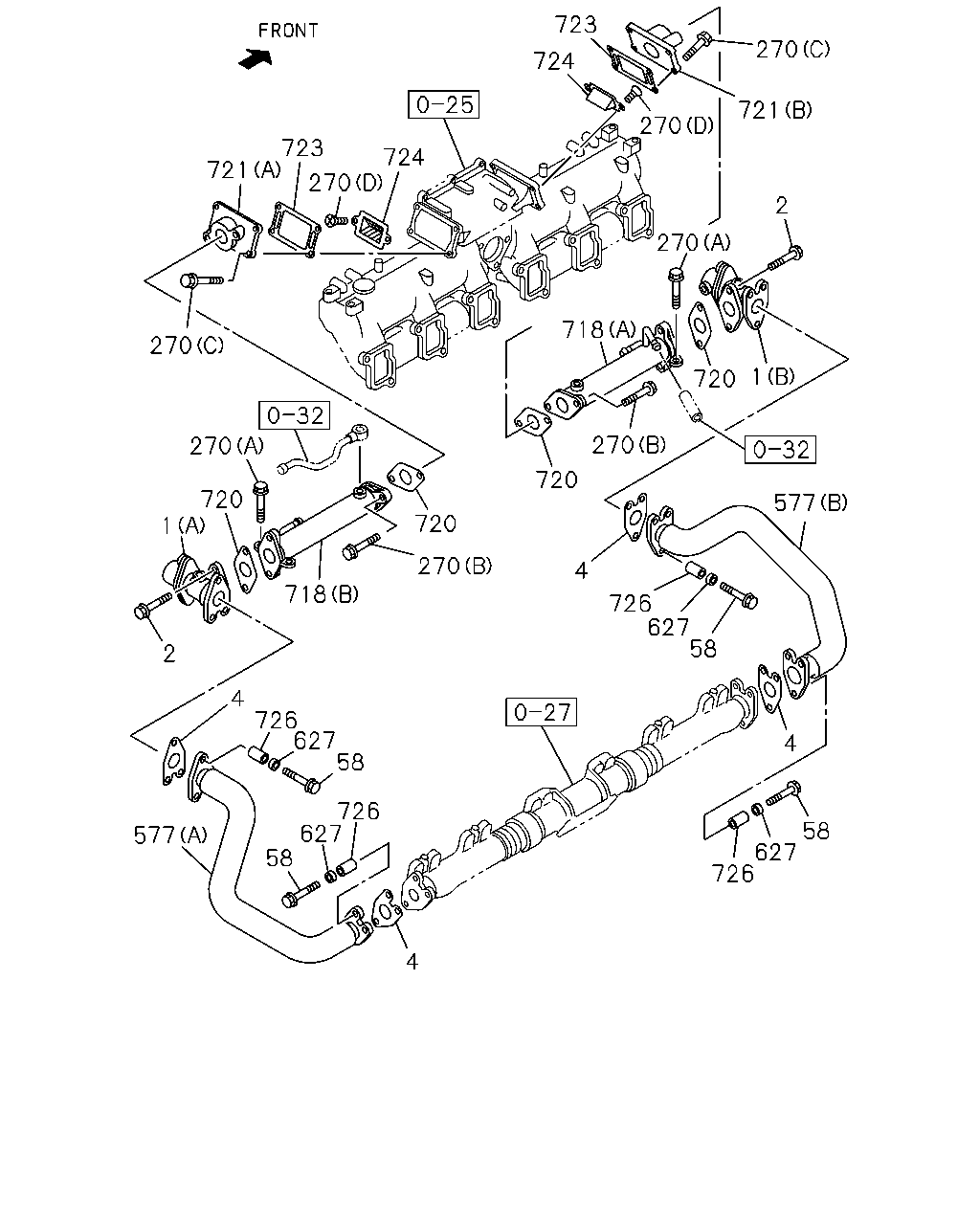

çizim 106922
723 270 724 721 270 723 724 270 721 2 270 718 270 1 720 270 270 720 720 577 720 1 270 4 718 726 627 58 2 4 726 627 58 4 726 627 58 58 627 726 577 4
BalonParca AdiParca NoAdetTipApplied Date A B
1 VALVE; EGR
(B) 		1-16110-015-3 01 1 0710- ● ●
1 VALVE; EGR
(A) 		1-16110-016-3 01 1 0710- ● ●
2 BOLT; EGR VLV
M10X20 FLANGE 		0-28151-020-0 04 1 0710- ● ●
4 GASKET; EGR VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-015-0 04 1 0710- ● ●
58 BOLT; PIPE
M10X55 FLANGE 		8-94399-863-1 12 1 0710-0805 ● ●
58 BOLT; PIPE
M10X55 FLANGE 		8-97365-449-0 12 1 0806- ● ●
270 BOLT
(A) M10X20 FLANGE 		0-28151-020-0 04 1 0710- ● ●
270 BOLT
(B) M10X30 FLANGE 		0-28151-030-0 04 1 0710- ● ●
270 BOLT
(C) M10X35 FLANGE 		0-28151-035-0 08 1 0710- ● ●
270 BOLT
(D) M6X12 HEX SOCKET 		9-05820-612-0 04 1 0710- ● ●
577 PIPE; AIR,EGR
(B) 		8-97607-492-0 01 1 0710- ● ●
577 PIPE; AIR,EGR
(A) 		8-97607-493-0 01 1 0710- ● ●
627 WASHER; LK,EGR PIPE
T=2.2 		1-09556-015-0 12 1 0710- ● ●
718 COOLER; EGR
(A) 		1-16127-016-2 01 1 0710- ● ●
718 COOLER; EGR
(B) 		1-16127-017-2 01 1 0710- ● ●
720 GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16157-016-0 04 1 0710- ● ●
721 DUCT; COOLER
(B) 		1-16183-055-2 01 1 0710- ● ●
721 DUCT; COOLER
(A) 		1-16183-056-3 01 1 0710- ● ●
723 GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-16185-004-0 02 1 0710- ● ●
724 VALVE; REED 8-98186-738-0 02 1 0710- ● ●
726 TUBE; DISTANCE
L=28 		8-97250-073-1 12 1 0710- ● ●
