Isuzu WW
▶
TRUCKS
▶
FVZ
▶
10633 - FVZ-RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#1383) — 42 parça
Tümü
A - 6SA1 STD ENG
B - 6SA1TC ENG
◀
[027A] 6SA1 STD ENG (22 parça)
[027A] 6SA1TC ENG (20 parça)
▶

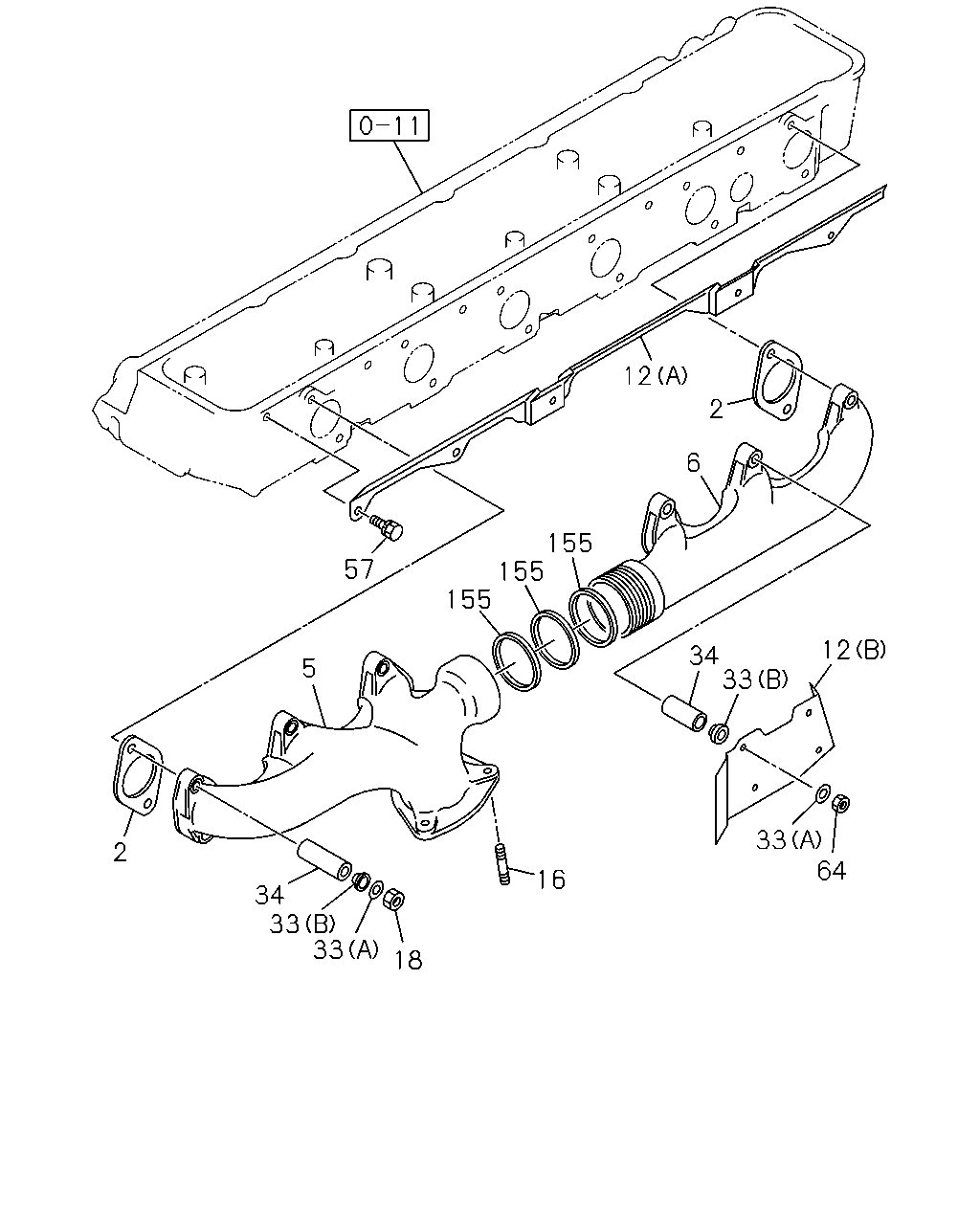

12
2
6
155
155
155
57
12
34
33
5
33
64
2
16
34
33
33
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-144-0
06
1
9203-
●
●
5
MANIFOLD; EXH,FRT
D=64
1-14141-738-2
01
1
9203-9410
●
5
MANIFOLD; EXH,FRT
1-14141-784-0
01
1
9411-
●
6
MANIFOLD; EXH,RR
1-14141-700-1
01
1
9203-9410
●
6
MANIFOLD; EXH,RR
1-14141-785-0
01
1
9411-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
1-14181-236-0
01
1
9203-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)
1-14181-267-2
01
1
9406-
●
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
1-14181-170-0
01
1
9203-
●
16
STUD; EXH PIPE TO MANIF
M12X90 L=110
1-09302-035-0
03
1
9203-9410
●
16
STUD; EXH PIPE TO MANIF
M12X100 L=120
8-94397-322-0
03
1
9411-
●
18
NUT; EXH MANIF
M10
9-09110-510-0
12
1
9203-
●
●
33
WASHER; EXH MANIF
(A)
1-09556-015-0
12
1
9203-
●
●
33
WASHER; EXH MANIF
(B)
1-14149-042-0
12
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43
1-14149-048-1
07
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=75
1-14149-197-0
05
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43
1-14149-048-1
12
1
9203-
●
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 W/LK WASHER
0-50040-814-0
02
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X20 W/LK WASHER
0-50040-820-0
02
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 W/LK WASHER
1-09033-012-0
01
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 W/LK WASHER
0-50040-816-0
01
1
9203-
●
64
NUT; HEAT PROTECTOR
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE
0-91150-110-0
04
1
9203-
●
●
155
RING; SEAL,EXH MANIF
1-14149-151-0
03
1
9203-
●

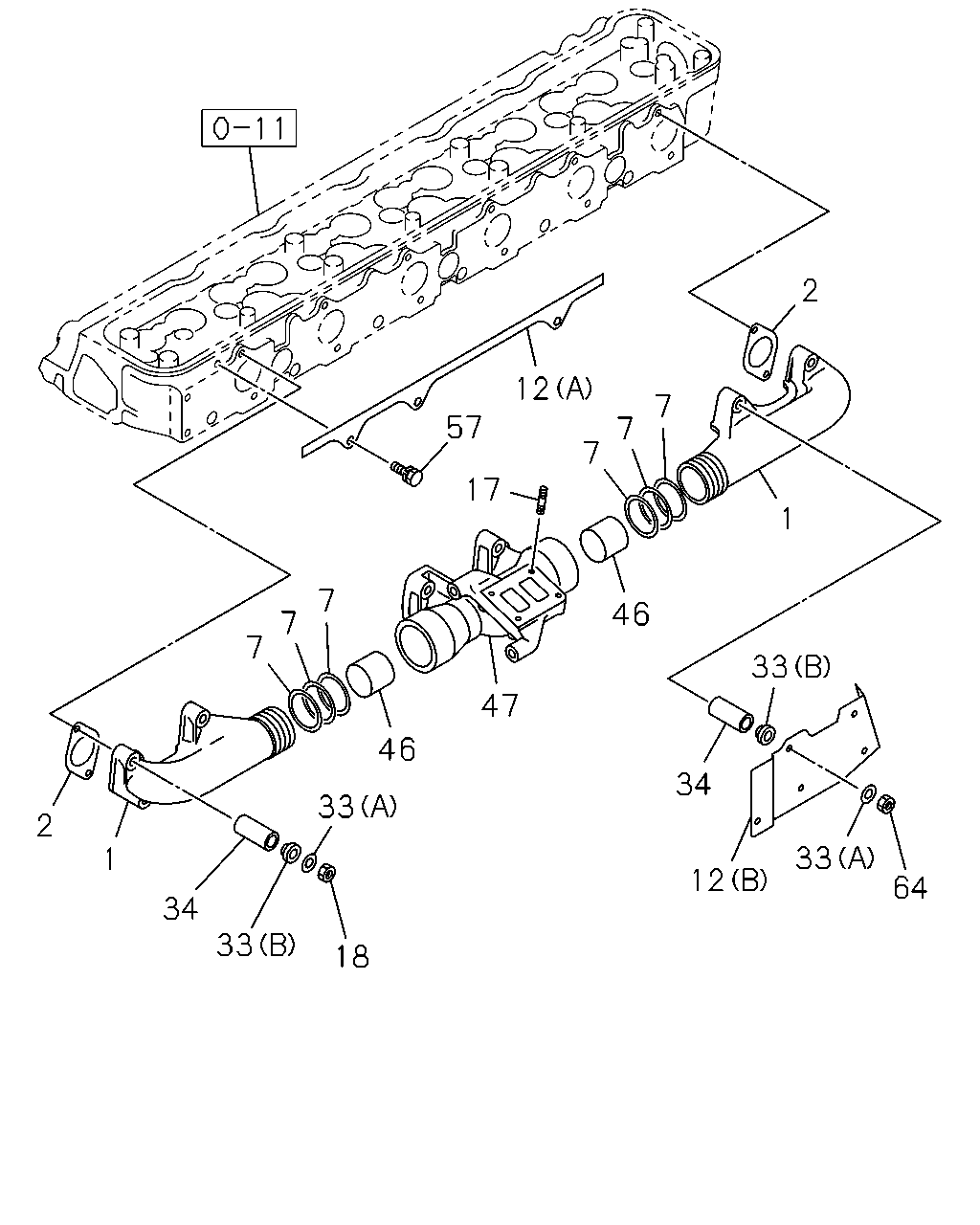

2
12
7
57
7
7
17
1
7
46
7
7
33
47
46
34
33
2
33
1
12
64
34
33
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
MANIFOLD; EXHAUST
1-14141-685-3
02
1
9203-
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-144-0
06
1
9203-
●
●
7
RING; SEAL,EXH MANIF
1-14149-151-0
06
1
9203-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
1-14181-236-0
01
1
9203-
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)
1-14181-267-2
01
1
9406-
●
●
12
PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF
(A)
1-14181-170-0
01
1
9203-
●
17
STUD; MANIF TO TURBOCHARGER
M10X25 L=40
9-04731-025-0
04
1
9203-
●
18
NUT; EXH MANIF
M10
9-09110-510-0
12
1
9203-
●
●
33
WASHER; EXH MANIF
(A)
1-09556-015-0
12
1
9203-
●
●
33
WASHER; EXH MANIF
(B)
1-14149-042-0
12
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43
1-14149-048-1
07
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=75
1-14149-197-0
05
1
9203-
●
●
34
COLLAR; DIST,EXH MANIF
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> L=43
1-14149-048-1
12
1
9203-
●
●
46
PIPE; SEAL,EXH MANIF
OD=49.5 L=43
1-14149-131-1
02
1
9203-
●
47
MANIFOLD; EXH,CENTER
1-14141-694-1
01
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X14 W/LK WASHER
0-50040-814-0
02
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X20 W/LK WASHER
0-50040-820-0
02
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M10X16 W/LK WASHER
1-09033-012-0
01
1
9203-
●
57
BOLT; HEAT PROTECTOR,EXH MANIF
M8X16 W/LK WASHER
0-50040-816-0
01
1
9203-
●
64
NUT; HEAT PROTECTOR
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10 FLANGE
0-91150-110-0
04
1
9203-
●
●
