◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 9 - Tools ▶ 9-33 - REAR BODY; GATE AND SIDE GUARD ▶
9-33 — REAR BODY; GATE AND SIDE GUARD (#138149) — 601 parça

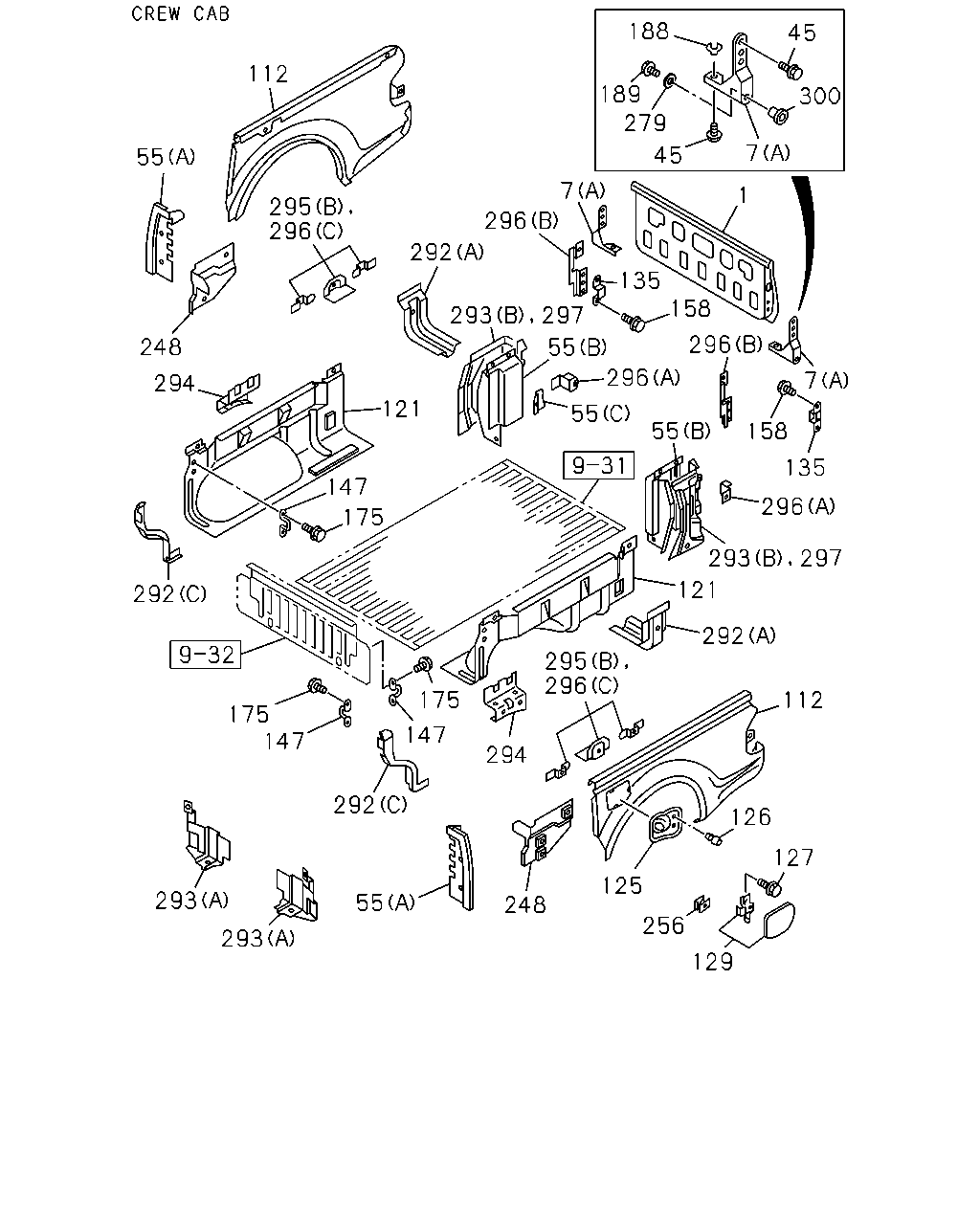

çizim 417142
297 296 293 121 292 112 295 296 125 256 129 126 127 248 55 292 293 293 175 147 292 175 121 147 294 248 55 112 295 296 292 296 293 297 55 55 296 296 158 7 135 45 279 189 188 45 300 7 1 7 158 55 294 147 175 135
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 1510- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1406-1406 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1406-1406 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ● ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-319-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-628-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-320-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-629-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-138-2 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-139-2 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-332-0 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-333-0 01 1 1405- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-601-6 01 1 1510- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-602-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-313-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-617-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-358-0 01 1 1405- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-359-0 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-853-3 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-854-3 01 1 1405- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97369-819-0 01 1 1510- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-334-0 01 1 1405- ●
125 RECESS; FUEL FILLER NECK,RR BODY 8-97387-335-0 01 1 1405- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1510- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1510- ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1510- ● ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 1405- ●
129 LID ASM; FUEL FILLER,RR BODY 8-97387-396-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-334-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-334-0 01 1 1405- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97264-487-0 04 1 1405- ●
147 HOOK ASM; ROPE,FRT
IMA 		8-97264-487-0 04 1 1405- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1510- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 		8-98058-001-0 08 1 1405- ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 		8-98058-001-0 08 1 1405- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ● ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ●
248 PATCH; CARGO RR 8-93332-582-3 01 1 1405- ●
248 PATCH; CARGO RR 8-93332-584-3 01 1 1405- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1510- ● ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1510- ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1510- ● ●
279 SPACER
IMA 		8-97357-403-0 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (F) 		8-97236-680-6 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-076-3 01 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-077-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97251-646-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97260-383-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1510- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1510- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1510- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ● ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 1405- ●
297 PANEL; CORNER,RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-97387-340-1 01 1 1405- ●
297 PANEL; CORNER,RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-97387-341-1 01 1 1405- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1510- ● ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1510- ●

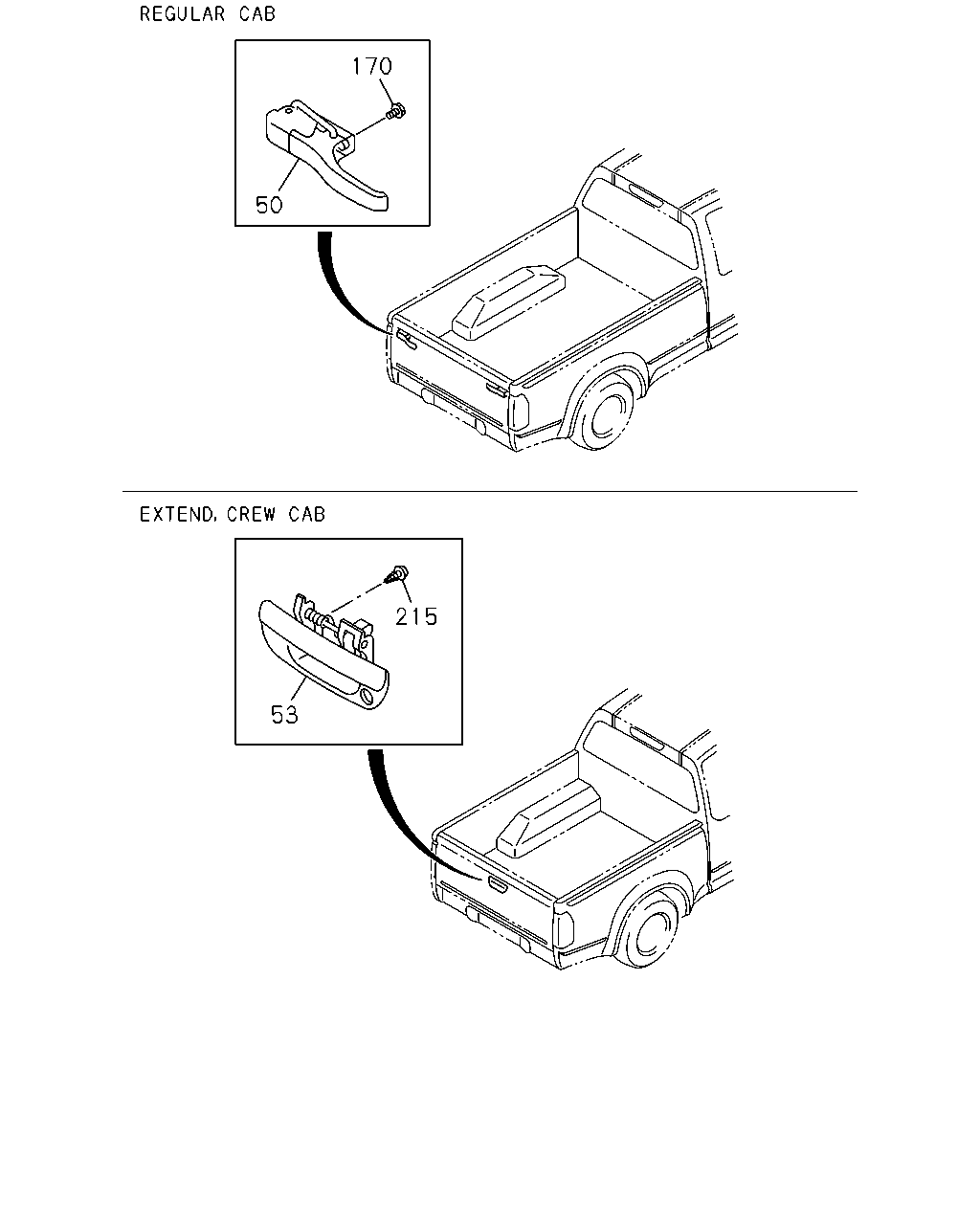

çizim 417143
215 53 50 170
BalonParca AdiParca NoAdetTipApplied Date A B C
50 LOCK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98061-099-0 02 1 1510- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> REAR BODY DBL WALL CTR PULL(E63) 		8-98079-020-0 01 1 1405- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
OUTSIDE HANDLE CHROME<E20> 		8-98079-020-0 01 1 1405- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. OUTSIDE HANDLE CHROME<E20> 		8-98079-019-0 01 1 1405- ●
53 HANDLE ASM; OUTSIDE,TAIL GATE
EXC. OUTSIDE HANDLE CHROME<E20> 		8-98079-019-0 01 1 1405- ●
170 BOLT; TAIL GATE LOCK
REAR BODY DBL WALL CTR PULL(E63) M6X20 W/WASHER IMA 		8-98056-282-0 04 1 1510- ●
215 BOLT; HANDLE TO GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) M6X14 FLANGE IMA 		8-97247-698-0 02 1 1405- ●
215 BOLT; HANDLE TO GUARD FRAME
M6X14 FLANGE IMA 		8-97247-698-0 02 1 1405- ●

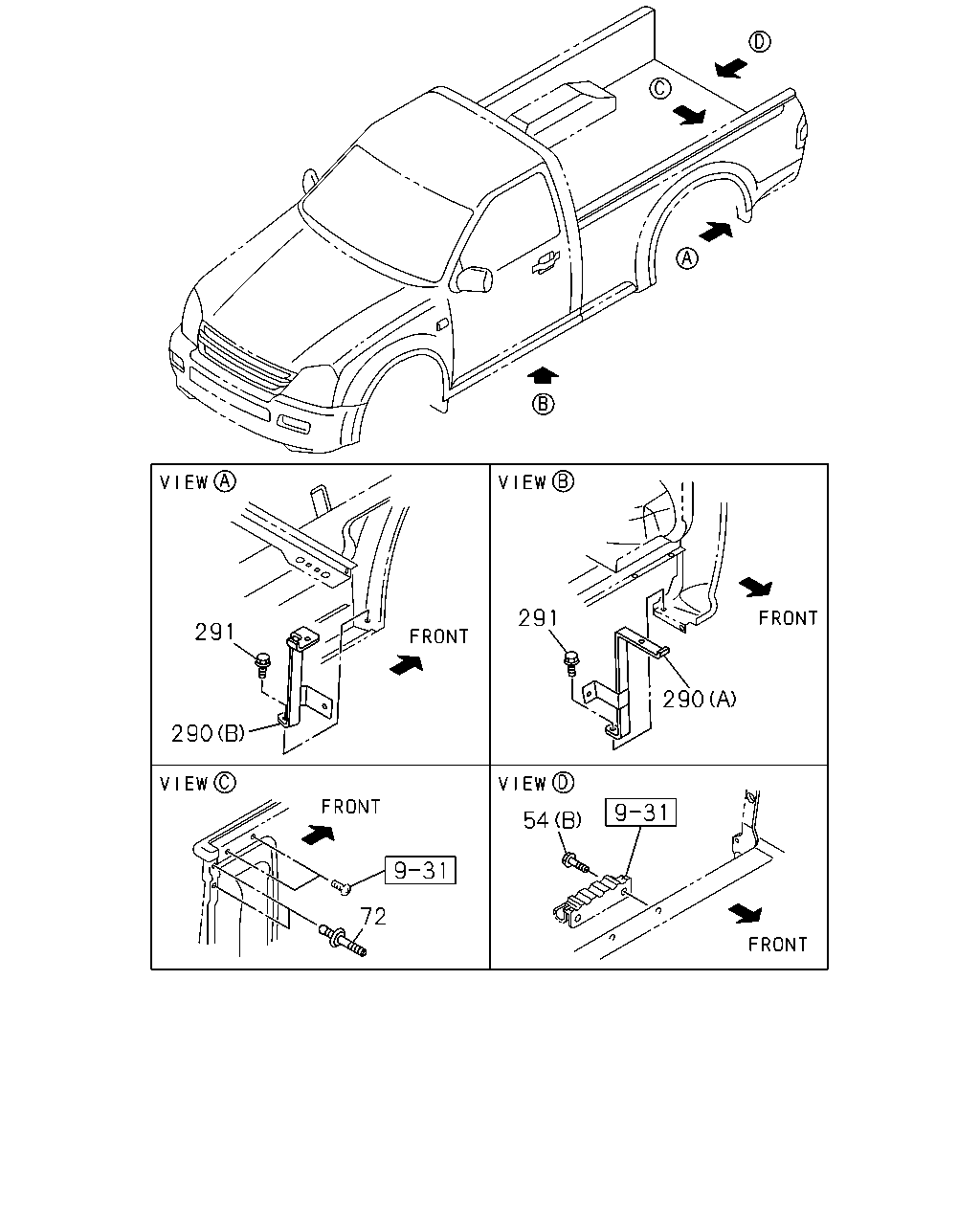

çizim 417144
290 54 291 291 290 72
BalonParca AdiParca NoAdetTipApplied Date A B C
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X22 		8-98050-437-0 02 1 1510- ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 IMA 		8-97247-699-0 04 1 1405- ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 IMA 		8-97247-699-0 04 1 1405- ●
72 PIN; HINGE,CENTER POST
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-864-0 04 1 1405- ●
72 PIN; HINGE,CENTER POST
IMA 		8-98057-864-0 04 1 1405- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-494-0 01 1 1405-1509 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-494-0 01 1 1510- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-495-0 01 1 1405-1509 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98027-495-0 01 1 1510- ● ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-449-0 01 1 1405-1509 ●
290 BRACE; RR BODY
(B) 		8-97357-449-0 01 1 1405-1509 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-449-0 01 1 1510- ● ●
290 BRACE; RR BODY
(B) 		8-97357-449-0 01 1 1510- ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-450-0 01 1 1405-1509 ●
290 BRACE; RR BODY
(B) 		8-97357-450-0 01 1 1405-1509 ●
290 BRACE; RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-97357-450-0 01 1 1510- ● ●
290 BRACE; RR BODY
(B) 		8-97357-450-0 01 1 1510- ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1405-1509 ●
291 BOLT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1510- ● ●
291 BOLT; RR BODY
M8X25 FLANGE IMA 		0-28650-825-0 02 1 1405- ●

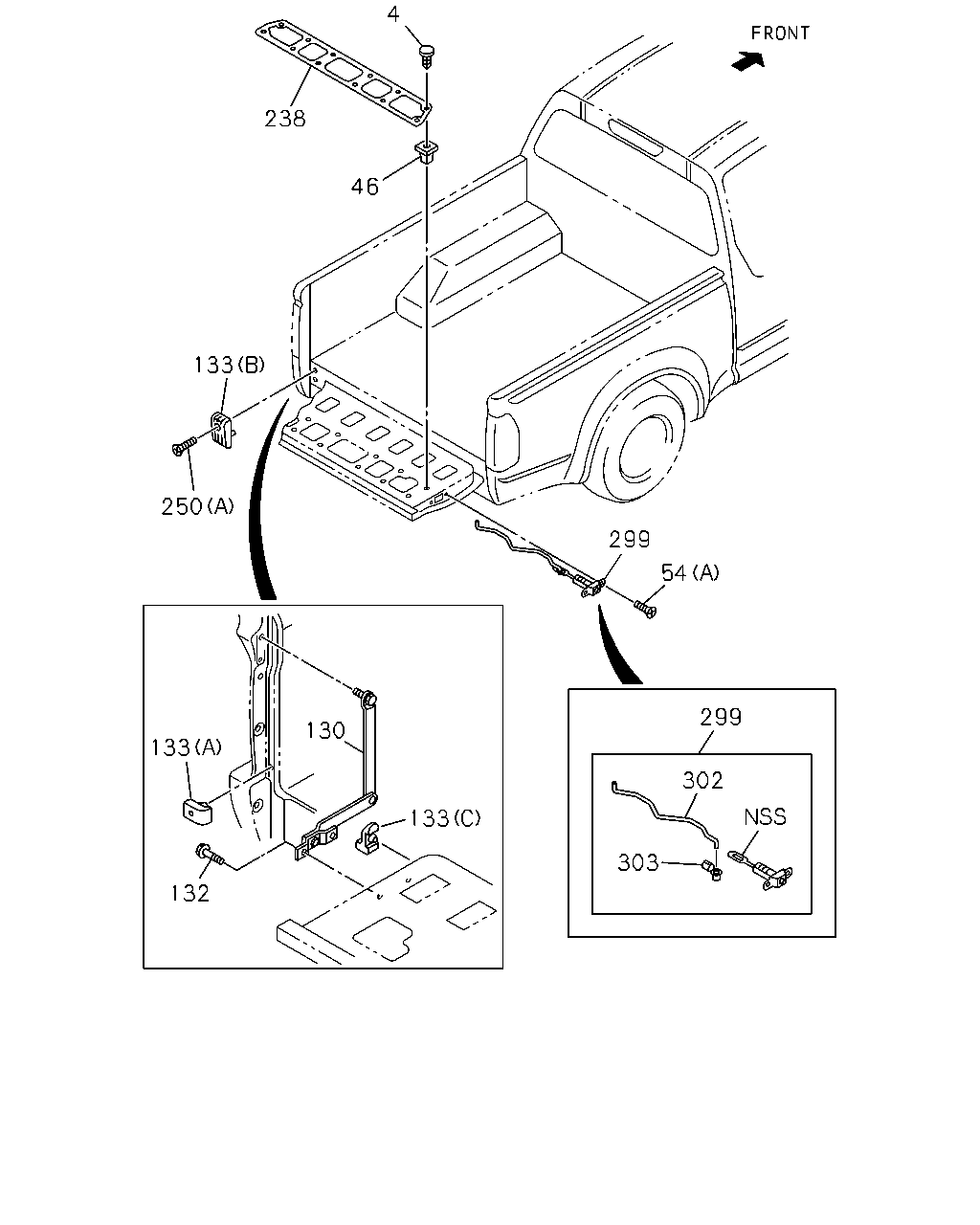

çizim 417192
299 54 299 302 303 133 130 133 132 250 133 238 46 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 SCREW; PANEL,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M4X10 IMA 		8-97043-528-0 12 1 1405- ●
4 SCREW; PANEL,RR GATE
M4X10 IMA 		8-97043-528-0 12 1 1405- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
REAR BODY DBL WALL CTR PULL(E63) M4 		5-09470-002-0 12 1 1405- ●
46 GROMMET; SCREW,TAIL GATE HOLE COVER
M4 		5-09470-002-0 12 1 1405- ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (B) M8X22 		8-98050-437-0 02 1 1510- ●
54 SCREW; TAIL GATE LOCK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X20 IMA 		8-97247-699-0 04 1 1405- ●
54 SCREW; TAIL GATE LOCK,RR BODY
(A) M8X20 IMA 		8-97247-699-0 04 1 1405- ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-98174-085-0 02 1 1405-1509 ●
130 LINK ASM; TAIL GATE,RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-98174-085-0 02 1 1405-1509 ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-98174-085-0 02 1 1510- ● ●
130 LINK ASM; TAIL GATE,RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-98174-085-0 02 1 1510- ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98174-086-0 02 1 1405-1509 ●
130 LINK ASM; TAIL GATE,RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98174-086-0 02 1 1405-1509 ●
130 LINK ASM; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98174-086-0 02 1 1510- ● ●
130 LINK ASM; TAIL GATE,RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> 		8-98174-086-0 02 1 1510- ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405-1509 ●
132 BOLT; TAIL GATE LINK,RR BODY
PLANT - ISUZU,THAILAND<8KX> M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405-1509 ●
132 BOLT; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> M8X20 FLANGE IMA 		0-28650-820-0 04 1 1510- ● ●
132 BOLT; TAIL GATE LINK,RR BODY
PLANT - ISUZU,THAILAND<8KX> M8X20 FLANGE IMA 		0-28650-820-0 04 1 1510- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-184-1 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) 		8-97302-184-1 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-97302-184-1 02 1 1510- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(C) 		8-97302-184-1 02 1 1510- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) IMA 		8-97302-185-2 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
(A) IMA 		8-97302-185-2 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) IMA 		8-97302-185-2 02 1 1510- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
(A) IMA 		8-97302-185-2 02 1 1510- ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 1405-1509 ●
133 STOPPER; TAIL GATE LINK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 1510- ● ●
133 STOPPER; TAIL GATE LINK,RR BODY
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) 		8-97234-914-2 02 1 1510- ●
238 COVER; RR GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-909-1 01 1 1405- ●
238 COVER; RR GATE 8-97234-909-1 01 1 1405- ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (B) M8X22 		8-98050-437-0 02 1 1510- ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1405-1509 ●
250 BOLT; STOPPER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1405-1509 ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1510- ● ●
250 BOLT; STOPPER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1510- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-279-0 01 1 1405- ●
299 LATCH; END GATE 8-98050-279-0 01 1 1405- ●
299 LATCH; END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-281-0 01 1 1405- ●
299 LATCH; END GATE 8-98050-281-0 01 1 1405- ●
302 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-777-0 01 1 1405- ●
302 LINK; LATCH,END GATE 8-98056-777-0 01 1 1405- ●
302 LINK; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98056-778-0 01 1 1405- ●
302 LINK; LATCH,END GATE 8-98056-778-0 01 1 1405- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97381-276-0 01 1 1405- ●
303 SNAP; LATCH,END GATE
IMA 		8-97381-276-0 01 1 1405- ●
303 SNAP; LATCH,END GATE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97381-277-0 01 1 1405- ●
303 SNAP; LATCH,END GATE
IMA 		8-97381-277-0 01 1 1405- ●

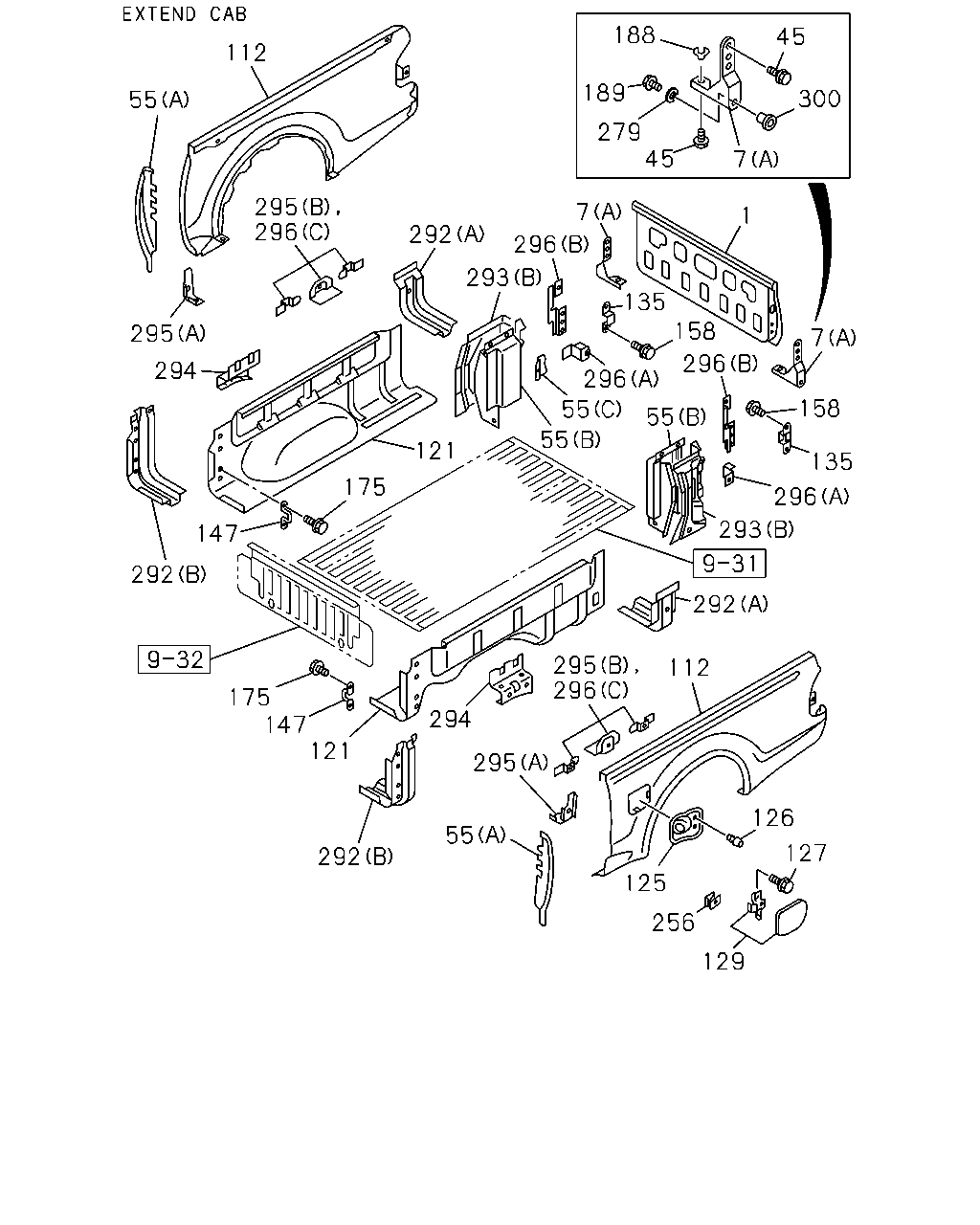

çizim 417241
129 127 126 256 25 295 294 55 292 121 147 175 292 175 121 55 55 296 296 55 293 135 296 292 112 295 296 158 158 135 296 293 292 296 295 55 112 295 294 189 188 45 300 7 45 279 7 147 7 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 1510- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1406-1406 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1406-1406 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ● ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-319-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-628-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-320-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-629-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-138-2 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-139-2 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-332-0 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-333-0 01 1 1405- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-601-6 01 1 1510- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-602-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-313-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-617-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-358-0 01 1 1405- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-359-0 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-853-3 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-854-3 01 1 1405- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1510- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1510- ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1510- ● ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 1405- ●
129 LID ASM; FUEL FILLER,RR BODY 8-97387-396-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-334-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-334-0 01 1 1405- ●
147 HOOK ASM; ROPE,FRT
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97264-487-0 04 1 1405- ●
147 HOOK ASM; ROPE,FRT
IMA 		8-97264-487-0 04 1 1405- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1510- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
175 BOLT; SET,RR GATE HOOK
REAR BODY DBL WALL CTR PULL(E63) M8X16.5 		8-98058-001-0 08 1 1405- ●
175 BOLT; SET,RR GATE HOOK
M8X16.5 		8-98058-001-0 08 1 1405- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ● ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1510- ● ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1510- ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1510- ● ●
279 SPACER
IMA 		8-97357-403-0 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (F) 		8-97236-680-6 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-076-3 01 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-077-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97251-646-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97260-383-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1510- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1510- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1510- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ● ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 1405- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1510- ● ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1510- ●

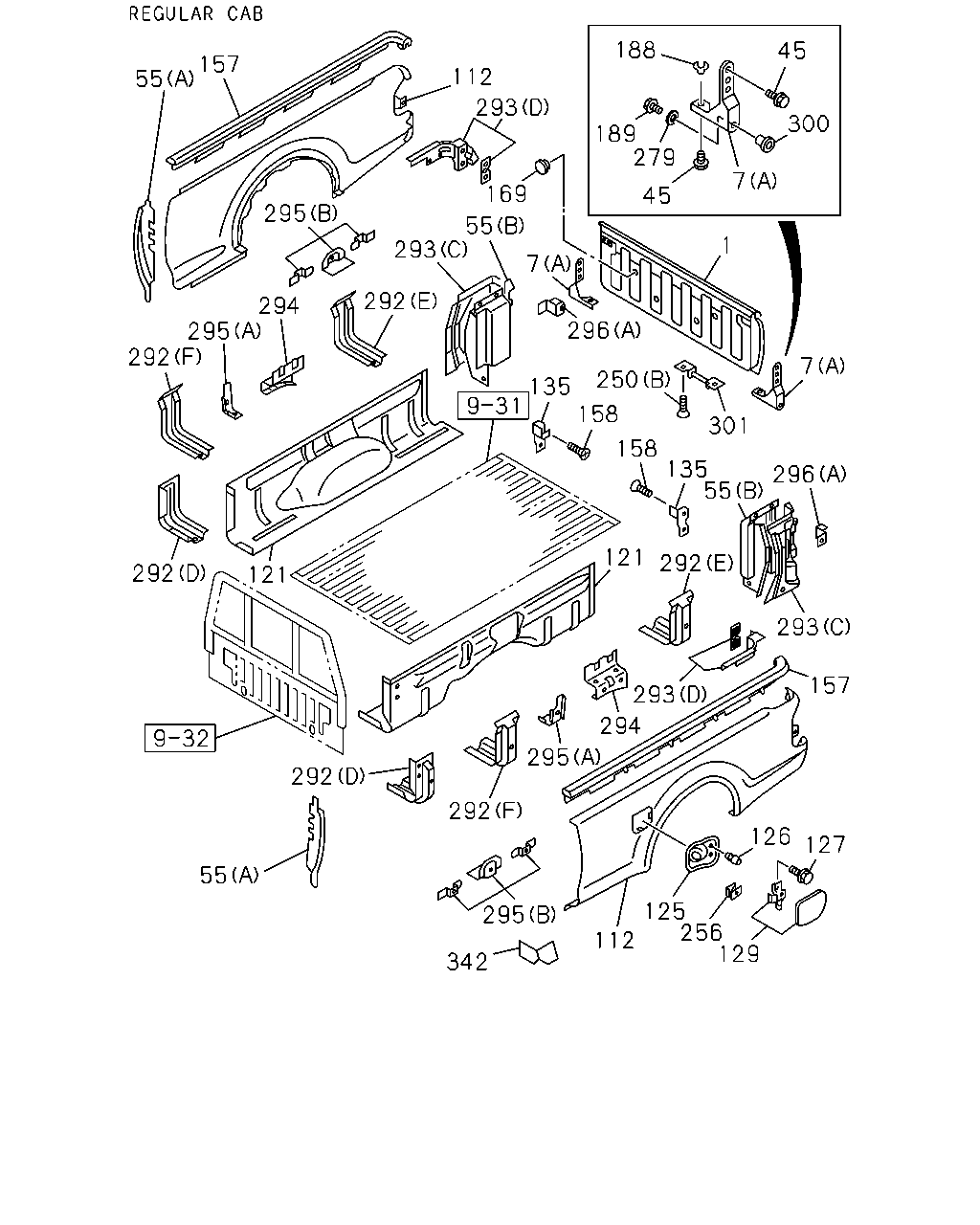

çizim 417263
295 112 129 127 126 256 125 295 292 55 292 294 157 293 293 292 121 55 135 296 301 158 158 135 296 250 7 1 7 292 292 295 294 295 292 293 55 169 293 112 188 189 45 279 300 45 157 55 121 342 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 1510- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1406-1406 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1406-1406 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
45 BOLT; TAIL GATE TO RR BODY
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ● ●
45 BOLT; TAIL GATE TO RR BODY
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> M8X16.5 		8-98058-001-0 06 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-319-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-628-5 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-210-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-211-1 01 1 1510- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-320-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-629-6 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-208-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97362-209-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-342-1 01 1 1405- ●
55 PANEL; RR CORNER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97387-343-1 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-138-2 01 1 1405- ●
55 PANEL; RR CORNER
(A) 		8-93293-139-2 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-332-0 01 1 1405- ●
112 PANEL; SIDE GATE 8-97387-333-0 01 1 1405- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-601-6 01 1 1510- ●
112 PANEL; SIDE GATE
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) 		8-97256-602-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-313-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) EXC. BODY SIDE MOLDING(B84) 		8-97236-617-6 01 1 1510- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-358-0 01 1 1405- ●
112 PANEL; SIDE GATE
REAR BODY DBL WALL CTR PULL(E63) 		8-98098-359-0 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-324-4 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97368-104-0 01 1 1510- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-843-9 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97234-844-8 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-853-3 01 1 1405- ●
121 PANEL; SIDE INNER,RR BODY 8-93290-854-3 01 1 1405- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97369-819-0 01 1 1510- ●
125 RECESS; FUEL FILLER NECK,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97387-334-0 01 1 1405- ●
125 RECESS; FUEL FILLER NECK,RR BODY 8-97387-335-0 01 1 1405- ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1405-1509 ●
126 RUBBER; STOPPER,FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-112-0 02 1 1510- ● ●
126 RUBBER; STOPPER,FUEL FILLER LID 8-97166-112-0 02 1 1510- ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1405-1509 ●
127 BOLT; FUEL FILLER LID
REAR BODY DBL WALL CTR PULL(E63) M6X16 IMA 		8-98056-287-0 02 1 1510- ● ●
127 BOLT; FUEL FILLER LID
M6X16 IMA 		8-98056-287-0 02 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97234-860-5 01 1 1510- ●
129 LID ASM; FUEL FILLER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97387-395-0 01 1 1405- ●
129 LID ASM; FUEL FILLER,RR BODY 8-97387-396-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-672-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-98050-673-0 01 1 1510- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-333-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98050-334-0 01 1 1405- ●
135 STRIKER; TAIL GATE,RR BODY
IMA 		8-98050-334-0 01 1 1405- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-438-2 01 1 1510- ●
157 RAIL ASM; SIDE PANEL UPR,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-440-2 01 1 1510- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X22 		8-98050-437-0 04 1 1510- ●
158 SCREW; STRIKER,TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
158 SCREW; STRIKER,TAIL GATE
M8X20 FLANGE IMA 		0-28650-820-0 04 1 1405- ●
169 GROMMET; TAIL GATE INNER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97166-110-0 04 1 1510- ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1405-1509 ●
188 PLATE; HINGE UPR,RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ● ●
188 PLATE; HINGE UPR,RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> IMA 		8-97329-277-1 AR 1 1510- ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1405-1509 ●
189 BOLT; HINGE,RR GATE
REAR BODY DBL WALL CTR PULL(E63) M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ● ●
189 BOLT; HINGE,RR GATE
M10X35 W/LK&PL WASHER IMA 		0-50641-035-0 02 1 1510- ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (B) M8X22 		8-98050-437-0 02 1 1510- ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1405-1509 ●
250 BOLT; STOPPER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1405-1509 ●
250 BOLT; STOPPER
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1510- ● ●
250 BOLT; STOPPER
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M6X18 		8-98056-280-0 02 1 1510- ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1405-1509 ●
256 SPRING; LID,FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-180-1 01 1 1510- ● ●
256 SPRING; LID,FUEL FILLER 8-97251-180-1 01 1 1510- ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
IMA 		8-97357-403-0 02 1 1405-1509 ●
279 SPACER
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97357-403-0 02 1 1510- ● ●
279 SPACER
IMA 		8-97357-403-0 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-367-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97236-370-6 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97236-382-5 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (F) 		8-97236-680-6 02 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (E) 		8-97308-978-4 01 1 1510- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-368-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-371-9 01 1 1405- ●
292 EXTENSION; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(A) 		8-97236-383-7 02 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-076-3 01 1 1405- ●
292 EXTENSION; RR BODY
(C) 		8-93291-077-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-525-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (C) 		8-97236-527-5 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97251-646-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (D) 		8-97260-383-2 01 1 1510- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-748-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97236-750-6 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-593-3 01 1 1405- ●
293 REINFORCEMENT; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-93332-594-3 01 1 1405- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-418-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-418-3 01 1 1510- ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1405-1509 ●
294 PANEL; OUTER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-420-3 01 1 1510- ● ●
294 PANEL; OUTER,RR BODY 8-97236-420-3 01 1 1510- ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97236-732-3 02 1 1510- ● ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1405-1509 ●
295 BRACKET; FILLER
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ● ●
295 BRACKET; FILLER
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97305-529-1 02 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-626-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1405-1509 ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ● ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (A) 		8-97251-631-4 01 1 1510- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-907-2 01 1 1405- ●
296 BRACKET; RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
EXC. PLANT - ISUZU,THAILAND<8KX> (B) 		8-97263-908-2 01 1 1405- ●
296 BRACKET; RR BODY
PLANT - ISUZU,THAILAND<8KX> (C) 		8-97305-529-1 02 1 1405- ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1405-1509 ●
300 COLLAR; GATE HINGE
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-98057-114-0 02 1 1510- ● ●
300 COLLAR; GATE HINGE
IMA 		8-98057-114-0 02 1 1510- ●
301 SUPPORT; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98053-899-0 01 1 1510- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98231-981-1 01 1 1510- ●
342 TAPE
REAR BODY DBL WALL CTR PULL(E63) 		8-98231-983-1 01 1 1510- ●
çizim 498373
27 27 28 108 277 65 75 287 108 20 18 19 11 11 1 5 9 14 11 13 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-97236-656-4 01 1 1510- ●
1 GATE ASM; RR
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> 		8-98000-573-0 01 1 1405- ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-453-0 01 1 1405-1405 ●
1 GATE ASM; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98231-453-0 01 1 1406-1406 ●
5 NUT; LATCH HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M12 IMA 		0-91111-512-0 04 1 1405-1405 ●
5 NUT; LATCH HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) M12 IMA 		0-91111-512-0 04 1 1405-1405 ●
5 NUT; LATCH HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M12 IMA 		0-91111-512-0 04 1 1406-1406 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-097-0 01 1 1510- ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1405-1509 ●
7 HINGE ASM; RR GATE
REAR BODY DBL WALL CTR PULL(E63) BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ● ●
7 HINGE ASM; RR GATE
BASE VEHICLE GRILLE<VWX>,BRIGHT RAD GRILLE<V22> (A) 		8-98057-098-0 01 1 1510- ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) 		8-98171-876-0 04 1 1405-1405 ●
7 HINGE ASM; RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-98171-876-0 04 1 1406-1406 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-141-0 01 1 1405-1405 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-141-0 01 1 1405-1405 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-141-0 01 1 1406-1406 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-142-0 01 1 1405-1405 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-142-0 01 1 1405-1405 ●
9 HANDLE; LATCH,RR GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-142-0 01 1 1406-1406 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98166-532-0 01 1 1405-1405 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98166-532-0 01 1 1405-1405 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98166-532-0 01 1 1406-1406 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98166-533-0 01 1 1405-1405 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98166-533-0 01 1 1405-1405 ●
11 LOCK ASM; VERTICAL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98166-533-0 01 1 1406-1406 ●
13 RUBBER; GATE HANDLE,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-210-0 02 1 1405-1509 ●
13 RUBBER; GATE HANDLE,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IMA 		8-97354-210-0 02 1 1405-1509 ●
13 RUBBER; GATE HANDLE,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-210-0 02 1 1510- ● ●
14 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1405-1405 ●
14 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) ID=12.5 		0-91614-512-0 02 1 1405-1405 ●
14 WASHER; PL,HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1406-1406 ●
18 PIN; VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 1405-1405 ●
18 PIN; VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97353-379-0 02 1 1405-1405 ●
18 PIN; VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97353-379-0 02 1 1406-1406 ●
19 PIN; SPLIT,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=2.8 L=18 		0-81123-018-0 02 1 1405-1405 ●
19 PIN; SPLIT,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) OD=2.8 L=18 		0-81123-018-0 02 1 1405-1405 ●
19 PIN; SPLIT,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) OD=2.8 L=18 		0-81123-018-0 02 1 1406-1406 ●
20 WASHER; PL,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 1405-1405 ●
20 WASHER; PL,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) ID=10.5 		0-91610-510-0 02 1 1405-1405 ●
20 WASHER; PL,VERTICAL LOCK
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=10.5 		0-91610-510-0 02 1 1406-1406 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-98171-884-0 12 1 1405-1405 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (A) 		8-98171-884-0 12 1 1405-1405 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-98171-884-0 12 1 1406-1406 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 12 1 1405-1405 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) ID=6 		9-09185-006-0 12 1 1405-1405 ●
27 PIN; HINGE,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) ID=6 		9-09185-006-0 12 1 1406-1406 ●
28 HINGE; UPR,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-876-0 06 1 1405-1406 ●
28 HINGE; UPR,SIDE GATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-876-0 08 1 1405-1405 ●
65 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-204-0 02 1 1405-1509 ●
65 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IMA 		8-97354-204-0 02 1 1405-1509 ●
65 RUBBER; BUMPER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-204-0 02 1 1510- ● ●
75 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=6.4 IMA 		0-91610-606-0 02 1 1405-1509 ●
75 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) ID=6.4 IMA 		0-91610-606-0 02 1 1405-1509 ●
75 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=6.4 IMA 		0-91610-606-0 02 1 1510- ● ●
108 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-967-0 01 1 1405-1406 ●
108 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-968-0 01 1 1405-1406 ●
108 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-451-0 01 1 1405-1405 ●
108 GATE ASM; SIDE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98231-452-0 01 1 1405-1405 ●
277 BOLT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M6X30 W/PL WASHER IMA 		0-36210-630-0 02 1 1405-1509 ●
277 BOLT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) M6X30 W/PL WASHER IMA 		0-36210-630-0 02 1 1405-1509 ●
277 BOLT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M6X30 W/PL WASHER IMA 		0-36210-630-0 02 1 1510- ● ●
287 NUT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-98171-949-0 02 1 1405-1509 ●
287 NUT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IMA 		8-98171-949-0 02 1 1405-1509 ●
287 NUT; CUSHION
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-98171-949-0 02 1 1510- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
