9-32 — REAR BODY; GUARD FRAME (#138148) — 78 parça

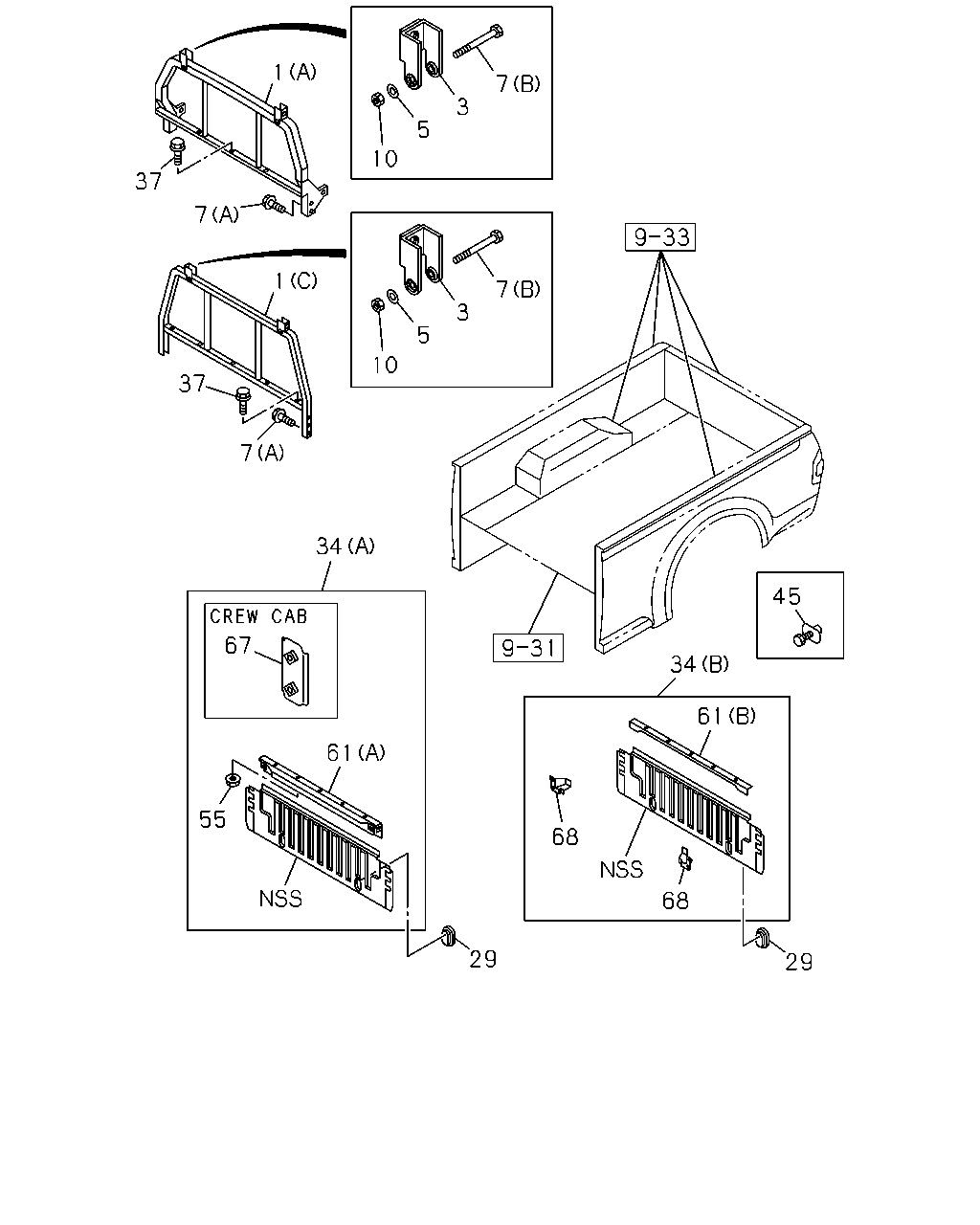

çizim 417135
1 37 7 1 37 7 34 67 61 55 29 29 68 68 61 34 45 10 5 3 7 10 5 3 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-97236-678-5 01 1 1510- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97310-075-2 01 1 1405- ●
1 FRAME; GUARD,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97310-075-2 01 1 1405- ●
1 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (B) IND 		8-97244-995-0 01 1 1405- ● ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1405-1509 ●
3 STOPPER; GUARD FRAME,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1405-1509 ●
3 STOPPER; GUARD FRAME,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1510- ● ●
3 STOPPER; GUARD FRAME,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97352-624-1 02 1 1510- ●
5 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1405-1509 ●
5 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1405-1509 ●
5 WASHER; PL,GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1510- ● ●
5 WASHER; PL,GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98056-308-0 02 1 1510- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) M8X16.5 		8-98058-001-0 06 1 1405-1509 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) (A) M8X16.5 		8-98058-001-0 06 1 1510- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) M8X16.5 		8-98058-001-0 06 1 1510- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
(A) M8X16.5 		8-98058-001-0 06 1 1510- ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1405-1509 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1405-1509 ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1510- ● ●
7 BOLT; GUARD FRAME STOPPER,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (B) M6X45 		8-98056-129-0 02 1 1510- ●
10 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 1405-1509 ●
10 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 1405-1509 ●
10 NUT; GUARD FRAME STOPPER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 1510- ● ●
10 NUT; GUARD FRAME STOPPER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		8-98056-127-0 02 1 1510- ●
29 COVER; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97918-416-0 02 1 1405-1411 ●
29 COVER; GUARD FRAME
IMA 		8-97918-416-0 02 1 1405-1411 ●
29 COVER; GUARD FRAME
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97918-416-0 02 1 1412-1509 ●
29 COVER; GUARD FRAME
IMA 		8-97918-416-0 02 1 1412-1509 ● ●
29 COVER; GUARD FRAME
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) IMA 		8-97918-416-0 02 1 1510- ● ●
29 COVER; GUARD FRAME
IMA 		8-97918-416-0 02 1 1510- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97369-723-1 01 1 1510- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-643-1 01 1 1405- ●
34 PANEL; FRT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-725-1 01 1 1405- ●
34 PANEL; FRT,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97373-644-1 01 1 1405- ●
34 PANEL; FRT,RR BODY
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97369-727-1 01 1 1405- ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE IMA 		0-28050-612-0 07 1 1405-1509 ●
37 BOLT; GUARD FRAME
GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE IMA 		0-28050-612-0 07 1 1405-1509 ●
37 BOLT; GUARD FRAME
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE IMA 		0-28050-612-0 07 1 1510- ● ●
37 BOLT; GUARD FRAME
GUARD FRAME BAR CARGO TIE DOWN<V89> M6X12 FLANGE IMA 		0-28050-612-0 07 1 1510- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-94221-150-0 14 1 1510- ●
45 RIVET; DUST SHIELD COVER,RR BODY
REAR BODY DBL WALL CTR PULL(E63) IMA 		8-94221-150-0 12 1 1405- ●
45 RIVET; DUST SHIELD COVER,RR BODY
IMA 		8-94221-150-0 10 1 1405- ●
55 NUT; MEMBER
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		9-09114-086-0 05 1 1405- ●
55 NUT; MEMBER
GUARD FRAME BAR CARGO TIE DOWN<V89> M6 		9-09114-086-0 05 1 1405- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (B) 		8-97252-308-2 01 1 1510- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 1405- ●
61 BAR ASM
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97326-371-0 01 1 1405- ●
61 BAR ASM
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 1405- ●
61 BAR ASM
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97236-715-0 01 1 1405- ●
67 PLATE; RR BODY FRONT 8-93326-173-1 02 1 1405- ●
68 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-178-1 01 1 1510- ●
68 EXTENSION; FRONT,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-97287-179-1 01 1 1510- ●

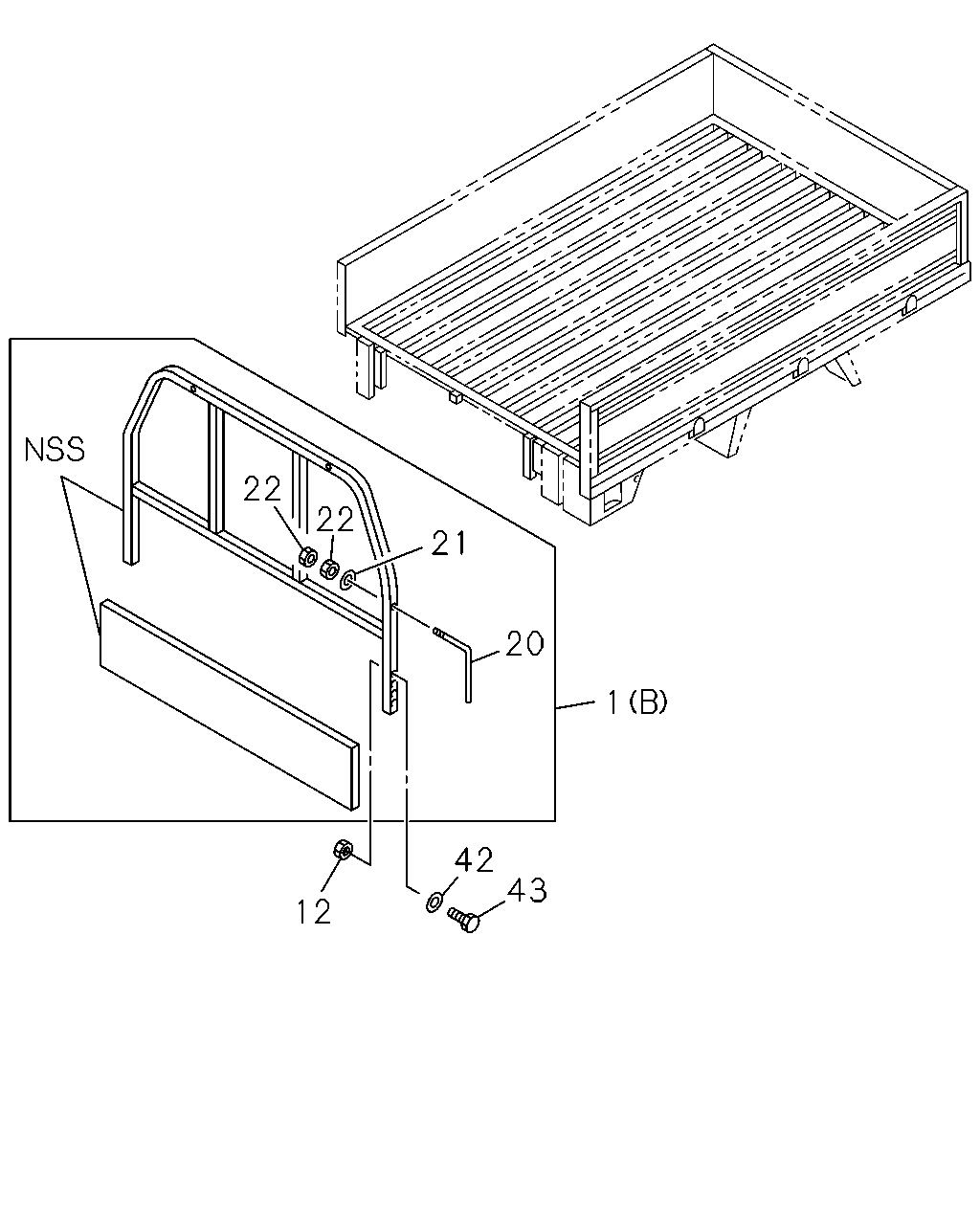

çizim 417183
22 22 21 20 1 12 42 43
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (C) 		8-97236-678-5 01 1 1510- ●
1 FRAME; GUARD,RR BODY
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97310-075-2 01 1 1405- ●
1 FRAME; GUARD,RR BODY
GUARD FRAME BAR CARGO TIE DOWN<V89> (A) 		8-97310-075-2 01 1 1405- ●
1 FRAME; GUARD,RR BODY
REAR BODY FLAT BED(E39) (B) IND 		8-97244-995-0 01 1 1405- ● ●
12 NUT; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-952-0 08 1 1405-1405 ●
12 NUT; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-952-0 08 1 1405-1405 ●
12 NUT; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-952-0 08 1 1406-1406 ●
20 HANDLE; FRT,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-168-0 02 1 1405-1405 ●
20 HANDLE; FRT,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-168-0 02 1 1405-1405 ●
20 HANDLE; FRT,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-168-0 02 1 1406-1406 ●
21 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1405-1405 ●
21 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) ID=12.5 		0-91614-512-0 02 1 1405-1405 ●
21 WASHER; LK,FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) ID=12.5 		0-91614-512-0 02 1 1406-1406 ●
22 NUT; FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M12 IMA 		0-91111-512-0 04 1 1405-1405 ●
22 NUT; FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) M12 IMA 		0-91111-512-0 04 1 1405-1405 ●
22 NUT; FRT HANDLE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M12 IMA 		0-91111-512-0 04 1 1406-1406 ●
42 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-955-0 12 1 1405-1405 ●
42 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-955-0 12 1 1405-1405 ●
42 WASHER; PL
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-955-0 12 1 1406-1406 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M8X25 FLANGE IMA 		0-28650-825-0 07 1 1405-1405 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) M8X25 FLANGE IMA 		0-28650-825-0 07 1 1405-1405 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M8X25 FLANGE IMA 		0-28650-825-0 07 1 1406-1406 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10X22 FLANGE 		8-98171-954-0 12 1 1405-1405 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) M10X22 FLANGE 		8-98171-954-0 12 1 1405-1405 ●
43 BOLT; GUARD FRAME,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) M10X22 FLANGE 		8-98171-954-0 12 1 1406-1406 ●
