◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 9 - Tools ▶ 9-31 - REAR BODY; FLOOR AND FENDER ▶
9-31 — REAR BODY; FLOOR AND FENDER (#138147) — 81 parça

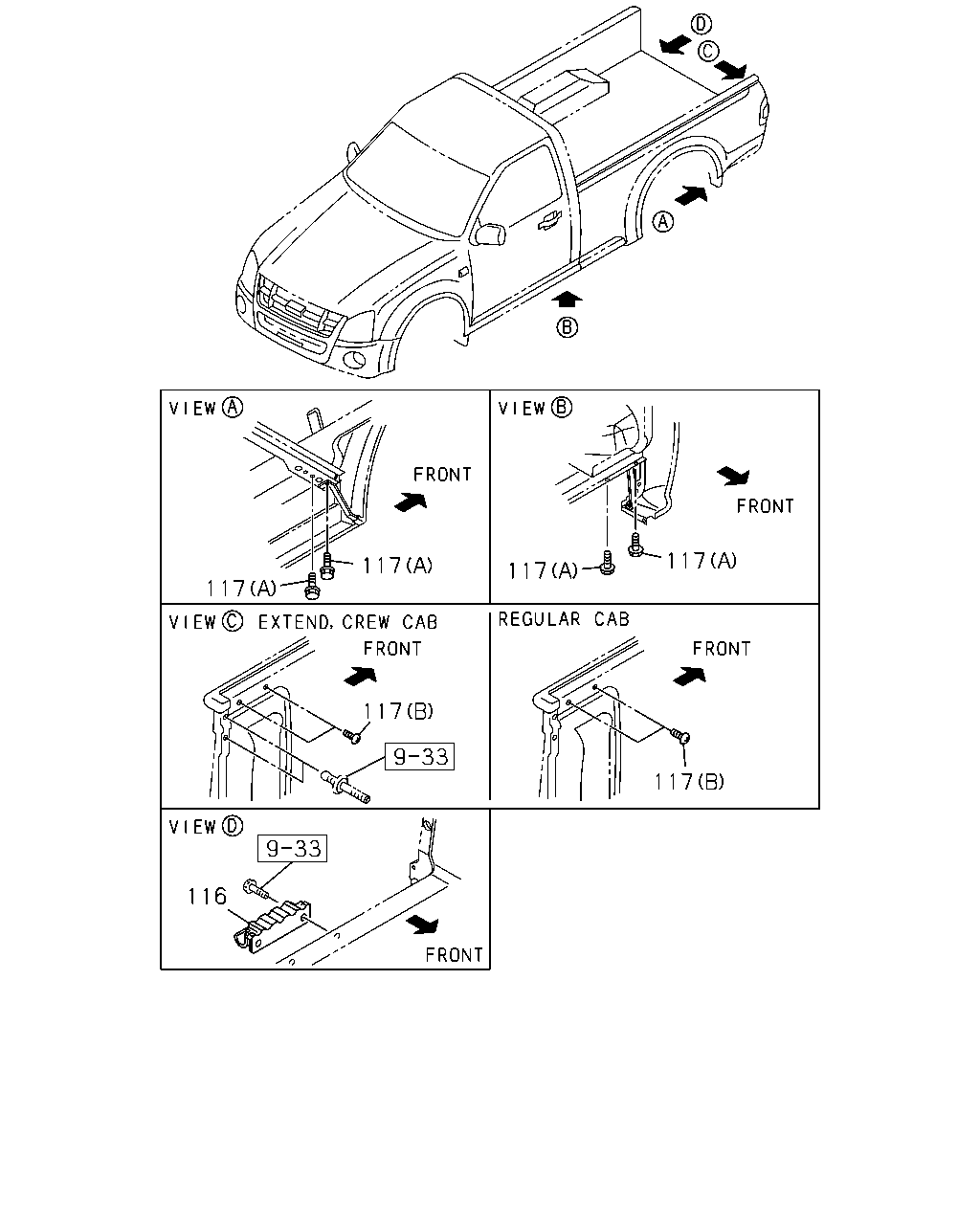

çizim 417131
117 117 117 116 117 117 117
BalonParca AdiParca NoAdetTipApplied Date A B C
116 SUPPORT; RR BODY,SILL
REAR BODY DBL WALL CTR PULL(E63) 		8-98053-898-0 01 1 1510- ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X25 FLANGE IMA 		0-28650-825-0 02 1 1510- ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1405-1509 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1405-1509 ●
117 BOLT; SILL
(A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1405-1509 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1510- ● ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1510- ● ●
117 BOLT; SILL
(A) M8X25 FLANGE IMA 		0-28650-825-0 04 1 1510- ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 1405-1509 ●
117 BOLT; SILL
(B) M8X16.5 		8-98058-001-0 04 1 1405-1509 ●
117 BOLT; SILL
REAR BODY DBL WALL CTR PULL(E63) (B) M8X16.5 		8-98058-001-0 04 1 1510- ● ●
117 BOLT; SILL
(B) M8X16.5 		8-98058-001-0 04 1 1510- ●

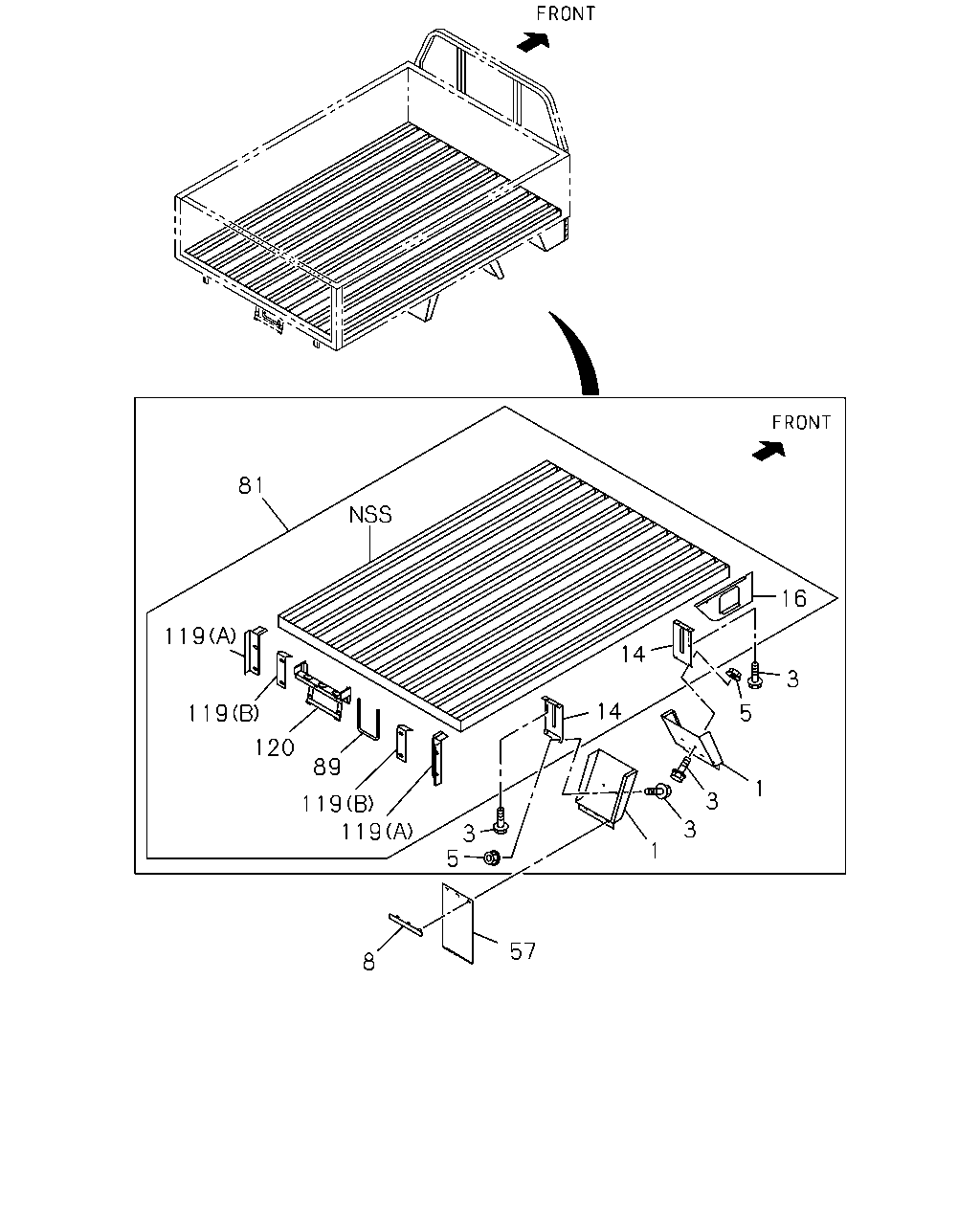

çizim 417134
81 119 119 120 89 119 119 5 8 57 1 3 3 1 14 14 5 3 16 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-540-2 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) FRONT 		8-97263-540-2 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-540-2 01 1 1406-1406 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-541-2 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) FRONT 		8-97263-541-2 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) FRONT 		8-97263-541-2 01 1 1406-1406 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-542-3 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR 		8-97263-542-3 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-542-3 01 1 1406-1406 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-543-3 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR 		8-97263-543-3 01 1 1405-1405 ●
1 FENDER; RR,RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) REAR 		8-97263-543-3 01 1 1406-1406 ●
3 BOLT; FENDER TO RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-948-0 16 1 1405-1405 ●
3 BOLT; FENDER TO RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-948-0 16 1 1405-1405 ●
3 BOLT; FENDER TO RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-948-0 16 1 1406-1406 ●
5 NUT; FENDER TO BRKT
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-951-0 08 1 1405-1405 ●
5 NUT; FENDER TO BRKT
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-98171-951-0 08 1 1405-1405 ●
5 NUT; FENDER TO BRKT
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-98171-951-0 08 1 1406-1406 ●
8 HOLDER; FLAP RUBBER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-203-0 02 1 1405-1509 ●
8 HOLDER; FLAP RUBBER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IMA 		8-97354-203-0 02 1 1405-1509 ●
8 HOLDER; FLAP RUBBER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-203-0 02 1 1510- ● ●
14 SUPPORT; RR FENDER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-079-0 04 1 1405-1405 ●
14 SUPPORT; RR FENDER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97356-079-0 04 1 1405-1405 ●
14 SUPPORT; RR FENDER
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97356-079-0 04 1 1406-1406 ●
16 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-964-0 01 1 1405-1406 ●
16 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-965-0 01 1 1405-1406 ●
16 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97245-189-1 01 1 1405-1405 ●
16 CONNECTOR; GUARD FRAME
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97245-190-1 01 1 1405-1405 ●
57 RUBBER; FLAP RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-206-0 02 1 1405-1509 ●
57 RUBBER; FLAP RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IMA 		8-97354-206-0 02 1 1405-1509 ●
57 RUBBER; FLAP RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IMA 		8-97354-206-0 02 1 1510- ● ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1510- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1510- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1405- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1405- ●
81 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-947-0 01 1 1405-1406 ●
81 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98229-919-0 01 1 1405-1405 ●
81 FLOOR ASM; RR BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1405- ●
81 FLOOR ASM; RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1405- ●
89 STEP; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97262-129-0 01 1 1405-1405 ●
89 STEP; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97262-129-0 01 1 1405-1405 ●
89 STEP; RR
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97262-129-0 01 1 1406-1406 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-708-0 01 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (A) 		8-97263-708-0 01 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-708-0 01 1 1406-1406 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-709-0 01 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (A) 		8-97263-709-0 01 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (A) 		8-97263-709-0 01 1 1406-1406 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97322-728-0 02 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) (B) 		8-97322-728-0 02 1 1405-1405 ●
119 BRACKET; COMB LAMP
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) (B) 		8-97322-728-0 02 1 1406-1406 ●
120 BRACKET; NUMBER PLATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97263-719-0 01 1 1405-1405 ●
120 BRACKET; NUMBER PLATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) 		8-97263-719-0 01 1 1405-1405 ●
120 BRACKET; NUMBER PLATE
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97263-719-0 01 1 1406-1406 ●

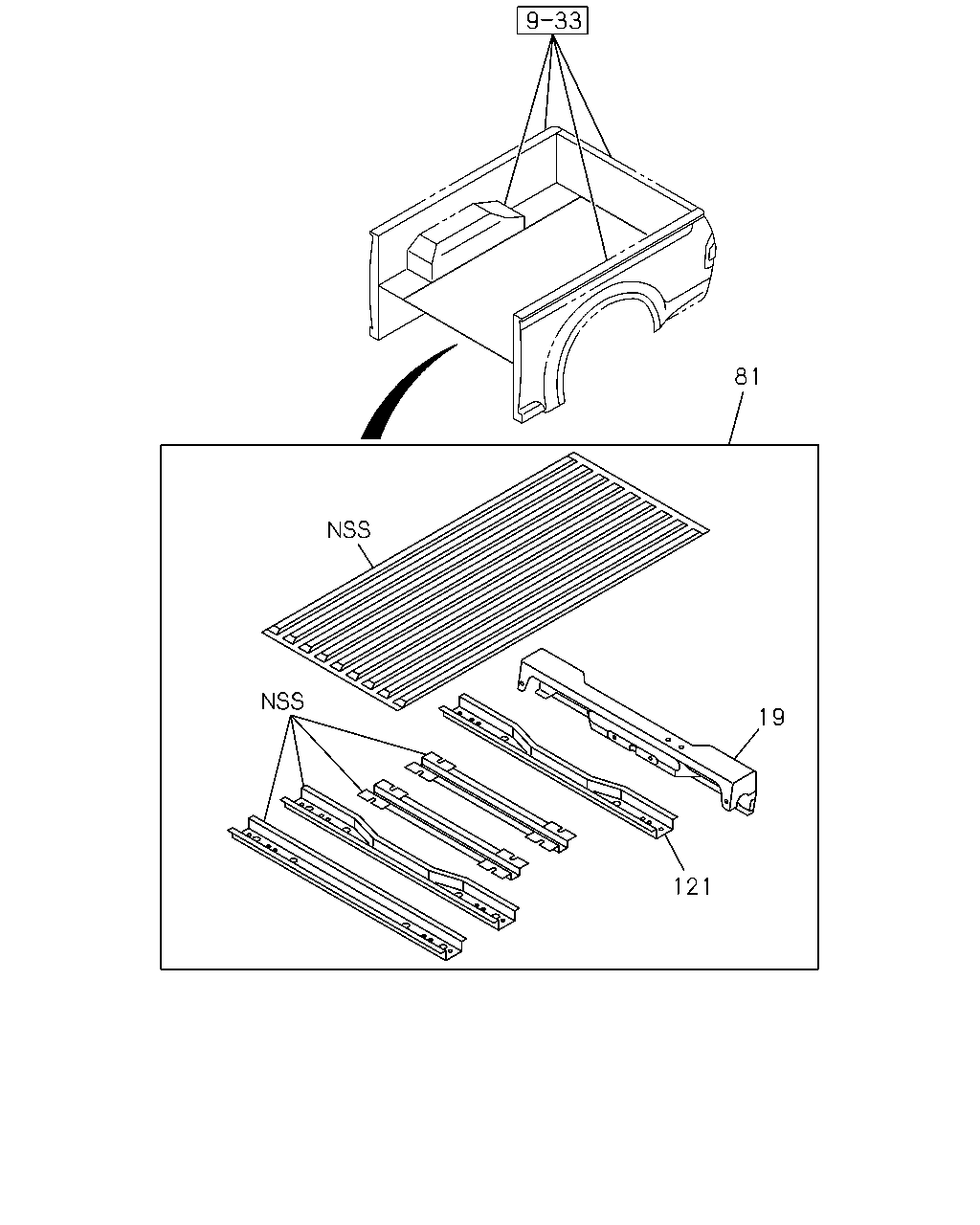

çizim 417235
81 121 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97251-570-7 01 1 1510- ●
19 BOLSTER; RR END,RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-648-7 01 1 1405- ●
19 BOLSTER; RR END,RR BODY 8-97236-648-7 01 1 1405- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1510- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-639-5 01 1 1510- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1405- ●
81 FLOOR ASM; RR BODY
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> 		8-97236-640-5 01 1 1405- ●
81 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-98229-947-0 01 1 1405-1406 ●
81 FLOOR ASM; RR BODY
BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) IND 		8-98229-919-0 01 1 1405-1405 ●
81 FLOOR ASM; RR BODY
SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1405- ●
81 FLOOR ASM; RR BODY
PLANT - ISUZU,THAILAND<8KX> 		8-93333-729-7 01 1 1405- ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-647-2 01 1 1405-1509 ●
121 BOLSTER; RR BODY 8-97236-647-2 01 1 1405-1509 ●
121 BOLSTER; RR BODY
REAR BODY DBL WALL CTR PULL(E63) 		8-97236-647-2 01 1 1510- ● ●
121 BOLSTER; RR BODY 8-97236-647-2 01 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
