9-30 — REAR BODY ASM AND MOUNTING (#138146) — 67 parça

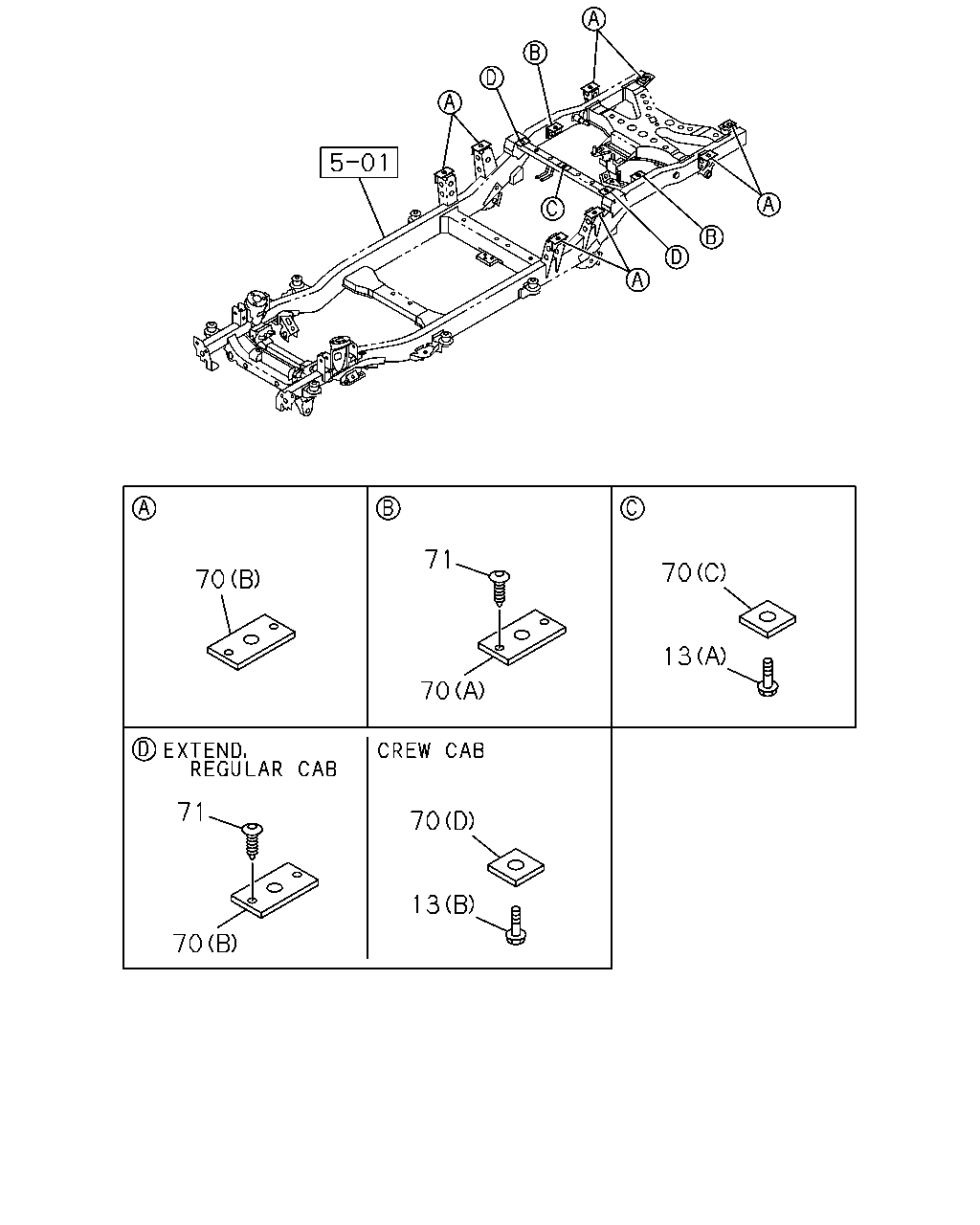

çizim 417129
70 71 70 70 13 70 13 71 70
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 08 1 1510- ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 04 1 1405-1405 ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 06 1 1406- ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 1405- ●
13 BOLT; RR BODY MTG
(C) M12X40 W/PL WASHER IMA 		8-98056-124-0 06 1 1405-1405 ●
13 BOLT; RR BODY MTG
(C) M12X40 W/PL WASHER IMA 		8-98056-124-0 08 1 1406-1509 ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 08 1 1510- ●
13 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-98030-678-0 04 1 1405- ●
13 BOLT; RR BODY MTG
(B) M12X35 FLANGE 		8-98056-126-0 02 1 1405- ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 1510- ● ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 1405-1509 ●
70 CUSHION; RR BODY MTG
(A) 		8-98090-513-0 02 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 1510- ● ●
70 CUSHION; RR BODY MTG
(A) 		8-98090-513-0 02 1 1510- ●
70 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 1405- ●
70 CUSHION; RR BODY MTG
(B) 		8-98090-511-0 08 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1510- ●
70 CUSHION; RR BODY MTG
(D) 		8-98090-510-0 02 1 1405- ●
70 CUSHION; RR BODY MTG
(B) 		8-98090-511-0 04 1 1405- ●
70 CUSHION; RR BODY MTG
(C) 		8-98090-512-0 01 1 1405- ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 IMA 		8-94178-705-0 06 1 1405-1509 ●
71 CLIP; CUSHION
REAR BODY DBL WALL CTR PULL(E63) ID=6 OD=16 L=18 IMA 		8-94178-705-0 06 1 1510- ● ●
71 CLIP; CUSHION
ID=6 OD=16 L=18 IMA 		8-94178-705-0 04 1 1405- ●

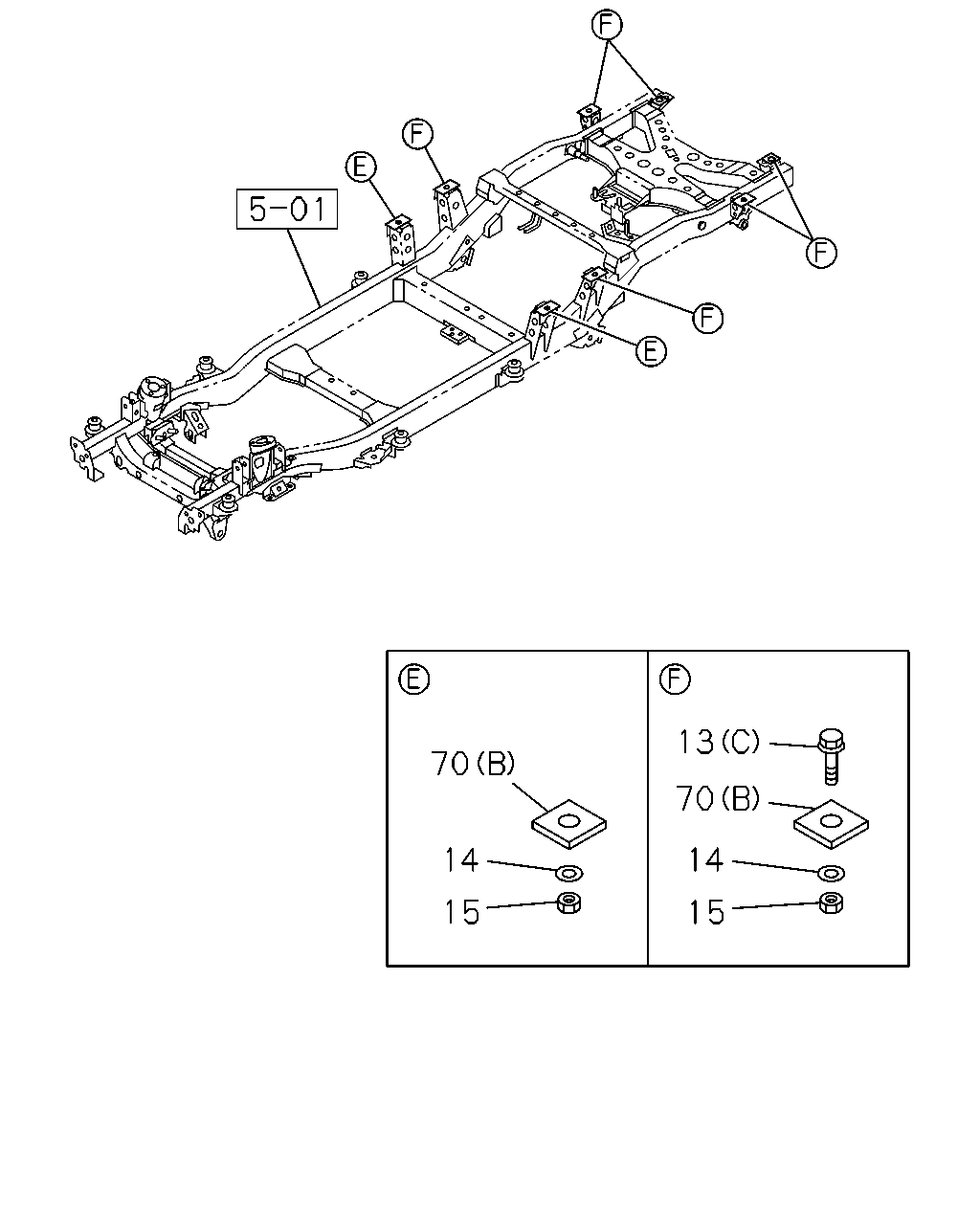

çizim 417130
70 14 15 15 14 70 13
BalonParca AdiParca NoAdetTipApplied Date A B C
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 08 1 1510- ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 04 1 1405-1405 ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 06 1 1406- ●
13 BOLT; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) M12X50 FLANGE 		8-98030-678-0 06 1 1405- ●
13 BOLT; RR BODY MTG
(C) M12X40 W/PL WASHER IMA 		8-98056-124-0 06 1 1405-1405 ●
13 BOLT; RR BODY MTG
(C) M12X40 W/PL WASHER IMA 		8-98056-124-0 08 1 1406-1509 ●
13 BOLT; RR BODY MTG
REAR BODY FLAT BED(E39) (C) M12X40 W/PL WASHER IMA 		8-98056-124-0 08 1 1510- ●
13 BOLT; RR BODY MTG
(A) M12X50 FLANGE 		8-98030-678-0 04 1 1405- ●
13 BOLT; RR BODY MTG
(B) M12X35 FLANGE 		8-98056-126-0 02 1 1405- ●
14 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) ID=12.5 		5-09503-093-0 06 1 1405- ●
14 WASHER; PL,RR BODY MTG
ID=12.5 		5-09503-093-0 08 1 1405-1509 ●
14 WASHER; PL,RR BODY MTG
REAR BODY FLAT BED(E39) ID=12.5 		5-09503-093-0 08 1 1510- ●
15 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) M12 FLANGE 		8-97028-764-0 06 1 1405- ●
15 NUT; RR BODY MTG
M12 FLANGE 		8-97028-764-0 08 1 1405-1509 ●
15 NUT; RR BODY MTG
REAR BODY FLAT BED(E39) M12 FLANGE 		8-97028-764-0 08 1 1510- ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98090-512-0 03 1 1510- ● ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 1405-1509 ●
70 CUSHION; RR BODY MTG
(A) 		8-98090-513-0 02 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98090-513-0 02 1 1510- ● ●
70 CUSHION; RR BODY MTG
(A) 		8-98090-513-0 02 1 1510- ●
70 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 06 1 1405- ●
70 CUSHION; RR BODY MTG
(B) 		8-98090-511-0 08 1 1405-1509 ●
70 CUSHION; RR BODY MTG
REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98090-511-0 08 1 1510- ●
70 CUSHION; RR BODY MTG
(D) 		8-98090-510-0 02 1 1405- ●
70 CUSHION; RR BODY MTG
(B) 		8-98090-511-0 04 1 1405- ●
70 CUSHION; RR BODY MTG
(C) 		8-98090-512-0 01 1 1405- ●

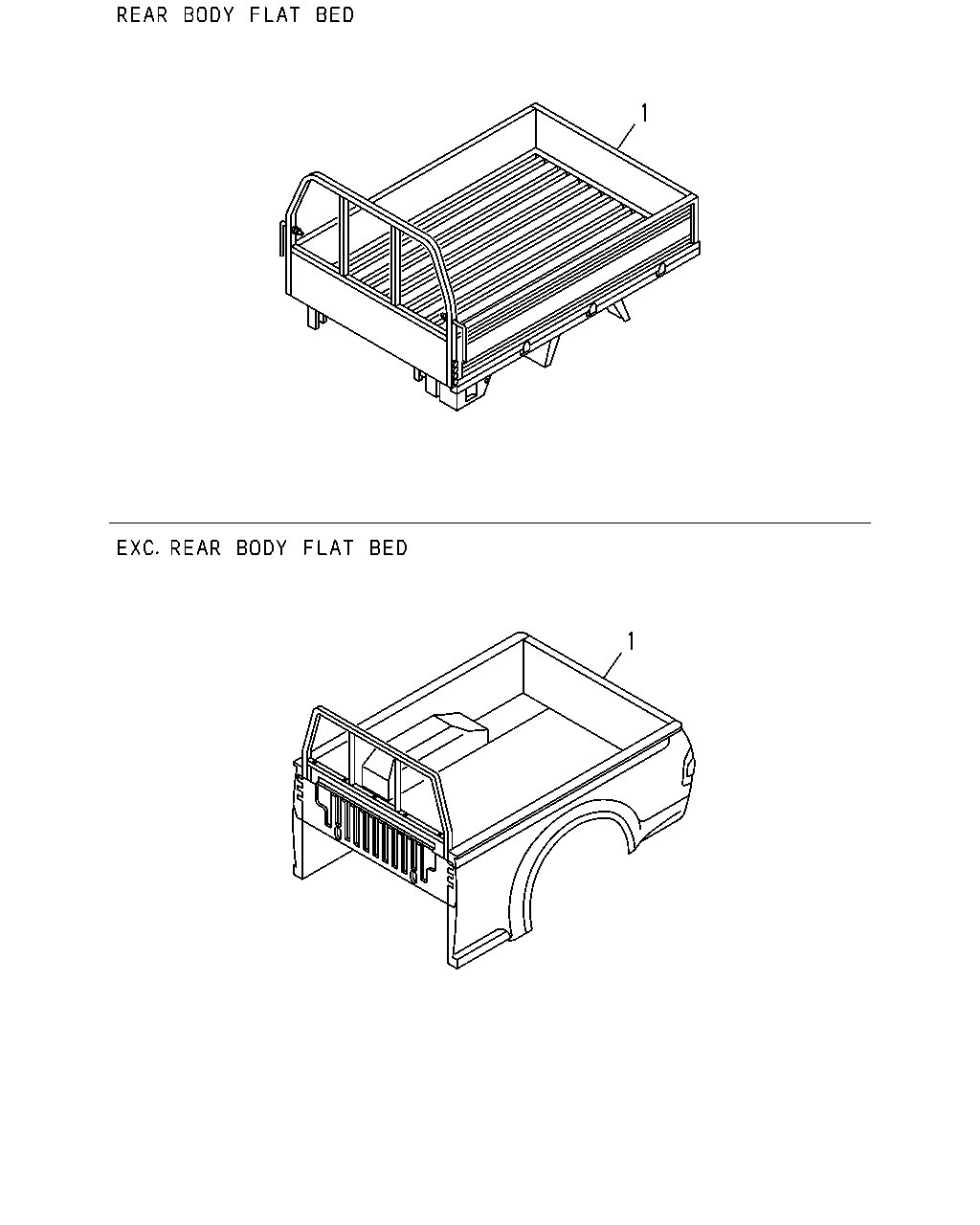

çizim 417193
1 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BODY ASM; REAR
BODY SIDE MOLDING(B84) REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98098-135-0 01 1 1510- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> EXC. BODY SIDE MOLDING(B84) 		8-98098-134-0 01 1 1510- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-601-0 01 1 1405- ●
1 BODY ASM; REAR
REAR BODY DBL WALL CTR PULL(E63) EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-596-0 01 1 1405- ●
1 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) REAR BODY FLAT BED(E39) 		8-97425-076-3 01 1 1405-1501 ●
1 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) REAR BODY FLAT BED(E39) 		8-97460-081-1 01 1 1502- ●
1 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) 		8-97425-078-3 01 1 1405-1501 ●
1 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-97460-082-1 01 1 1502- ●
1 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) 		8-97425-075-3 01 1 1405-1501 ●
1 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) 		8-97460-079-1 01 1 1502-1509 ●
1 BODY ASM; REAR
BODY COLOR ALPINE WHITE(877) REAR BODY FLAT BED(E39) 		8-97460-079-1 01 1 1510- ●
1 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) 		8-97425-077-3 01 1 1405-1501 ●
1 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) IND 		8-97460-080-1 01 1 1502-1509 ●
1 BODY ASM; REAR
BODY COLOR STERLING SILVER MET(936) REAR BODY FLAT BED(E39) IND 		8-97460-080-1 01 1 1510- ●
1 BODY ASM; REAR
GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-611-0 01 1 1405- ●
1 BODY ASM; REAR
EXC. GUARD FRAME BAR CARGO TIE DOWN<V89> 		8-98090-606-0 01 1 1405- ●
