◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#138145) — 33 parça

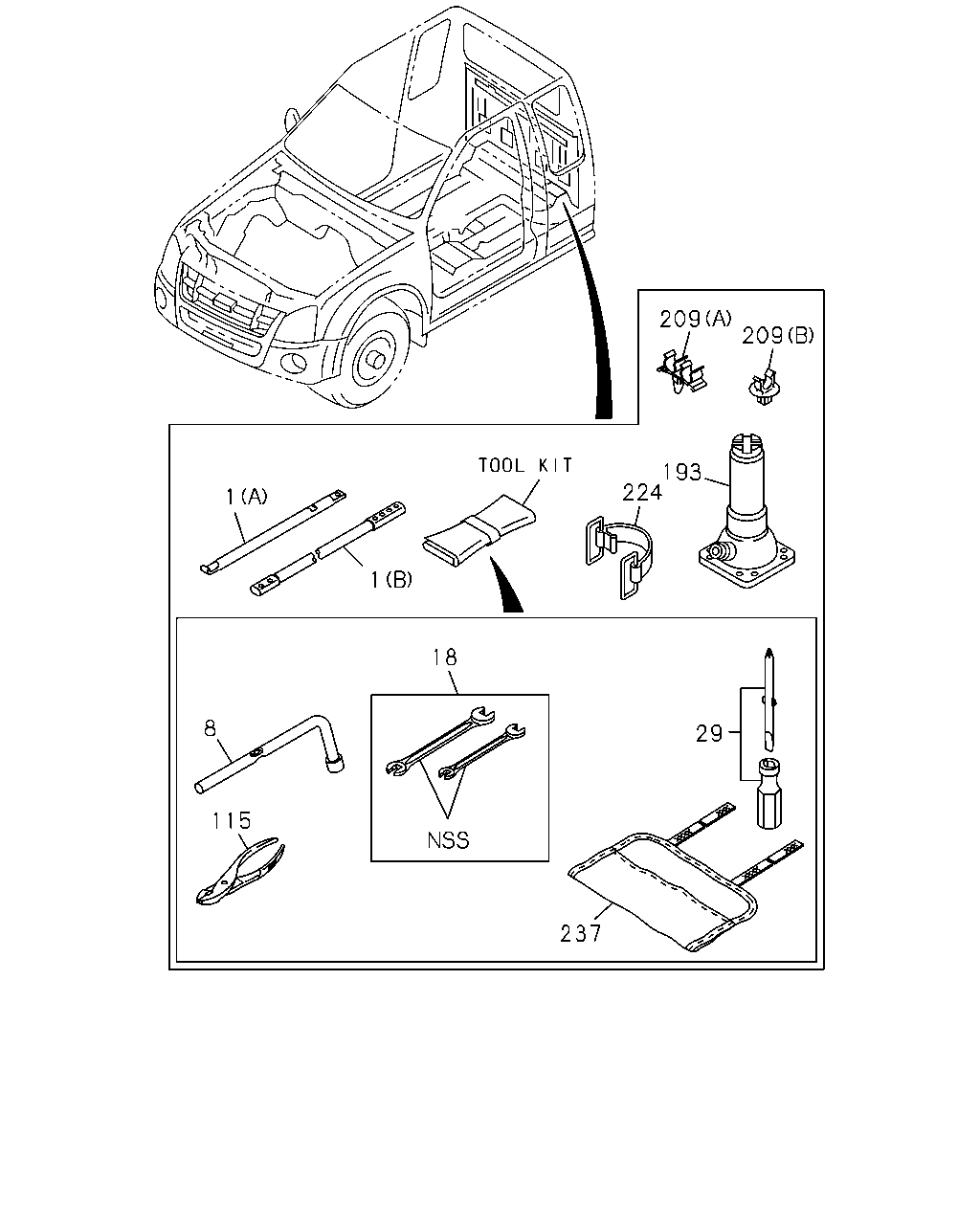

çizim 417123
29 237 18 8 115 1 1 224 193 209 209
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 1405- ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 03 1 1405- ● ● ●
8 WRENCH; WHEEL
L=19 IMA 		8-98027-834-0 01 1 1405- ● ● ●
18 WRENCH KIT
8X10,12X14 IMA 		8-97945-273-0 01 1 1405- ● ● ●
29 DRIVER; SCREW
IMA 		8-98027-833-0 01 1 1405- ● ● ●
115 PLIER
IMA 		8-98099-659-0 01 1 1405- ● ● ●
193 JACK ASM 8-97217-789-1 01 1 1405- ● ● ●
209 CLIP; JACK HANDLE
(A) 		8-97264-777-0 04 1 1405- ●
209 CLIP; JACK HANDLE
(B) 		8-97264-782-0 02 1 1405- ●
224 BAND; RUBBER,JACK 8-98027-837-0 01 1 1405- ● ● ●
237 BAG; TOOL
IMA 		8-97945-395-0 01 1 1405- ● ● ●

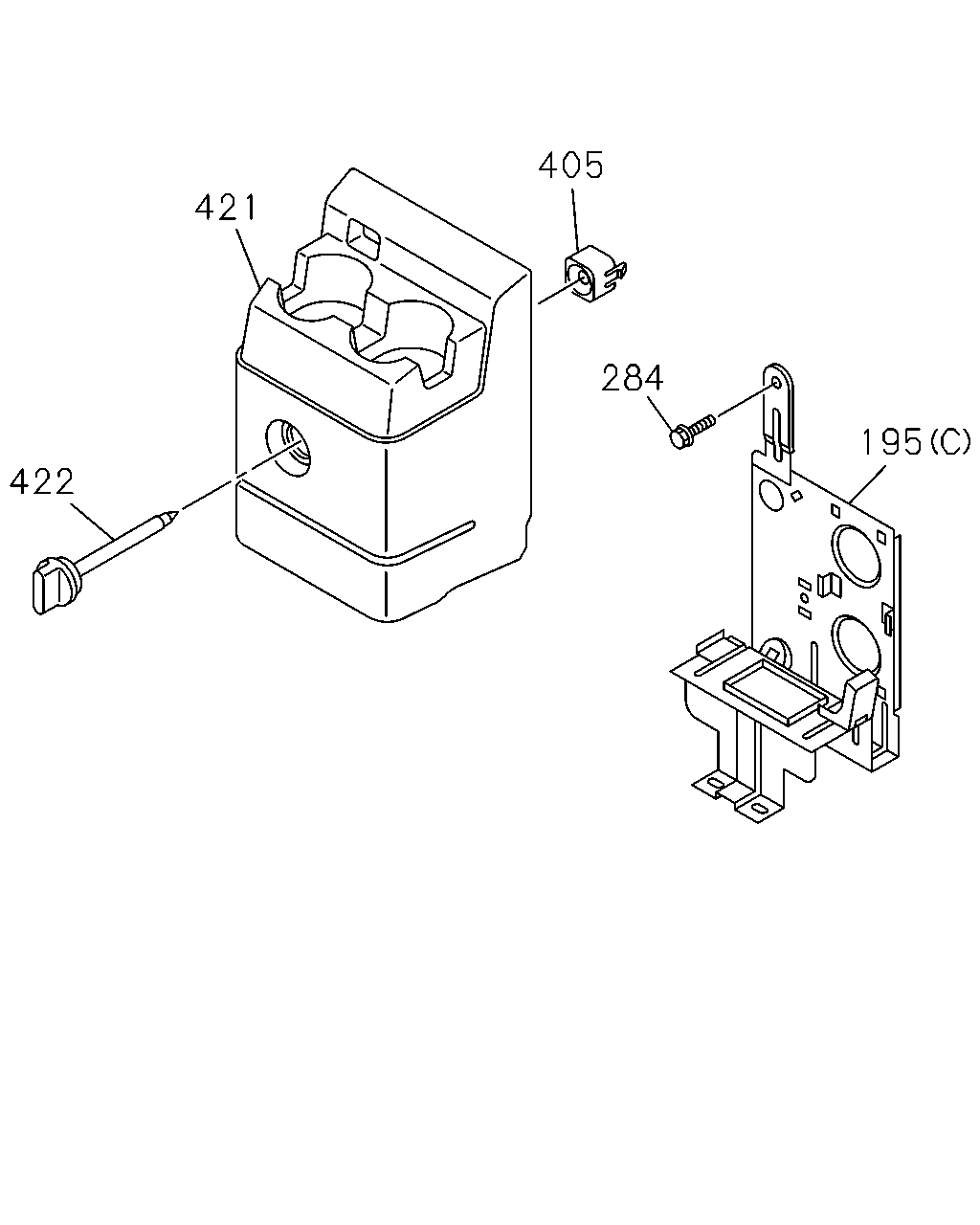

çizim 417124
195 284 405 421 422
BalonParca AdiParca NoAdetTipApplied Date A B C
195 BRACKET; JACK
(C) 		8-97249-694-5 01 1 1405- ●
195 BRACKET; JACK
(A) 		8-97249-692-2 01 1 1405- ●
195 BRACKET; JACK
(B) 		8-97249-698-2 01 1 1405- ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 1405- ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 1405- ●
405 GUIDE; COUNTER 8-97328-053-0 01 1 1405- ●
421 COVER; JACK
DARK GRAY 		8-97409-188-1 01 1 1405- ●
422 RETAINER; JACK
DARK GRAY 		8-97409-189-0 01 1 1405- ●

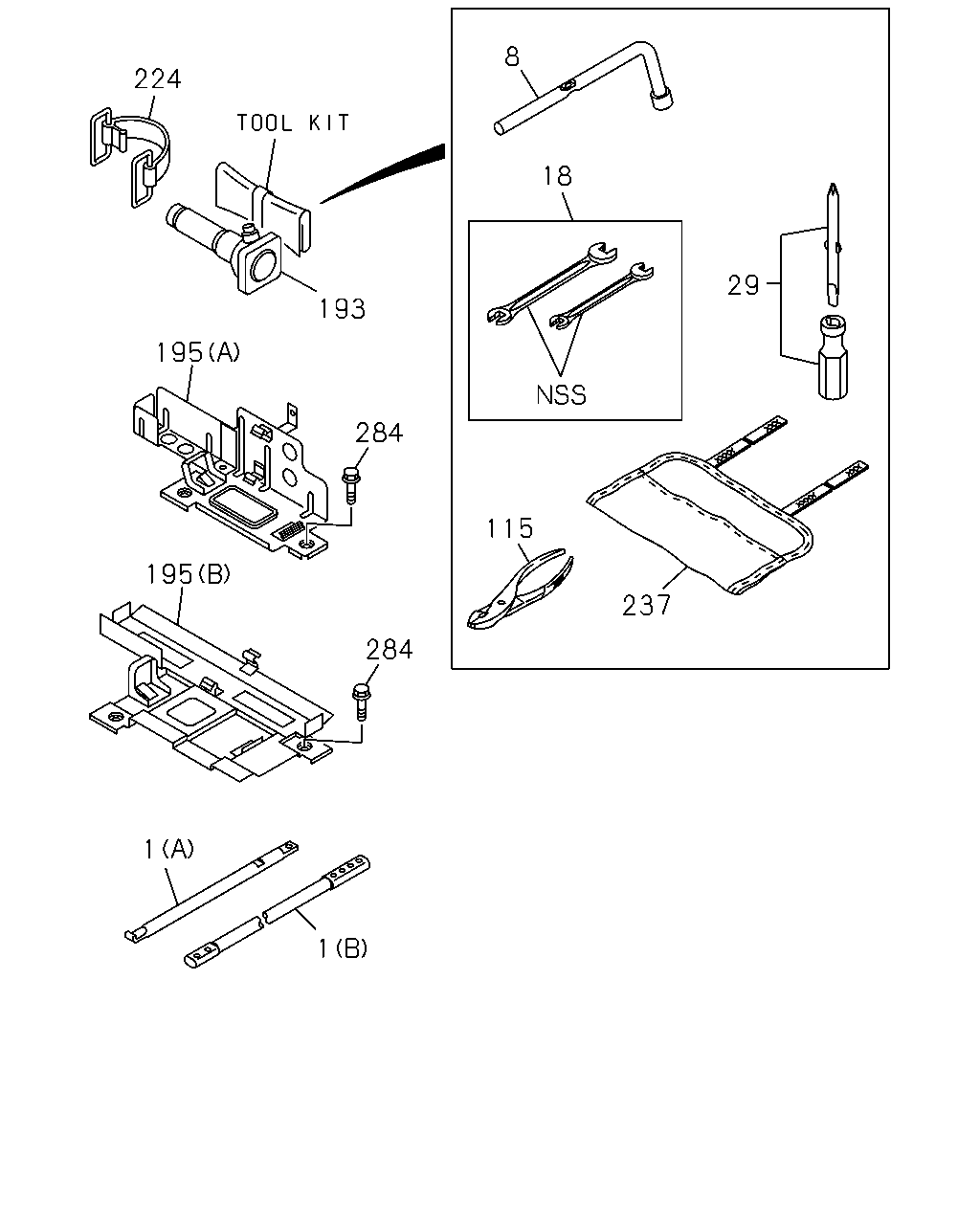

çizim 417128
224 193 195 284 195 1 1 284 115 237 18 29 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HANDLE; SPARE TIRE CARRIER
(A) 		8-97215-330-0 01 1 1405- ● ● ●
1 HANDLE; SPARE TIRE CARRIER
(B) 		8-97215-332-0 03 1 1405- ● ● ●
8 WRENCH; WHEEL
L=19 IMA 		8-98027-834-0 01 1 1405- ● ● ●
18 WRENCH KIT
8X10,12X14 IMA 		8-97945-273-0 01 1 1405- ● ● ●
29 DRIVER; SCREW
IMA 		8-98027-833-0 01 1 1405- ● ● ●
115 PLIER
IMA 		8-98099-659-0 01 1 1405- ● ● ●
193 JACK ASM 8-97217-789-1 01 1 1405- ● ● ●
195 BRACKET; JACK
(C) 		8-97249-694-5 01 1 1405- ●
195 BRACKET; JACK
(A) 		8-97249-692-2 01 1 1405- ●
195 BRACKET; JACK
(B) 		8-97249-698-2 01 1 1405- ●
224 BAND; RUBBER,JACK 8-98027-837-0 01 1 1405- ● ● ●
237 BAG; TOOL
IMA 		8-97945-395-0 01 1 1405- ● ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 03 1 1405- ● ●
284 BOLT; TOOL BOX
M6X16 W/PL WASHER 		8-98049-085-0 02 1 1405- ●
