8-90 — RADIO AND TV (#138144) — 17 parça

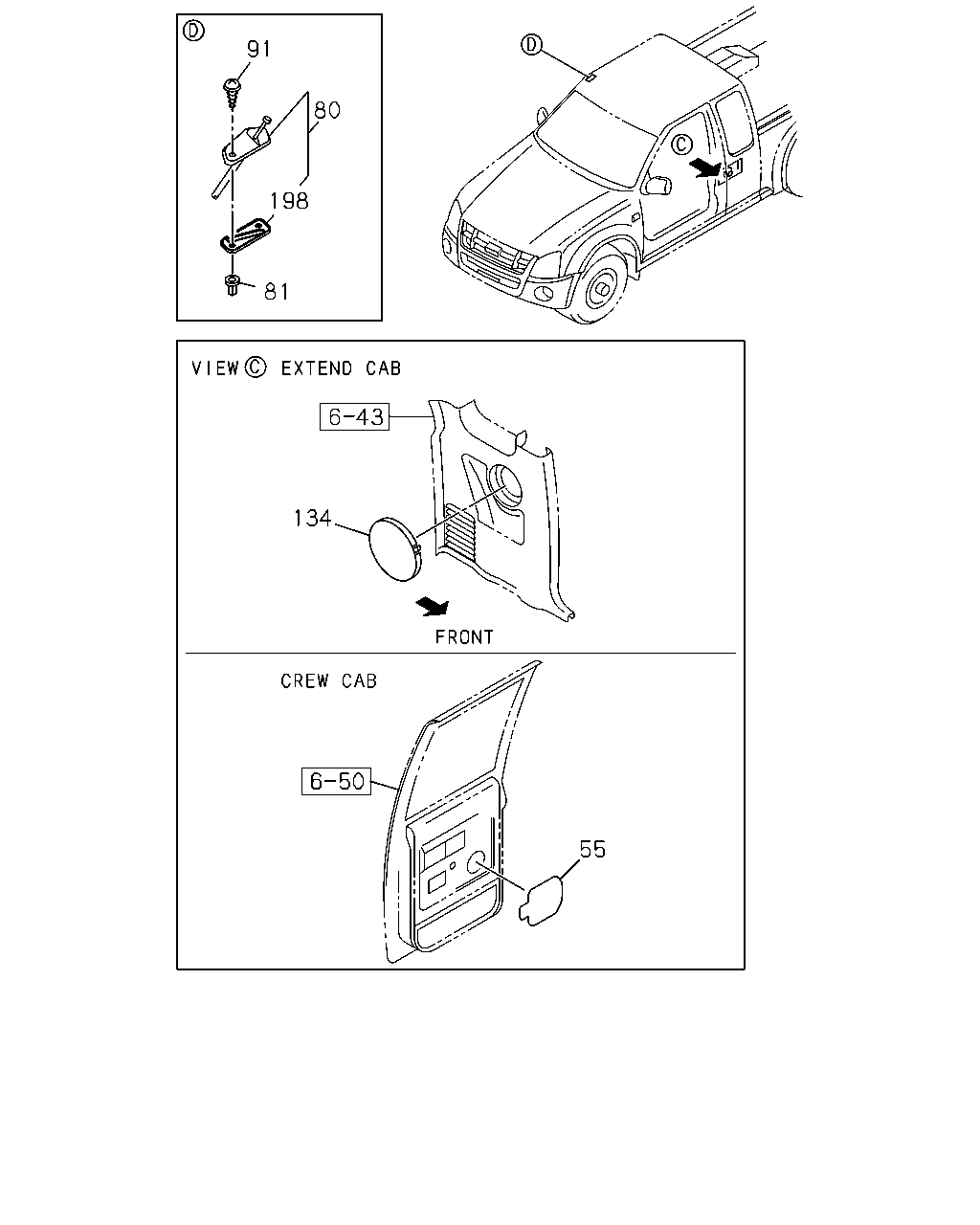

çizim 417118

91 80 198 81 134 55

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	55	COVER; SPEAKER HOLE EXC. 2-SPEAKER SYSTEM BASE<U95>	8-97238-485-1	02	1	1405-	●	●	●
	55	COVER; SPEAKER HOLE	8-97238-485-1	02	1	1405-			●
	80	ANTENNA	8-98044-180-0	01	1	1405-	●	●	●
	81	NUT; ANTENNA POLE M5 POP NUT IMA	8-97249-574-0	02	1	1405-	●	●	●
	91	BOLT; ANTENNA M5X16 IMA	8-97375-569-0	02	1	1405-	●	●	●
	134	GRILLE; SPEAKER,RR DARK GRAY	8-97403-886-1	02	1	1405-	●
	198	SHEET; ANTENNA	8-97354-772-0	01	1	1405-	●	●	●

çizim 417231

221 49 48 56

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	48	SPEAKER; AUDIO 2-SPEAKER SYSTEM BASE<U95>	8-98061-046-0	02	1	1405-	●	●	●
	49	SCREW; SPEAKER 2-SPEAKER SYSTEM BASE<U95> M5X14	8-94152-495-0	02	1	1405-	●	●	●
	56	NUT; SPEAKER,RADIO OR STEREO 2-SPEAKER SYSTEM BASE<U95> IMA	8-94152-494-0	02	1	1405-	●	●	●
	221	SEAL; SPEAKER PANEL 2-SPEAKER SYSTEM BASE<U95>	8-97328-113-0	02	1	1405-	●	●	●

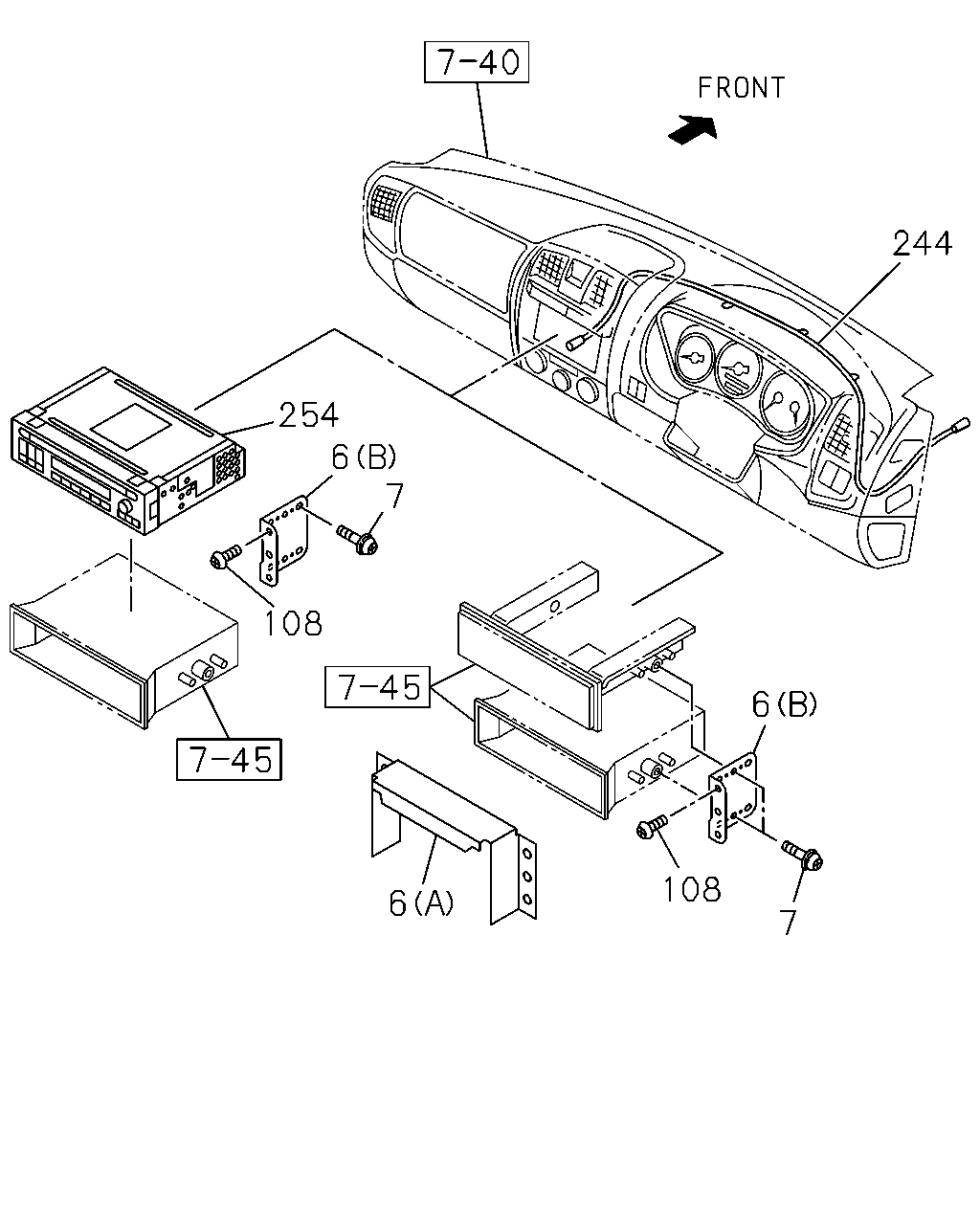

çizim 417244

244 6 7 108 6 108 7 6 254

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	6	BRACKET; RADIO TO PANEL (B)	8-98007-736-0	02	1	1405-	●	●	●
	6	BRACKET; RADIO TO PANEL (A)	8-98248-209-0	01	1	1405-	●	●	●
	7	SCREW; RADIO RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C) M5X10 W/LK+PL WASHER	0-36230-510-0	04	1	1405-	●	●	●
	108	SCREW; BRKT M5X16 TAPPING IMA	8-98167-449-0	04	1	1405-	●	●	●
	244	CABLE; FEEDER	8-97238-487-1	01	1	1405-	●	●	●
	254	RADIO CONTROL ASM; STEREO,AM-FM RADIO AM/FM STEREO,SEEK/SCAN,CD,CLOCK(U1C)	8-98052-934-1	01	1	1405-	●	●	●
