8-80 — WINDSHIELD WIPER AND WASHER (#138143) — 38 parça

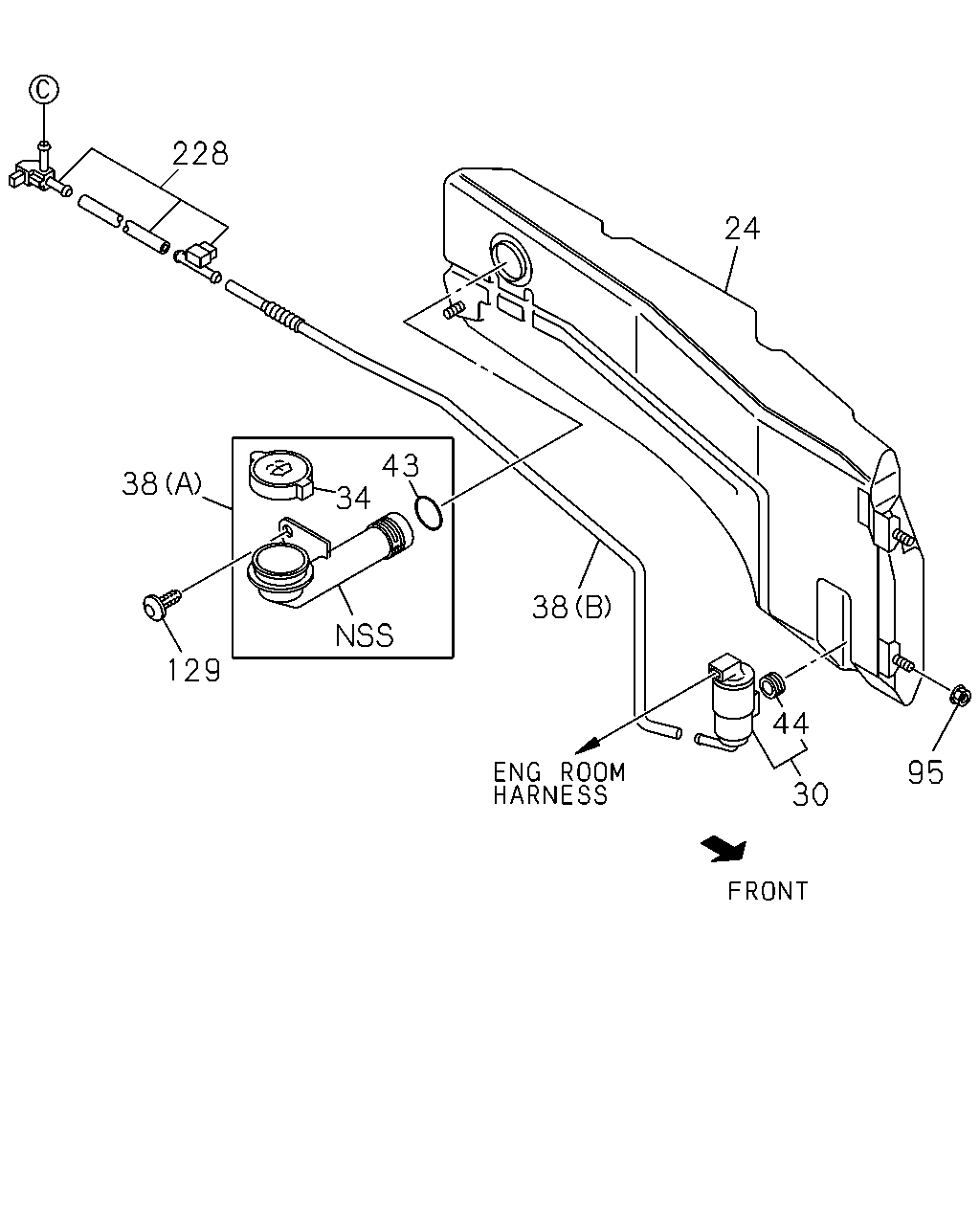

çizim 417111
228 38 34 43 24 38 44 30 95 129
BalonParca AdiParca NoAdetTipApplied Date A B C
24 TANK ASM; WASHER 8-98057-609-0 01 1 1405- ● ● ●
30 MOTOR ASM; FRT WASHER TANK
IMA 		8-97314-350-0 01 1 1405- ● ● ●
34 CAP; WASHER TANK 8-97349-905-0 01 1 1405- ● ● ●
38 HOSE; JOINT,TANK
(A) 		8-97310-064-1 01 1 1405- ● ● ●
38 HOSE; JOINT,TANK
(B) 		8-98011-321-0 01 1 1405- ● ● ●
43 RUBBER; GASKET,TANK 8-97349-906-0 01 1 1405- ● ● ●
44 GASKET; MOTOR TO TANK 8-94352-050-0 01 1 1405- ● ● ●
95 NUT; WASHER TANK
M6 W/DISHED WASHER IMA 		8-98049-368-0 03 1 1405- ● ● ●
129 CLIP; JOINT HOSE
L=19 BLACK 		8-94363-776-0 01 1 1405- ● ● ●
228 HOSE ASM; WASHER 8-98115-892-0 01 1 1405- ● ● ●

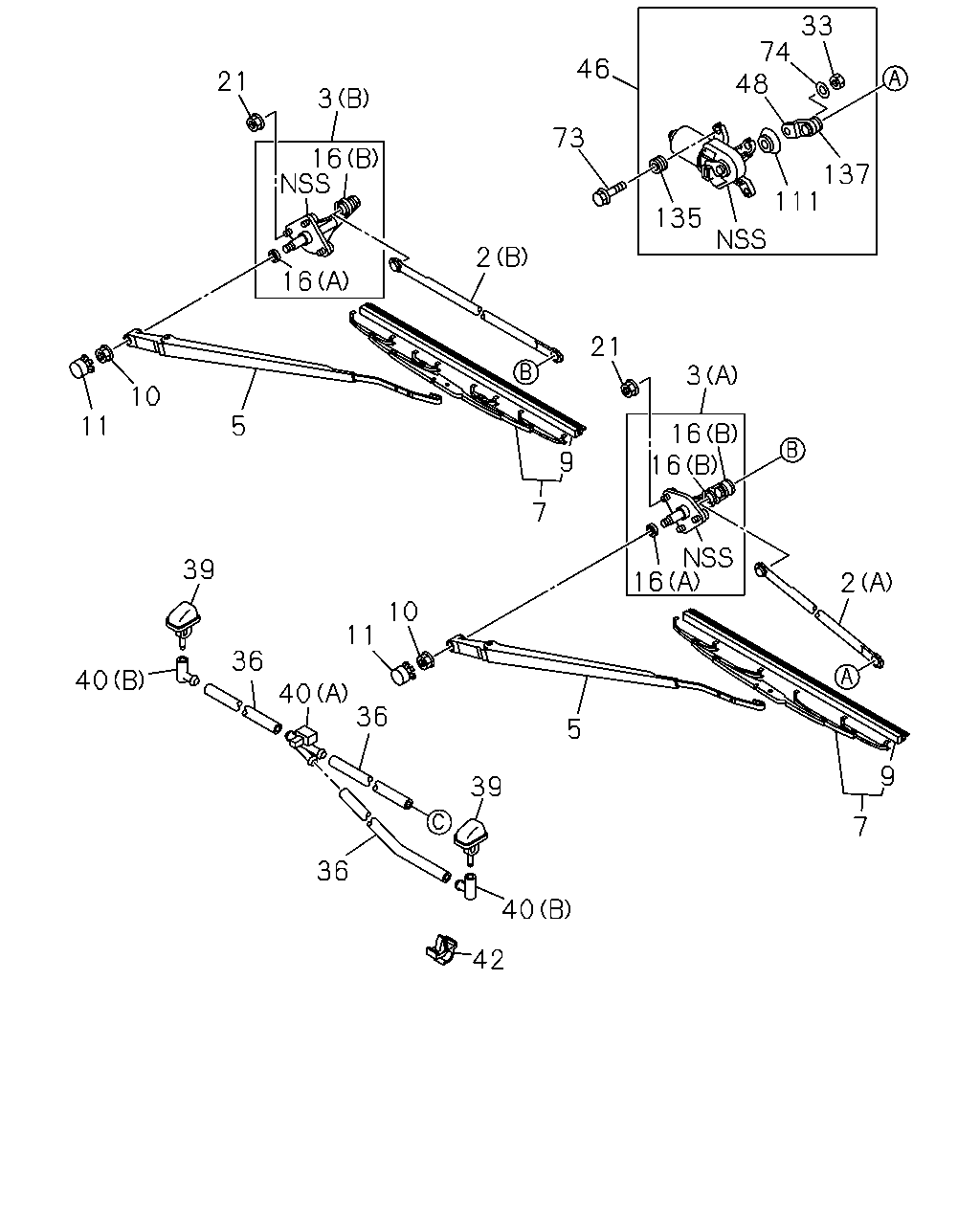

çizim 417216
21 3 16 16 2 73 46 48 74 33 137 111 135 21 3 16 16 16 2 9 7 5 7 9 5 10 11 39 36 40 36 11 10 39 40 42 36 40
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINK; FRT WIPER
(A) 		8-97349-892-0 01 1 1405- ● ● ●
2 LINK; FRT WIPER
(B) 		8-97349-893-0 01 1 1405- ● ● ●
3 PIVOT ASM; FRT WIPER
(A) 		8-98057-712-0 01 1 1405- ● ● ●
3 PIVOT ASM; FRT WIPER
(B) 		8-98057-714-0 01 1 1405- ● ● ●
5 ARM; WIPER 8-97349-899-0 01 1 1405- ● ● ●
5 ARM; WIPER 8-97349-902-0 01 1 1405- ● ● ●
7 BLADE; WIPER
L=550 IMA 		8-97349-900-0 01 1 1405- ● ● ●
7 BLADE; WIPER
L=475 		8-97349-903-0 01 1 1405- ● ● ●
9 RUBBER; FRT WIPER BLADE
L=550 IMA 		8-97349-901-0 01 1 1405- ● ● ●
9 RUBBER; FRT WIPER BLADE
L=475 		8-97349-904-0 01 1 1405- ● ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 FLANGE IMA 		8-98049-367-0 02 1 1405- ● ● ●
11 COVER; WIPER ARM 8-94367-999-0 02 1 1405- ● ● ●
16 SEAL; BALL JOINT
(B) 		8-97025-889-0 03 1 1405- ● ● ●
16 SEAL; BALL JOINT
(A) 		8-97349-894-0 02 1 1405- ● ● ●
21 NUT; WIPER LINK PIVOT
M6 FLANGE IMA 		0-91180-106-0 06 1 1405- ● ● ●
33 NUT; MOTOR TO ARM 8-97349-898-0 01 1 1405- ● ● ●
36 HOSE; WASHER
SERVICED BY L=10000 		8-97349-607-0 01 1 1405- ● ● ●
39 NOZZLE; WINDSHIELD WASHER 8-98008-112-0 02 1 1405- ● ● ●
40 JOINT; WASHER HOSE
(B) 		8-97178-847-0 02 1 1405- ● ● ●
40 JOINT; WASHER HOSE
(A) 		8-97215-337-0 01 1 1405- ● ● ●
42 CLIP; WASHER HOSE
ID=5.8 L=8 		8-94155-681-0 03 1 1405- ● ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98057-621-0 01 1 1405- ● ● ●
48 ARM; WIPER MOTOR 8-98057-654-0 01 1 1405- ● ● ●
73 BOLT
M6X33 W/PL WASHER IMA 		8-98048-997-0 04 1 1405- ● ● ●
74 WASHER; ARM TO MOTOR 8-97349-897-0 01 1 1405- ● ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-97349-896-0 01 1 1405- ● ● ●
135 RUBBER; CUSHION,WIPER MOTOR 8-98057-655-0 04 1 1405- ● ● ●
137 SEAL; JOINT,WIPER MOTOR 8-97025-889-0 01 1 1405- ● ● ●
