◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#138142) — 17 parça

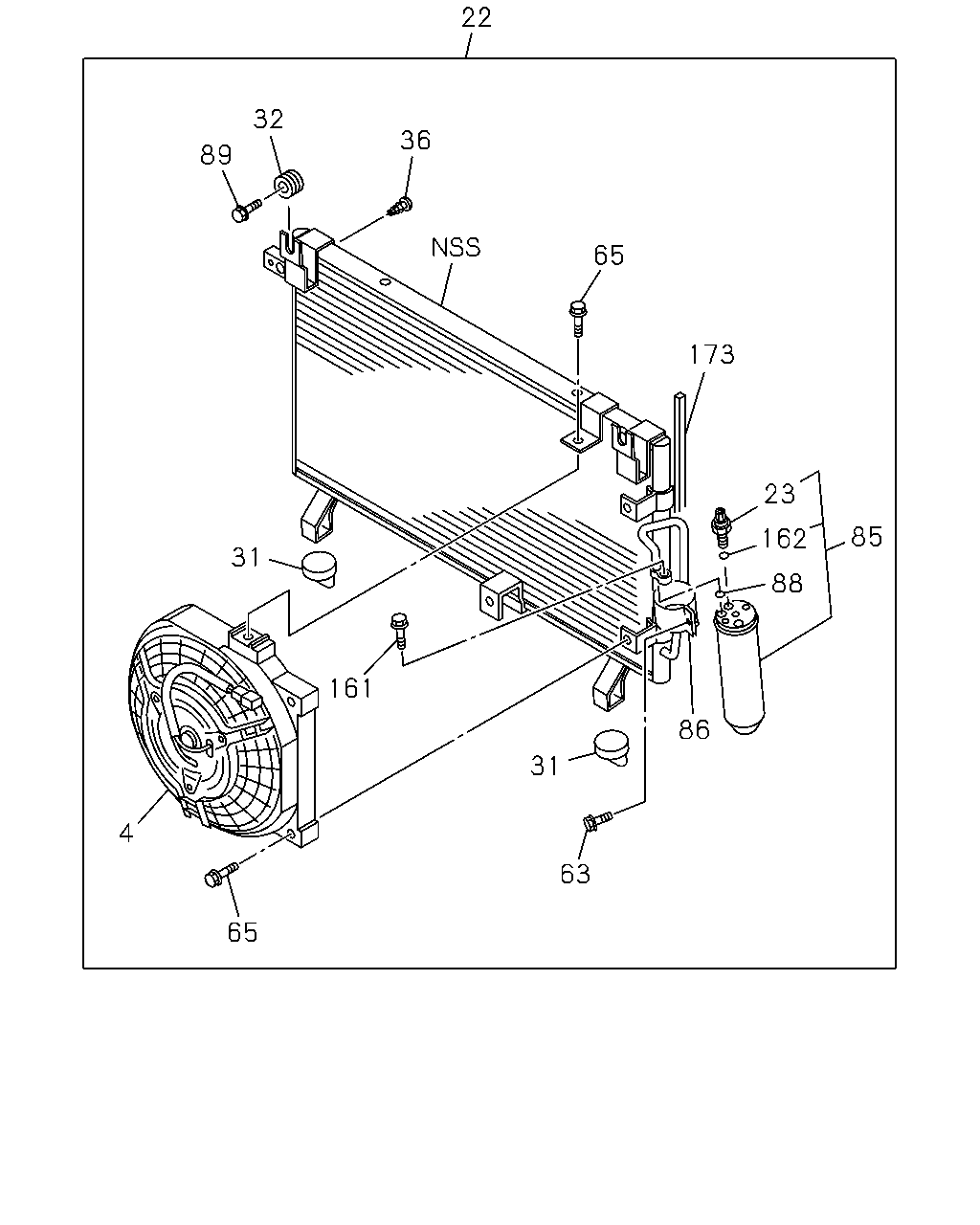

çizim 417107
65 4 161 31 31 63 86 88 85 162 23 173 65 36 22 32 89
BalonParca AdiParca NoAdetTipApplied Date A B C
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-97356-646-0 01 1 1405- ● ● ●
22 CONDENSER ASM; A/C
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 		8-98071-128-0 01 1 1510- ● ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98176-437-0 01 1 1405-1509 ● ● ●
22 CONDENSER ASM; A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) 		8-98176-437-0 01 1 1510- ● ● ●
23 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-97381-465-0 01 1 1405- ● ● ●
31 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-319-0 02 1 1405- ● ● ●
32 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-320-0 02 1 1405- ● ● ●
36 SCREW; PLATE TO CONDENSER
AIR CONDITIONER MANUAL CONT(C60) M4X25 		8-98071-148-0 09 1 1405- ● ● ●
63 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-98071-146-0 03 1 1405- ● ● ●
65 BOLT; SHROUD
AIR CONDITIONER MANUAL CONT(C60) M6X18 		8-98071-145-0 04 1 1405- ● ● ●
85 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97381-576-0 01 1 1405- ● ● ●
86 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60) 		8-97380-437-0 01 1 1405- ● ● ●
88 GASKET; PRESSURE SW
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-321-0 01 1 1405- ● ● ●
89 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60) M6X35 		8-98071-149-0 02 1 1405- ● ● ●
161 BOLT; PIPE
AIR CONDITIONER MANUAL CONT(C60) M6X16 		8-98071-146-0 01 1 1405- ● ● ●
162 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-321-0 01 1 1405- ● ● ●
173 INSULATOR; CONDENSER
AIR CONDITIONER MANUAL CONT(C60) 		8-98034-693-0 02 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
