◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-74 - EVAPORATOR ▶
8-74 — EVAPORATOR (#138141) — 27 parça

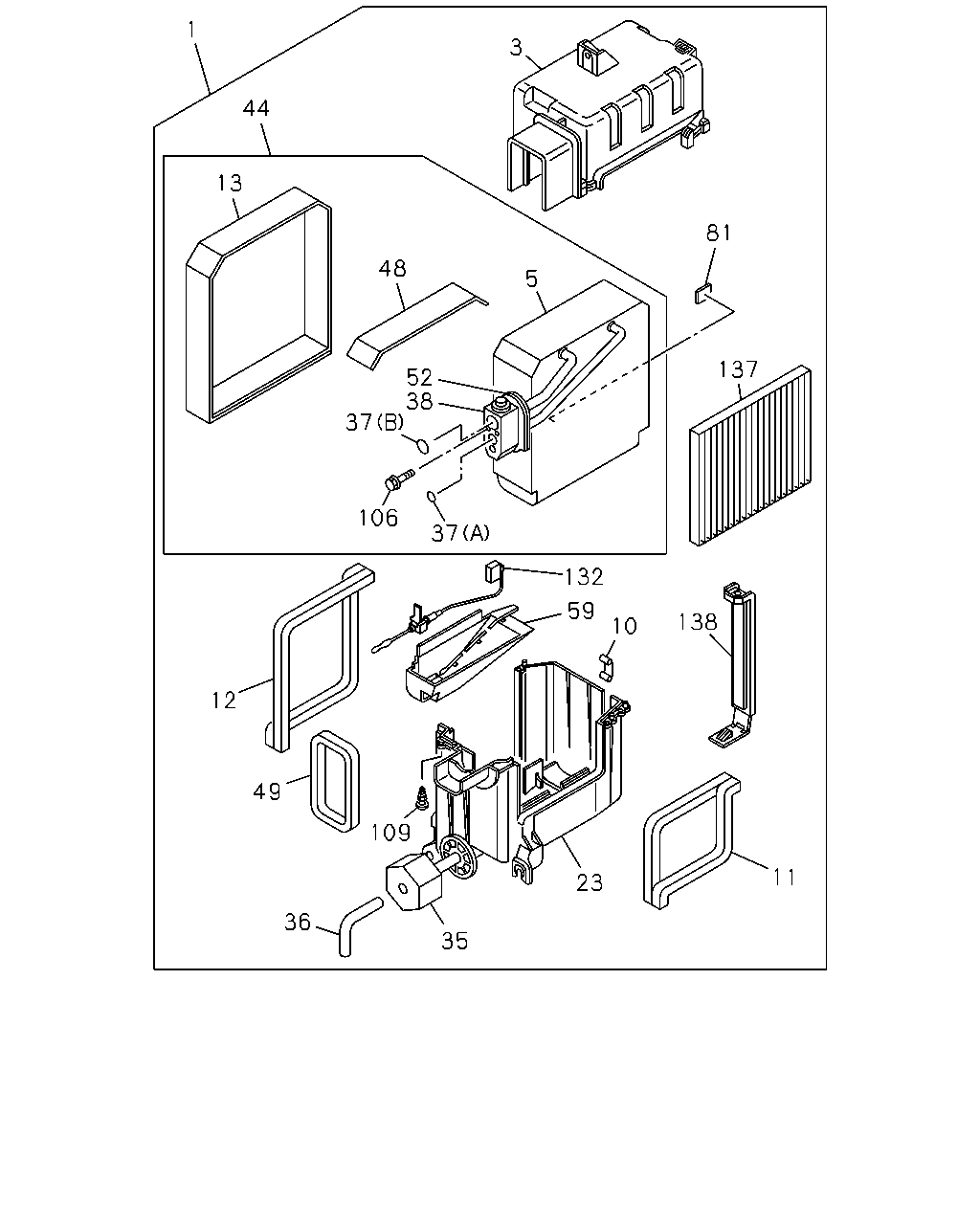

çizim 417102
137 81 3 1 44 13 48 52 37 38 5 132 37 106 12 49 36 109 35 23 11 138 10 59
BalonParca AdiParca NoAdetTipApplied Date A B C
1 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98086-171-0 01 1 1405- ● ● ●
1 EVAPORATOR ASM
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98086-169-0 01 1 1405- ● ● ●
3 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-333-0 01 1 1405- ● ● ●
3 CASE; EVAP,UPR
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-332-0 01 1 1405- ● ● ●
5 EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-687-0 01 1 1405- ● ● ●
10 CLIP; EVAP CASE
AIR CONDITIONER MANUAL CONT(C60) 		8-98088-089-0 01 1 1405- ● ● ●
11 LINING; EVAP A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-159-0 01 1 1405- ● ● ●
12 LINING; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-684-0 01 1 1405- ● ● ●
13 SEAL; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98055-345-0 01 1 1405- ● ● ●
23 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-337-0 01 1 1405- ● ● ●
23 CASE; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98055-336-0 01 1 1405- ● ● ●
35 GROMMET; EVAP,LOW
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-157-0 01 1 1405- ● ● ●
36 HOSE; DRAIN EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97370-352-0 01 1 1405- ● ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-154-0 01 1 1405- ● ● ●
37 GASKET; EVAP
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-155-0 01 1 1405- ● ● ●
38 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98063-690-0 01 1 1405- ● ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-235-0 01 1 1405- ● ● ●
48 INSULATOR; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98090-228-0 01 1 1405- ● ● ●
49 GROMMET; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-158-1 01 1 1405- ● ● ●
52 GROMMET; EVAP,A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-152-0 01 1 1405- ● ● ●
59 LINING; EVAP,LWR
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-146-0 01 1 1405- ● ● ●
81 CLIP; THERMOSTAT A/C
AIR CONDITIONER MANUAL CONT(C60) 		8-97321-161-0 01 1 1405- ● ● ●
106 BOLT; EXPANSION VLV
AIR CONDITIONER MANUAL CONT(C60) 		8-98072-395-0 02 1 1405- ● ● ●
109 BOLT; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-98071-323-0 04 1 1405- ● ● ●
132 AMPLIFIER; EVAP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-325-0 01 1 1405- ● ● ●
137 FILTER; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98008-442-0 01 1 1405- ● ● ●
138 COVER; CASE
AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98063-694-0 01 1 1405- ● ● ●
