Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#138140) — 37 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
◀

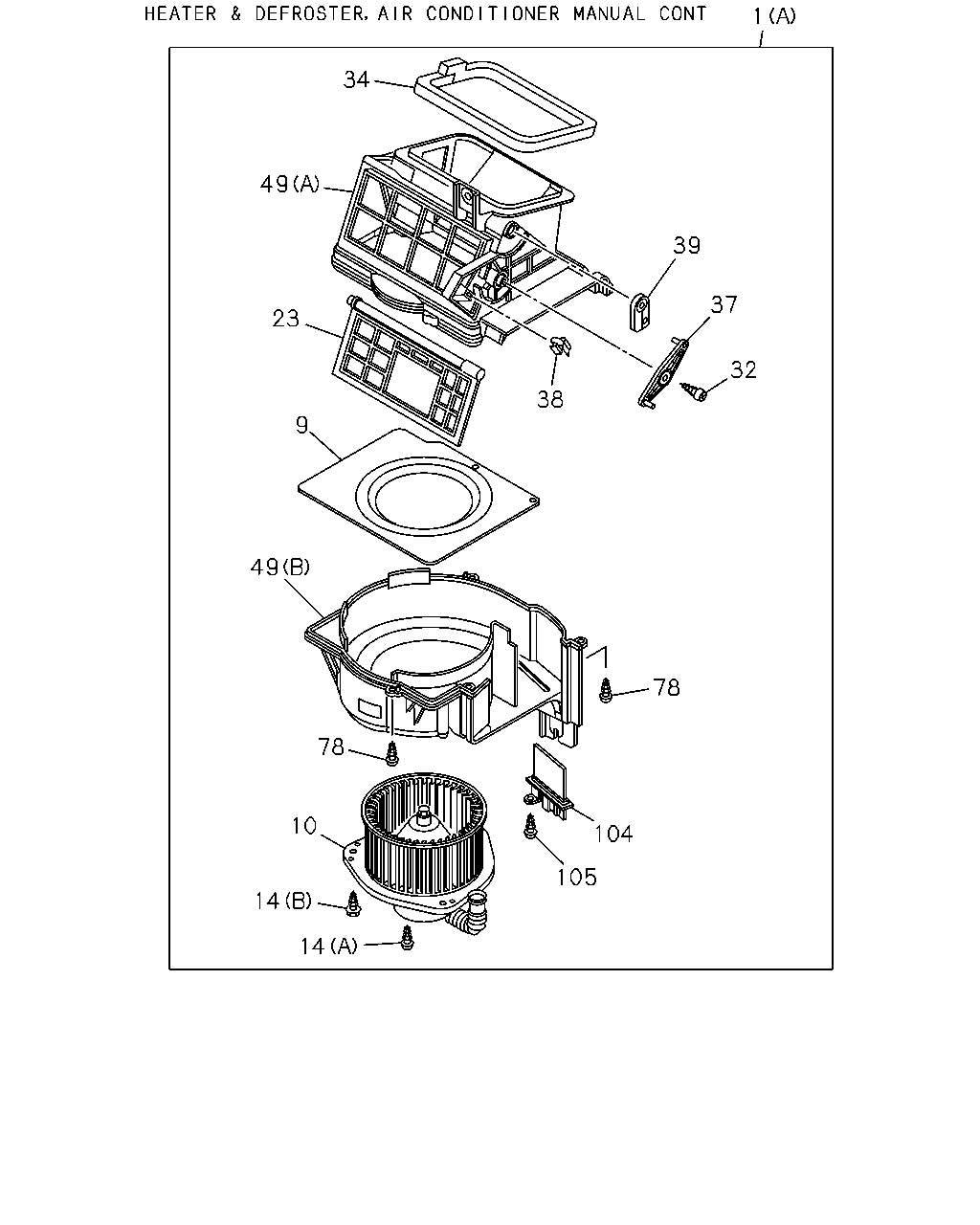

[873A] NO.1 (20 parça)

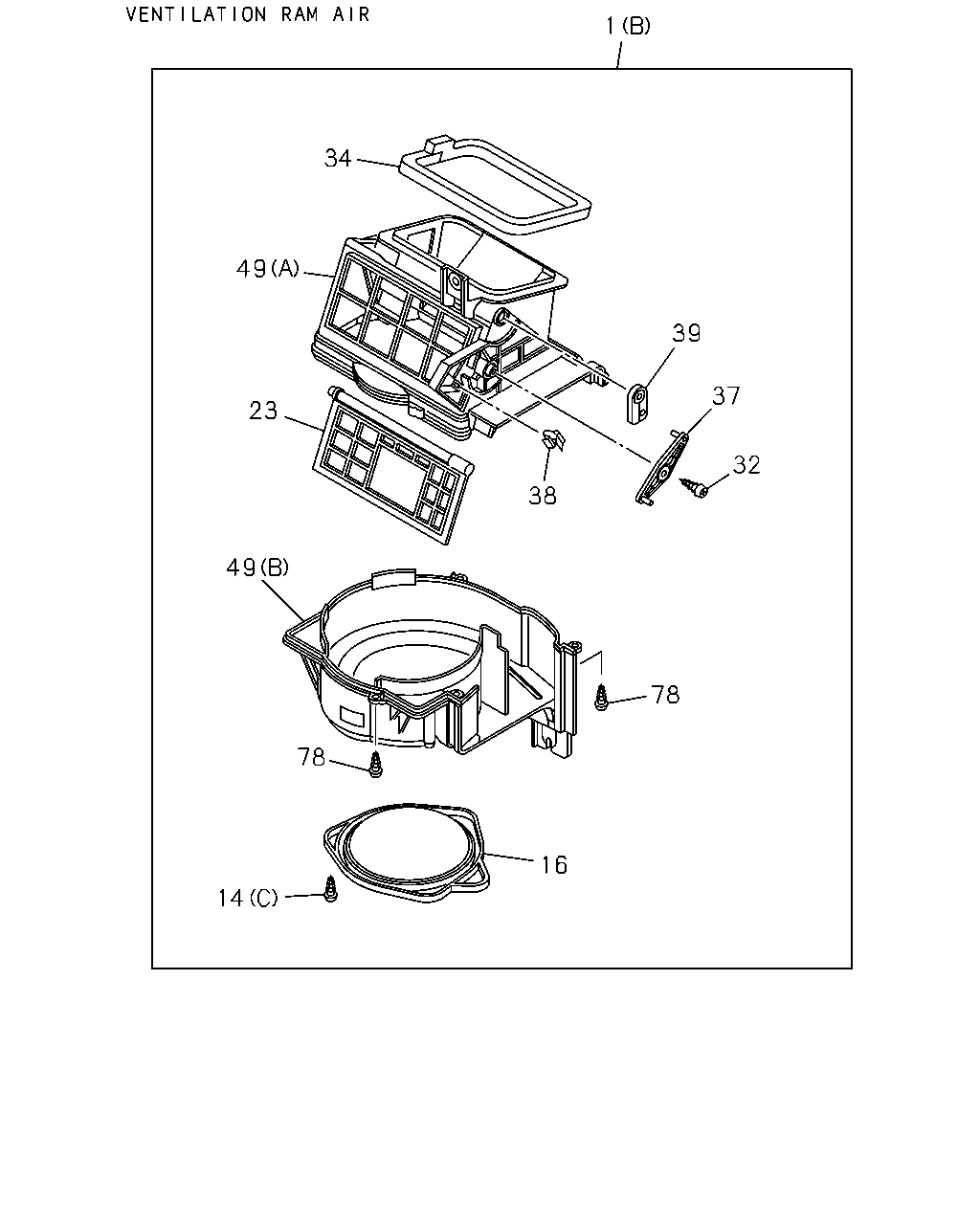

[873A] NO.2 (17 parça)
▶
32
37
39
38
23
49
9
49
78
10
14
14
105
78
104
34
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98070-131-0
01
1
1405-
●
●
●
1
BLOWER ASM
VENTILATION RAM AIR(6TN) (B)
8-97301-798-2
01
1
1405-
●
●
●
9
GUIDE; BELL MOUTH HTR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98072-803-0
01
1
1405-
●
●
●
10
MOTOR ASM; FAN,BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98008-893-0
01
1
1405-
●
●
●
14
SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98070-134-0
03
1
1405-
●
●
●
14
SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98070-135-0
01
1
1405-
●
●
●
14
SCREW; COVER TO CASE
VENTILATION RAM AIR(6TN) (C)
8-97321-165-0
03
1
1405-
●
●
●
23
SHUTTER; BLOWER UNIT
8-97321-266-1
01
1
1405-
●
●
●
32
SCREW; LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98070-136-0
01
1
1405-
●
●
●
32
SCREW; LEVER
VENTILATION RAM AIR(6TN)
8-97321-276-0
01
1
1405-
●
●
●
34
LINING; BLOWER UNIT
8-97321-269-0
01
1
1405-
●
●
●
37
LEVER; MODE LEVER
8-97321-268-0
01
1
1405-
●
●
●
38
CLIP; BLOWER UNIT
8-97321-274-0
01
1
1405-
●
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97321-267-0
01
1
1405-
●
●
●
49
CASE; BLOWER UNIT
(A)
8-97321-263-0
01
1
1405-
●
●
●
49
CASE; BLOWER UNIT
(B)
8-97321-264-0
01
1
1405-
●
●
●
78
SCREW; CASE TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98070-135-0
05
1
1405-
●
●
●
78
SCREW; CASE TO CASE
VENTILATION RAM AIR(6TN)
8-97321-165-0
05
1
1405-
●
●
●
104
RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98049-394-0
01
1
1405-
●
●
●
105
SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98070-135-0
02
1
1405-
●
●
●
32
37
39
1
34
49
23
49
78
14
16
78
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98070-131-0
01
1
1405-
●
●
●
1
BLOWER ASM
VENTILATION RAM AIR(6TN) (B)
8-97301-798-2
01
1
1405-
●
●
●
14
SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B)
8-98070-134-0
03
1
1405-
●
●
●
14
SCREW; COVER TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A)
8-98070-135-0
01
1
1405-
●
●
●
14
SCREW; COVER TO CASE
VENTILATION RAM AIR(6TN) (C)
8-97321-165-0
03
1
1405-
●
●
●
16
COVER; BLOWER UNIT
VENTILATION RAM AIR(6TN)
8-97321-271-0
01
1
1405-
●
●
●
23
SHUTTER; BLOWER UNIT
8-97321-266-1
01
1
1405-
●
●
●
32
SCREW; LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98070-136-0
01
1
1405-
●
●
●
32
SCREW; LEVER
VENTILATION RAM AIR(6TN)
8-97321-276-0
01
1
1405-
●
●
●
34
LINING; BLOWER UNIT
8-97321-269-0
01
1
1405-
●
●
●
37
LEVER; MODE LEVER
8-97321-268-0
01
1
1405-
●
●
●
38
CLIP; BLOWER UNIT
8-97321-274-0
01
1
1405-
●
●
●
39
LEVER; SHUTTER,BLOWER UNIT
8-97321-267-0
01
1
1405-
●
●
●
49
CASE; BLOWER UNIT
(A)
8-97321-263-0
01
1
1405-
●
●
●
49
CASE; BLOWER UNIT
(B)
8-97321-264-0
01
1
1405-
●
●
●
78
SCREW; CASE TO CASE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60)
8-98070-135-0
05
1
1405-
●
●
●
78
SCREW; CASE TO CASE
VENTILATION RAM AIR(6TN)
8-97321-165-0
05
1
1405-
●
●
●
