◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-71 - COMPRESSOR; AIR CONDITIONING ▶
8-71 — COMPRESSOR; AIR CONDITIONING (#138139) — 6 parça

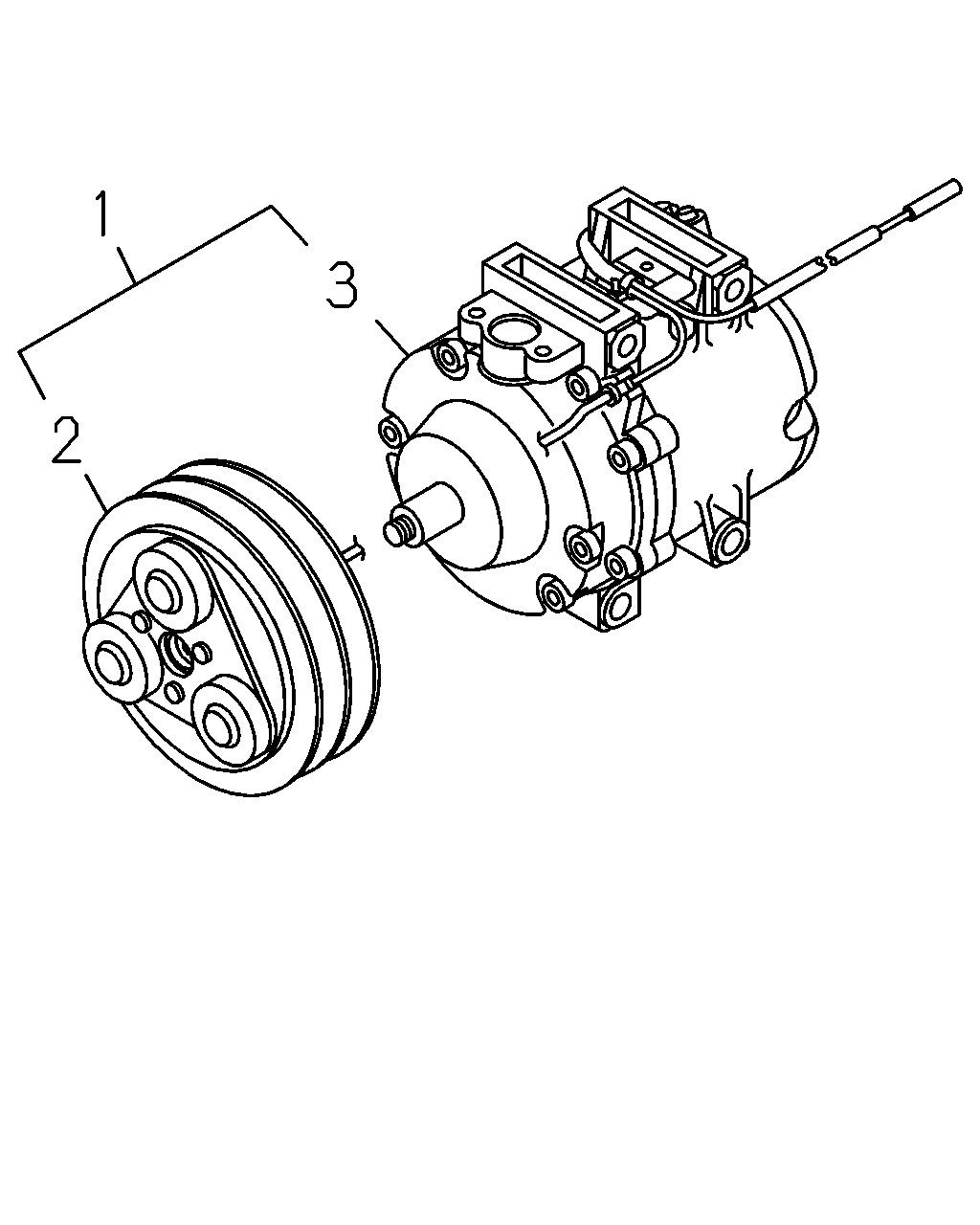

çizim 417196
1 2 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COMPRESSOR ASM; A/C
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 		8-98199-289-1 01 1 1510- ● ● ●
1 COMPRESSOR ASM; A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) 		8-98199-292-1 01 1 1405- ● ● ●
2 CLUTCH; MAGNET,A/C
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) IMA 		8-98258-537-0 01 1 1510- ● ● ●
2 CLUTCH; MAGNET,A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) 		8-98252-777-0 01 1 1405- ● ● ●
3 COMPRESSOR ASM; A/C
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 		8-98258-530-0 01 1 1510- ● ● ●
3 COMPRESSOR ASM; A/C
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) 		8-98258-533-0 01 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
