8-65 — CONTROL LEVER; HEATER AND AIR CON (#138138) — 8 parça

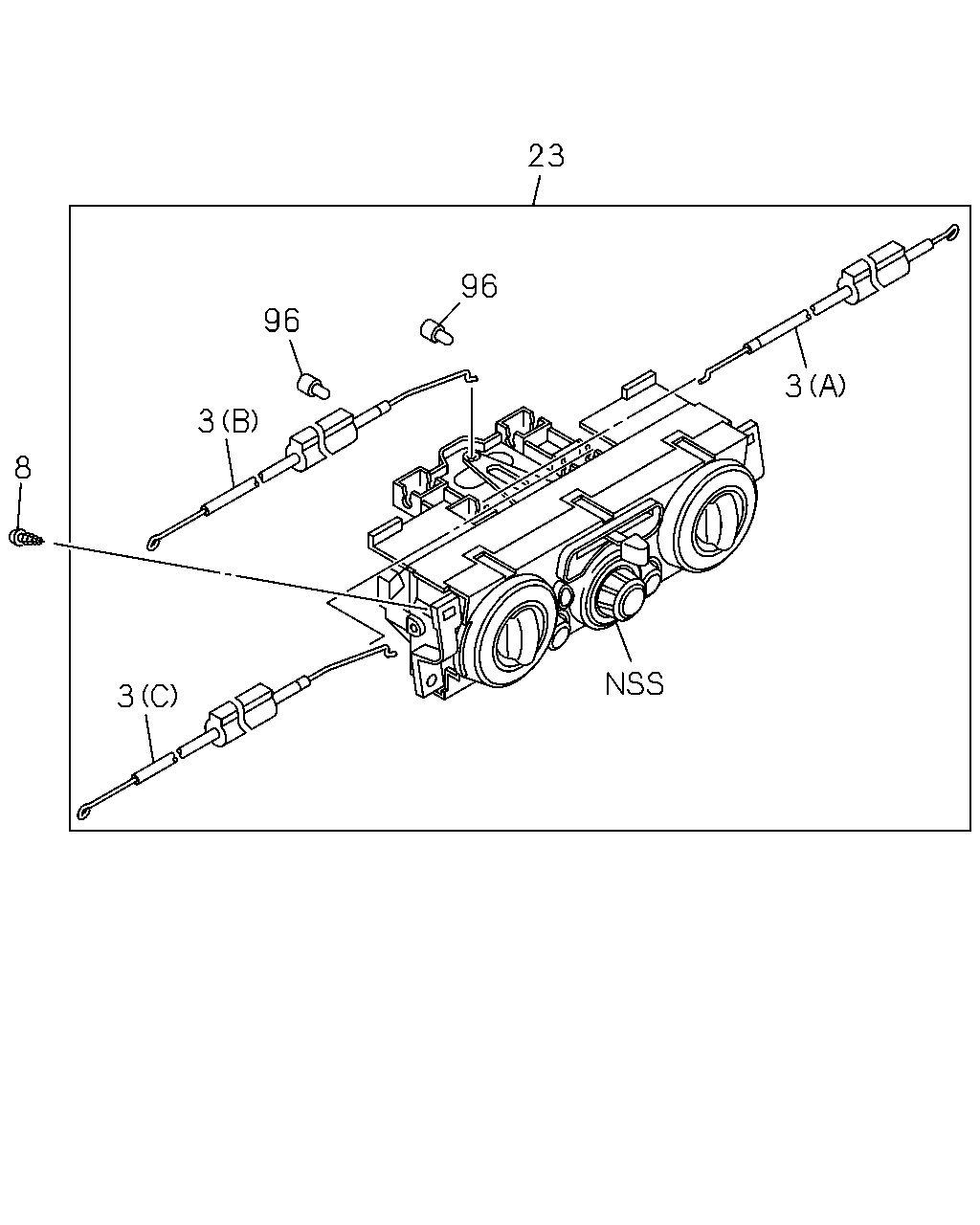

çizim 417174
3 23 96 96 3 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98029-143-0 01 1 1405- ● ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) TEMP 		8-98029-144-0 01 1 1405- ● ● ●
3 CABLE; HTR CONT LVR
(B) INTAKE 		8-98029-145-0 01 1 1405- ● ● ●
8 SCREW; CONT LVR TO INST PNL
M5X16 TAPPING IMA 		8-98167-449-0 02 1 1405- ● ● ●
23 BEZEL; CONT LEVER
HEATER & DEFROSTER(C42) 		8-98229-657-0 01 1 1405- ● ● ●
23 BEZEL; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-98229-659-0 01 1 1405- ● ● ●
23 BEZEL; CONT LEVER
VENTILATION RAM AIR(6TN) 		8-98229-656-0 01 1 1405- ● ● ●
96 BULB ASM; BEZEL
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98159-721-0 02 1 1405- ● ● ●
