8-60 — HEATER UNIT; FRONT (#138137) — 54 parça

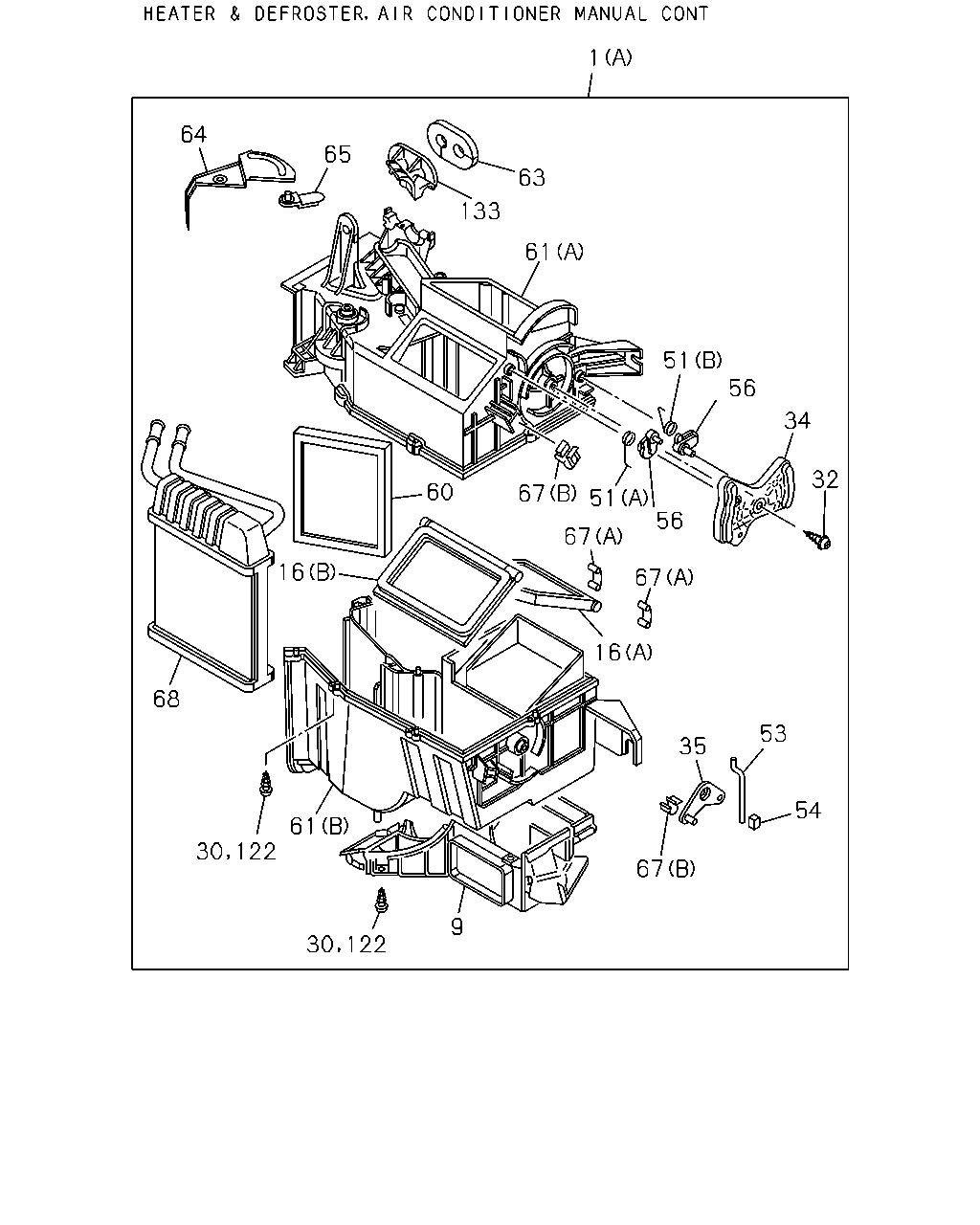

çizim 417164
32 34 56 51 61 133 63 65 64 1 60 67 56 51 67 67 16 35 67 54 53 122 30 122 30 61 68 16 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> (A) 		8-98086-150-0 01 1 1405- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98086-150-0 01 1 1405- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-151-0 01 1 1405- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98086-151-0 01 1 1405- ●
1 HEATER UNIT
VENTILATION RAM AIR(6TN) (B) 		8-98086-149-0 01 1 1405- ● ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98086-152-0 01 1 1405- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-153-0 01 1 1405- ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97321-338-0 01 1 1405- ● ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C> 		8-97321-338-0 01 1 1405- ●
9 DUCT; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> 		8-97364-987-0 01 1 1405- ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-340-0 01 1 1405- ● ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-342-0 01 1 1405- ● ● ●
30 SCREW; HTR UNIT 8-98071-323-0 08 1 1405- ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> 		8-98071-324-0 02 1 1405- ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 		8-98071-324-0 03 1 1405- ● ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97321-343-0 01 1 1405- ● ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-344-0 01 1 1405- ● ● ●
51 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97321-368-0 01 1 1405- ● ● ●
51 SPRING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-369-0 01 1 1405- ● ● ●
53 ROD; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-345-0 01 1 1405- ● ● ●
54 CLIP; SHUTTER LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> 		8-97321-371-0 01 1 1405- ● ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97321-341-0 02 1 1405- ● ● ●
60 DOOR; MIX,HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97333-330-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97333-326-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97333-327-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
VENTILATION RAM AIR(6TN) (C) 		8-97321-336-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
VENTILATION RAM AIR(6TN) (D) 		8-97321-337-0 01 1 1405- ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97333-328-0 01 1 1405- ● ● ●
63 LINING; HTR UNIT
VENTILATION RAM AIR(6TN) 		8-97321-370-0 01 1 1405- ● ● ●
64 LEVER; MIX,DOOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-806-0 01 1 1405- ● ● ●
65 LEVER; MIX,DOOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97333-331-0 01 1 1405- ● ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-274-0 02 1 1405- ● ● ●
67 CLIP; HTR UNIT
(A) 		8-98088-089-0 01 1 1405- ● ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97333-329-0 01 1 1405- ● ● ●
122 SCREW; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98071-323-0 02 1 1405- ● ● ●
133 CLIP; PIPE 8-97321-366-0 01 1 1405- ● ● ●

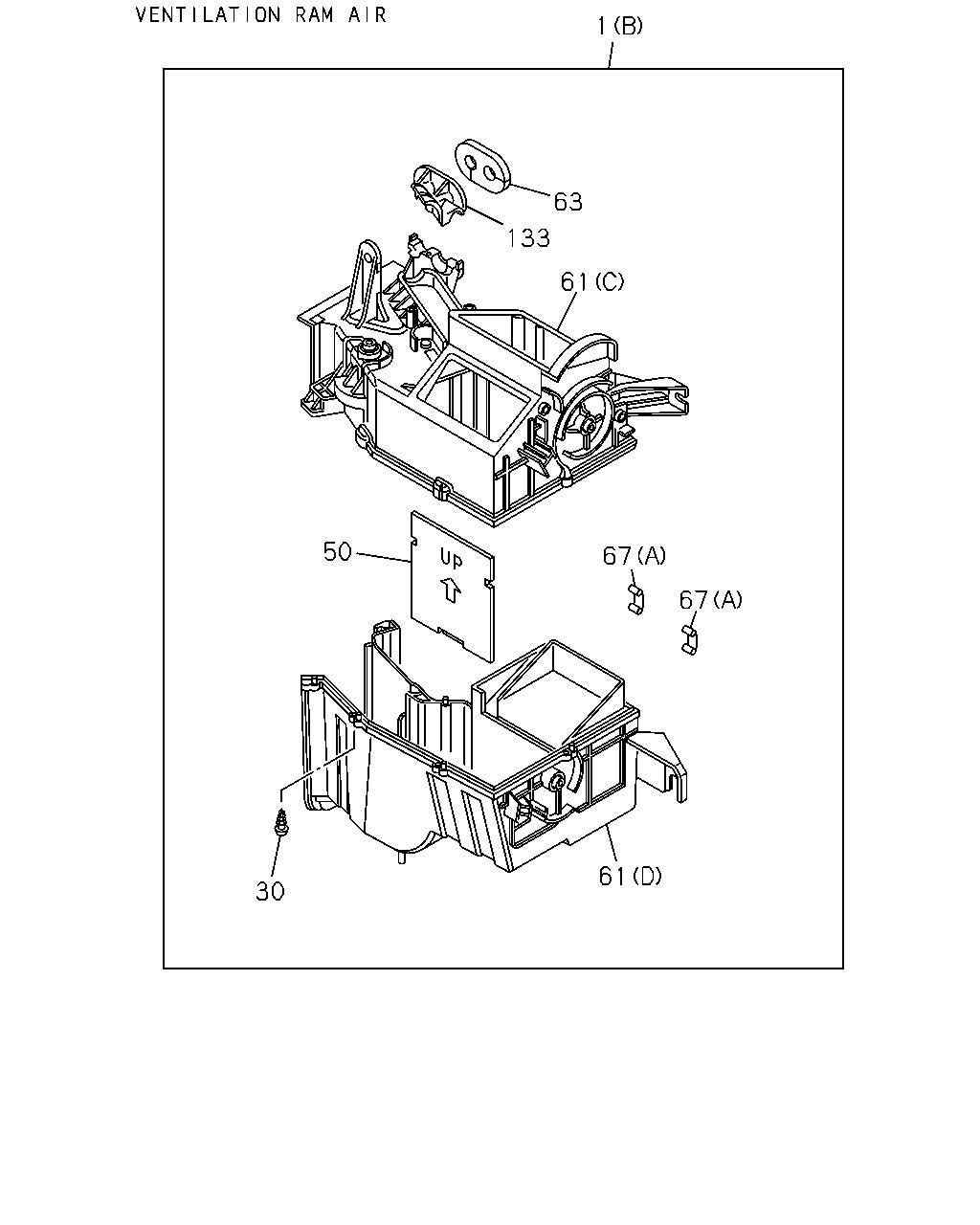

çizim 417165
67 67 61 30 50 61 133 63 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> (A) 		8-98086-150-0 01 1 1405- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> (A) 		8-98086-150-0 01 1 1405- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-151-0 01 1 1405- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> (A) 		8-98086-151-0 01 1 1405- ●
1 HEATER UNIT
VENTILATION RAM AIR(6TN) (B) 		8-98086-149-0 01 1 1405- ● ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> (A) 		8-98086-152-0 01 1 1405- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> (A) 		8-98086-153-0 01 1 1405- ●
30 SCREW; HTR UNIT 8-98071-323-0 08 1 1405- ● ● ●
50 PLATE; HTR CORE
VENTILATION RAM AIR(6TN) 		8-97321-339-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97333-326-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97333-327-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
VENTILATION RAM AIR(6TN) (C) 		8-97321-336-0 01 1 1405- ● ● ●
61 CASE; HTR UNIT
VENTILATION RAM AIR(6TN) (D) 		8-97321-337-0 01 1 1405- ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-97333-328-0 01 1 1405- ● ● ●
63 LINING; HTR UNIT
VENTILATION RAM AIR(6TN) 		8-97321-370-0 01 1 1405- ● ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97321-274-0 02 1 1405- ● ● ●
67 CLIP; HTR UNIT
(A) 		8-98088-089-0 01 1 1405- ● ● ●
133 CLIP; PIPE 8-97321-366-0 01 1 1405- ● ● ●
