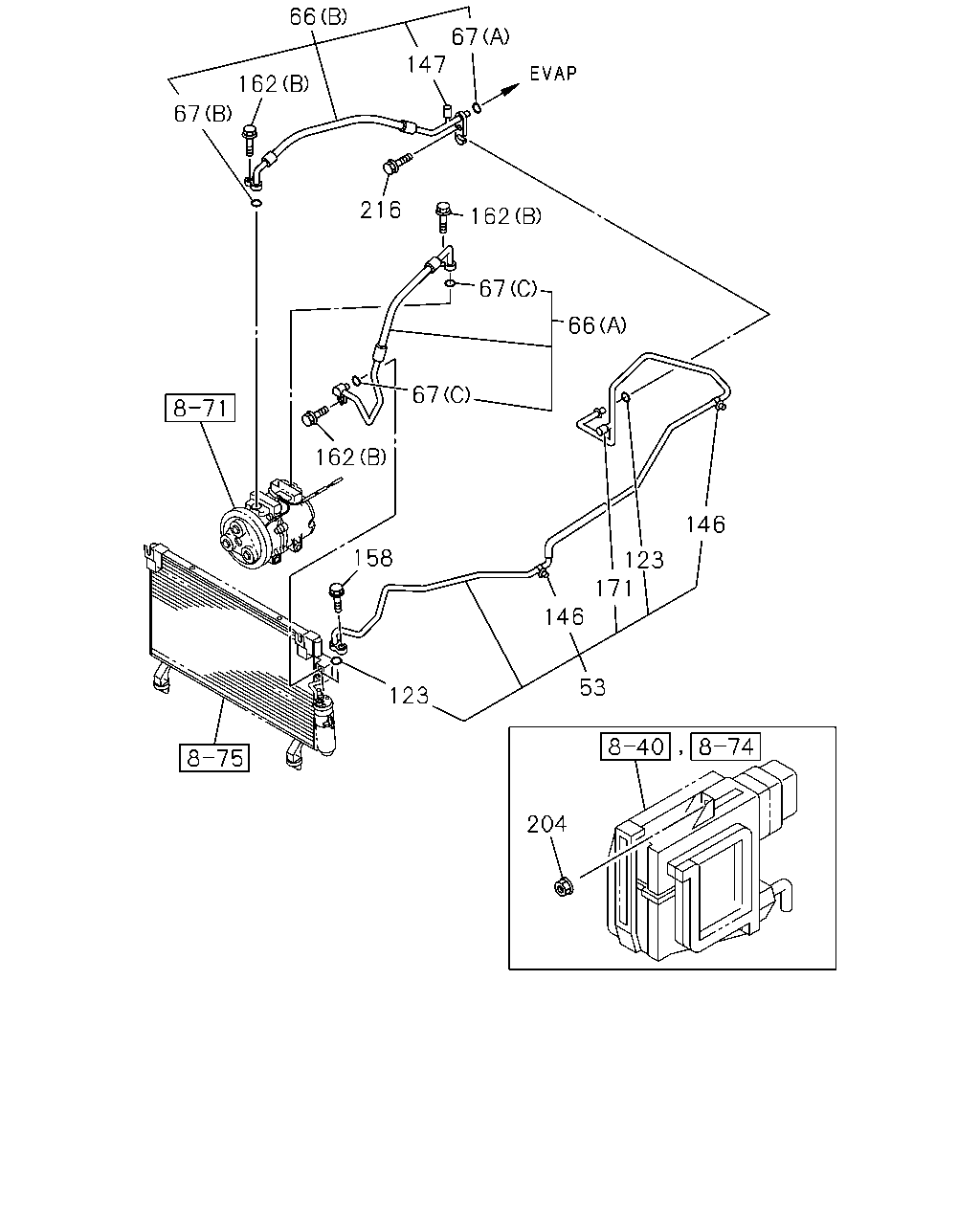

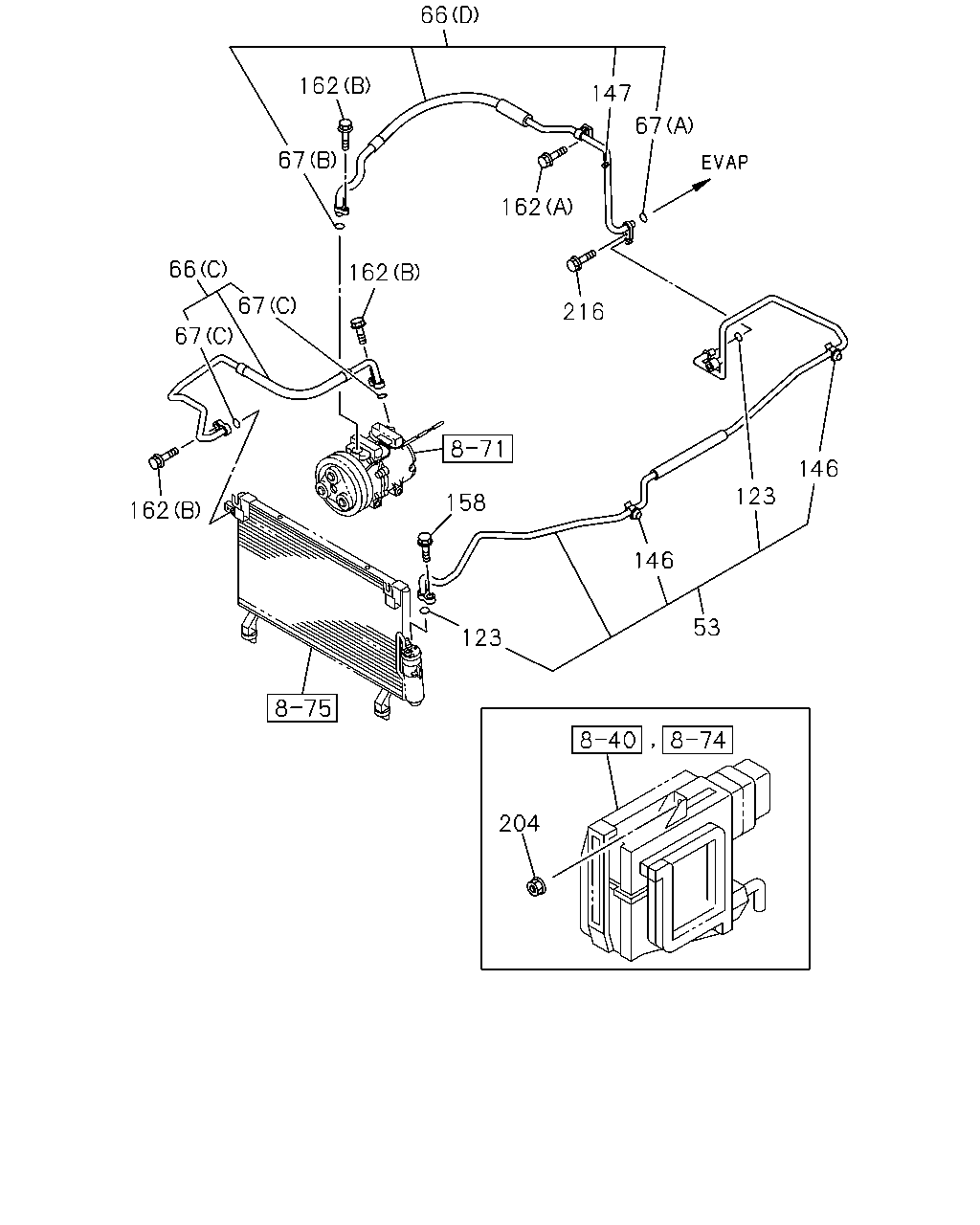

8-52 — PIPING; AIR CONDITIONING (#138136) — 37 parça

146 53 204 146 123 158 162 67 216 147 67 66 162 67 123 171 66 67 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-98034-889-0	01	1	1510-	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	1405-	●	●	●
66	HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-523-0	01	1	1510-	●	●	●
66	HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-537-0	01	1	1510-	●	●	●
66	HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	1405-	●	●	●
66	HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	1405-	●	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	1405-	●	●	●
146	CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	1510-	●	●	●
146	CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	1405-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	1405-	●	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE IMA	0-28650-625-0	01	1	1405-	●	●	●
162	BOLT; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE IMA	0-28650-625-0	01	1	1510-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE IMA	0-28650-825-0	03	1	1405-	●	●	●
171	CAP; PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97376-622-0	01	1	1405-	●	●	●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	1405-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE IMA	0-28650-620-0	01	1	1405-	●	●	●

123 53 146 204 146 216 162 67 147 66 162 67 67 66 67 162 158 123 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	PIPE; RECEIVER TANK TO EVAP 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-98034-889-0	01	1	1510-	●	●	●
53	PIPE; RECEIVER TANK TO EVAP 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-98088-792-0	01	1	1405-	●	●	●
66	HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (D)	8-98002-523-0	01	1	1510-	●	●	●
66	HOSE; FLEX,A/C 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (C)	8-98002-537-0	01	1	1510-	●	●	●
66	HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97363-903-0	01	1	1405-	●	●	●
66	HOSE; FLEX,A/C 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B)	8-98007-108-1	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (A)	8-97321-351-0	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B)	8-97321-352-0	01	1	1405-	●	●	●
67	GASKET; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (C)	8-97321-353-0	02	1	1405-	●	●	●
123	GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) SCAL	8-97919-270-0	02	1	1405-	●	●	●
146	CLIP; RECEIVER PIPE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60)	8-97355-792-0	02	1	1510-	●	●	●
146	CLIP; RECEIVER PIPE 4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60)	8-97354-058-0	02	1	1405-	●	●	●
147	CAP; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60)	8-97386-623-0	01	1	1405-	●	●	●
158	BOLT; PIPE FIX AIR CONDITIONER MANUAL CONT(C60) M6X25 FLANGE IMA	0-28650-625-0	01	1	1405-	●	●	●
162	BOLT; FLEX HOSE 4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) M6X25 FLANGE IMA	0-28650-625-0	01	1	1510-	●	●	●
162	BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) (B) M8X25 FLANGE IMA	0-28650-825-0	03	1	1405-	●	●	●
204	NUT M6 FLANGE IMA	8-98055-704-0	02	1	1405-	●	●	●
216	BOLT; HOSE FIX AIR CONDITIONER MANUAL CONT(C60) M6X20 FLANGE IMA	0-28650-620-0	01	1	1405-	●	●	●
