8-50 — AIR CONDITIONING SYSTEM; FRONT (#138135) — 14 parça

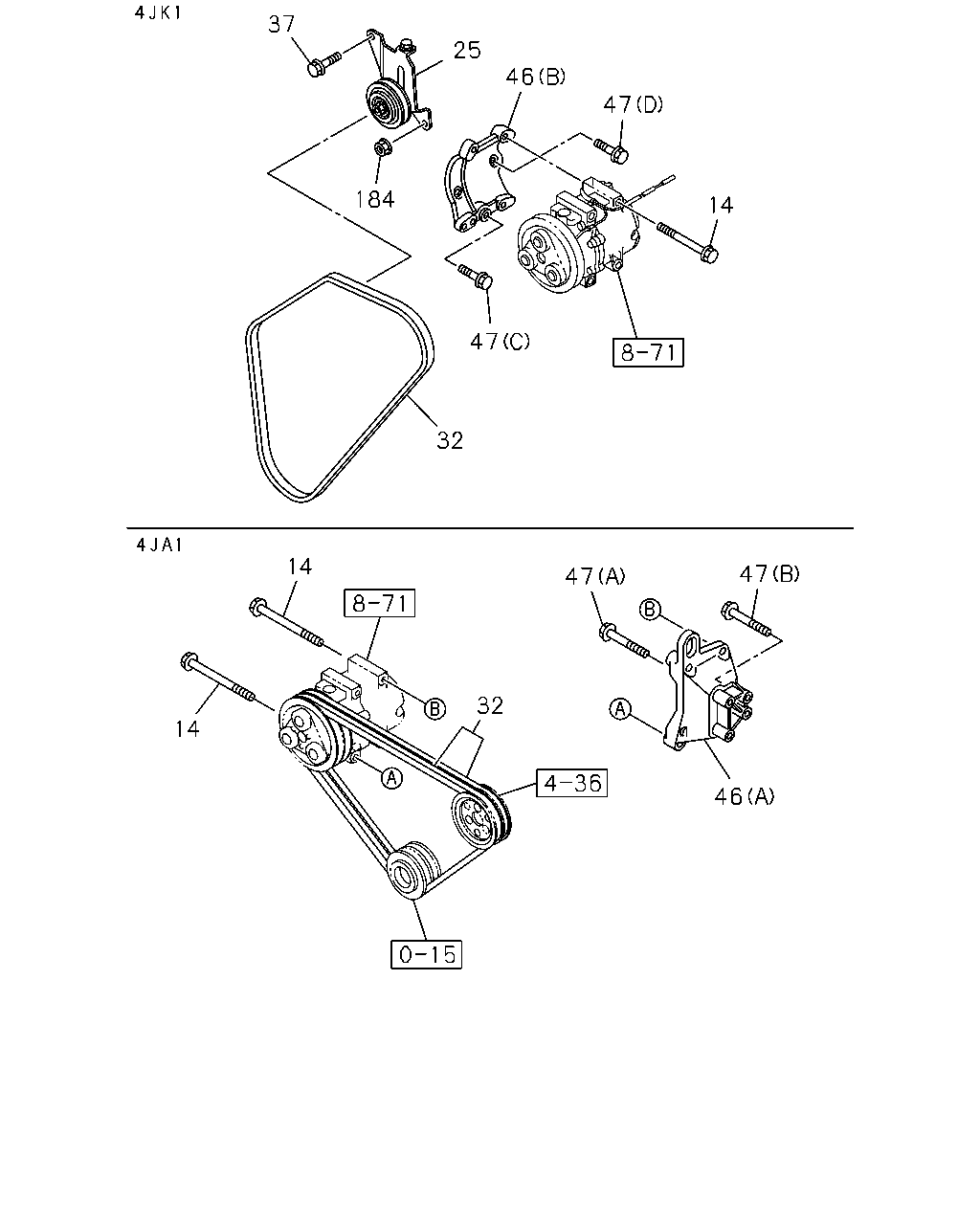

çizim 417153
47 184 37 25 47 46 14 32 32 14 14 46 47 47
BalonParca AdiParca NoAdetTipApplied Date A B C
14 BOLT; CMPR
AIR CONDITIONER MANUAL CONT(C60) M10X100 FLANGE 		0-28151-000-0 04 1 1405- ● ● ●
25 PULLEY ASM; IDLER,CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) 1-GROOVE 		8-98051-011-0 01 1 1405- ● ● ●
32 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) L=1510 1 SET=2 PIECE BANDO IMA 		8-97942-726-0 01 1 1510- ● ● ●
32 BELT; A/C CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 1 SET=2 PIECE(8979427270) MITSUBOSHI IMA 		8-97942-728-0 01 1 1510- ● ● ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) BANDO 		8-97944-138-0 01 1 1405- ● ● ●
32 BELT; A/C CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) MITSUBOSHI 		8-98088-385-0 01 1 1405- ● ● ●
37 BOLT; PULLEY BRKT
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M8X20 FLANGE IMA 		0-28650-820-0 01 1 1405- ● ● ●
46 BRACKET; CMPR
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) IMA 		8-97358-563-0 01 1 1510- ● ● ●
46 BRACKET; CMPR
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98039-618-0 01 1 1405- ● ● ●
47 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (B) M8X40 FLANGE IMA 		0-28050-840-0 02 1 1510- ● ● ●
47 BOLT; BRKT TO BODY
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) (A) M10X45 FLANGE IMA 		0-28051-045-0 02 1 1510- ● ● ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (D) M8X25 FLANGE IMA 		0-28650-825-0 03 1 1405- ● ● ●
47 BOLT; BRKT TO BODY
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) (C) M8X35 FLANGE 		8-98049-562-0 01 1 1405- ● ● ●
184 NUT; A/C PIPE BRKT
4JK1-TCX ENG(LR0) AIR CONDITIONER MANUAL CONT(C60) M8 FLANGE IMA 		0-91180-208-0 01 1 1405- ● ● ●
