◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-45 - HEATER PIPING ▶
8-45 — HEATER PIPING (#138134) — 33 parça

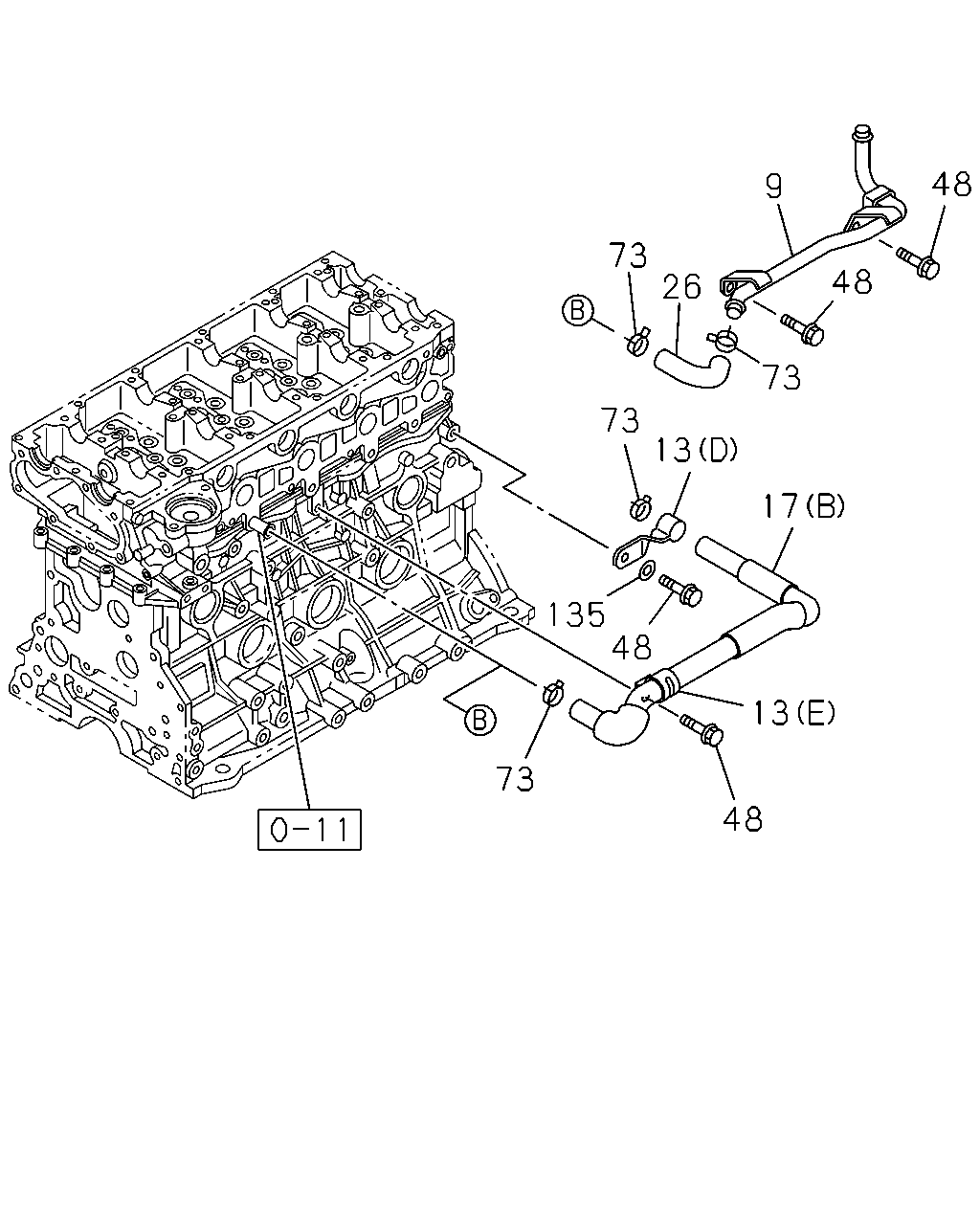

çizim 417149
17 48 48 73 13 73 26 73 48 13 48 135 73 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 PIPE; HTR
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-513-1 01 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (C) ID=22 IMA 		8-97359-141-0 02 1 1510- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1405-1509 ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1405-1509 ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1510- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1510- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7 		8-97203-074-0 02 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98063-683-0 01 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (D) ID=25 L=54 IMA 		1-09700-392-1 01 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (E) ID=24 H=40 L=24 		1-09701-243-1 01 1 1405- ● ● ●
17 HOSE; WATER,BYPASS
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (B) 		8-98036-848-0 01 1 1405- ● ● ●
17 HOSE; WATER,BYPASS
4JK1-TCX ENG(LR0) (A) 		8-98031-860-0 01 1 1405- ● ● ●
26 HOSE; HTR
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98011-630-0 01 1 1405- ● ● ●
48 BOLT; CLIP FIX
4JK1-TCX ENG(LR0) M8X12 FLANGE IMA 		0-28050-812-0 02 1 1405- ● ● ●
73 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) ID=20.8 IMA 		8-97944-127-0 04 1 1405- ● ● ●
135 WASHER; PL
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) ID=8.4 OD=16 IMA 		0-91610-508-0 01 1 1405- ● ● ●
çizim 417150
18 13 25 13 13 13 13 73 73 17 27
BalonParca AdiParca NoAdetTipApplied Date A B C
13 CLIP; HTR HOSE
4JA1-TC ENG(L4Z) VENTILATION RAM AIR(6TN) (C) ID=22 IMA 		8-97359-141-0 02 1 1510- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1405-1509 ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1405-1509 ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1510- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (C) ID=22 IMA 		8-97359-141-0 01 1 1510- ● ● ●
13 CLIP; HTR HOSE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (A) ID=21.7 		8-97203-074-0 02 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98063-683-0 01 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (D) ID=25 L=54 IMA 		1-09700-392-1 01 1 1405- ● ● ●
13 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (E) ID=24 H=40 L=24 		1-09701-243-1 01 1 1405- ● ● ●
17 HOSE; WATER,BYPASS
4JK1-TCX ENG(LR0) VENTILATION RAM AIR(6TN) (B) 		8-98036-848-0 01 1 1405- ● ● ●
17 HOSE; WATER,BYPASS
4JK1-TCX ENG(LR0) (A) 		8-98031-860-0 01 1 1405- ● ● ●
18 BOLT; WATER HOSE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M8X12 FLANGE IMA 		0-28050-812-0 01 1 1405- ● ● ●
25 HOSE; WATER,ENG TO HTR UNIT
4JA1-TC ENG(L4Z) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98249-726-0 01 1 1510- ● ● ●
25 HOSE; WATER,ENG TO HTR UNIT
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98007-112-2 01 1 1405- ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
4JA1-TC ENG(L4Z) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98249-727-0 01 1 1510- ● ● ●
27 HOSE; WATER,HTR UNIT TO WATER PIPE
4JK1-TCX ENG(LR0) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98007-110-2 01 1 1405- ● ● ●
73 CLIP; HTR HOSE
4JK1-TCX ENG(LR0) ID=20.8 IMA 		8-97944-127-0 04 1 1405- ● ● ●
