8-40 — HEATER SYSTEM (#138132) — 25 parça

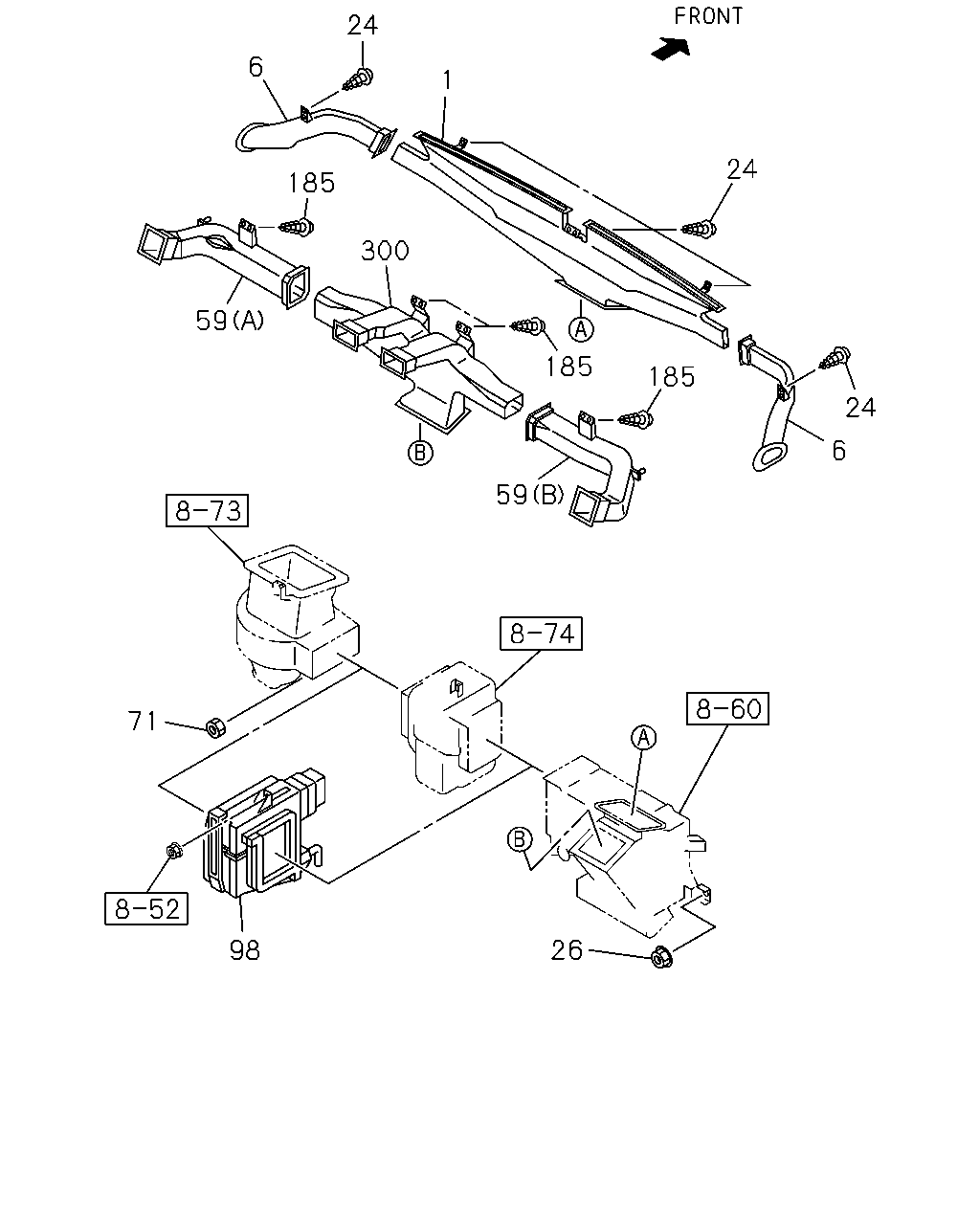

çizim 417133
185 185 300 185 1 24 6 59 71 98 26 24 6 59 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 NOZZLE; DEFROSTER,INST PNL 8-97235-773-1 01 1 1405- ● ● ●
6 DUCT; SIDE DEFROSTER 8-97235-874-0 01 1 1405- ● ● ●
6 DUCT; SIDE DEFROSTER 8-97235-878-0 01 1 1405- ● ● ●
24 SCREW; NOZZLE TO INST PNL
M5X16 TAPPING IMA 		8-98167-449-0 05 1 1405- ● ● ●
26 NUT; HTR
M6 FLANGE IMA 		8-98055-704-0 04 1 1405- ● ● ●
59 DUCT; VENT,ASSIST SIDE
(A) 		8-98007-083-0 01 1 1405- ● ● ●
59 DUCT; VENT,ASSIST SIDE
(B) 		8-98007-084-0 01 1 1405- ● ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE IMA 		8-98055-704-0 03 1 1405- ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-98086-178-0 01 1 1405- ● ● ●
185 SCREW; VENT DUCT
M5X16 TAPPING IMA 		8-98167-449-0 04 1 1405- ● ● ●
300 DUCT; VENT,CENTER 8-98007-074-0 01 1 1405- ● ● ●

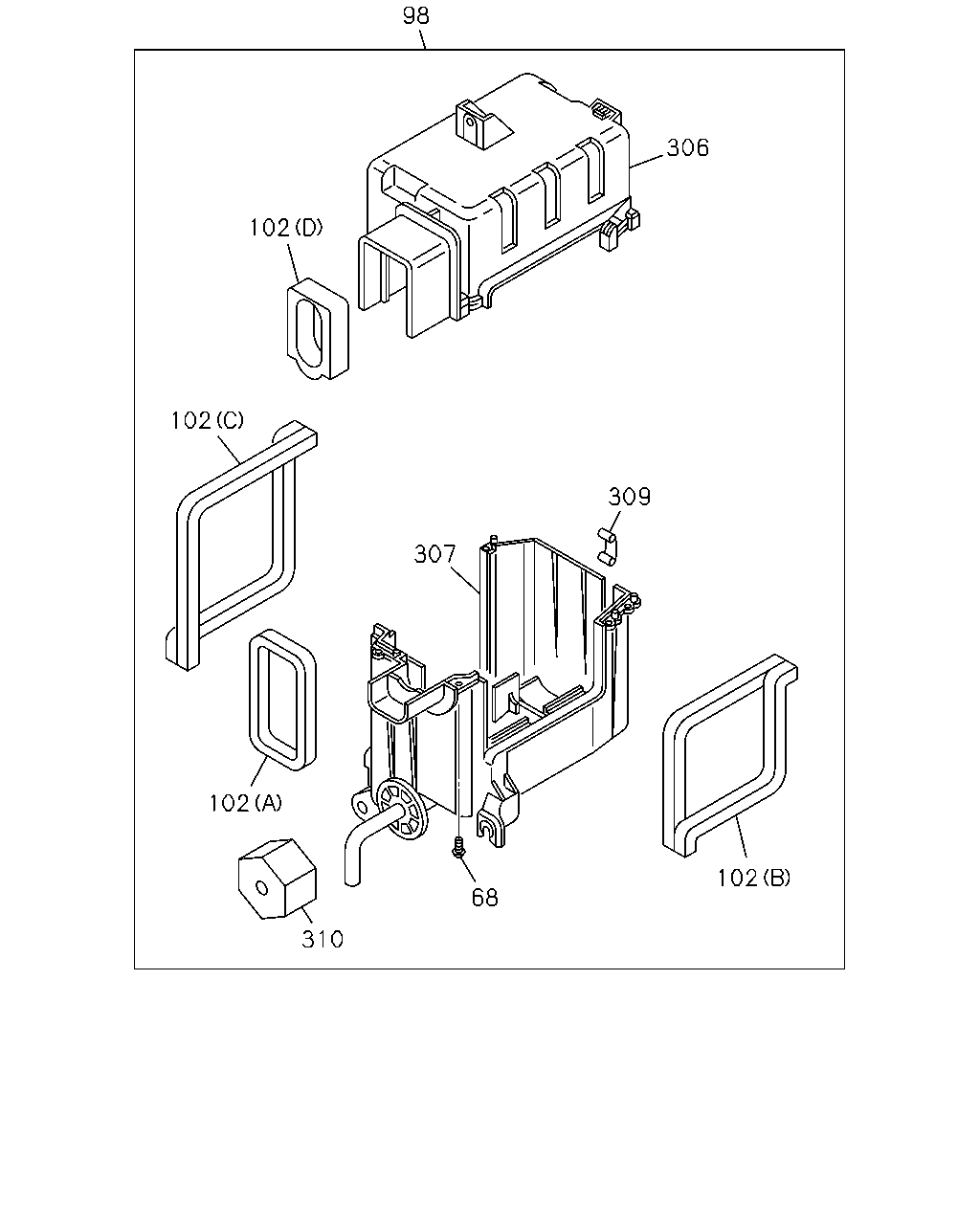

çizim 417139
306 309 307 102 68 310 102 102 102 98
BalonParca AdiParca NoAdetTipApplied Date A B C
68 SCREW; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-97321-165-0 04 1 1405- ● ● ●
98 DUCT; BLOWER UNIT TO HTR UNIT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-98086-178-0 01 1 1405- ● ● ●
102 LINING; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) (A) 		8-97321-158-1 01 1 1405- ● ● ●
102 LINING; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) (B) 		8-97321-159-0 01 1 1405- ● ● ●
102 LINING; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) (D) 		8-97355-831-0 01 1 1405- ● ● ●
102 LINING; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) (C) 		8-98063-684-0 01 1 1405- ● ● ●
306 CASE; UPR,HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-98055-332-0 01 1 1405- ● ● ●
307 CASE; LWR,HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-98055-336-0 01 1 1405- ● ● ●
309 CLIP; CASE,HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-98088-089-0 01 1 1405- ● ● ●
310 GROMMET; HTR DUCT
HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-97321-157-0 01 1 1405- ● ● ●

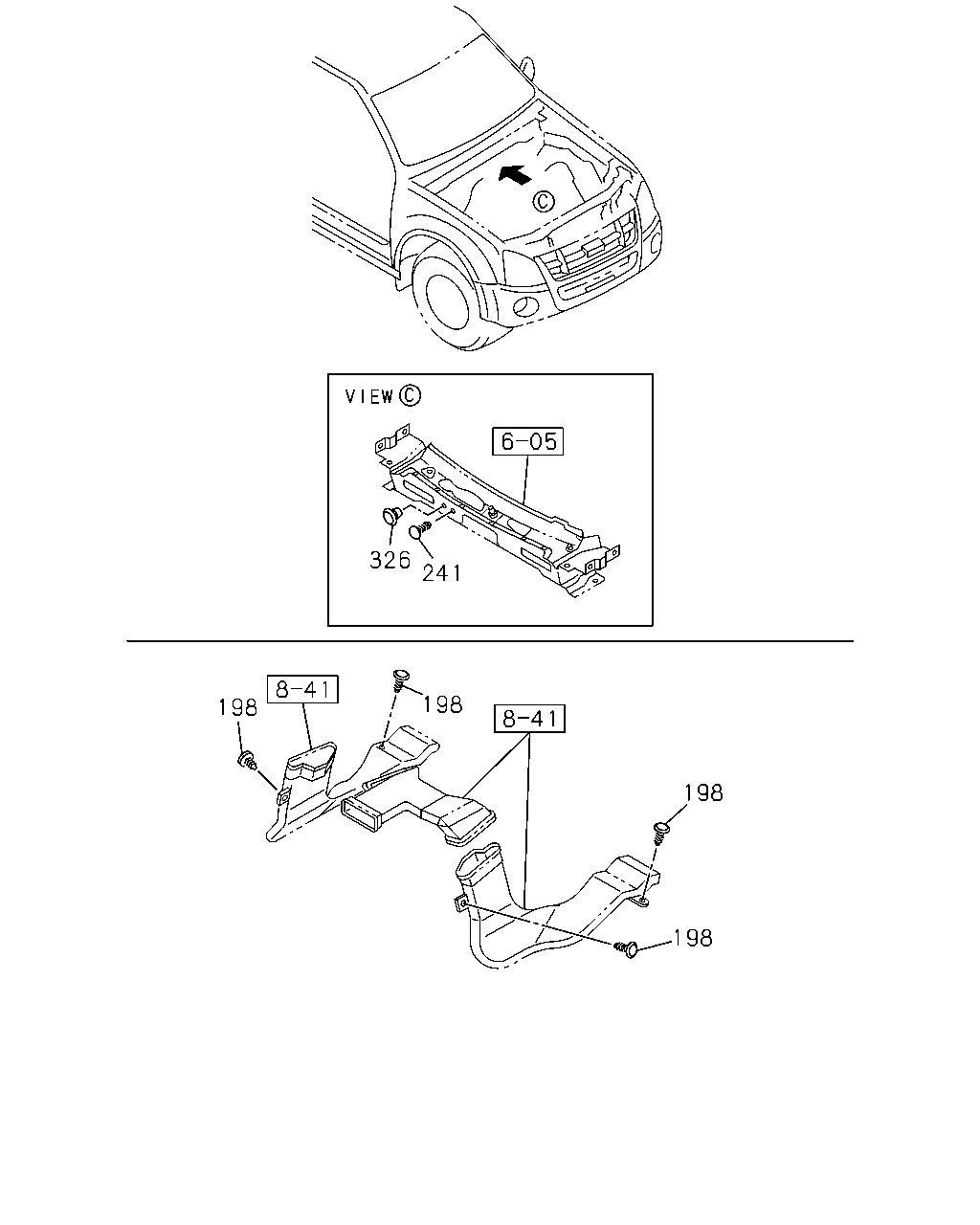

çizim 417140
198 198 198 241 326 198
BalonParca AdiParca NoAdetTipApplied Date A B C
198 CLIP; DUCT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR HEATER DUCT<S8C> L=19 BLACK 		8-94363-776-0 04 1 1405- ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
4JA1-TC ENG(L4Z) HEATER & DEFROSTER(C42),VENTILATION RAM AIR(6TN) 		8-94279-922-0 02 1 1510- ● ● ●
241 PLUG; RUBBER,EVAP DRAIN HOLE
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 		8-94279-922-0 01 1 1510- ● ● ●
326 GROMMET; DRAIN HOSE
OD=12 		9-09956-122-0 02 1 1405- ● ● ●
