8-28 — CHASSIS ELECTRICAL (#138131) — 15 parça

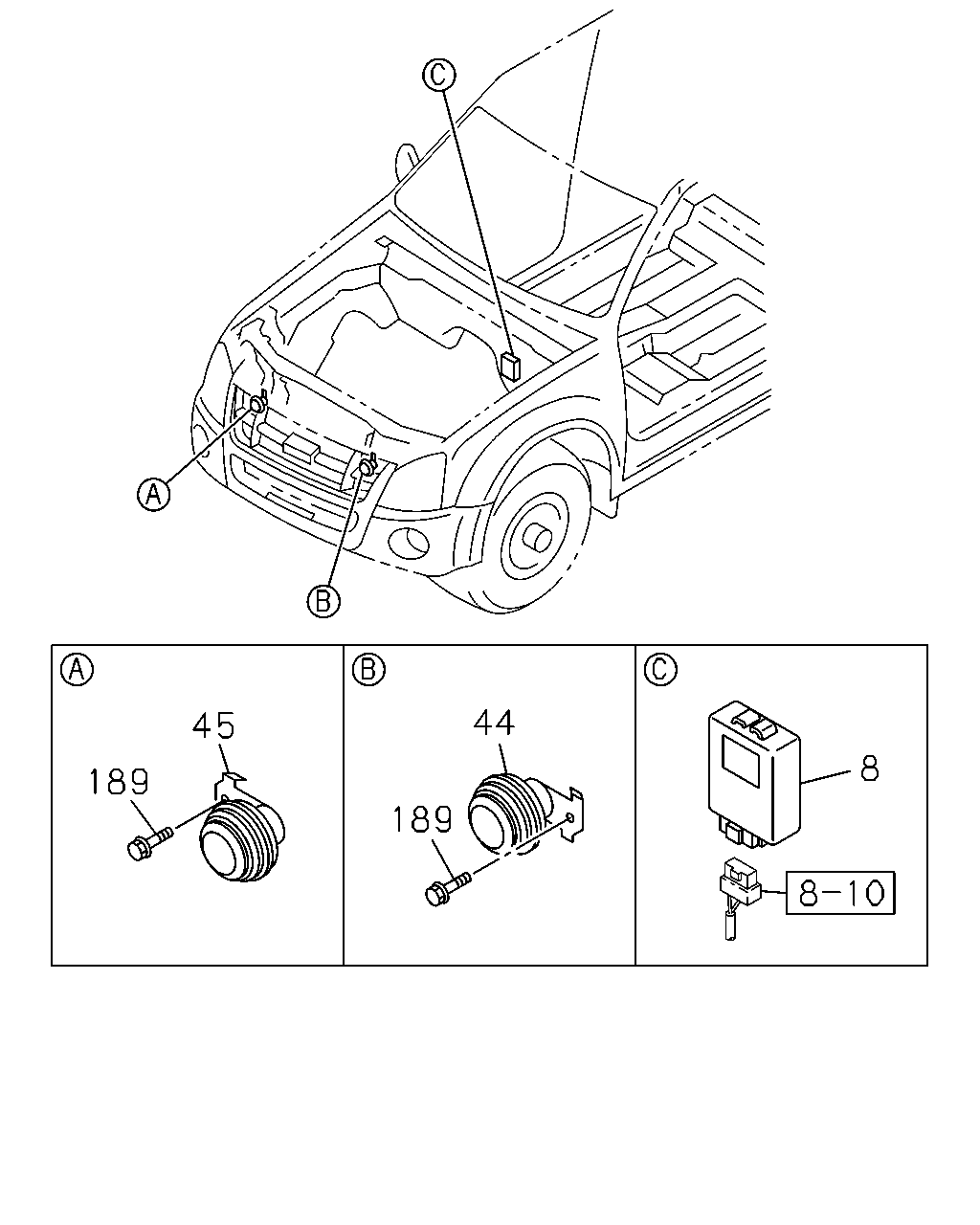

çizim 417221

189 45 189 44 8

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	8	RELAY; WIPER INTERMITTENT WIPER<C13> 12V	8-97302-100-0	01	1	1405-	●	●	●
	44	HORN; HIGH NOTE	8-97237-046-0	01	1	1405-	●	●	●
	45	HORN; LOW NOTE	8-97237-047-0	01	1	1405-	●	●	●
	189	BOLT; HORN M6X14 W/LK&PL WASHER IMA	8-97086-822-0	02	1	1405-	●	●	●

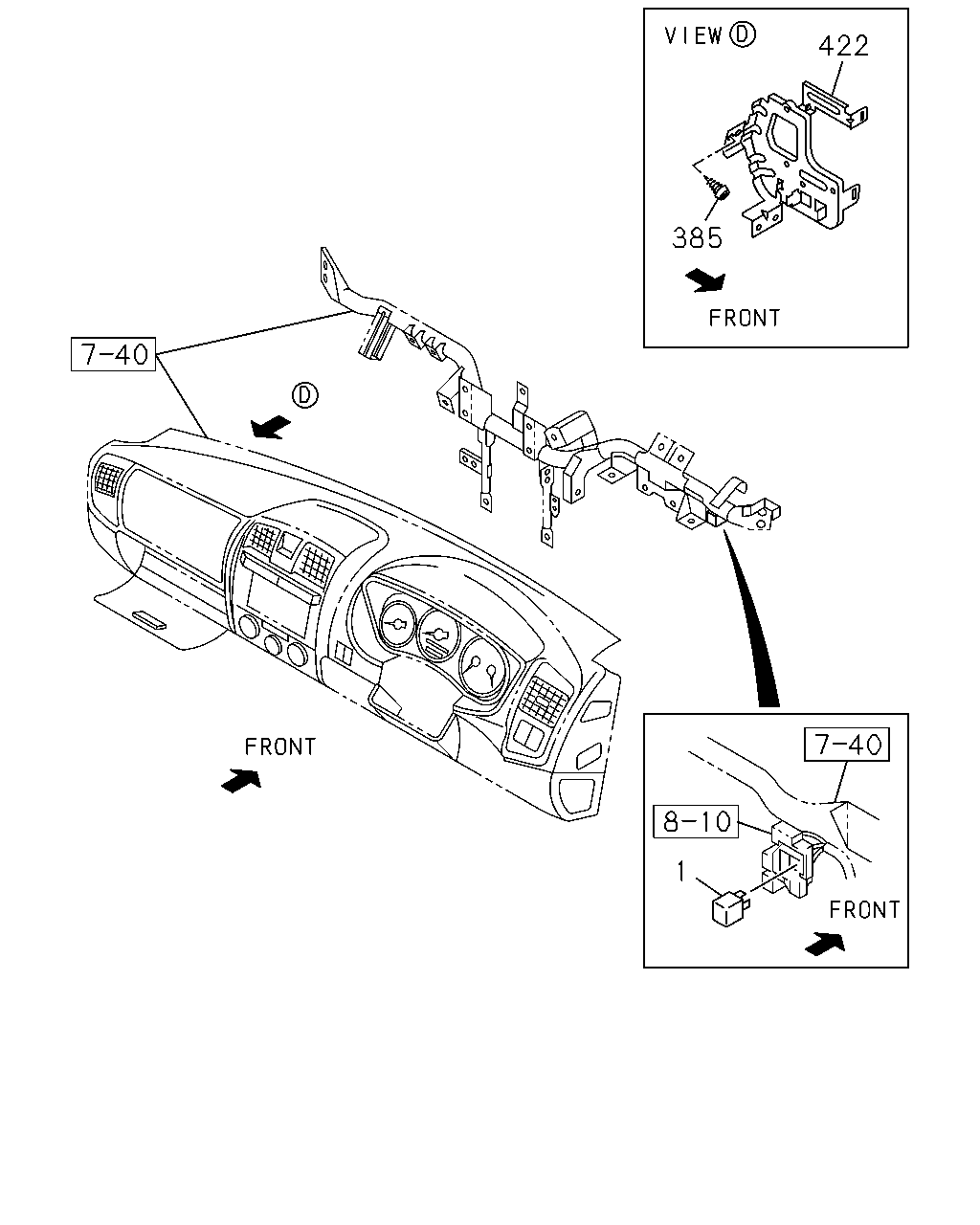

çizim 417255

422 385 1

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	1	UNIT; FLASHER DENSO	8-97202-225-1	01	1	1405-	●	●	●
	385	BOLT; CONT UNIT M5X16 TAPPING IMA	8-98167-449-0	02	1	1405-	●	●	●
	422	BRACKET; CONT UNIT	8-97381-410-0	01	1	1405-	●	●	●

çizim 417259

25 551 123

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	25	RELAY; TAIL LAMP 12V YAZAKI IMA	8-97309-293-0	01	1	1405-1509	●	●	●
	25	RELAY; TAIL LAMP 4JK1-TCX ENG(LR0) 12V YAZAKI IMA	8-97309-293-0	01	1	1510-	●	●	●
	25	RELAY; TAIL LAMP 12V OMRON	8-98005-407-0	01	1	1405-	●	●	●
	123	RELAY; HTR 12V YAZAKI IMA	8-98146-834-0	01	1	1405-	●	●	●
	551	RELAY; TRANSMISSION 12V YAZAKI IMA	8-97309-293-0	01	1	1405-1509	●	●	●
	551	RELAY; TRANSMISSION 4JK1-TCX ENG(LR0) 12V YAZAKI IMA	8-97309-293-0	01	1	1510-	●	●	●
	551	RELAY; TRANSMISSION 12V OMRON	8-98005-407-0	01	1	1405-1509	●	●	●
	551	RELAY; TRANSMISSION 4JK1-TCX ENG(LR0) 12V OMRON	8-98005-407-0	01	1	1510-	●	●	●
