Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

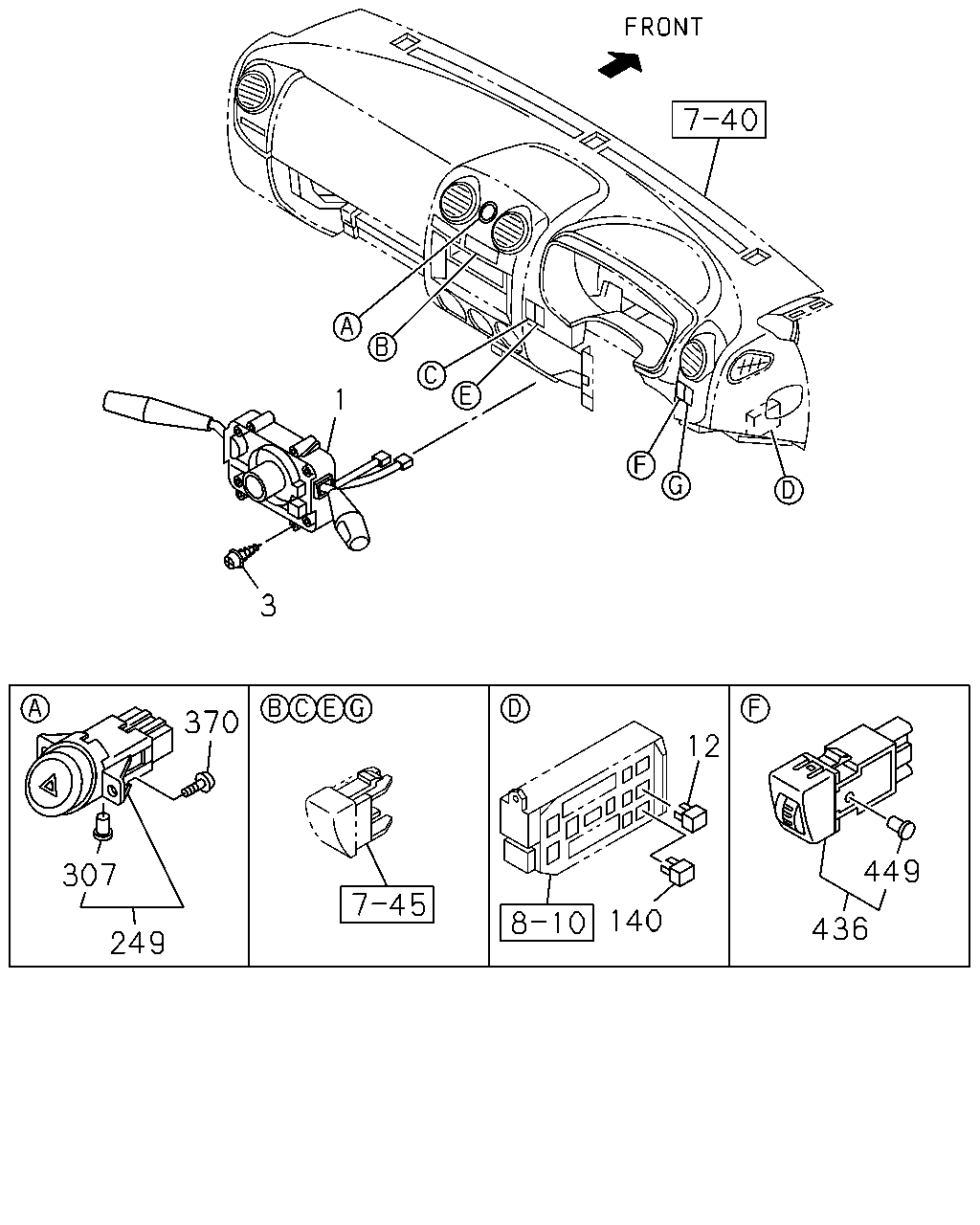

8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#138129) — 47 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
◀
[825A] RELAY (23 parça)
[825A] SWITCH (12 parça)

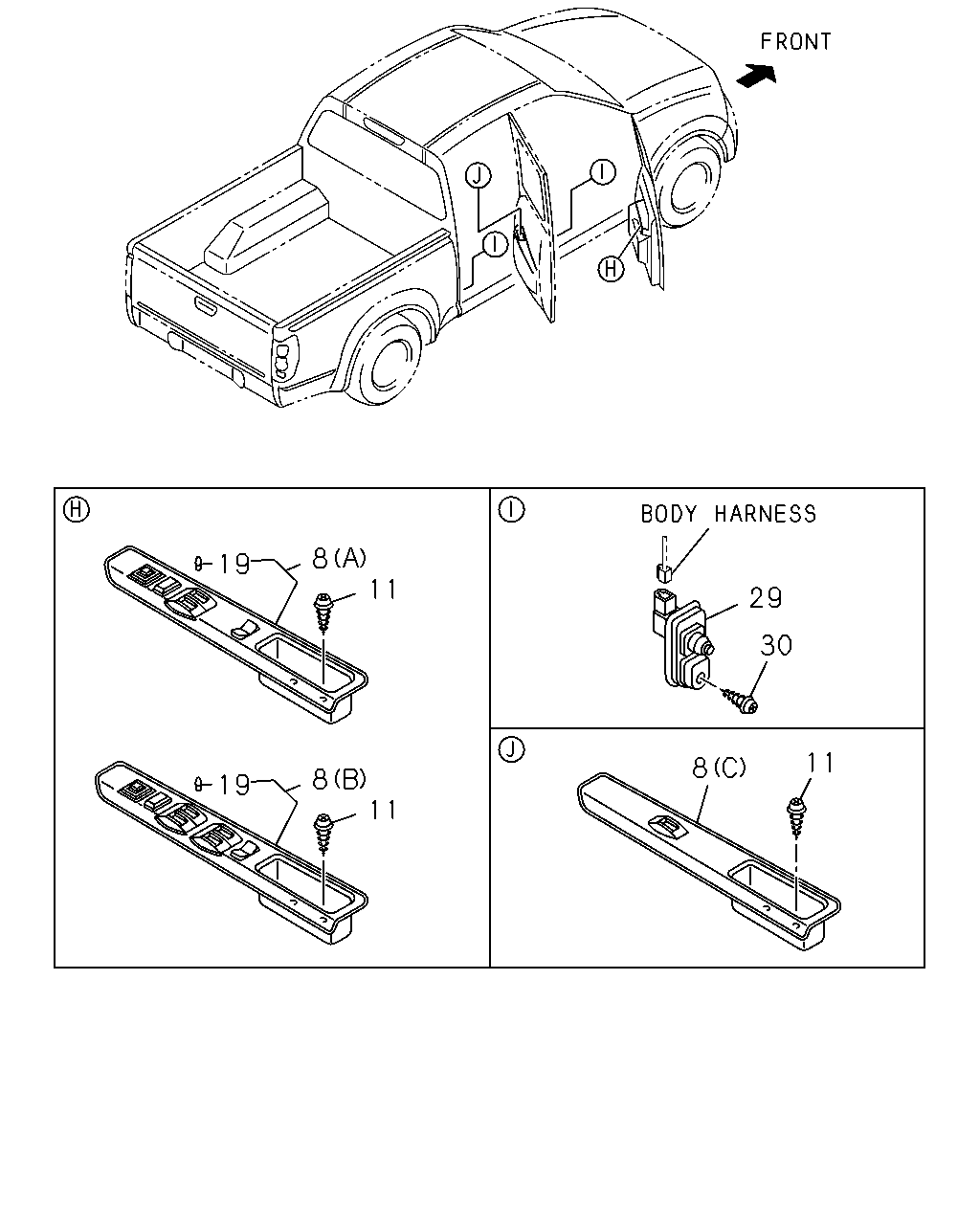

[825A] POWER WINDOW SWITCH (12 parça)
▶
99
45
208
85
154
277
164
490
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
45
RELAY; HORN
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
45
RELAY; HORN
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
45
RELAY; HORN
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
85
RELAY; HEADLAMP
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
85
RELAY; HEADLAMP
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
85
RELAY; HEADLAMP
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
99
RELAY; FOG LAMP
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
99
RELAY; FOG LAMP
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
99
RELAY; FOG LAMP
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
154
RELAY; CONDENSER FAN
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
154
RELAY; CONDENSER FAN
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
154
RELAY; CONDENSER FAN
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
164
RELAY; A/C COMPRESSOR
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
164
RELAY; A/C COMPRESSOR
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
164
RELAY; A/C COMPRESSOR
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
208
RELAY; DIMMER & PASSING
12V YAZAKI IMA
8-97309-292-0
01
1
1405-
●
●
●
277
RELAY; FUEL PUMP
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
277
RELAY; FUEL PUMP
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
277
RELAY; FUEL PUMP
12V OMRON
8-98005-407-0
01
1
1405-1509
●
●
●
277
RELAY; FUEL PUMP
4JK1-TCX ENG(LR0) 12V OMRON
8-98005-407-0
01
1
1510-
●
●
●
490
RELAY; THERMO
12V YAZAKI IMA
8-97309-293-0
01
1
1405-1509
●
●
●
490
RELAY; THERMO
4JK1-TCX ENG(LR0) 12V YAZAKI IMA
8-97309-293-0
01
1
1510-
●
●
●
490
RELAY; THERMO
12V OMRON
8-98005-407-0
01
1
1405-
●
●
●
436
449
140
12
307
249
370
3
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
SWITCH; COMB
INTERMITTENT WIPER<C13> FOG LAMP<T96>
8-98007-709-0
01
1
1405-
●
●
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13> EXC. FOG LAMP<T96>
8-97363-411-0
01
1
1405-
●
●
●
1
SWITCH; COMB
FOG LAMP<T96> EXC. INTERMITTENT WIPER<C13>
8-98007-708-0
01
1
1405-
●
●
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>,FOG LAMP<T96>
8-98007-705-0
01
1
1405-
●
●
●
3
SCREW; COMB SW
M5X14 W/LK&PL WASHER
0-36230-514-0
02
1
1405-
●
●
●
12
RELAY; POWER WINDOW
12V YAZAKI IMA
8-97309-293-0
02
1
1405-
●
●
●
140
RELAY; RR DEFOGGER
12V OMRON
8-98005-407-0
02
1
1405-
●
●
●
249
SWITCH; HAZARD
8-98046-194-0
01
1
1405-
●
●
●
307
BULB ASM; SW
8-98057-959-0
01
1
1405-
●
●
●
370
BOLT; SW
M5X16 TAPPING IMA
8-98167-449-0
02
1
1405-
●
●
●
436
SWITCH; HEADLAMP LEVELING
DARK GRAY
8-97418-806-0
01
1
1405-
●
●
●
449
BULB ASM; HEADLAMP LEVELING SW
14V 0.84W
8-98152-588-0
01
1
1405-
●
●
●
11
8
30
29
8
11
11
8
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
8
SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (A) DRIVER DARK GRAY
8-97418-572-0
01
1
1405-
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) PASSENGER DARK GRAY
8-97400-752-0
01
1
1405-
●
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY
8-97400-753-0
01
1
1405-
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (C) REAR DARK GRAY
8-97400-754-0
01
1
1405-
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> (B) DRIVER DARK GRAY
8-97418-573-0
01
1
1405-
●
11
BOLT; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> M5X14
8-94152-495-0
04
1
1405-
●
●
●
11
BOLT; POWER WINDOW
POWER WINDOW FRT&REAR DOOR<A31> M5X14
8-94152-495-0
04
1
1405-
●
19
BULB; POWER WINDOW SW
POWER WINDOW FRT&REAR DOOR<A31>
8-98152-589-0
01
1
1405-
●
●
●
29
SWITCH; DOOR
IMA
8-97313-208-0
02
1
1405-
●
●
●
29
SWITCH; DOOR
IMA
8-97313-208-0
02
1
1405-
●
30
SCREW; DOOR SW
M5X14 IMA
8-94120-095-0
02
1
1405-
●
●
●
30
SCREW; DOOR SW
M5X14 IMA
8-94120-095-0
02
1
1405-
●
