◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#138128) — 14 parça

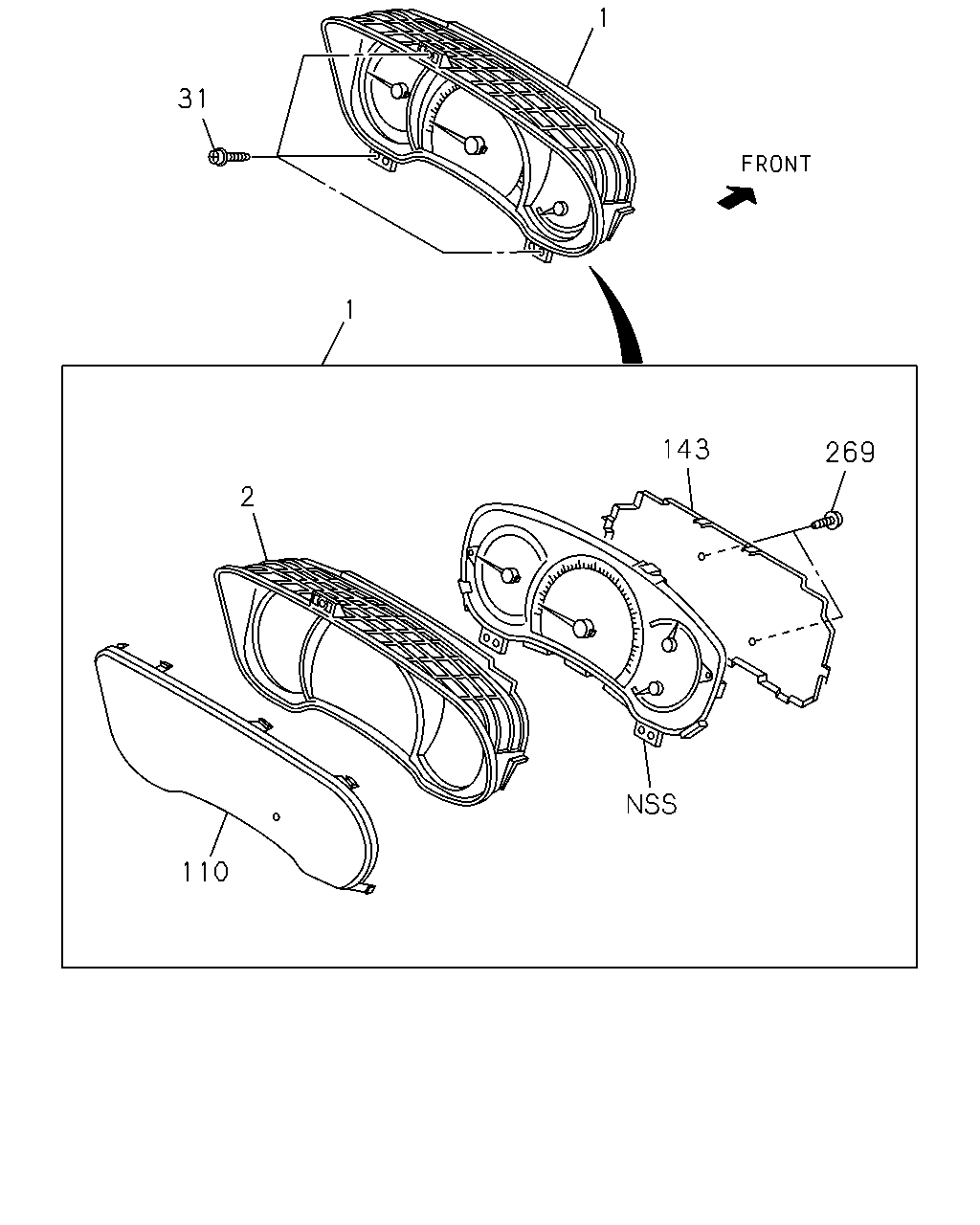

çizim 417178
1 269 143 110 2 1 31
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) TACHOMETER<U16> 		8-98281-120-0 01 1 1510- ● ●
1 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) 		8-98281-120-0 01 1 1510- ●
1 METER COMPL; CLUSTER
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) EXC. TACHOMETER<U16> 		8-98281-122-0 01 1 1510- ● ●
1 METER COMPL; CLUSTER
TACHOMETER<U16> 		8-98154-500-0 01 1 1405- ● ● ●
1 METER COMPL; CLUSTER
EXC. TACHOMETER<U16> 		8-98154-492-0 01 1 1405- ● ●
2 PANEL; CLUSTER 8-98047-113-0 01 1 1405- ● ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING IMA 		8-98167-449-0 03 1 1405- ● ● ●
110 GLASS; CLUSTER METER 8-98047-111-0 01 1 1405- ● ● ●
143 COVER; CLUSTER METER
TACHOMETER<U16> 		8-98047-114-0 01 1 1405- ● ● ●
143 COVER; CLUSTER METER
EXC. TACHOMETER<U16> 		8-98047-115-0 01 1 1405- ● ●
269 SCREW; METER CLUSTER 8-98047-116-0 03 1 1405- ● ● ●

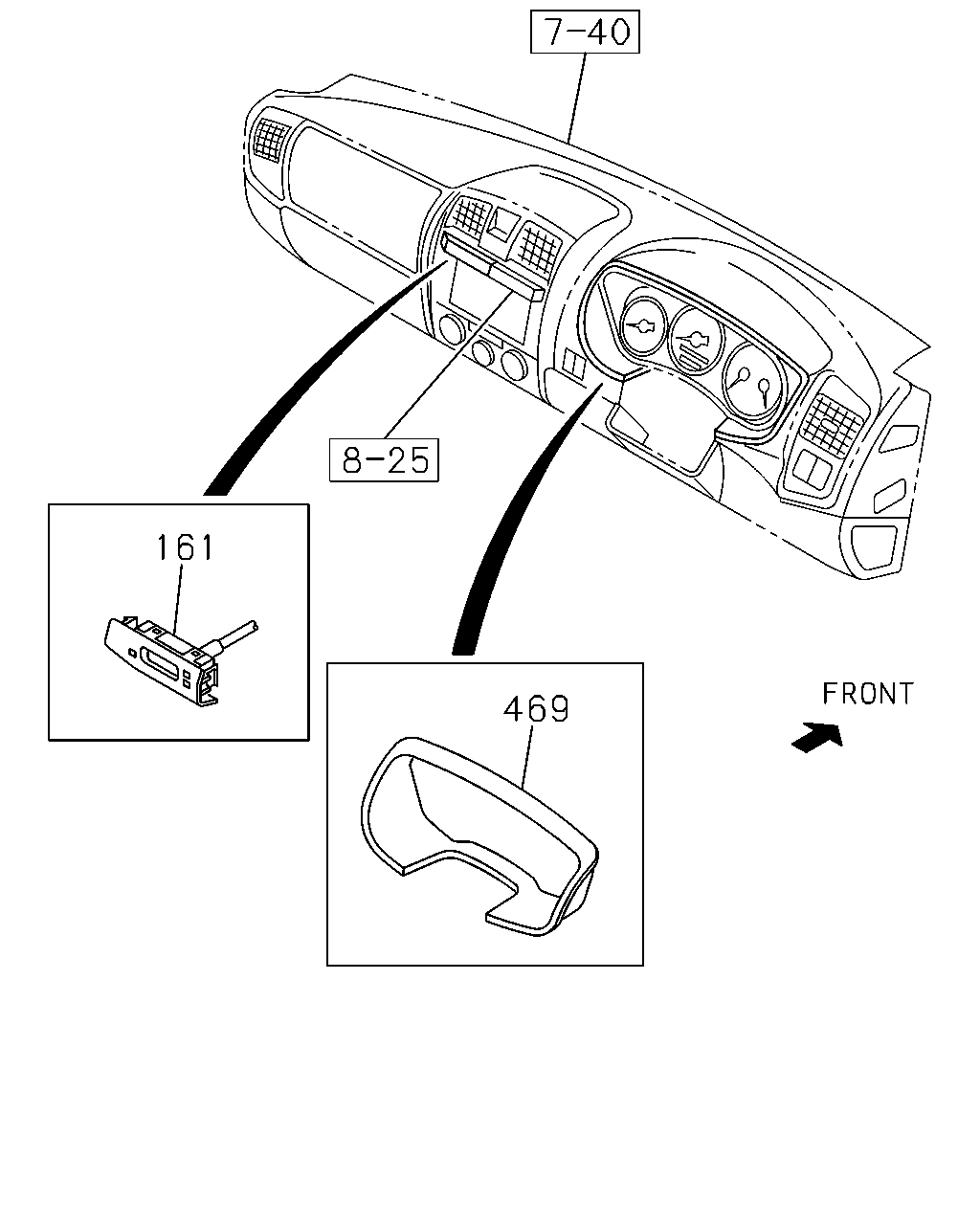

çizim 417179
469 161
BalonParca AdiParca NoAdetTipApplied Date A B C
161 CLOCK; CLUSTER METER
DIGITAL CLOCK<UE8> DARK GRAY 		8-97418-610-0 01 1 1405- ● ● ●
469 PLATE; INSTRUMENT PANEL
TILT STEERING<N33> DARK GRAY 		8-97409-178-0 01 1 1405- ● ● ●
469 PLATE; INSTRUMENT PANEL
EXC. TILT STEERING<N33> DARK GRAY 		8-97421-861-0 01 1 1405- ● ● ●
