◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#138126) — 71 parça

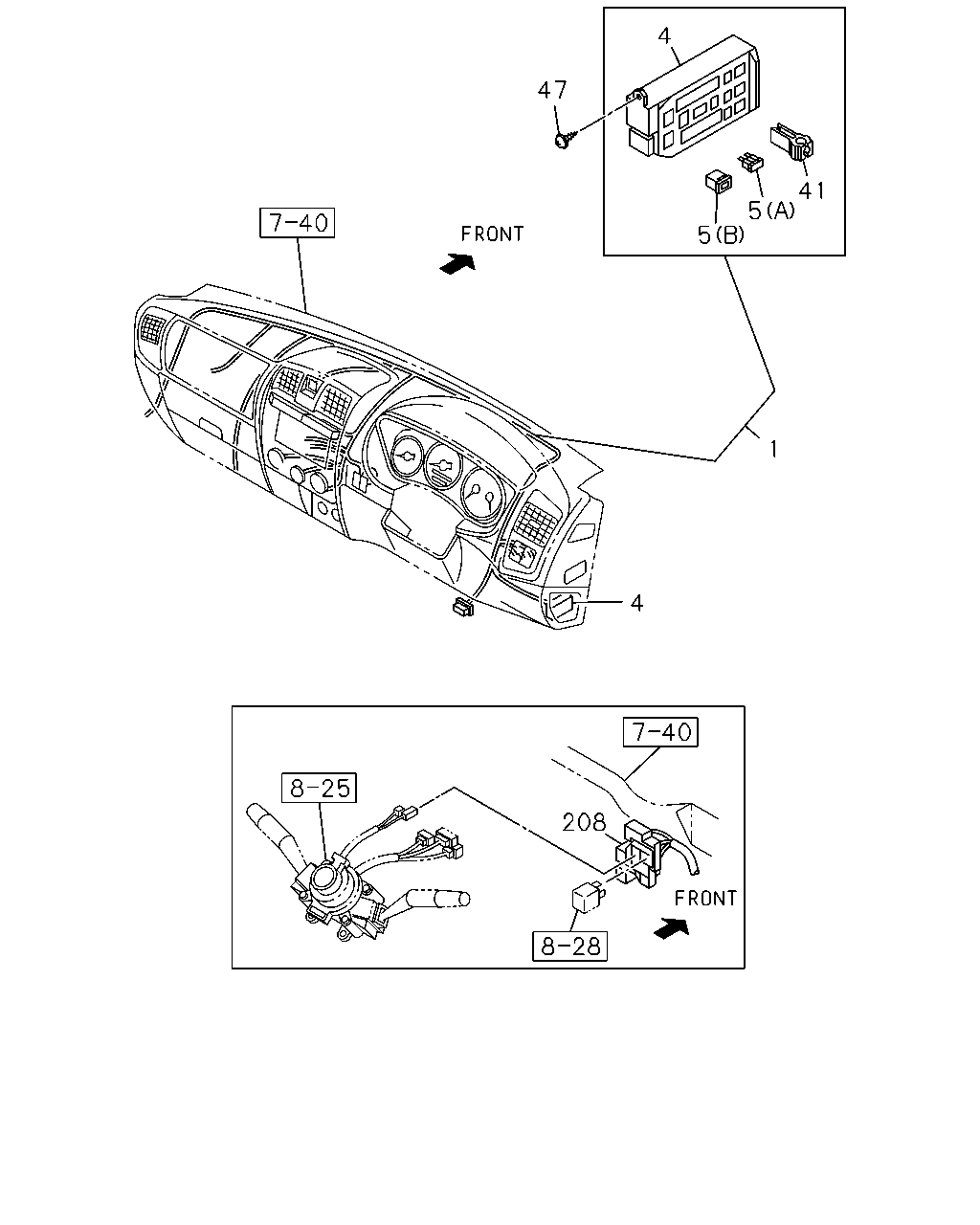

çizim 417109
208 4 1 41 5 5 4 47
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) POWER WINDOW FRT&REAR DOOR<A31> 		8-98252-220-1 01 1 1405-1509 ● ● ●
1 HARNESS; CAB
POWER WINDOW FRT&REAR DOOR<A31> 		8-98252-220-1 01 1 1510- ● ● ●
1 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98252-219-1 01 1 1405-1509 ● ● ●
1 HARNESS; CAB
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98252-219-1 01 1 1510- ● ● ●
4 BOX ASM; FUSE,HARNESS 8-97245-601-0 01 1 1405- ● ● ●
5 FUSE; FACIA HARNESS
(A) 10A MINI RED 		8-97062-022-0 AR 1 1405- ● ● ●
5 FUSE; FACIA HARNESS
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 1405- ● ● ●
5 FUSE; FACIA HARNESS
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 1405- ● ● ●
5 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 1405- ● ● ●
5 FUSE; FACIA HARNESS
(B) 30A PINK 		8-97183-643-0 AR 1 1405- ● ● ●
41 PULLER; FUSE 8-97103-388-0 01 1 1405- ● ● ●
47 BOLT; JUNCTION BLOCK
M5X16 TAPPING IMA 		8-98167-449-0 01 1 1405- ● ● ●
208 HOLDER; CONNECTOR 8-97245-597-0 01 1 1405- ● ● ●

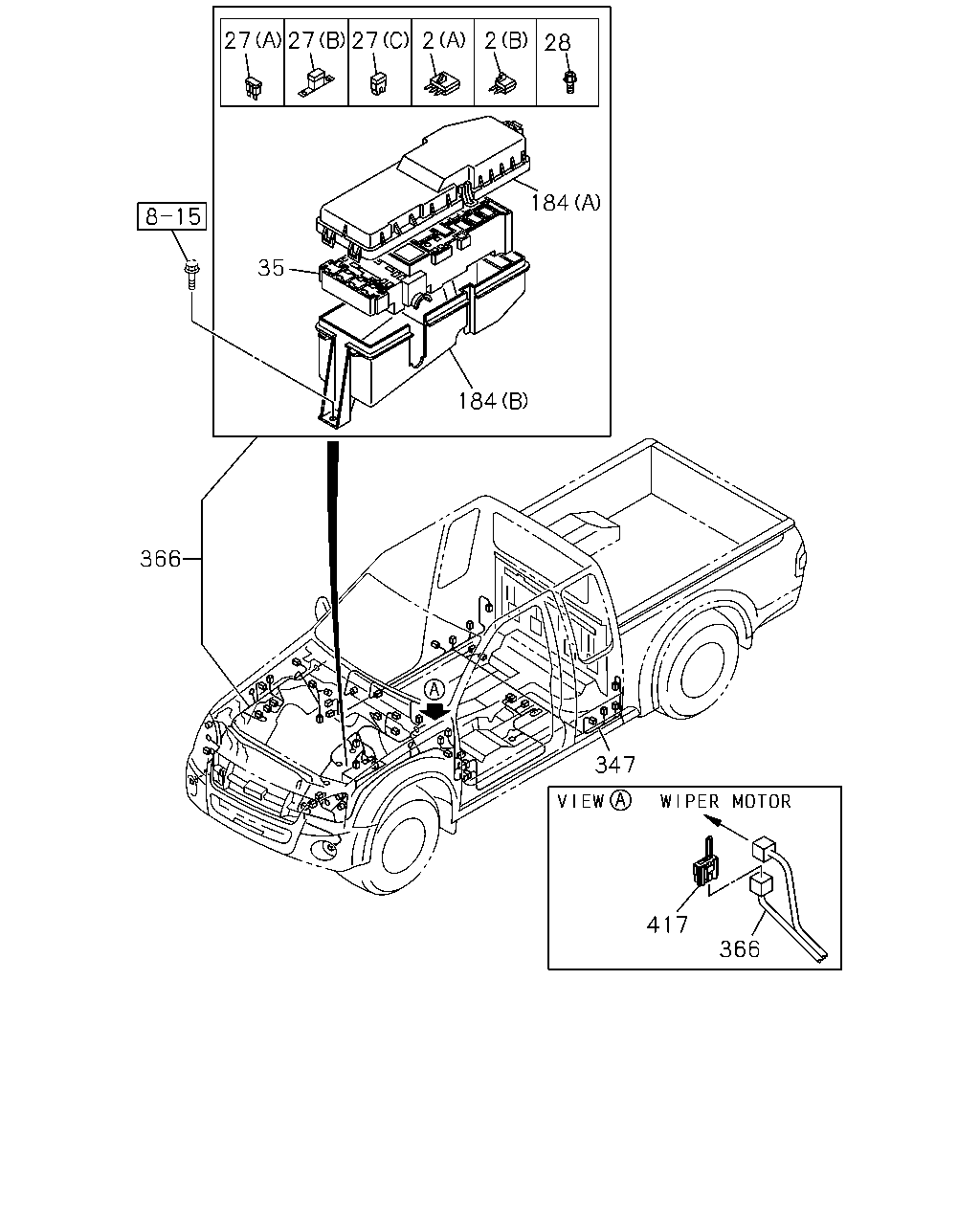

çizim 417116
366 417 347 184 366 184 35 27 27 27 2 2 28
BalonParca AdiParca NoAdetTipApplied Date A B C
2 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A IMA 		8-94422-640-1 AR 1 1405- ● ● ●
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A IMA 		8-94422-639-1 AR 1 1405- ● ● ●
27 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 1405- ● ● ●
27 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 1405- ● ● ●
27 FUSE UNIT
(B) 120A WHITE IMA 		1-82516-028-1 AR 1 1405- ● ● ●
27 FUSE UNIT
(C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 1405- ● ● ●
27 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 1405- ● ● ●
27 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 1405- ● ● ●
27 FUSE UNIT
(C) 60A YELLOW IMA 		8-97219-407-0 AR 1 1405- ● ● ●
28 SCREW; FUSE BOX
IMA 		8-97249-192-0 02 1 1405- ● ● ●
35 BOX; RELAY & FUSE 8-97251-395-0 01 1 1405- ● ● ●
184 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 1405- ● ● ●
184 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 1405- ● ● ●
347 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 1405- ● ●
347 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 1405- ●
347 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 1405- ●
366 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98275-943-1 01 1 1510- ● ●
366 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98275-942-1 01 1 1510- ● ●
366 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) 		8-98275-942-1 01 1 1510- ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> 		8-98229-742-1 01 1 1405-1509 ● ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98229-742-1 01 1 1510- ● ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98229-741-1 01 1 1405-1509 ● ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98229-741-1 01 1 1405-1509 ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98229-741-1 01 1 1510- ● ●
366 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98229-741-1 01 1 1510- ●
417 CONNECTOR ASM; ENG HARNESS
EXC. INTERMITTENT WIPER<C13> 		8-97327-713-0 01 1 1405- ● ● ●

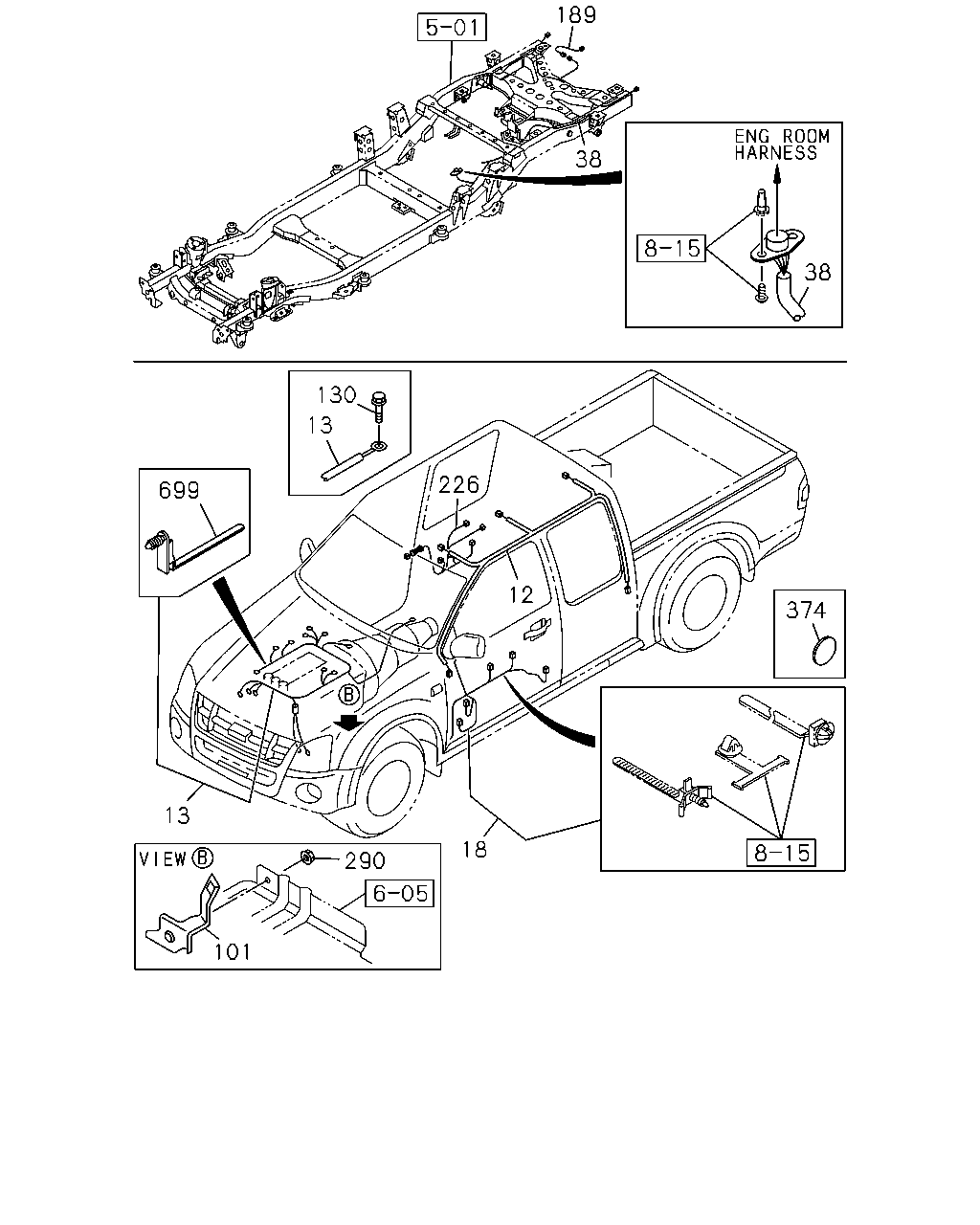

çizim 417122
374 18 290 101 13 699 13 130 226 12 38 38 189
BalonParca AdiParca NoAdetTipApplied Date A B C
12 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98053-441-1 01 1 1405- ●
12 HARNESS; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98053-438-1 01 1 1405- ●
12 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-97385-699-0 01 1 1405- ●
12 HARNESS; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-97385-700-0 01 1 1405- ●
12 HARNESS; ROOF
HIGH MOUNT STOP LAMP<TS6> 		8-98053-447-1 01 1 1405- ●
12 HARNESS; ROOF
EXC. HIGH MOUNT STOP LAMP<TS6> 		8-98053-444-1 01 1 1405- ●
13 HARNESS; ENG
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) AIR CONDITIONER MANUAL CONT(C60) IND 		8-97445-045-3 01 1 1510- ● ● ●
13 HARNESS; ENG
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) VENTILATION RAM AIR(6TN) IND 		8-97445-046-3 01 1 1510- ● ● ●
13 HARNESS; ENG
4JK1-TCX ENG(LR0) 		8-98067-915-1 01 1 1405- ● ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-481-0 01 1 1405- ● ● ●
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-488-0 01 1 1405- ● ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-473-0 01 1 1405- ● ● ●
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-474-0 01 1 1405- ● ● ●
38 HARNESS; CHAS
4JA1-TC ENG(L4Z) 		8-98252-218-0 01 1 1510- ● ● ●
38 HARNESS; CHAS
4JK1-TCX ENG(LR0) 		8-98045-885-0 01 1 1405- ● ● ●
101 BRACKET; HARNESS CONNECTOR
4JA1-TC ENG(L4Z) 		8-98288-126-0 01 1 1510- ● ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER IMA 		8-98056-282-0 01 1 1405- ● ● ●
130 BOLT; HARNESS EARTH
M6X20 W/WASHER IMA 		8-98056-282-0 02 1 1405- ● ● ●
189 HARNESS; EXT 8-98306-902-0 01 1 1503-1509 ●
189 HARNESS; EXT
REAR BODY FLAT BED(E39) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98306-902-0 01 1 1510- ●
189 HARNESS; EXT
REAR BODY FLAT BED(E39) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-270-0 01 1 1405-1502 ●
189 HARNESS; EXT 8-98085-270-0 01 1 1405-1502 ●
189 HARNESS; EXT
REAR BODY FLAT BED(E39) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-270-0 01 1 1503- ●
189 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 1405-1509 ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 1405-1509 ●
189 HARNESS; EXT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 1510- ● ●
189 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98085-269-0 01 1 1510- ●
226 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-408-1 02 1 1405- ●
290 NUT; BRKT
4JA1-TC ENG(L4Z) M6 FLANGE IMA 		0-91180-106-0 01 1 1510- ● ● ●
374 PLUG; HARNESS CONNECTOR
EXC. POWER WINDOW FRT&REAR DOOR<A31> D=58 BLACK 		8-97302-191-0 02 1 1405- ●
699 CLIP; ENG HARNESS
L=140 		8-97122-360-0 01 1 1405-1509 ● ● ●
699 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) L=140 		8-97122-360-0 01 1 1510- ● ● ●
