◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶

8-03 — LAMP; REAR AND REAR SIDE (#138124) — 143 parça

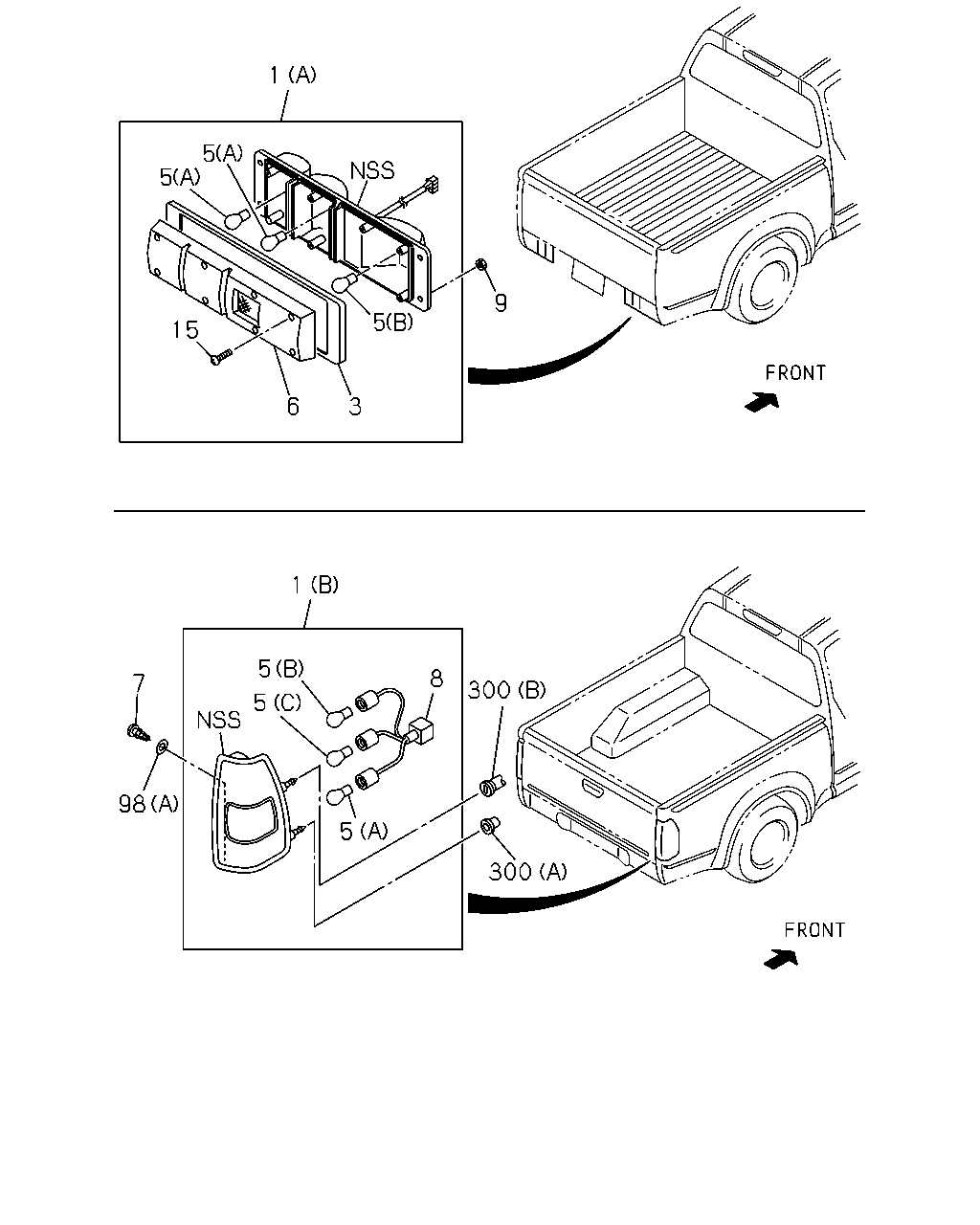

1 5 5 15 6 3 5 9 300 300 8 5 5 1 5 7 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	1510-	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	1510-	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39) (A) IMA	8-97137-731-0	01	1	1405-1509		●
1	LAMP ASM; RR COMB (A) IMA	8-97137-731-0	01	1	1405-1509	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) IMA	8-97137-731-0	01	1	1510-	●	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39) (A) IMA	8-97137-732-0	01	1	1405-1509		●
1	LAMP ASM; RR COMB (A) IMA	8-97137-732-0	01	1	1405-1509	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) IMA	8-97137-732-0	01	1	1510-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	1405-		●
1	LAMP ASM; RR COMB (C)	8-97375-606-2	01	1	1405-			●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	1405-		●
1	LAMP ASM; RR COMB (C)	8-97375-607-2	01	1	1405-			●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39) IMA	5-82236-001-0	01	1	1405-1509		●
3	GASKET; RR COMB LAMP IMA	5-82236-001-0	01	1	1405-1509	●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) IMA	5-82236-001-0	01	1	1510-	●	●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39) IMA	5-82236-002-0	01	1	1405-1509		●
3	GASKET; RR COMB LAMP IMA	5-82236-002-0	01	1	1405-1509	●
3	GASKET; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) IMA	5-82236-002-0	01	1	1510-	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W IMA	8-94124-074-0	02	1	1510-	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39) (A) 12V 21W IMA	8-94124-074-0	04	1	1405-1509		●
5	BULB; RR COMB LAMP (A) 12V 21W IMA	8-94124-074-0	04	1	1405-1509	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W IMA	8-94124-074-0	04	1	1510-	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W	8-94372-897-0	02	1	1405-		●
5	BULB; RR COMB LAMP (A) 12V 18W	8-94372-897-0	02	1	1405-			●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W IMA	8-97179-967-0	02	1	1405-1509		●
5	BULB; RR COMB LAMP (C) 12V 21W IMA	8-97179-967-0	02	1	1405-1509			●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W IMA	8-97179-967-0	02	1	1510-	●	●
5	BULB; RR COMB LAMP (C) 12V 21W IMA	8-97179-967-0	02	1	1510-			●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W IMA	8-94125-959-0	02	1	1405-1509		●
5	BULB; RR COMB LAMP (B) 12V 21/5W IMA	8-94125-959-0	02	1	1405-1509	●		●
5	BULB; RR COMB LAMP (B) 12V 21/5W IMA	8-94125-959-0	02	1	1510-	●	●	●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39) IMA	5-82235-001-0	01	1	1405-1509		●
6	LENS; RR COMB LAMP IMA	5-82235-001-0	01	1	1405-1509	●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) IMA	5-82235-001-0	01	1	1510-	●	●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39) IMA	5-82235-002-0	01	1	1405-1509		●
6	LENS; RR COMB LAMP IMA	5-82235-002-0	01	1	1405-1509	●
6	LENS; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) IMA	5-82235-002-0	01	1	1510-	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1405-1509		●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1405-1509			●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1510-	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1510-			●
8	HARNESS; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98023-361-0	02	1	1510-	●
9	NUT; LAMP,RR COMB REAR BODY FLAT BED(E39) M5 FLANGE IMA	8-98049-363-0	08	1	1405-1509		●
9	NUT; LAMP,RR COMB M5 FLANGE IMA	8-98049-363-0	08	1	1405-1509	●
9	NUT; LAMP,RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M5 FLANGE IMA	8-98049-363-0	08	1	1510-	●	●
15	SCREW; RR COMB LAMP REAR BODY FLAT BED(E39) M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1405-1509		●
15	SCREW; RR COMB LAMP M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1405-1509	●
15	SCREW; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) M4X20 TAPPING STAINLESS IMA	0-71090-420-0	16	1	1510-	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1405-1509		●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1405-1509			●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1510-	●	●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1510-			●
98	WASHER HIGH MOUNT STOP LAMP<TS6> (B)	8-94279-039-0	02	1	1405-	●	●	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	1510-	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	1510-	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (C) IMA	8-97372-854-0	02	1	1405-		●
300	HOLDER; LAMP (C) IMA	8-97372-854-0	02	1	1405-			●

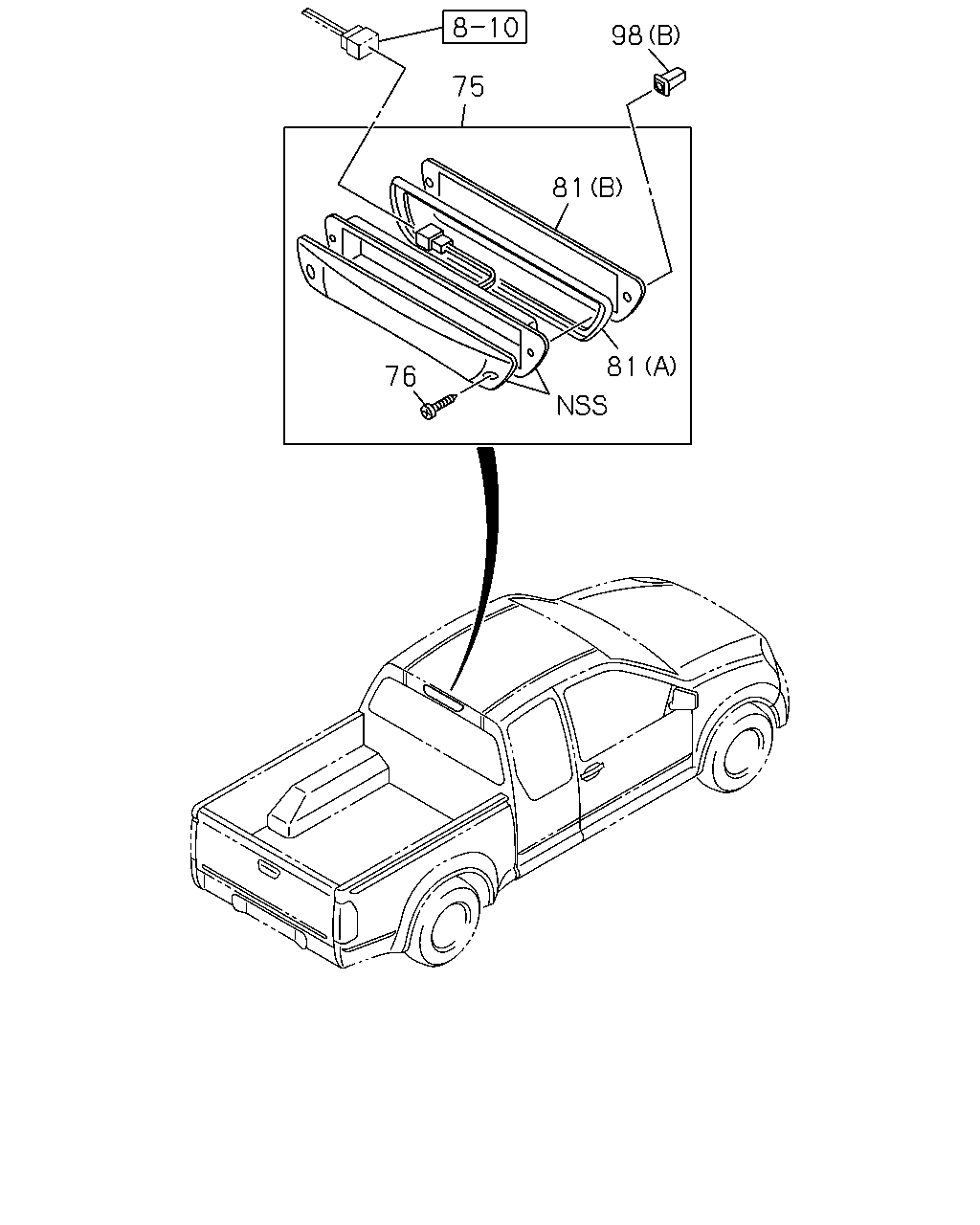

81 76 81 98 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
75	LAMP ASM; STOP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6>	8-98052-867-2	01	1	1405-	●	●	●
76	SCREW; STOP LAMP,HIGHMOUNTED HIGH MOUNT STOP LAMP<TS6>	8-98095-145-0	02	1	1405-	●	●	●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (A)	8-98095-143-0	01	1	1405-	●	●	●
81	GASKET; STOP LAMP HIGH MOUNT STOP LAMP<TS6> (B)	8-98095-144-0	01	1	1405-	●	●	●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1405-1509		●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1405-1509			●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1510-	●	●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1510-			●
98	WASHER HIGH MOUNT STOP LAMP<TS6> (B)	8-94279-039-0	02	1	1405-	●	●	●

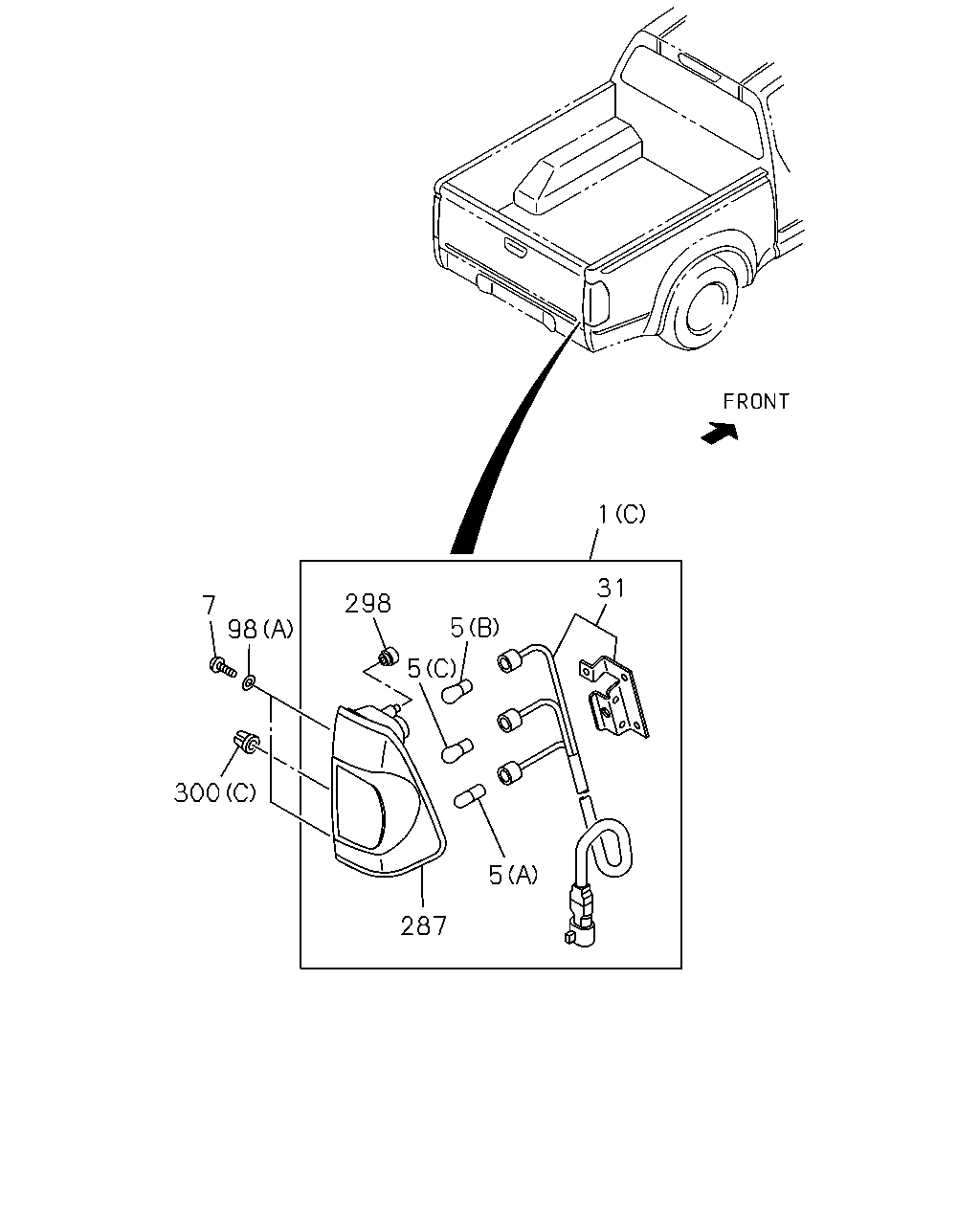

5 5 31 1 5 298 98 7 300 287

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-359-0	01	1	1510-	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (B)	8-98023-360-0	01	1	1510-	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39) (A) IMA	8-97137-731-0	01	1	1405-1509		●
1	LAMP ASM; RR COMB (A) IMA	8-97137-731-0	01	1	1405-1509	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) IMA	8-97137-731-0	01	1	1510-	●	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39) (A) IMA	8-97137-732-0	01	1	1405-1509		●
1	LAMP ASM; RR COMB (A) IMA	8-97137-732-0	01	1	1405-1509	●
1	LAMP ASM; RR COMB REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) IMA	8-97137-732-0	01	1	1510-	●	●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-606-2	01	1	1405-		●
1	LAMP ASM; RR COMB (C)	8-97375-606-2	01	1	1405-			●
1	LAMP ASM; RR COMB REAR BODY DBL WALL CTR PULL(E63) (C)	8-97375-607-2	01	1	1405-		●
1	LAMP ASM; RR COMB (C)	8-97375-607-2	01	1	1405-			●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 21W IMA	8-94124-074-0	02	1	1510-	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39) (A) 12V 21W IMA	8-94124-074-0	04	1	1405-1509		●
5	BULB; RR COMB LAMP (A) 12V 21W IMA	8-94124-074-0	04	1	1405-1509	●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) 12V 21W IMA	8-94124-074-0	04	1	1510-	●	●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (A) 12V 18W	8-94372-897-0	02	1	1405-		●
5	BULB; RR COMB LAMP (A) 12V 18W	8-94372-897-0	02	1	1405-			●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W IMA	8-97179-967-0	02	1	1405-1509		●
5	BULB; RR COMB LAMP (C) 12V 21W IMA	8-97179-967-0	02	1	1405-1509			●
5	BULB; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) (C) 12V 21W IMA	8-97179-967-0	02	1	1510-	●	●
5	BULB; RR COMB LAMP (C) 12V 21W IMA	8-97179-967-0	02	1	1510-			●
5	BULB; RR COMB LAMP REAR BODY FLAT BED(E39),REAR BODY DBL WALL CTR PULL(E63) (B) 12V 21/5W IMA	8-94125-959-0	02	1	1405-1509		●
5	BULB; RR COMB LAMP (B) 12V 21/5W IMA	8-94125-959-0	02	1	1405-1509	●		●
5	BULB; RR COMB LAMP (B) 12V 21/5W IMA	8-94125-959-0	02	1	1510-	●	●	●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1405-1509		●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1405-1509			●
7	SCREW; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1510-	●	●
7	SCREW; RR COMB LAMP M5X14 TAPPING W/PL WASHER IMA	0-74160-514-0	04	1	1510-			●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98012-764-0	01	1	1405-		●
31	BRACKET; RR COMB LAMP	8-98012-764-0	01	1	1405-			●
31	BRACKET; RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63)	8-98012-765-0	01	1	1405-		●
31	BRACKET; RR COMB LAMP	8-98012-765-0	01	1	1405-			●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1405-1509		●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1405-1509			●
98	WASHER REAR BODY DBL WALL CTR PULL(E63) (A) D=16 IMA	8-94427-941-0	04	1	1510-	●	●
98	WASHER (A) D=16 IMA	8-94427-941-0	04	1	1510-			●
98	WASHER HIGH MOUNT STOP LAMP<TS6> (B)	8-94279-039-0	02	1	1405-	●	●	●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98012-759-0	01	1	1405-		●
287	LAMP UNIT; RR COMB	8-98012-759-0	01	1	1405-			●
287	LAMP UNIT; RR COMB REAR BODY DBL WALL CTR PULL(E63)	8-98012-760-0	01	1	1405-		●
287	LAMP UNIT; RR COMB	8-98012-760-0	01	1	1405-			●
298	CAP; BREATHER,RR COMB LAMP REAR BODY DBL WALL CTR PULL(E63) IMA	8-97289-148-0	02	1	1405-		●
298	CAP; BREATHER,RR COMB LAMP IMA	8-97289-148-0	02	1	1405-			●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (A)	8-97305-675-0	02	1	1510-	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (B)	8-97305-676-0	02	1	1510-	●
300	HOLDER; LAMP REAR BODY DBL WALL CTR PULL(E63) (C) IMA	8-97372-854-0	02	1	1405-		●
300	HOLDER; LAMP (C) IMA	8-97372-854-0	02	1	1405-			●

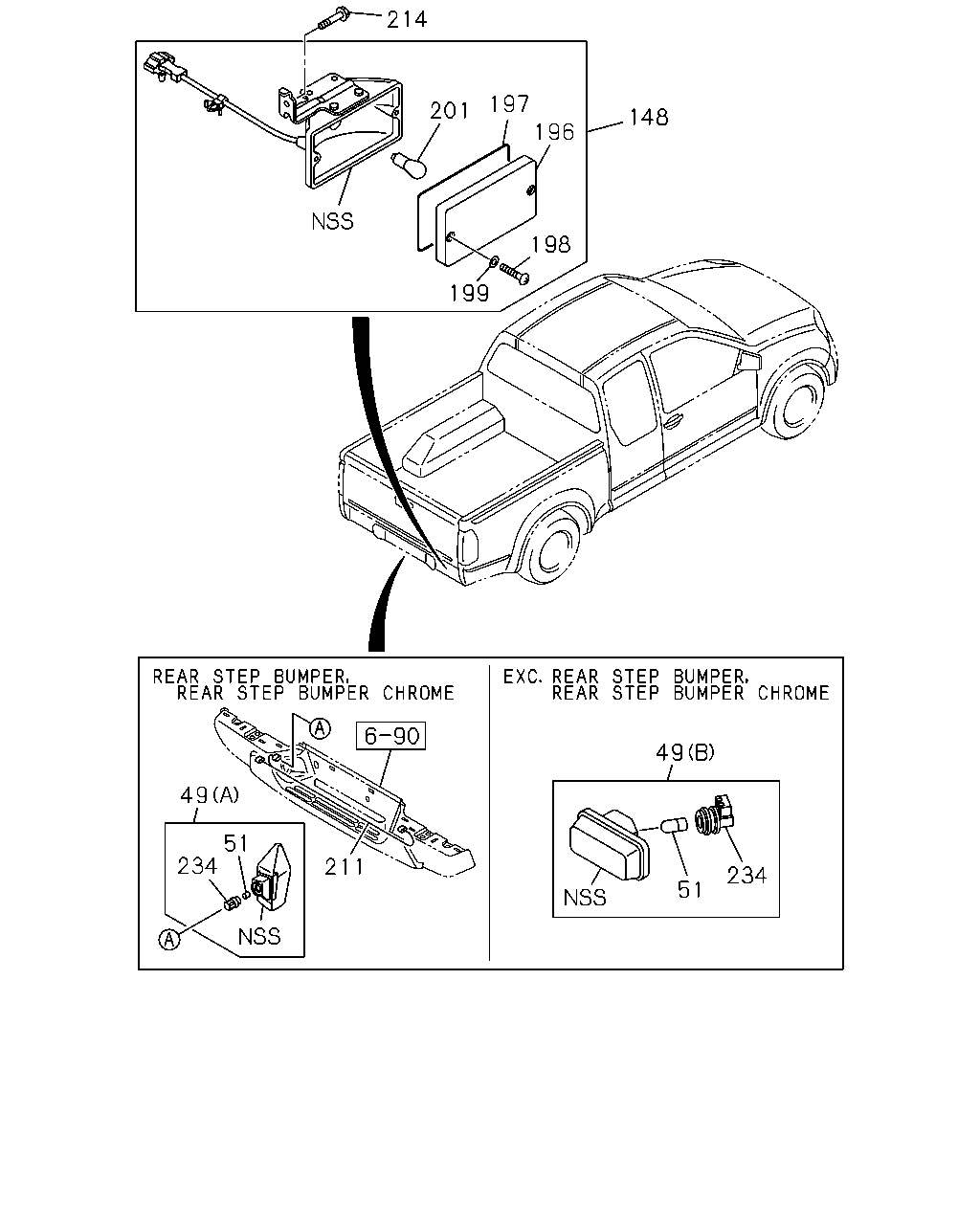

234 49 51 211 49 51 234 201 197 148 196 198 199 214

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-866-0	01	1	1405-1509		●	●
49	LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-866-0	01	1	1510-	●	●	●
49	LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-867-0	01	1	1405-1509		●	●
49	LAMP; LICENSE PLATE REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A)	8-98070-867-0	01	1	1510-	●	●	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) IMA	8-98224-482-0	02	1	1405-1509		●	●
49	LAMP; LICENSE PLATE (B) IMA	8-98224-482-0	02	1	1405-1509	●
49	LAMP; LICENSE PLATE EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) IMA	8-98224-482-0	02	1	1510-	●	●	●
51	BULB; LICENSE PLATE LAMP 12V 5W IMA	8-94124-595-0	02	1	1405-	●	●	●
148	LAMP ASM; RR FOG REAR STEP BUMPER(VF6)	8-98030-197-1	01	1	1405-1509		●	●
148	LAMP ASM; RR FOG REAR STEP BUMPER(VF6)	8-98030-197-1	01	1	1510-	●	●	●
196	LENS; RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-448-0	01	1	1405-1509		●	●
196	LENS; RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-448-0	01	1	1510-	●	●	●
197	GASKET; RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-451-0	01	1	1405-1509		●	●
197	GASKET; RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-451-0	01	1	1510-	●	●	●
198	SCREW; LENS TO BODY REAR STEP BUMPER(VF6)	0-71190-416-0	02	1	1405-1509		●	●
198	SCREW; LENS TO BODY REAR STEP BUMPER(VF6)	0-71190-416-0	02	1	1510-	●	●	●
199	WASHER; LENS,RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-446-0	02	1	1405-1509		●	●
199	WASHER; LENS,RR FOG LAMP REAR STEP BUMPER(VF6)	8-97369-446-0	02	1	1510-	●	●	●
201	BULB; RR FOG LAMP REAR STEP BUMPER(VF6) 12V 21W IMA	8-94124-074-0	01	1	1405-1509		●	●
201	BULB; RR FOG LAMP REAR STEP BUMPER(VF6) 12V 21W IMA	8-94124-074-0	01	1	1510-	●	●	●
211	HARNESS; EXT REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98025-099-0	01	1	1405-1509		●	●
211	HARNESS; EXT REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-98025-099-0	01	1	1510-	●	●	●
214	BOLT; RR FOG LAMP REAR STEP BUMPER(VF6) M6X16 FLANGE IMA	0-28650-616-0	01	1	1405-1509		●	●
214	BOLT; RR FOG LAMP REAR STEP BUMPER(VF6) M6X16 FLANGE IMA	0-28650-616-0	01	1	1510-	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-97184-970-0	02	1	1405-1509		●	●
234	SOCKET ASM; LICENSE PLATE LAMP REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42)	8-97184-970-0	02	1	1510-	●	●	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) IMA	1-82119-148-0	02	1	1405-1509		●	●
234	SOCKET ASM; LICENSE PLATE LAMP IMA	1-82119-148-0	02	1	1405-1509	●
234	SOCKET ASM; LICENSE PLATE LAMP EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) IMA	1-82119-148-0	02	1	1510-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
