8-01 — LAMP; FRONT AND FRONT SIDE (#138123) — 89 parça

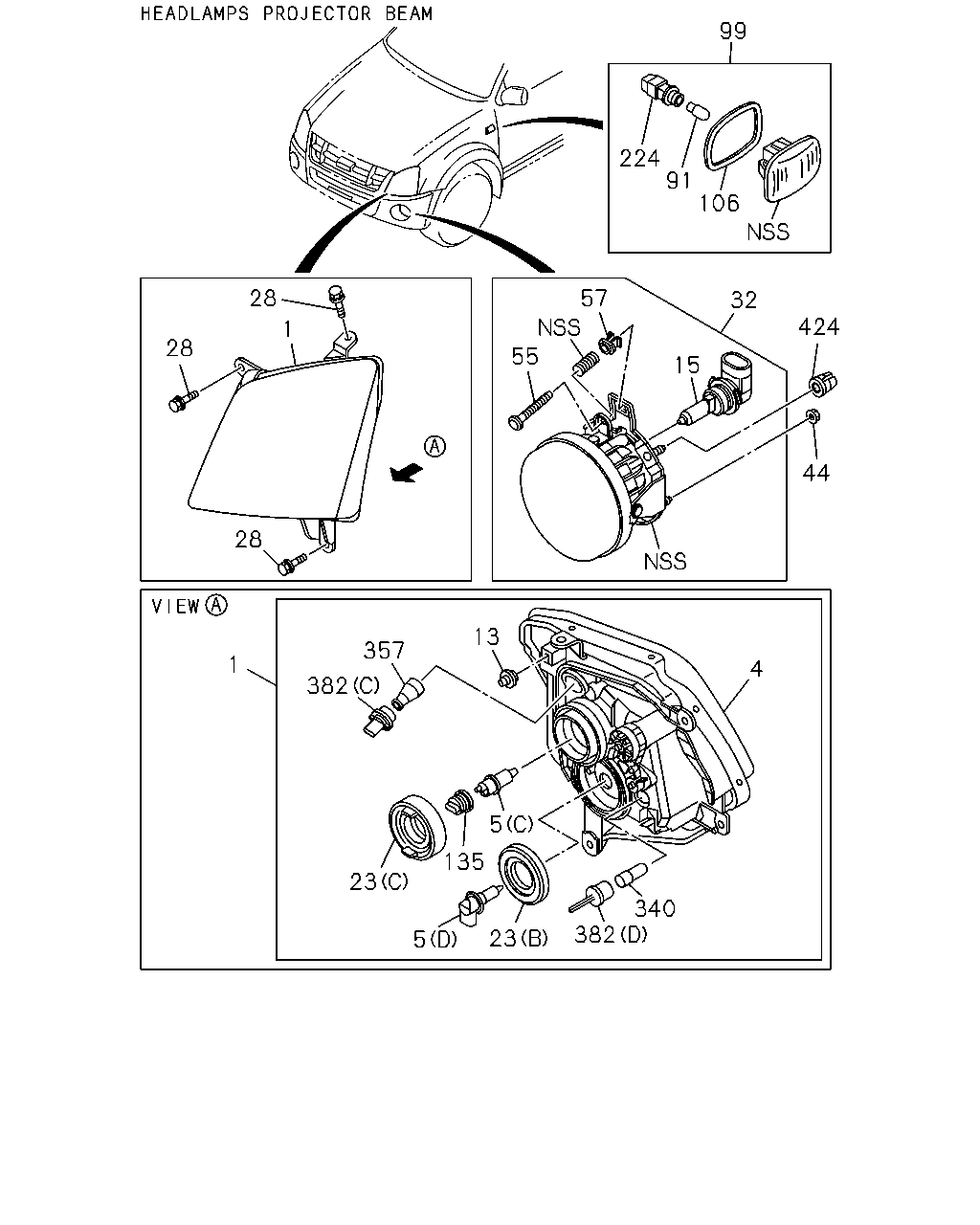

99 224 106 91 32 424 44 15 57 55 28 28 1 28 1 357 382 13 4 135 23 5 5 23 382 340

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; HEAD HEADLAMPS PROJECTOR BEAM<8LH>	8-98080-007-0	01	1	1405-	●	●
1	LAMP ASM; HEAD HEADLAMPS PROJECTOR BEAM<8LH>	8-98080-008-0	01	1	1405-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98257-825-0	01	1	1405-	●	●
1	LAMP ASM; HEAD	8-98257-825-0	01	1	1405-			●
1	LAMP ASM; HEAD EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98257-827-0	01	1	1405-	●	●
1	LAMP ASM; HEAD	8-98257-827-0	01	1	1405-			●
4	HEADLAMP UNIT HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-847-0	01	1	1405-	●	●
4	HEADLAMP UNIT HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-848-0	01	1	1405-	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-761-0	01	1	1405-	●	●
4	HEADLAMP UNIT	8-98011-761-0	01	1	1405-			●
4	HEADLAMP UNIT EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-762-0	01	1	1405-	●	●
4	HEADLAMP UNIT	8-98011-762-0	01	1	1405-			●
5	BULB; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W IMA	8-97289-997-0	02	1	1405-	●	●
5	BULB; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W	8-98011-475-0	02	1	1405-	●	●
5	BULB; HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 21W IMA	8-97179-967-0	02	1	1405-	●	●
5	BULB; HEADLAMP (A) 12V 21W IMA	8-97179-967-0	02	1	1405-			●
5	BULB; HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W	8-98032-732-0	02	1	1405-	●	●
5	BULB; HEADLAMP (B) 12V 60/55W	8-98032-732-0	02	1	1405-			●
13	CLIP; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH>	8-97378-145-0	02	1	1405-	●	●
15	BULB; FOG LAMP FOG LAMP<T96> 12V 51W IMA	8-97286-998-0	02	1	1405-	●	●	●
23	COVER; BULB,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (B) IMA	8-97675-961-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C)	8-98011-477-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A)	8-97332-448-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP (A)	8-97332-448-0	02	1	1405-			●
28	BOLT; HEADLAMP M6X18 TAPPING W/LK&PL WASHER IMA	8-98062-140-0	08	1	1405-	●	●	●
32	LAMP ASM; FOG FOG LAMP<T96> IMA	8-98169-680-0	02	1	1405-	●	●	●
44	NUT; FOG LAMP FOG LAMP<T96> M6 FLANGE IMA	8-98055-704-0	04	1	1405-	●	●	●
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96> IMA	8-98017-834-0	02	1	1405-	●	●	●
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> IMA	8-98017-835-0	02	1	1405-	●	●	●
91	BULB; SIDE TURN SIGNAL 12V 5W IMA	8-97310-952-0	02	1	1405-	●	●	●
99	LAMP; SIDE FLASHER	8-97237-378-1	02	1	1405-	●	●	●
106	GASKET; SIDE TURN SIGNAL IMA	8-97333-420-0	02	1	1405-	●	●	●
135	ADAPTER; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-476-0	02	1	1405-	●	●
224	SOCKET; SIDE FLASHER LAMP IMA	8-97310-953-0	02	1	1405-	●	●	●
340	BULB; POSITION HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W IMA	8-94124-595-0	02	1	1405-	●	●
340	BULB; POSITION EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W	8-98257-815-0	02	1	1405-	●	●
340	BULB; POSITION 12V 5W	8-98257-815-0	02	1	1405-			●
357	BULB; TURN SIGNAL HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W IMA	8-94124-074-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C)	8-98012-762-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (D) IMA	8-98012-788-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A)	8-97332-446-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP (A)	8-97332-446-0	02	1	1405-			●
382	PLUG; SOCKET,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B)	8-97332-447-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP (B)	8-97332-447-0	02	1	1405-			●
424	RETAINER; FOG LAMP FOG LAMP<T96> IMA	8-97372-854-0	02	1	1405-	●	●	●

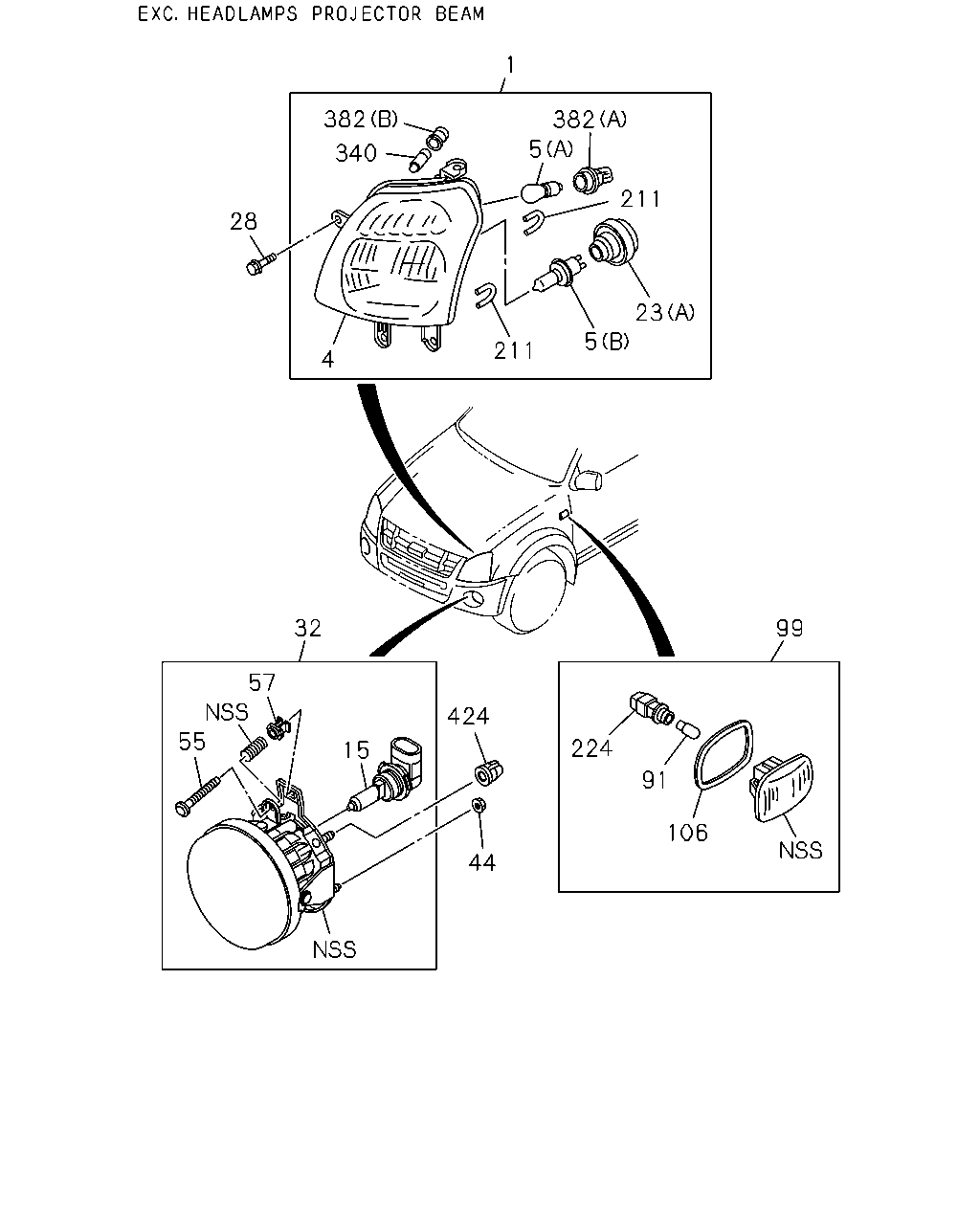

44 424 15 57 32 55 91 224 106 99 4 211 5 23 211 5 382 1 382 340 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; HEAD HEADLAMPS PROJECTOR BEAM<8LH>	8-98080-007-0	01	1	1405-	●	●
1	LAMP ASM; HEAD HEADLAMPS PROJECTOR BEAM<8LH>	8-98080-008-0	01	1	1405-	●	●
1	LAMP ASM; HEAD EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98257-825-0	01	1	1405-	●	●
1	LAMP ASM; HEAD	8-98257-825-0	01	1	1405-			●
1	LAMP ASM; HEAD EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98257-827-0	01	1	1405-	●	●
1	LAMP ASM; HEAD	8-98257-827-0	01	1	1405-			●
4	HEADLAMP UNIT HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-847-0	01	1	1405-	●	●
4	HEADLAMP UNIT HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-848-0	01	1	1405-	●	●
4	HEADLAMP UNIT EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-761-0	01	1	1405-	●	●
4	HEADLAMP UNIT	8-98011-761-0	01	1	1405-			●
4	HEADLAMP UNIT EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-98011-762-0	01	1	1405-	●	●
4	HEADLAMP UNIT	8-98011-762-0	01	1	1405-			●
5	BULB; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W IMA	8-97289-997-0	02	1	1405-	●	●
5	BULB; HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W	8-98011-475-0	02	1	1405-	●	●
5	BULB; HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 21W IMA	8-97179-967-0	02	1	1405-	●	●
5	BULB; HEADLAMP (A) 12V 21W IMA	8-97179-967-0	02	1	1405-			●
5	BULB; HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W	8-98032-732-0	02	1	1405-	●	●
5	BULB; HEADLAMP (B) 12V 60/55W	8-98032-732-0	02	1	1405-			●
15	BULB; FOG LAMP FOG LAMP<T96> 12V 51W IMA	8-97286-998-0	02	1	1405-	●	●	●
23	COVER; BULB,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (B) IMA	8-97675-961-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C)	8-98011-477-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A)	8-97332-448-0	02	1	1405-	●	●
23	COVER; BULB,HEADLAMP (A)	8-97332-448-0	02	1	1405-			●
28	BOLT; HEADLAMP M6X18 TAPPING W/LK&PL WASHER IMA	8-98062-140-0	08	1	1405-	●	●	●
32	LAMP ASM; FOG FOG LAMP<T96> IMA	8-98169-680-0	02	1	1405-	●	●	●
44	NUT; FOG LAMP FOG LAMP<T96> M6 FLANGE IMA	8-98055-704-0	04	1	1405-	●	●	●
55	SCREW; ADJ,FOG LAMP FOG LAMP<T96> IMA	8-98017-834-0	02	1	1405-	●	●	●
57	NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96> IMA	8-98017-835-0	02	1	1405-	●	●	●
91	BULB; SIDE TURN SIGNAL 12V 5W IMA	8-97310-952-0	02	1	1405-	●	●	●
99	LAMP; SIDE FLASHER	8-97237-378-1	02	1	1405-	●	●	●
106	GASKET; SIDE TURN SIGNAL IMA	8-97333-420-0	02	1	1405-	●	●	●
211	TUBE; HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH>	8-97333-983-0	04	1	1405-	●	●
211	TUBE; HEADLAMP	8-97333-983-0	04	1	1405-			●
224	SOCKET; SIDE FLASHER LAMP IMA	8-97310-953-0	02	1	1405-	●	●	●
340	BULB; POSITION HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W IMA	8-94124-595-0	02	1	1405-	●	●
340	BULB; POSITION EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W	8-98257-815-0	02	1	1405-	●	●
340	BULB; POSITION 12V 5W	8-98257-815-0	02	1	1405-			●
382	PLUG; SOCKET,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (C)	8-98012-762-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP HEADLAMPS PROJECTOR BEAM<8LH> (D) IMA	8-98012-788-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A)	8-97332-446-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP (A)	8-97332-446-0	02	1	1405-			●
382	PLUG; SOCKET,HEADLAMP EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B)	8-97332-447-0	02	1	1405-	●	●
382	PLUG; SOCKET,HEADLAMP (B)	8-97332-447-0	02	1	1405-			●
424	RETAINER; FOG LAMP FOG LAMP<T96> IMA	8-97372-854-0	02	1	1405-	●	●	●
