7-55 — REAR SEAT (#138121) — 63 parça

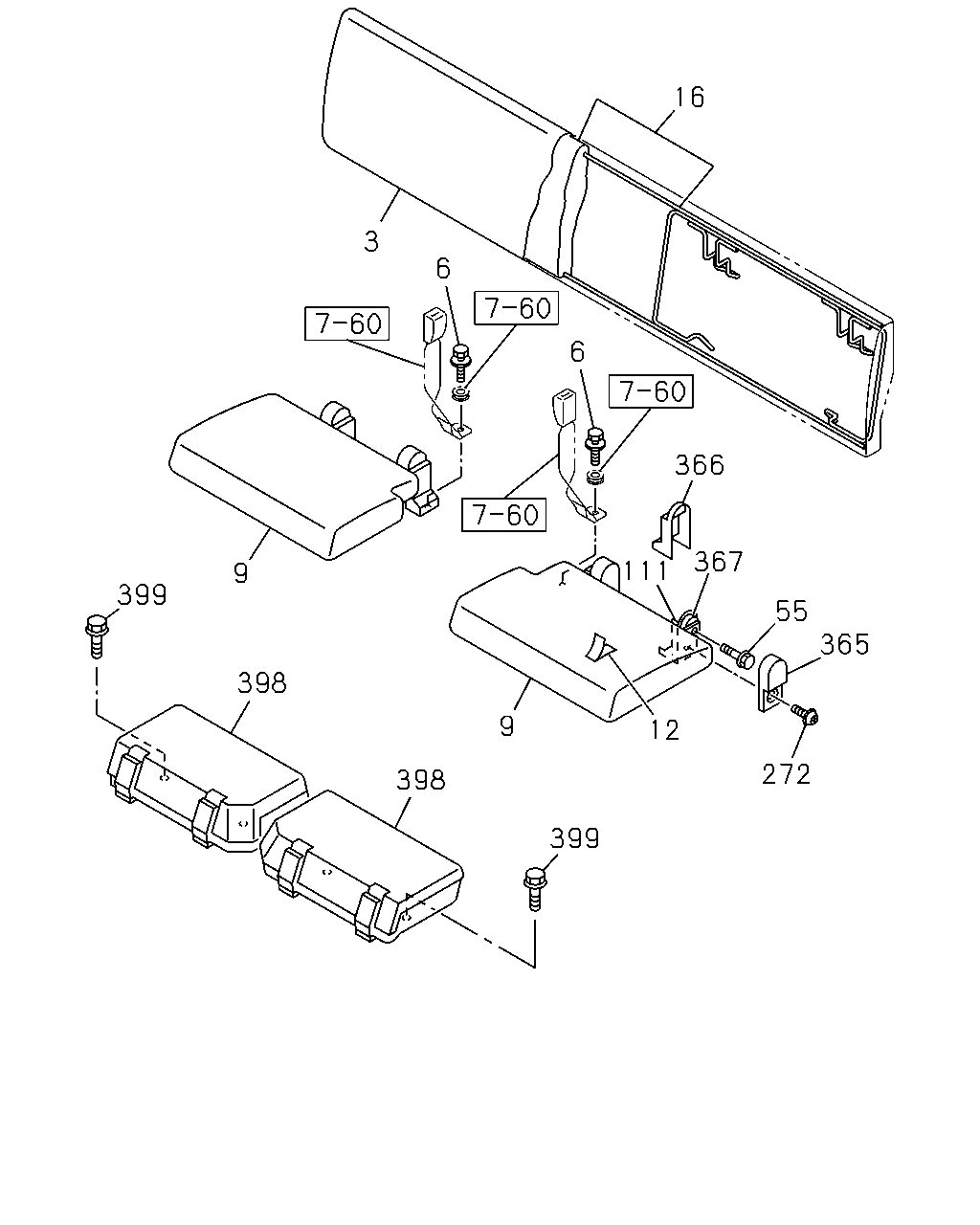

16 6 3 6 366 367 55 365 272 12 9 398 399 398 399 9 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	1405-	●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97407-079-0	01	1	1405-	●
3	COVER; TRIM,RR SEAT BACK VINYL TRIM<8LJ> GRAY	8-97407-571-0	01	1	1405-		●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-569-0	01	1	1405-		●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-570-0	01	1	1405-		●
6	BOLT; RR SEAT M12X27.5 W/PL WASHER IMA	8-98050-319-0	04	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-949-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-953-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION VINYL TRIM<8LJ> GRAY	8-97407-558-0	01	1	1405-		●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-559-0	01	1	1405-		●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-560-0	01	1	1405-		●
12	PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-255-0	01	1	1405-	●
12	PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-256-0	01	1	1405-	●
16	PAD & FRAME ASM; RR BACK SIDE CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97332-775-0	01	1	1405-	●
55	BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	1405-	●
55	BOLT; HINGE,RR SEAT	8-97332-815-0	02	1	1405-		●
111	BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-210-0	02	1	1405-	●
111	BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-211-0	02	1	1405-	●
272	SCREW; COVER CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97354-993-0	04	1	1405-	●
365	COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-946-0	01	1	1405-	●
365	COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-947-0	01	1	1405-	●
365	COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> INNER DARK GRAY	8-97404-950-0	01	1	1405-	●
365	COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> OUTER DARK GRAY	8-97404-951-0	01	1	1405-	●
366	LID; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-955-0	04	1	1405-	●
367	DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-208-0	02	1	1405-	●
367	DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97355-209-0	02	1	1405-	●
398	COMPARTMENT; FLOOR JUMP SEAT<AJ2>	8-97360-813-0	01	1	1405-	●
398	COMPARTMENT; FLOOR JUMP SEAT<AJ2>	8-97360-814-0	01	1	1405-	●
399	BOLT; COMPARTMENT JUMP SEAT<AJ2> M6X18 W/LK&PL WASHER	8-98061-682-0	04	1	1405-	●

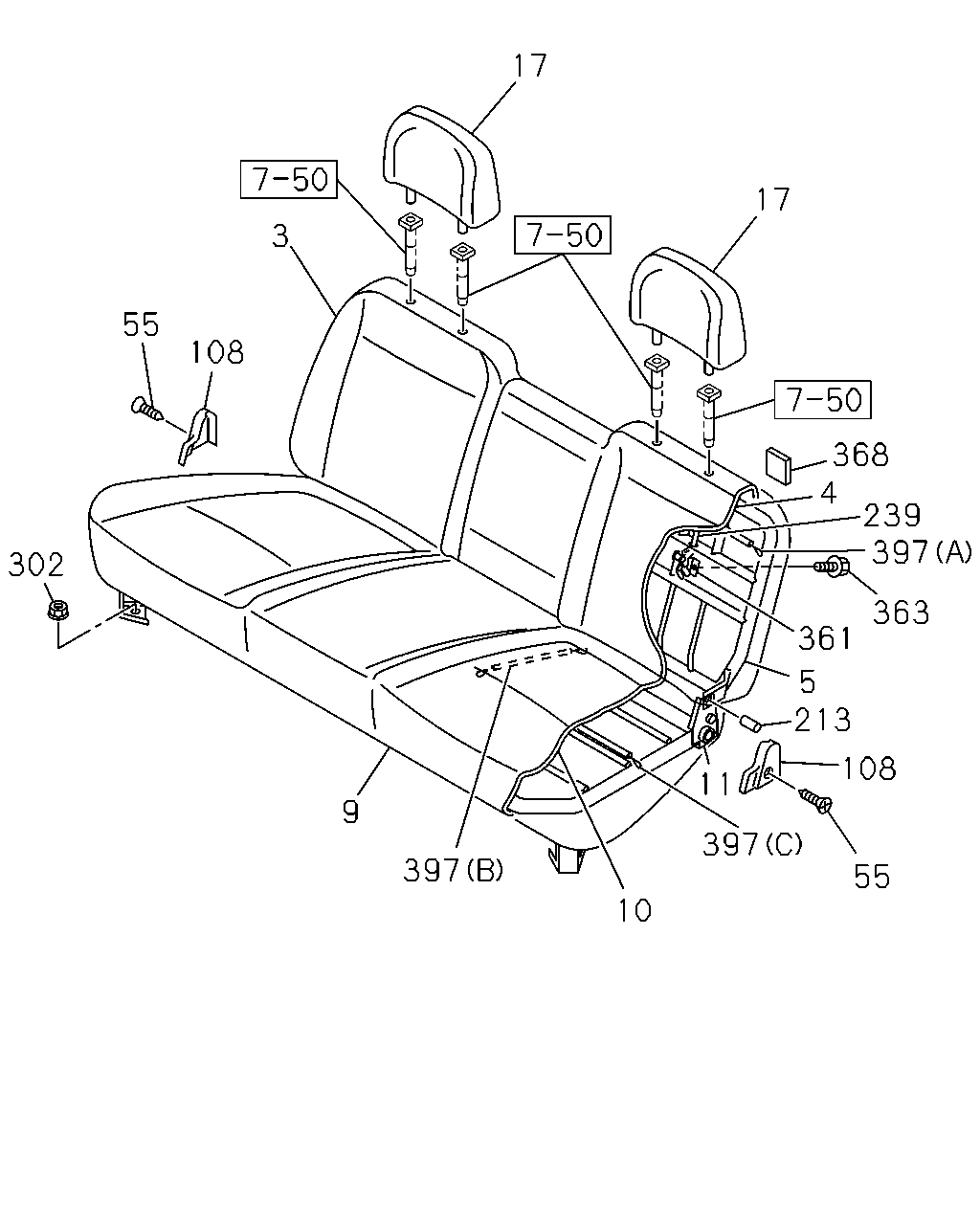

17 17 368 397 4 361 5 213 363 239 108 55 397 11 10 397 9 302 108 55 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-954-0	01	1	1405-	●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97407-079-0	01	1	1405-	●
3	COVER; TRIM,RR SEAT BACK VINYL TRIM<8LJ> GRAY	8-97407-571-0	01	1	1405-		●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-569-0	01	1	1405-		●
3	COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-570-0	01	1	1405-		●
4	PAD; RR,SEAT BACK	8-98028-774-0	01	1	1405-		●
5	FRAME ASM; RR SEAT BACK	8-98028-772-0	01	1	1405-		●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-948-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> JUMP SEAT<AJ2> GRAY	8-97404-952-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-949-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2> DARK GRAY	8-97404-953-0	01	1	1405-	●
9	COVER ASM; TRIM,RR,CUSHION VINYL TRIM<8LJ> GRAY	8-97407-558-0	01	1	1405-		●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-559-0	01	1	1405-		●
9	COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-560-0	01	1	1405-		●
10	PAD; CUSHION,RR SEAT	8-98028-694-0	01	1	1405-		●
11	FRAME ASM; CUSHION,RR SEAT	8-98028-686-0	01	1	1405-		●
17	REST; HD,RR SEAT VINYL TRIM<8LJ> GRAY	8-97407-580-0	02	1	1405-		●
17	REST; HD,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-974-0	02	1	1405-		●
17	REST; HD,RR SEAT CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-971-0	02	1	1405-		●
55	BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> JUMP SEAT<AJ2>	8-97353-257-0	04	1	1405-	●
55	BOLT; HINGE,RR SEAT	8-97332-815-0	02	1	1405-		●
108	COVER; HINGE BRKT DARK GRAY	8-97407-576-0	01	1	1405-		●
108	COVER; HINGE BRKT DARK GRAY	8-97407-577-0	01	1	1405-		●
213	BUSHING; RR SEAT HINGE	8-97354-675-0	02	1	1405-		●
239	CABLE; CONT,LEVER	8-97332-828-0	01	1	1405-		●
302	NUT; RR SEAT M12 FLANGE IMA	0-91180-212-0	04	1	1405-		●
361	LATCH; REAR SEAT	8-98004-027-0	02	1	1405-		●
363	BOLT; REAR SEAT LATCH	8-97332-815-0	08	1	1405-		●
368	PAD; BACK FORM	8-98028-775-0	02	1	1405-		●
397	CABLE; SEAT (B)	8-98028-780-0	04	1	1405-		●
397	CABLE; SEAT (C)	8-98028-781-0	02	1	1405-		●
397	CABLE; SEAT (A)	8-98028-782-0	02	1	1405-		●
