◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#138120) — 194 parça

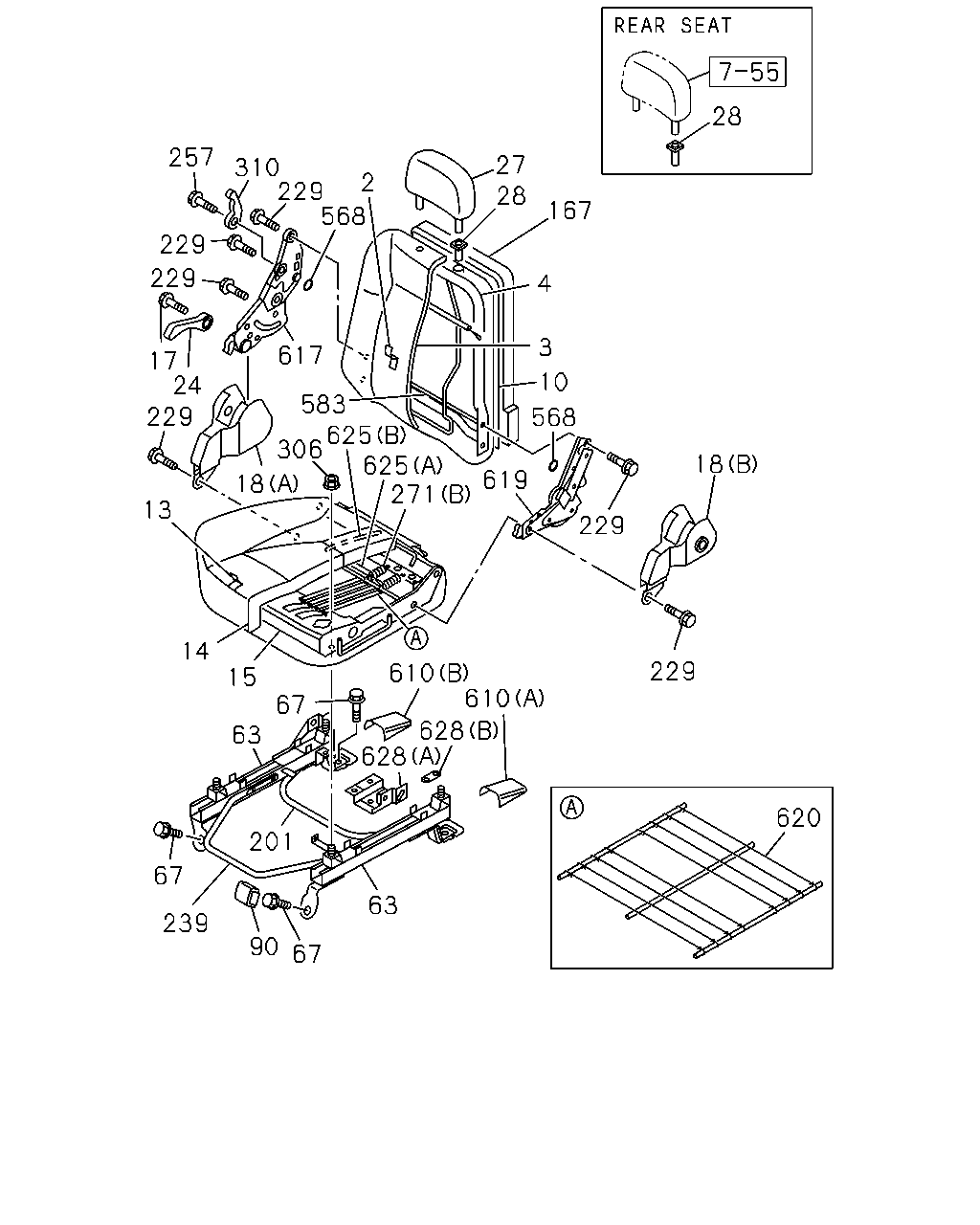

çizim 417190
18 229 620 628 628 63 67 90 239 67 63 15 14 13 18 306 583 625 625 271 229 619 568 10 3 4 167 28 27 2 568 229 310 257 229 229 17 229 24 610 610 201 28 617 67
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; TRIM,FRT SEAT,BACK
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-669-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-676-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-677-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-627-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-629-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-665-0 01 1 1405- ● ●
3 PAD; FRT SEAT BACK 8-98028-497-0 01 1 1405- ● ● ●
3 PAD; FRT SEAT BACK 8-98028-497-0 01 1 1405- ● ● ●
4 FRAME ASM; FRT SEAT 8-98028-442-0 01 1 1405- ● ● ●
4 FRAME ASM; FRT SEAT 8-98028-442-0 01 1 1405- ● ● ●
10 BOARD; SEAT 8-98028-493-0 01 1 1405- ● ● ●
10 BOARD; SEAT 8-98028-493-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-671-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-636-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-640-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-617-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-622-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-667-0 01 1 1405- ● ●
14 PAD; FRT SEAT CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-514-0 01 1 1405- ● ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-513-0 01 1 1405- ●
14 PAD; FRT SEAT CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-513-0 01 1 1405- ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98046-467-0 01 1 1405- ● ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98046-468-0 01 1 1405- ● ● ●
15 FRAME; CUSHION,FRT SEAT 8-98028-500-0 01 1 1405- ● ● ●
15 FRAME; CUSHION,FRT SEAT 8-98028-501-0 01 1 1405- ● ● ●
17 BOLT; RECLINING 8-97332-630-0 01 1 1405- ● ● ●
17 BOLT; RECLINING 8-97332-630-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(A) DARK GRAY 		8-97407-618-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(A) DARK GRAY 		8-97407-618-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(B) DARK GRAY 		8-97407-619-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(B) DARK GRAY 		8-97407-619-0 01 1 1405- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97407-616-0 01 1 1405- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97407-621-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-662-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-662-0 01 1 1405- ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-631-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-631-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-611-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-611-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK FRONT DARK GRAY 		8-97407-585-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK FRONT DARK GRAY 		8-97407-585-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
FREE FRONT DARK GRAY 		8-97407-586-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
FREE FRONT DARK GRAY 		8-97407-586-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK REAR DARK GRAY 		8-97406-968-0 02 1 1405- ●
28 HOLDER; GUIDE,HD REST
FREE REAR DARK GRAY 		8-97406-970-0 02 1 1405- ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98037-264-0 01 1 1405- ● ● ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98037-267-0 01 1 1405- ● ● ●
63 ADJUSTER; SEAT SLIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> INNER 		8-98037-491-0 01 1 1405- ●
63 ADJUSTER; SEAT SLIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> OUTER 		8-98037-492-0 01 1 1405- ●
63 ADJUSTER; SEAT SLIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> OUTER 		8-98037-263-0 01 1 1405- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> INNER 		8-98037-266-0 01 1 1405- ● ●
67 BOLT; FRT SEAT TO BODY
FRONT SEAT BUCKET TYPE<A50> M12X27.5 W/PL WASHER IMA 		8-98050-319-0 08 1 1405- ● ● ●
90 COVER; SEAT ADJ BRKT
FRONT SEAT BUCKET TYPE<A50> BLACK 		8-97403-826-1 01 1 1405- ● ● ●
90 COVER; SEAT ADJ BRKT
FRONT SEAT BUCKET TYPE<A50> BLACK 		8-97403-827-0 01 1 1405- ● ● ●
167 POCKET; PASSENGER SEAT 8-98020-329-0 01 1 1405- ● ● ●
167 POCKET; PASSENGER SEAT 8-98020-329-0 01 1 1405- ● ● ●
201 CABLE; ADJ 8-97353-225-0 01 1 1405- ● ● ●
201 CABLE; ADJ 8-97353-225-0 01 1 1405- ● ● ●
229 BOLT; HINGE,FRT SEAT 8-97332-605-0 08 1 1405- ● ● ●
229 BOLT; HINGE,FRT SEAT 8-97332-605-0 08 1 1405- ● ● ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98028-512-0 01 1 1405- ● ● ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98028-512-0 01 1 1405- ● ● ●
257 BOLT; RECLINING DEVICE 8-97332-630-0 01 1 1405- ● ● ●
257 BOLT; RECLINING DEVICE 8-97332-630-0 01 1 1405- ● ● ●
271 SPRING; HELPER
(B) 		8-97332-650-0 04 1 1405- ● ● ●
271 SPRING; HELPER
(B) 		8-97332-650-0 04 1 1405- ● ● ●
271 SPRING; HELPER
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-662-0 01 1 1405- ●
306 NUT; SEAT ADJ 8-97332-666-0 06 1 1405- ● ● ●
306 NUT; SEAT ADJ 8-97332-666-0 06 1 1405- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DARK GRAY 		8-97407-588-0 01 1 1405- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DARK GRAY 		8-97407-589-0 01 1 1405- ● ● ●
568 RETAINER; DRIVER SEAT 8-97354-841-0 02 1 1405- ● ● ●
568 RETAINER; DRIVER SEAT 8-97354-841-0 02 1 1405- ● ● ●
583 ROD; SEAT 8-97354-840-0 01 1 1405- ● ● ●
583 ROD; SEAT 8-97354-840-0 01 1 1405- ● ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97403-815-1 01 1 1405- ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97403-817-1 01 1 1405- ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) DARK GRAY 		8-97403-821-1 02 1 1405- ● ●
617 RECLINING DEVICE 8-97332-598-0 01 1 1405- ● ● ●
617 RECLINING DEVICE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-97353-150-0 01 1 1405- ●
617 RECLINING DEVICE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-97332-599-0 01 1 1405- ● ●
619 PIVOT BRACKET 8-97353-151-0 01 1 1405- ● ● ●
619 PIVOT BRACKET 8-97353-152-0 01 1 1405- ● ● ●
620 MAT; SUS 8-97332-649-0 01 1 1405- ● ● ●
620 MAT; SUS 8-97332-649-0 01 1 1405- ● ● ●
625 CABLE; SEAT
(B) 		8-98028-574-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(B) 		8-98028-574-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(A) 		8-98028-575-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(A) 		8-98028-575-0 02 1 1405- ● ● ●
628 BRACKET; RAIL
(B) 		8-98043-294-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(B) 		8-98043-294-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(A) 		8-98112-764-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(A) 		8-98112-763-0 01 1 1405- ● ● ●

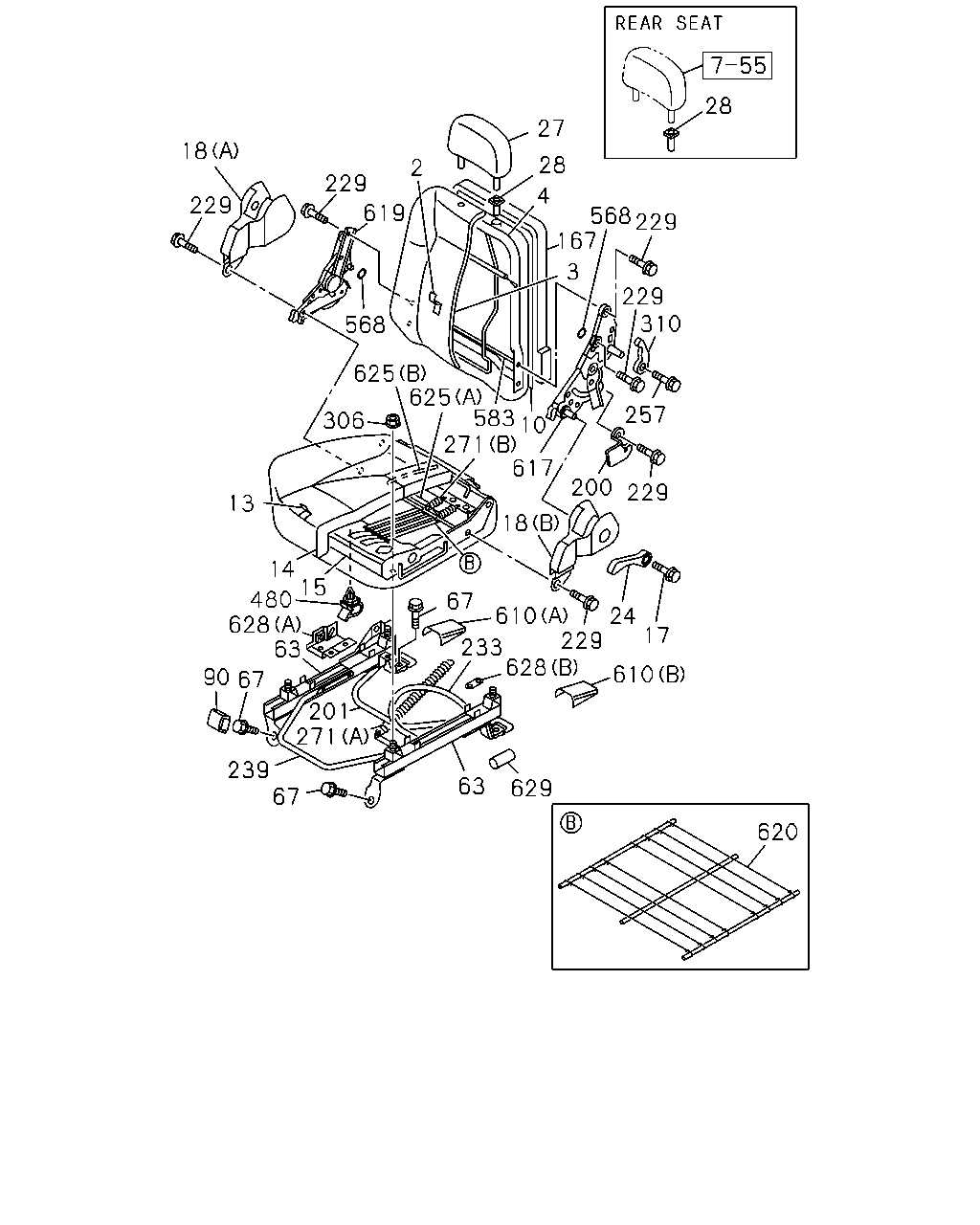

çizim 417239
18 229 229 2 619 27 4 28 229 568 167 229 3 310 257 568 10 625 306 625 617 583 271 13 14 15 480 628 63 90 67 201 271 239 67 67 610 233 628 629 63 18 200 229 24 17 229 610 620 28
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; TRIM,FRT SEAT,BACK
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-669-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-676-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-677-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-627-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-629-0 01 1 1405- ● ● ●
2 COVER; TRIM,FRT SEAT,BACK
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-665-0 01 1 1405- ● ●
3 PAD; FRT SEAT BACK 8-98028-497-0 01 1 1405- ● ● ●
3 PAD; FRT SEAT BACK 8-98028-497-0 01 1 1405- ● ● ●
4 FRAME ASM; FRT SEAT 8-98028-442-0 01 1 1405- ● ● ●
4 FRAME ASM; FRT SEAT 8-98028-442-0 01 1 1405- ● ● ●
10 BOARD; SEAT 8-98028-493-0 01 1 1405- ● ● ●
10 BOARD; SEAT 8-98028-493-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-671-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-636-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-640-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-617-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-622-0 01 1 1405- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-667-0 01 1 1405- ● ●
14 PAD; FRT SEAT CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-514-0 01 1 1405- ● ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-513-0 01 1 1405- ●
14 PAD; FRT SEAT CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98028-513-0 01 1 1405- ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98046-467-0 01 1 1405- ● ● ●
14 PAD; FRT SEAT CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98046-468-0 01 1 1405- ● ● ●
15 FRAME; CUSHION,FRT SEAT 8-98028-500-0 01 1 1405- ● ● ●
15 FRAME; CUSHION,FRT SEAT 8-98028-501-0 01 1 1405- ● ● ●
17 BOLT; RECLINING 8-97332-630-0 01 1 1405- ● ● ●
17 BOLT; RECLINING 8-97332-630-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(A) DARK GRAY 		8-97407-618-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(A) DARK GRAY 		8-97407-618-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(B) DARK GRAY 		8-97407-619-0 01 1 1405- ● ● ●
18 COVER; RECLINING
(B) DARK GRAY 		8-97407-619-0 01 1 1405- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97407-616-0 01 1 1405- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97407-621-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-662-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
VINYL TRIM<8LJ> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-662-0 01 1 1405- ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-631-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> GRAY 		8-97407-631-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-611-0 01 1 1405- ● ● ●
27 REST; HD,FRT SEAT
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97407-611-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK FRONT DARK GRAY 		8-97407-585-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK FRONT DARK GRAY 		8-97407-585-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
FREE FRONT DARK GRAY 		8-97407-586-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
FREE FRONT DARK GRAY 		8-97407-586-0 01 1 1405- ● ● ●
28 HOLDER; GUIDE,HD REST
LOCK REAR DARK GRAY 		8-97406-968-0 02 1 1405- ●
28 HOLDER; GUIDE,HD REST
FREE REAR DARK GRAY 		8-97406-970-0 02 1 1405- ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98037-264-0 01 1 1405- ● ● ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98037-267-0 01 1 1405- ● ● ●
63 ADJUSTER; SEAT SLIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> INNER 		8-98037-491-0 01 1 1405- ●
63 ADJUSTER; SEAT SLIDE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> OUTER 		8-98037-492-0 01 1 1405- ●
63 ADJUSTER; SEAT SLIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> OUTER 		8-98037-263-0 01 1 1405- ● ●
63 ADJUSTER; SEAT SLIDE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> INNER 		8-98037-266-0 01 1 1405- ● ●
67 BOLT; FRT SEAT TO BODY
FRONT SEAT BUCKET TYPE<A50> M12X27.5 W/PL WASHER IMA 		8-98050-319-0 08 1 1405- ● ● ●
90 COVER; SEAT ADJ BRKT
FRONT SEAT BUCKET TYPE<A50> BLACK 		8-97403-826-1 01 1 1405- ● ● ●
90 COVER; SEAT ADJ BRKT
FRONT SEAT BUCKET TYPE<A50> BLACK 		8-97403-827-0 01 1 1405- ● ● ●
167 POCKET; PASSENGER SEAT 8-98020-329-0 01 1 1405- ● ● ●
167 POCKET; PASSENGER SEAT 8-98020-329-0 01 1 1405- ● ● ●
200 BRACKET; SEAT
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-97332-694-0 01 1 1405- ●
201 CABLE; ADJ 8-97353-225-0 01 1 1405- ● ● ●
201 CABLE; ADJ 8-97353-225-0 01 1 1405- ● ● ●
229 BOLT; HINGE,FRT SEAT 8-97332-605-0 08 1 1405- ● ● ●
229 BOLT; HINGE,FRT SEAT 8-97332-605-0 08 1 1405- ● ● ●
233 CABLE; WALK-IN
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98028-490-0 01 1 1405- ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98028-512-0 01 1 1405- ● ● ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98028-512-0 01 1 1405- ● ● ●
257 BOLT; RECLINING DEVICE 8-97332-630-0 01 1 1405- ● ● ●
257 BOLT; RECLINING DEVICE 8-97332-630-0 01 1 1405- ● ● ●
271 SPRING; HELPER
(B) 		8-97332-650-0 04 1 1405- ● ● ●
271 SPRING; HELPER
(B) 		8-97332-650-0 04 1 1405- ● ● ●
271 SPRING; HELPER
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-662-0 01 1 1405- ●
306 NUT; SEAT ADJ 8-97332-666-0 06 1 1405- ● ● ●
306 NUT; SEAT ADJ 8-97332-666-0 06 1 1405- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DARK GRAY 		8-97407-588-0 01 1 1405- ● ● ●
310 LEVER ASM; HEIGHT ADJ DRIVER SEAT
DARK GRAY 		8-97407-589-0 01 1 1405- ● ● ●
480 CLIP; CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> 		8-98020-317-0 01 1 1405- ●
480 CLIP; CUSHION
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98020-317-0 01 1 1405- ●
480 CLIP; CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98020-317-0 01 1 1405- ● ●
480 CLIP; CUSHION
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98020-317-0 01 1 1405- ● ●
480 CLIP; CUSHION
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98020-317-0 02 1 1405- ●
568 RETAINER; DRIVER SEAT 8-97354-841-0 02 1 1405- ● ● ●
568 RETAINER; DRIVER SEAT 8-97354-841-0 02 1 1405- ● ● ●
583 ROD; SEAT 8-97354-840-0 01 1 1405- ● ● ●
583 ROD; SEAT 8-97354-840-0 01 1 1405- ● ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97403-815-1 01 1 1405- ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (B) DARK GRAY 		8-97403-817-1 01 1 1405- ● ●
610 COVER; LEG,FRT SEAT
FRONT SEAT BUCKET TYPE<A50> (A) DARK GRAY 		8-97403-821-1 02 1 1405- ● ●
617 RECLINING DEVICE 8-97332-598-0 01 1 1405- ● ● ●
617 RECLINING DEVICE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-97353-150-0 01 1 1405- ●
617 RECLINING DEVICE
VINYL TRIM<8LJ>,CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-97332-599-0 01 1 1405- ● ●
619 PIVOT BRACKET 8-97353-151-0 01 1 1405- ● ● ●
619 PIVOT BRACKET 8-97353-152-0 01 1 1405- ● ● ●
620 MAT; SUS 8-97332-649-0 01 1 1405- ● ● ●
620 MAT; SUS 8-97332-649-0 01 1 1405- ● ● ●
625 CABLE; SEAT
(B) 		8-98028-574-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(B) 		8-98028-574-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(A) 		8-98028-575-0 02 1 1405- ● ● ●
625 CABLE; SEAT
(A) 		8-98028-575-0 02 1 1405- ● ● ●
628 BRACKET; RAIL
(B) 		8-98043-294-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(B) 		8-98043-294-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(A) 		8-98112-764-0 01 1 1405- ● ● ●
628 BRACKET; RAIL
(A) 		8-98112-763-0 01 1 1405- ● ● ●
629 TUBE; ANTI NOISE
CLOTH TRIM STANDARD, VAR 1<8LK>,CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> 		8-98043-690-0 01 1 1405- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
