7-45 — CONSOLE BOX (#138119) — 18 parça

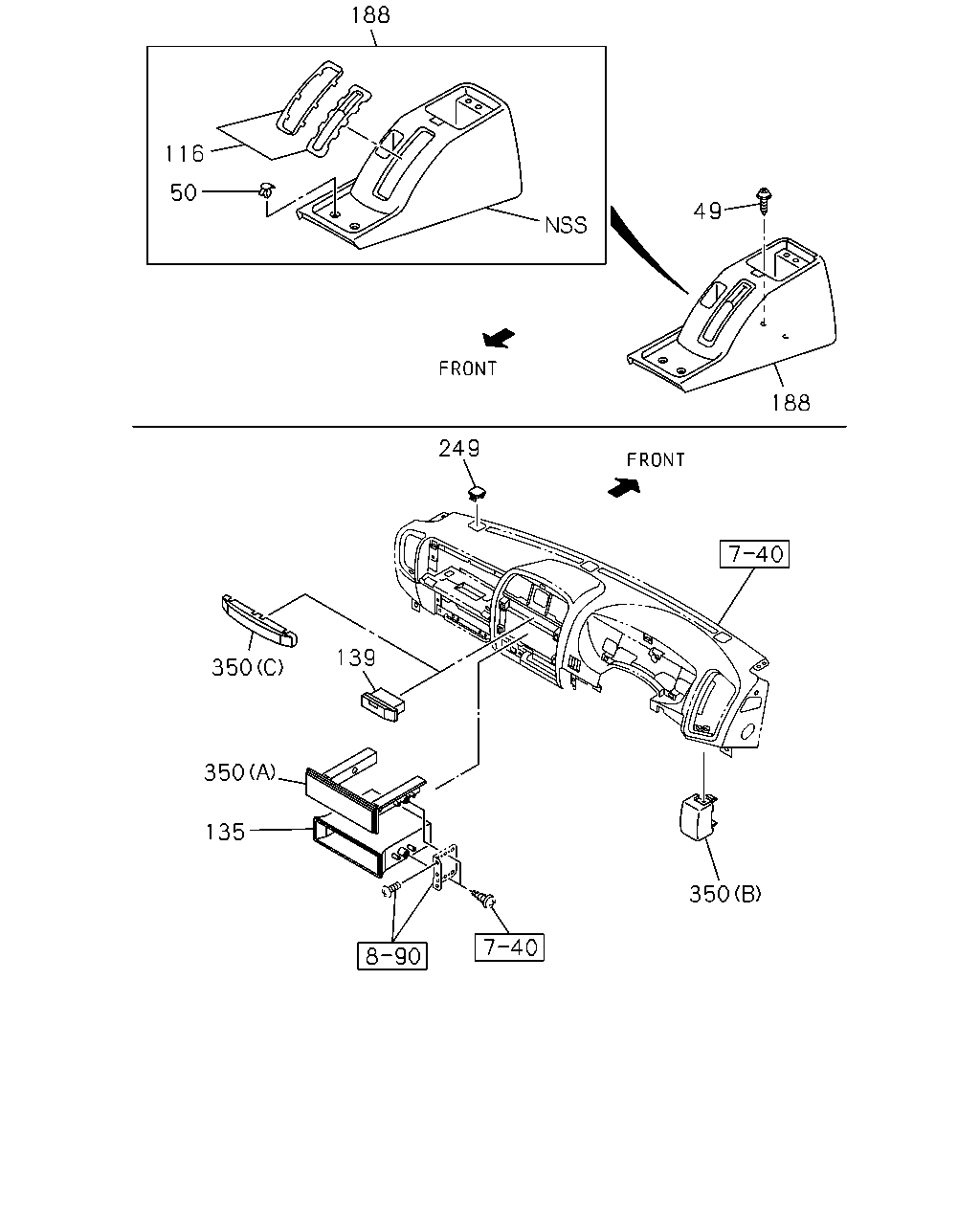

350 135 351 350 139 249 188 188 116 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
49	SCREW; CONSOLE PARKING BRAKE FLOOR<7XW> M5X16 IMA	8-98167-220-0	02	1	1405-	●	●	●
50	CLIP; CONSOLE PARKING BRAKE FLOOR<7XW>	8-97355-734-0	02	1	1405-	●	●	●
116	COVER; HOLE,CONSOLE,RR PARKING BRAKE FLOOR<7XW> BLACK	8-97422-799-0	01	1	1405-	●	●	●
135	BOX; CONSOLE,LWR DARK GRAY	8-97396-595-0	01	1	1405-	●	●	●
139	BOX; CONSOLE,UPR DIGITAL CLOCK<UE8> DARK GRAY	8-97403-312-2	01	1	1405-	●	●	●
188	CONSOLE; RR FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> BLACK	8-97422-771-0	01	1	1405-	●	●	●
188	CONSOLE; RR PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55> BLACK	8-97422-773-0	01	1	1405-	●	●	●
249	COVER BLACK	8-97422-663-0	03	1	1405-	●	●	●
350	COVER; CONSOLE RADIO DELETE(UL5) (A) DARK GRAY	8-97396-597-0	01	1	1405-	●	●	●
350	COVER; CONSOLE (B) DARK GRAY	8-97396-598-0	01	1	1405-	●	●	●
350	COVER; CONSOLE (B) DARK GRAY	8-97396-598-0	01	1	1405-	●	●	●
350	COVER; CONSOLE (B) DARK GRAY	8-97396-598-0	01	1	1405-	●	●	●
350	COVER; CONSOLE EXC. DIGITAL CLOCK<UE8> (C) DARK GRAY	8-97403-320-0	01	1	1405-	●	●	●

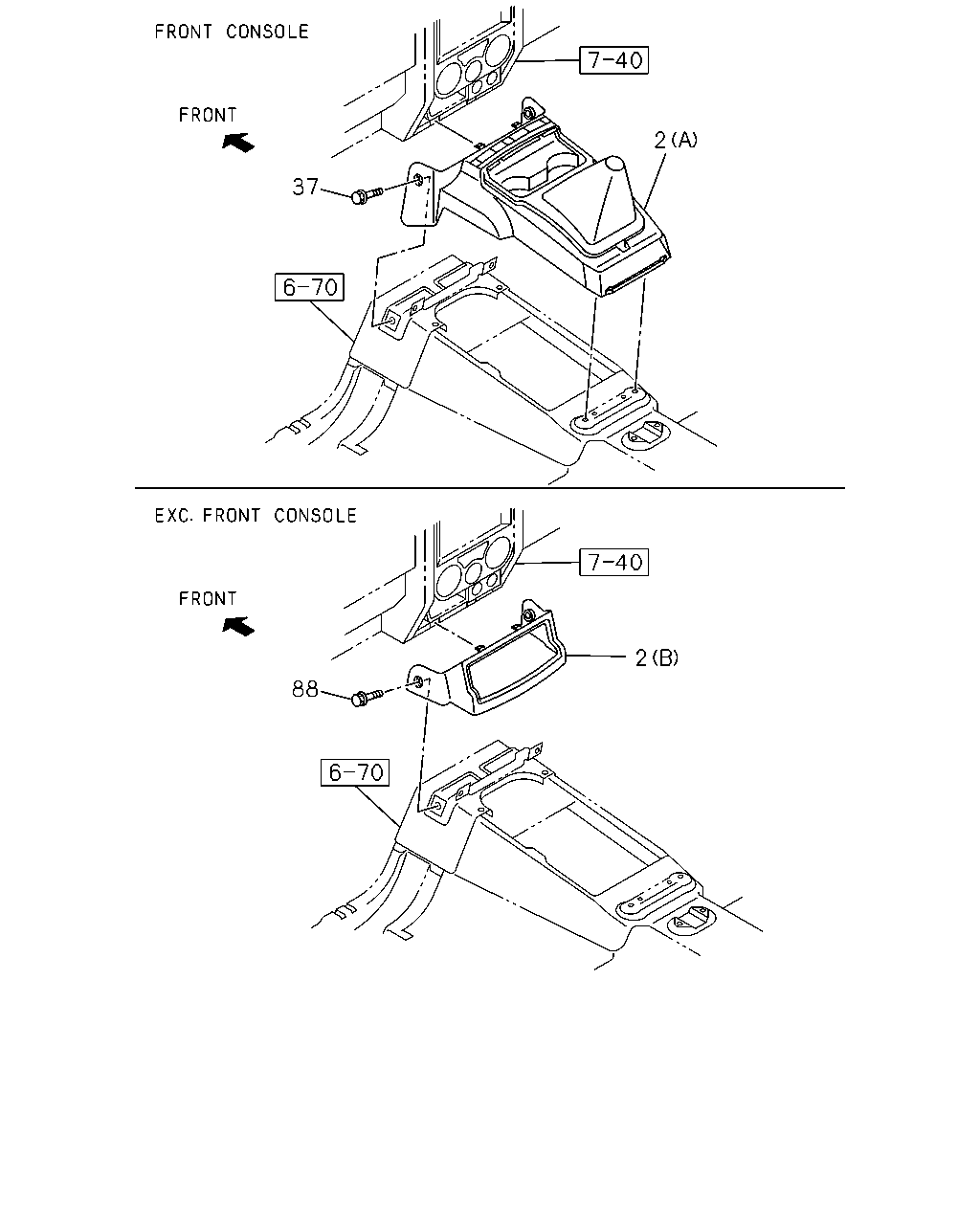

2 88 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	CONSOLE; CENTER FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK	8-97422-764-0	01	1	1405-	●	●	●
2	CONSOLE; CENTER EXC. FRONT CONSOLE<D55> (B) BLACK	8-97422-689-0	01	1	1405-	●	●	●
2	CONSOLE; CENTER FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> (A) BLACK	8-97422-767-0	01	1	1405-			●
37	SCREW; CONSOLE FRONT CONSOLE<D55> M5X16 IMA	8-98167-220-0	02	1	1405-	●	●	●
88	SCREW EXC. FRONT CONSOLE<D55> M5X16 IMA	8-98167-220-0	02	1	1405-	●	●	●
