Isuzu WW
▶
PICKUP
▶
TFR
▶
51516 - TFR(INDIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶

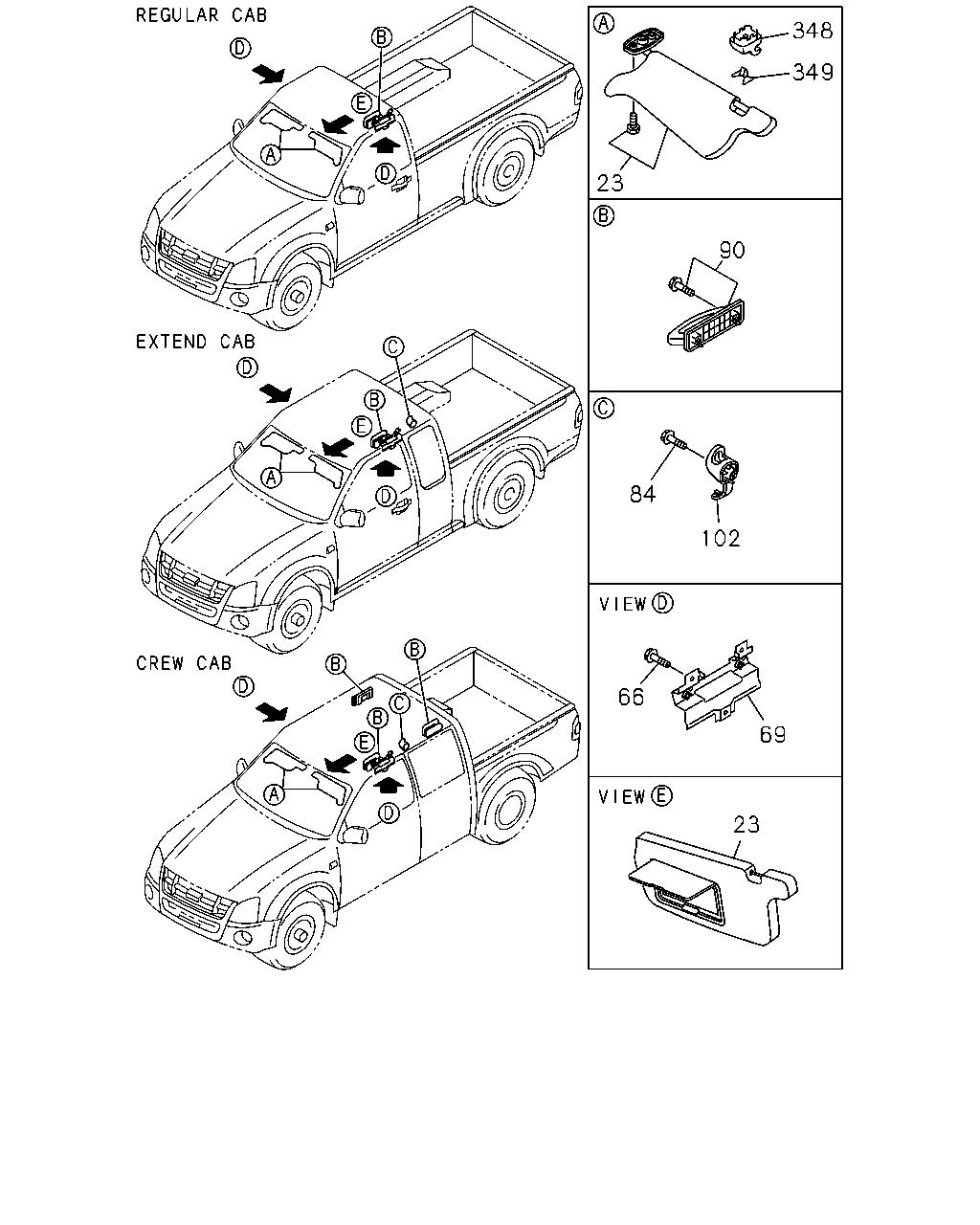

7-43 — SUN VISOR AND ASSIST GRIP
(#138118) — 16 parça
Tümü
A - TFB5CF
B - TFB5SF
C - TFB5WF
23
349
348
90
84
102
66
69
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
23
SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY
8-97403-480-1
01
1
1405-
●
●
●
23
SUN VISOR
SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY
8-97415-952-0
01
1
1405-
●
●
●
23
SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY
8-97403-475-1
01
1
1405-
●
●
●
23
SUN VISOR
EXC. SUNVISOR PASSENGER SIDE W/VANITY MIRROR<D34> LIGHT GRAY
8-97403-478-1
01
1
1405-
●
●
●
66
BOLT; ASSIST GRIP BRKT
M6X16 FLANGE IMA
8-98050-320-0
03
1
1405-1501
●
●
●
66
BOLT; ASSIST GRIP BRKT
M6X16 FLANGE IMA
8-98050-320-0
03
1
1405-1501
●
●
●
66
BOLT; ASSIST GRIP BRKT
M6X16 FLANGE IMA
8-98050-320-0
03
1
1502-
●
●
●
69
BRACKET; ASSIST GRIP
8-97360-907-0
01
1
1405-1501
●
●
●
69
BRACKET; ASSIST GRIP
8-97360-907-0
01
1
1405-1501
●
●
●
69
BRACKET; ASSIST GRIP
8-97360-907-0
01
1
1502-
●
●
●
84
SCREW; ASSIST GRIP
M6X25 IMA
0-36230-625-0
02
1
1405-
●
●
90
GRIP; ASSIST,ROOF
ASSIST HANDLE<E28> LIGHT GRAY
8-97408-305-0
01
1
1405-
●
●
●
90
GRIP; ASSIST,ROOF
LIGHT GRAY
8-97408-305-0
02
1
1405-
●
102
HOOK; COAT HANGER
LIGHT GRAY
8-97403-720-0
02
1
1405-
●
●
348
RETAINER; SUNSHADE
LIGHT GRAY
8-97403-991-0
02
1
1405-
●
●
●
349
CLIP; RETAINER SUNSHADE
IMA
8-98039-903-0
02
1
1405-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
