◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#138116) — 37 parça

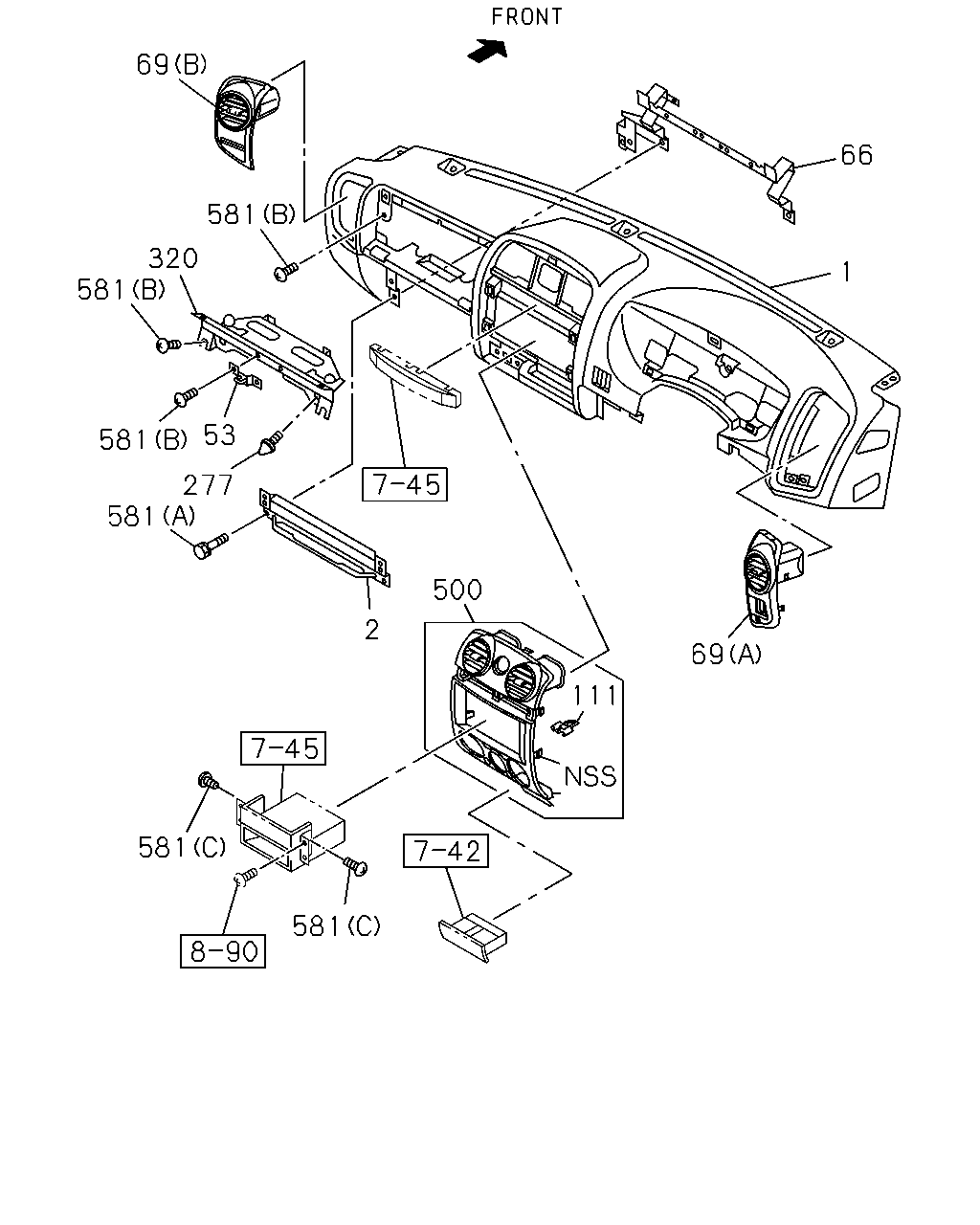

çizim 417095
69 500 111 581 581 2 277 581 581 581 320 581 69 1 66 53
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
BLACK 		8-97426-493-0 01 1 1405- ● ● ●
2 REINFORCEMENT; INST PNL,LWR 8-97308-645-0 01 1 1405- ● ● ●
53 STRIKER; GLOVE BOX 8-97308-646-0 01 1 1405- ● ● ●
66 REINFORCEMENT; INST PANEL 8-97308-643-0 01 1 1405- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) DARK GRAY 		8-97403-327-3 01 1 1405- ● ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) DARK GRAY 		8-97405-963-3 01 1 1405- ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
T=0.5 		8-98061-356-0 06 1 1405- ● ● ●
277 RUBBER; STOPPER GLOVE LID 8-97308-650-0 03 1 1405- ● ● ●
320 COVER; GLOVE BOX
DARK GRAY 		8-97405-960-2 01 1 1405- ● ● ●
500 CLUSTER; INST CENTER
DARK GRAY 		8-97426-497-0 01 1 1405- ● ● ●
581 SCREW
RADIO DELETE(UL5) (C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1405- ● ● ●
581 SCREW
(C) M5X16 TAPPING IMA 		8-98167-449-0 02 1 1405- ● ● ●
581 SCREW
(A) M6X20 W/WASHER IMA 		8-98056-282-0 03 1 1405- ● ● ●
581 SCREW
(B) M5X16 TAPPING 		8-98061-683-0 15 1 1405- ● ● ●

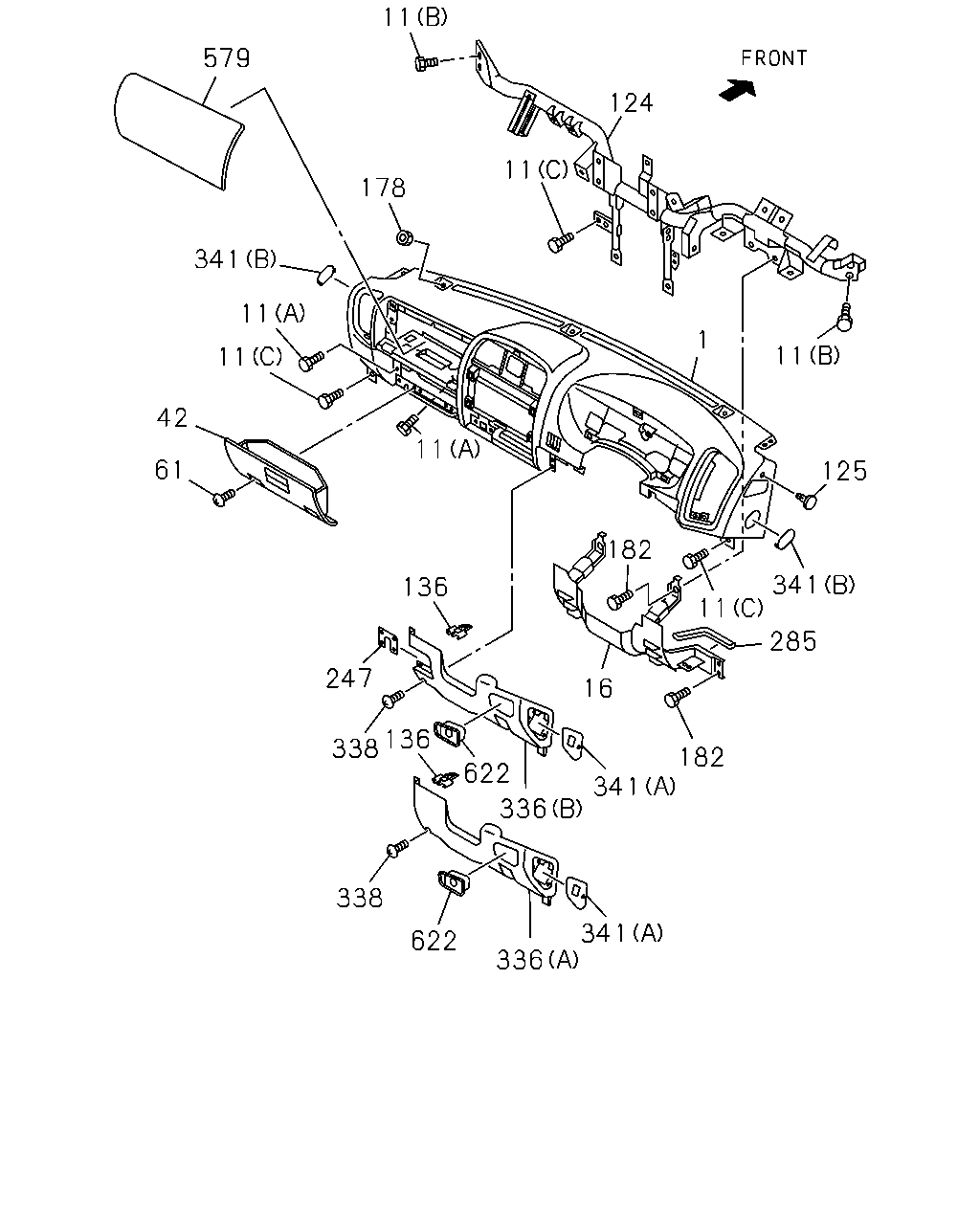

çizim 417115
579 11 124 11 178 341 11 11 42 61 136 247 338 136 622 336 338 622 336 341 341 16 182 285 11 182 11 1 11 125 341
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; INST
BLACK 		8-97426-493-0 01 1 1405- ● ● ●
11 BOLT; INST PNL
(A) M6X20 W/WASHER IMA 		8-98056-282-0 04 1 1405- ● ● ●
11 BOLT; INST PNL
(B) M8X30 W/LK&PL WASHER 		8-98057-964-0 04 1 1405- ● ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER IMA 		8-98057-965-0 04 1 1405- ● ● ●
16 BRACKET; INST PNL 8-98043-124-0 01 1 1405- ● ● ●
42 BOX; GLOVE,INST PNL
DARK GRAY 		8-97415-660-0 01 1 1405- ● ● ●
61 SCREW; GLOVE BOX
M5X16 TAPPING 		8-98167-214-0 02 1 1405- ● ● ●
124 REINFORCEMENT; INST PNL,UPR
PARKING BRAKE FLOOR<7XW> 		8-98110-179-0 01 1 1405- ● ● ●
124 REINFORCEMENT; INST PNL,UPR
EXC. PARKING BRAKE FLOOR<7XW> 		8-98110-178-0 01 1 1405- ● ● ●
125 CLIP; INST PANEL 8-97310-401-0 01 1 1405- ● ● ●
136 CLIP; INST COVER
T=0.5 		8-98061-356-0 04 1 1405- ● ● ●
178 NUT; INST PANEL
M6 FLANGE IMA 		8-98055-704-0 03 1 1405- ● ● ●
182 BOLT; BRKT,INST PANEL
M6X20 W/WASHER IMA 		8-98056-282-0 04 1 1405- ● ● ●
247 COVER; HAND BRAKE LEVER,INST PANEL
EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97422-831-0 01 1 1405- ● ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=500 		1-79937-746-0 01 1 1405- ● ● ●
336 COVER; INST PANEL SIDE
PARKING BRAKE FLOOR<7XW> (A) BLACK 		8-97422-814-0 01 1 1405- ● ● ●
336 COVER; INST PANEL SIDE
EXC. PARKING BRAKE FLOOR<7XW> (B) BLACK 		8-97422-822-0 01 1 1405- ● ● ●
338 SCREW; COVER
M5X16 TAPPING 		8-98167-214-0 01 1 1405- ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-048-1 01 1 1405- ● ● ●
341 LID; FUSE BOX
(B) DARK GRAY 		8-97408-049-1 01 1 1405- ● ● ●
341 LID; FUSE BOX
(A) BLACK 		8-97422-818-0 01 1 1405- ● ● ●
579 COVER; INST PNL
DARK GRAY 		8-97405-961-1 01 1 1405- ● ● ●
622 BOX; IDLE CONT
BLACK 		8-97422-820-0 01 1 1405- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
