7-30 — LOCK CYLINDER SET (#138115) — 25 parça

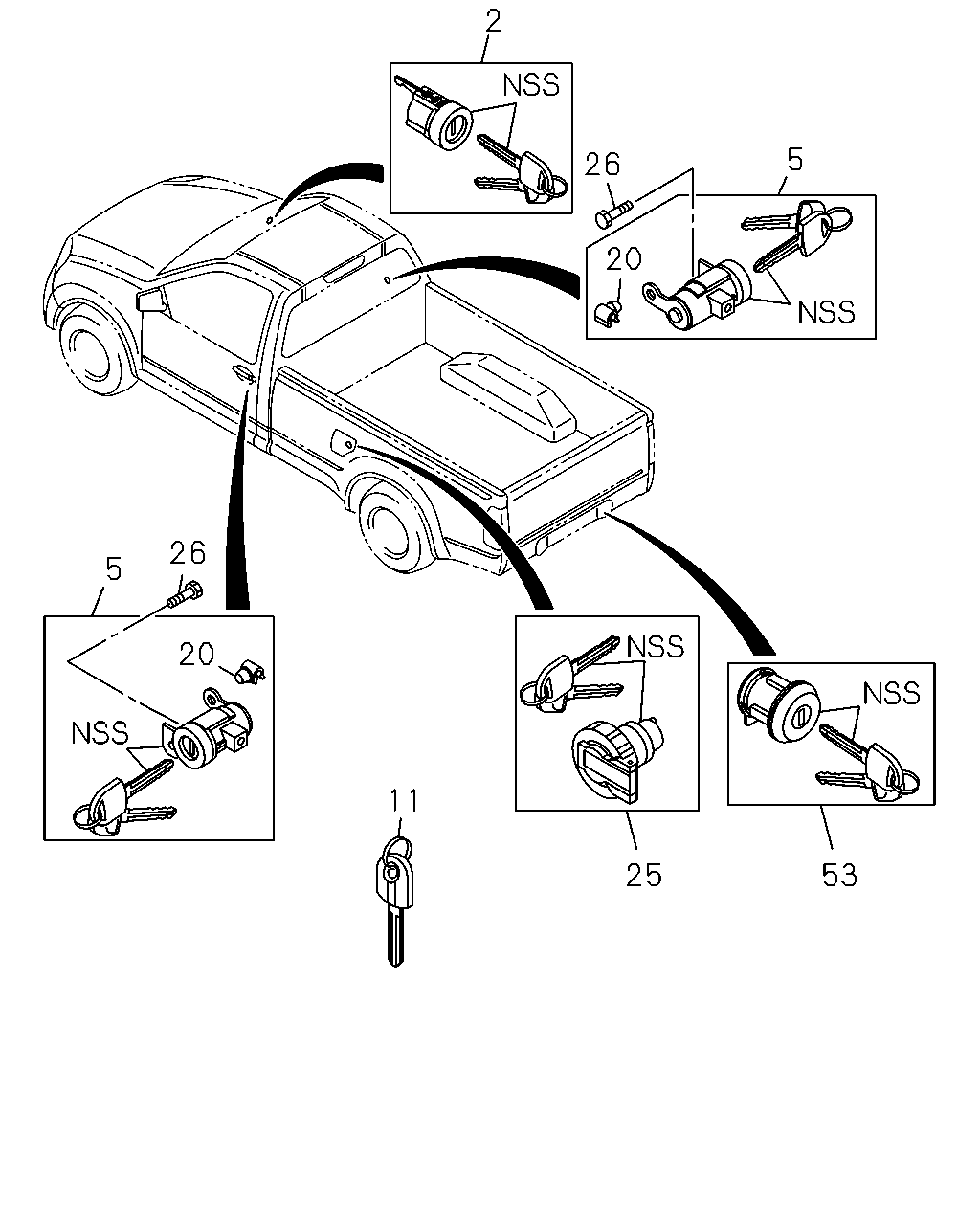

2 26 5 20 26 5 20 11 25 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BARREL ASM; W/KEY,STRG LOCK	8-98060-578-0	01	1	1405-	●	●	●
5	CYLINDER ASM; DOOR LOCK	8-98060-572-0	01	1	1405-	●	●	●
5	CYLINDER ASM; DOOR LOCK	8-98060-573-0	01	1	1405-	●	●	●
11	KEY; BLANK WO/IMMOBILIZER	8-98030-087-1	AR	1	1405-	●	●	●
20	SNAP; DOOR LOCK CYL YELLOW IMA	8-97350-043-0	01	1	1405-	●	●	●
20	SNAP; DOOR LOCK CYL WHITE IMA	8-97350-044-0	01	1	1405-	●	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-577-0	01	1	1405-	●	●
26	BOLT; KEY CYL,DOOR	8-98062-137-0	04	1	1405-	●	●	●
53	CYLINDER ASM; W/KEY,SPARE TIRE 4JK1-TCX ENG(LR0) ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-575-0	01	1	1405-1509	●		●
53	CYLINDER ASM; W/KEY,SPARE TIRE ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-575-0	01	1	1510-	●	●	●

20 20 1

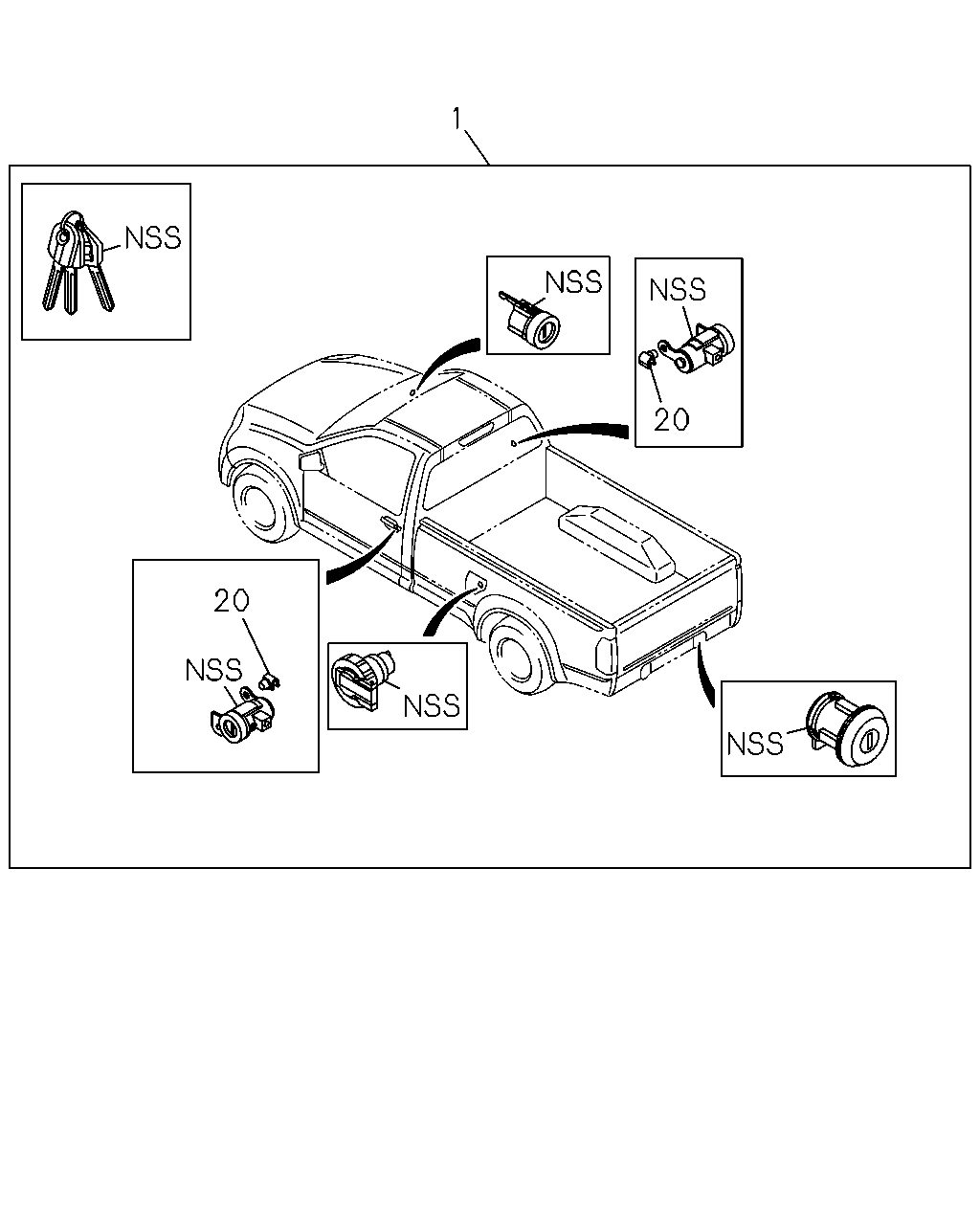

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-514-0	01	1	1405-1509	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) FUEL TANK CAP W/LOCK<N05> ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-514-0	01	1	1510-	●	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-515-0	01	1	1405-1509	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0)	8-98060-515-0	01	1	1405-1509		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) FUEL TANK CAP W/LOCK<N05> EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-515-0	01	1	1510-	●	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05>	8-98060-516-0	01	1	1405-1509	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-516-0	01	1	1405-1509			●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) ANTI THEFT SYSTEM SPARE TIRE<8CF> EXC. FUEL TANK CAP W/LOCK<N05>	8-98060-516-0	01	1	1510-	●	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-516-0	01	1	1510-			●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-517-0	01	1	1405-1509	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-517-0	01	1	1405-1509			●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) EXC. FUEL TANK CAP W/LOCK<N05>,ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-517-0	01	1	1510-	●	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) EXC. ANTI THEFT SYSTEM SPARE TIRE<8CF>	8-98060-517-0	01	1	1510-			●
20	SNAP; DOOR LOCK CYL YELLOW IMA	8-97350-043-0	01	1	1405-	●	●	●
20	SNAP; DOOR LOCK CYL WHITE IMA	8-97350-044-0	01	1	1405-	●	●	●
