◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#138113) — 18 parça

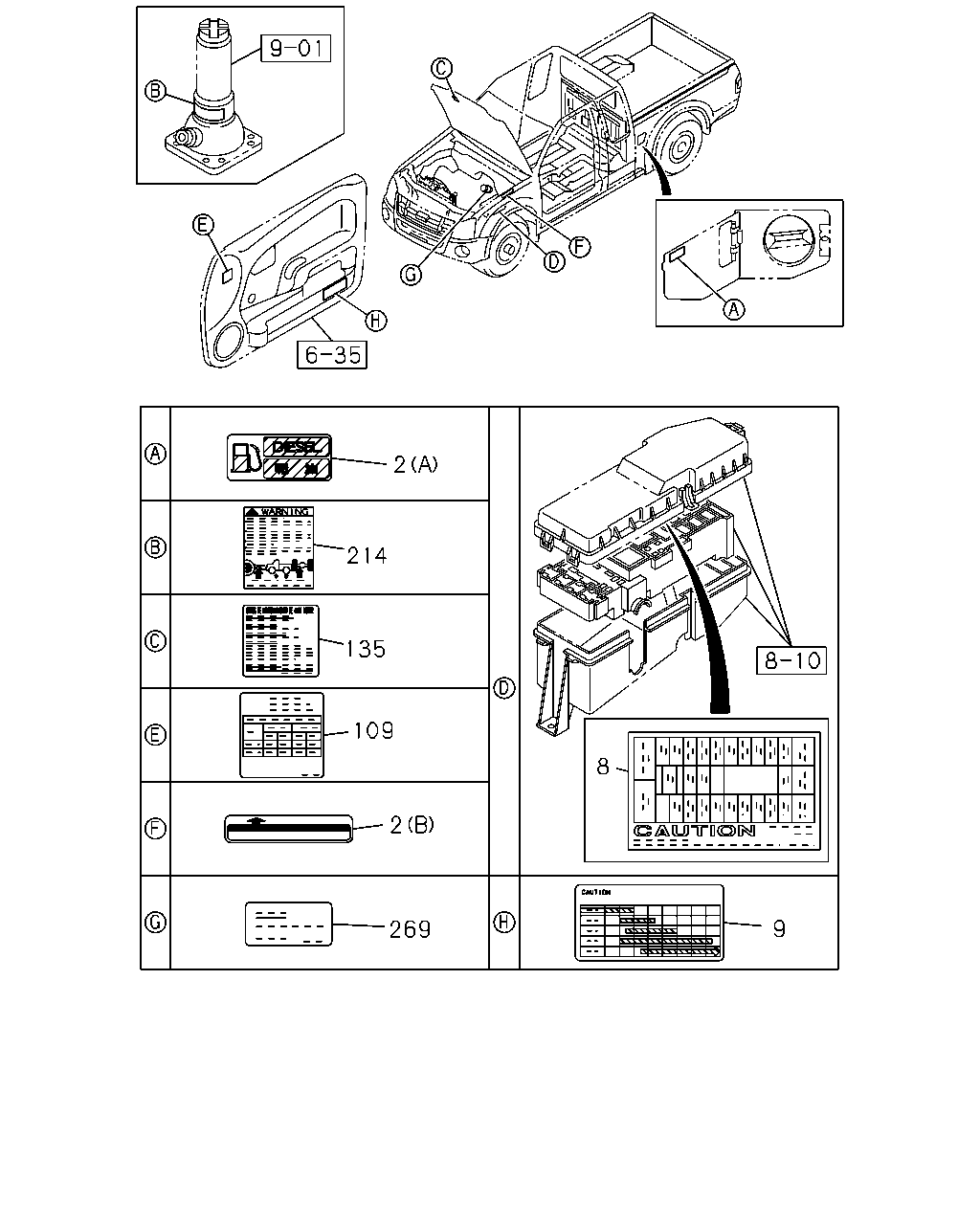

çizim 417238
2 214 135 109 2 269 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 1405-1509 ●
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0) (A) 		8-97203-837-0 01 1 1405-1509 ●
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 1510- ● ●
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0),4JA1-TC ENG(L4Z) (A) 		8-97203-837-0 01 1 1510- ●
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0) (B) 		8-97945-778-0 01 1 1405-1509 ● ● ●
2 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 1510- ● ● ●
8 LABEL; FUSE 8-98042-527-0 01 1 1405- ● ● ●
9 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MSG 5 SPEED(M75) EXC. LANGUAGE LABEL SPANISH<VA8> 		8-97013-727-0 01 1 1510- ● ● ●
109 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C INDIA SPEC TIRE(CXS) ENGLISH 		8-98258-820-0 01 1 1405-1509 ● ●
109 PLATE; CAUTION,TIRE PLACARD
ENGLISH 		8-98258-820-0 01 1 1405-1509 ●
109 PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C INDIA SPEC TIRE(CXS) ENGLISH 		8-98258-820-0 01 1 1510- ● ● ●
109 PLATE; CAUTION,TIRE PLACARD
LANGUAGE LABEL SPANISH<VA8> SPANISH 		8-98107-868-0 01 1 1405- ● ● ●
135 PLATE; CAUTION,ENGINE
4JA1-TC ENG(L4Z) EXC. LANGUAGE LABEL SPANISH<VA8> ENGLISH 		8-97332-377-1 01 1 1510- ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) LANGUAGE LABEL SPANISH<VA8> SPANISH 		8-98044-963-0 01 1 1405- ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) ENGLISH 		8-98042-941-0 01 1 1405- ● ● ●
214 LABEL; JACK 8-97315-282-1 01 1 1405- ● ● ●
269 LABEL; CAUTION,EGR
4JK1-TCX ENG(LR0) LANGUAGE LABEL SPANISH<VA8> 		8-98030-166-0 01 1 1405- ● ● ●
269 LABEL; CAUTION,EGR
4JK1-TCX ENG(LR0) EXC. LANGUAGE LABEL SPANISH<VA8> 		8-97383-056-0 01 1 1405- ● ● ●
