◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-90 - REAR BUMPER ▶
6-90 — REAR BUMPER (#138111) — 61 parça

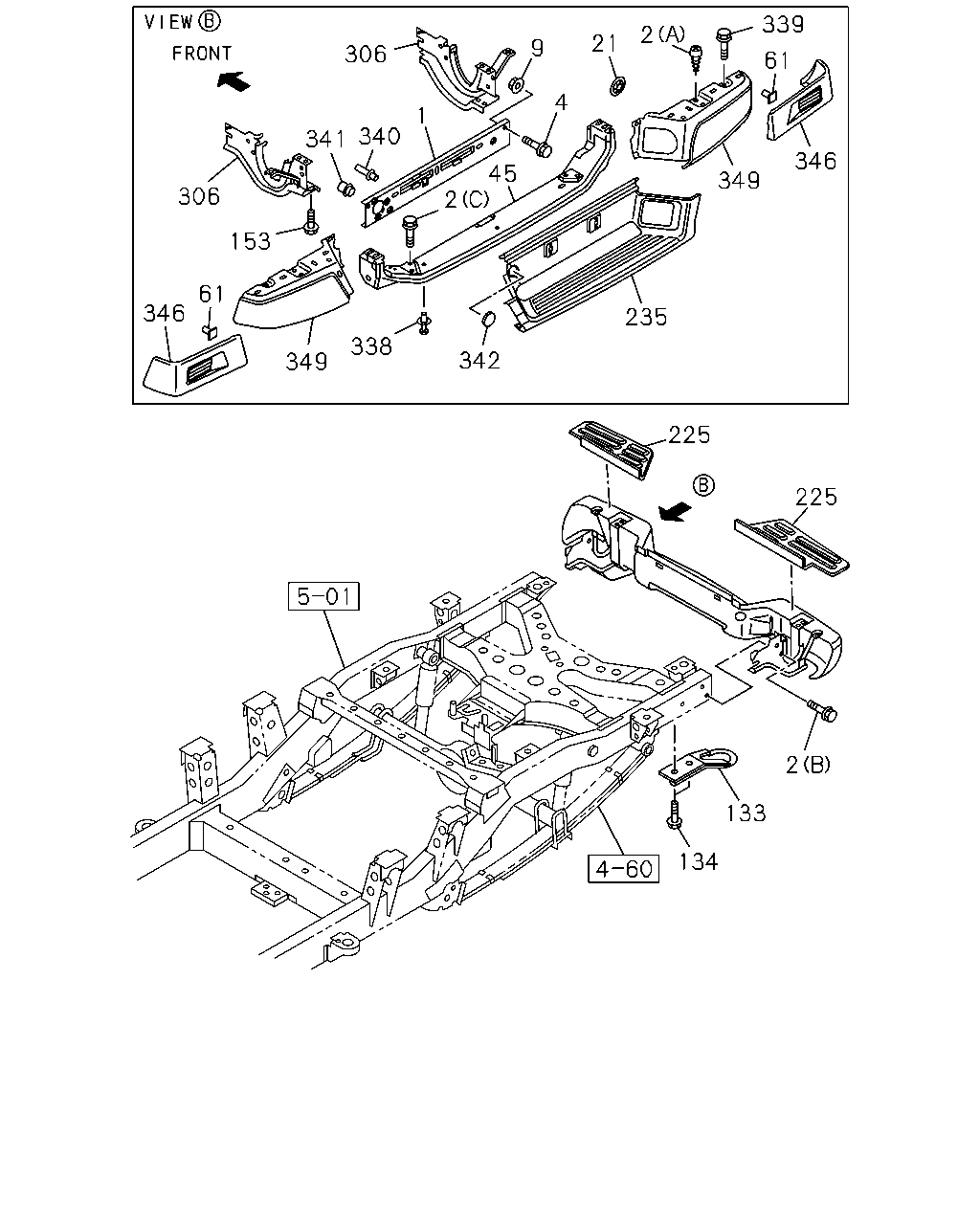

çizim 417108
225 225 2 133 134 346 339 2 349 235 21 9 4 45 2 1 306 340 341 342 338 349 346 61 153 306 61
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-185-3 01 1 1405-1509 ● ●
1 BUMPER; RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-185-3 01 1 1510- ● ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) M10X20 FLANGE IMA 		0-28051-020-0 04 1 1405-1509 ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (C) M10X20 FLANGE IMA 		0-28051-020-0 04 1 1510- ● ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 1405-1509 ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 1510- ● ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 IMA 		8-98062-142-0 06 1 1405-1509 ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) (B) M12X30 IMA 		8-98062-142-0 06 1 1510- ● ● ●
4 BOLT; BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M6X16 FLANGE IMA 		0-28650-616-0 02 1 1405-1509 ● ●
4 BOLT; BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M6X16 FLANGE IMA 		0-28650-616-0 02 1 1510- ● ● ●
9 NUT; BUMPER
REAR STEP BUMPER(VF6) M6 FLANGE IMA 		0-91180-106-0 06 1 1405-1509 ● ●
9 NUT; BUMPER
REAR STEP BUMPER(VF6) M6 FLANGE IMA 		0-91180-106-0 06 1 1510- ● ● ●
21 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6) 		8-97182-223-0 04 1 1405-1509 ● ●
21 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6) 		8-97182-223-0 04 1 1510- ● ● ●
21 WASHER; LK,BUMPER
REAR STEP BUMPER CHROME(V42) 		8-97182-223-0 02 1 1405-1509 ● ●
21 WASHER; LK,BUMPER
REAR STEP BUMPER CHROME(V42) 		8-97182-223-0 02 1 1510- ● ● ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 1405-1509 ● ●
45 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-170-0 01 1 1510- ● ● ●
61 CLIP; BUMPER RR
REAR STEP BUMPER(VF6) 		8-97806-845-2 06 1 1405-1509 ● ●
61 CLIP; BUMPER RR
REAR STEP BUMPER(VF6) 		8-97806-845-2 06 1 1510- ● ● ●
133 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 1405- ● ● ●
134 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE IMA 		0-28661-030-0 02 1 1405- ● ● ●
153 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 1405-1509 ● ●
153 BOLT; BRKT
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-592-0 04 1 1510- ● ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 1405-1509 ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-415-0 01 1 1510- ● ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 1405-1509 ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-416-0 01 1 1510- ● ● ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 1405-1509 ● ●
235 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-174-1 01 1 1510- ● ● ●
306 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 1405-1509 ● ●
306 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-172-1 01 1 1510- ● ● ●
306 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 1405-1509 ● ●
306 BAR; BACK,RR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-173-1 01 1 1510- ● ● ●
338 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1405-1509 ● ●
338 PIN; PUSH
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-595-0 02 1 1510- ● ● ●
339 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 1405-1509 ● ●
339 BOLT; BRACE
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-593-0 02 1 1510- ● ● ●
340 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 1405-1509 ● ●
340 RIVET
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-594-0 05 1 1510- ● ● ●
341 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 1405-1509 ● ●
341 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-97352-584-1 01 1 1510- ● ● ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 1405-1509 ● ●
342 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98030-190-0 01 1 1510- ● ● ●
346 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-198-1 01 1 1405-1509 ● ●
346 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-198-1 01 1 1510- ● ● ●
346 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-199-2 01 1 1405-1509 ● ●
346 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-199-2 01 1 1510- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-169-1 01 1 1405-1509 ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-169-1 01 1 1510- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-183-1 01 1 1405-1509 ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-183-1 01 1 1510- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-167-1 01 1 1405-1509 ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-167-1 01 1 1510- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-181-1 01 1 1405-1509 ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98030-181-1 01 1 1510- ● ● ●

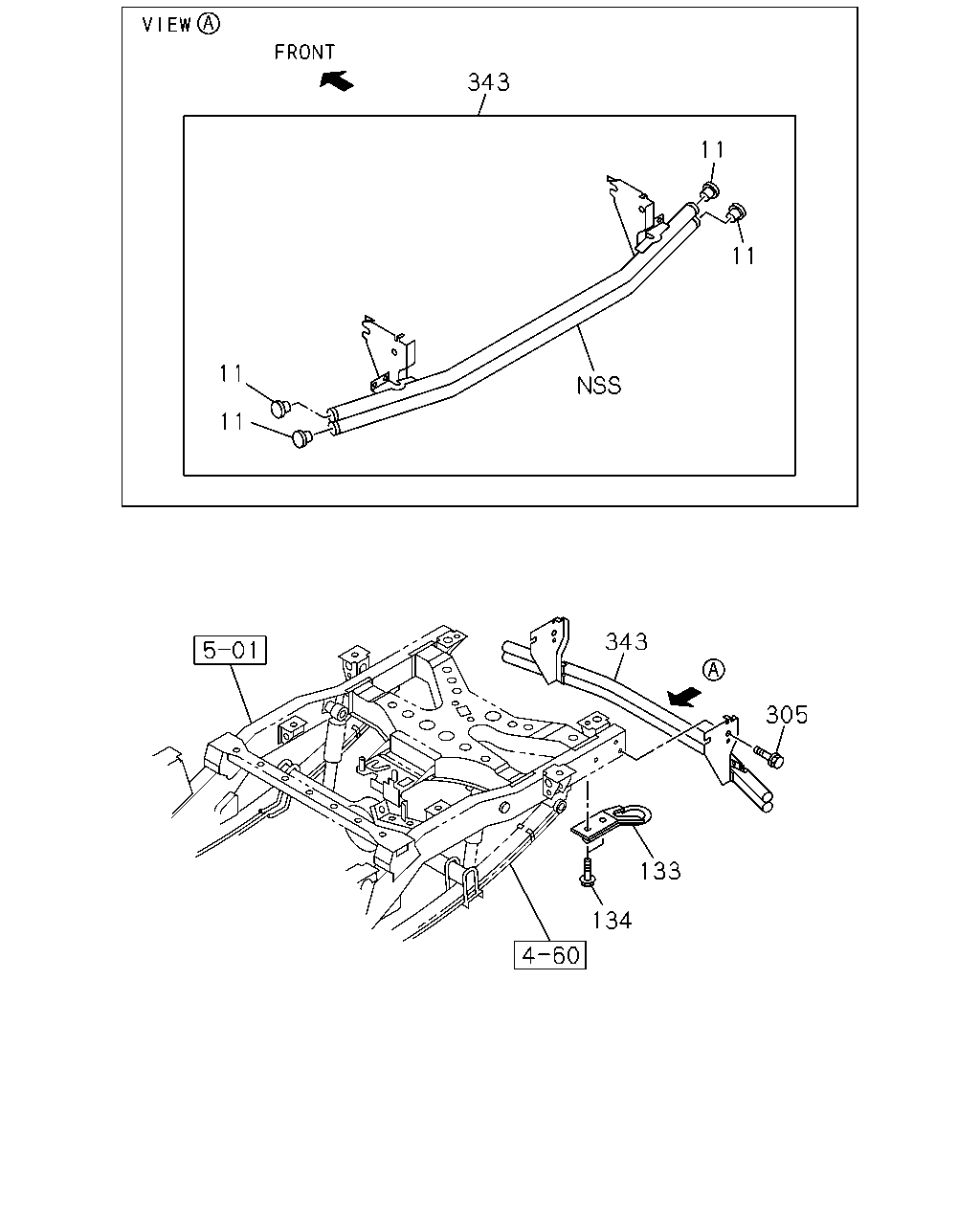

çizim 417262
343 11 11 11 11 343 305 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C
11 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 		8-97351-695-0 04 1 1405- ● ●
133 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 1405- ● ● ●
134 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE IMA 		0-28661-030-0 02 1 1405- ● ● ●
305 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> M12X30 IMA 		8-98062-142-0 04 1 1405- ● ●
343 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-98163-803-0 01 1 1405- ● ●
