◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51516 - TFR(INDIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#138110) — 23 parça

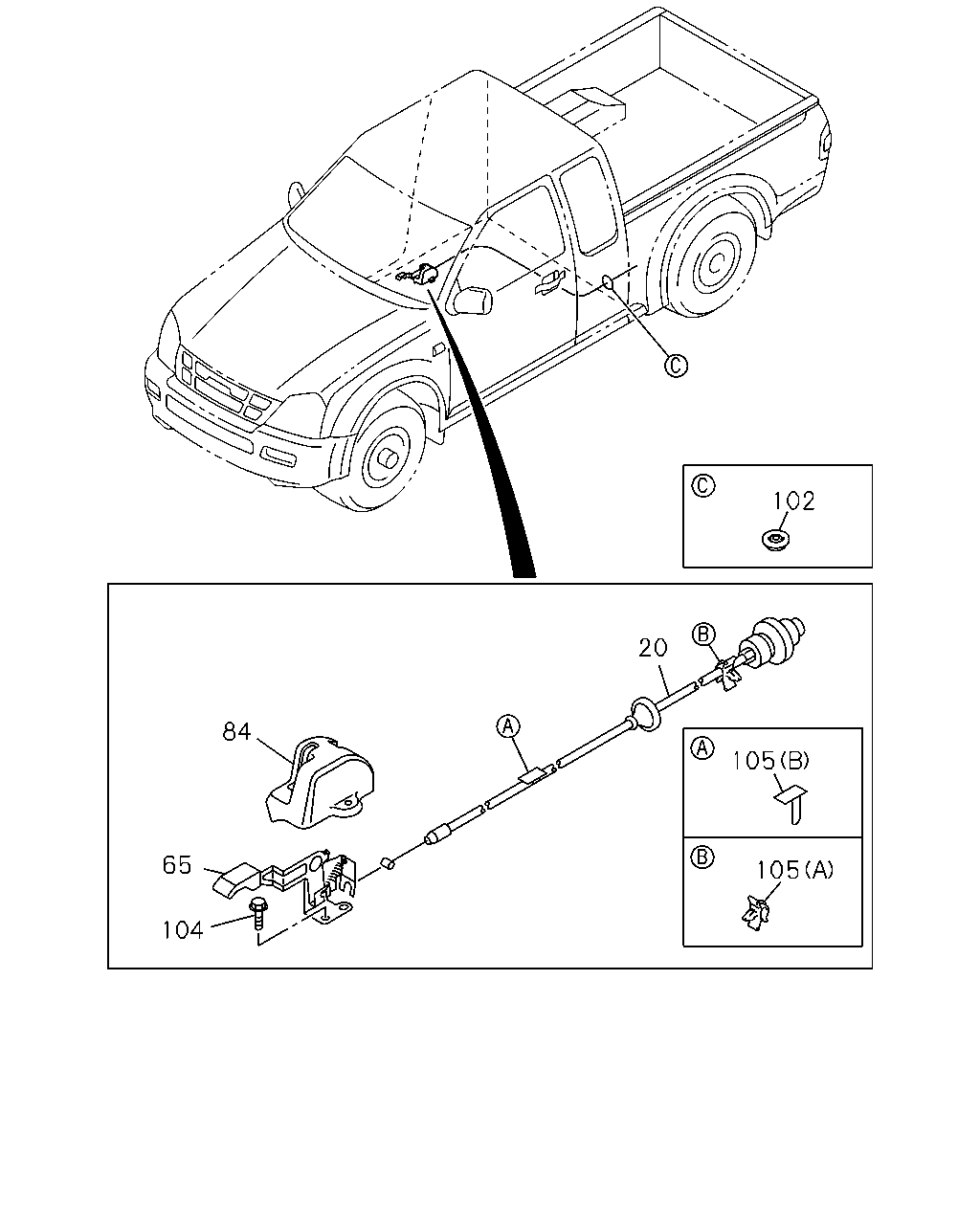

çizim 417073
20 84 65 104 105 105 102
BalonParca AdiParca NoAdetTipApplied Date A B C
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-755-0 01 1 1510- ●
20 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-757-0 01 1 1405- ●
20 CABLE; TRUNK LID & FUEL FILLER 8-98072-759-0 01 1 1405- ●
65 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-953-0 01 1 1405-1509 ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY 		8-97405-953-0 01 1 1405-1509 ●
65 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-953-0 01 1 1510- ● ●
65 KNOB; FUEL FILLER DOOR
DARK GRAY 		8-97405-953-0 01 1 1510- ●
84 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-681-2 01 1 1405-1509 ●
84 COVER; BRKT
DARK GRAY 		8-97403-681-2 01 1 1405-1509 ●
84 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-681-2 01 1 1510- ● ●
84 COVER; BRKT
DARK GRAY 		8-97403-681-2 01 1 1510- ●
102 GROMMET
EXC. FUEL LID OPENER<N08> IMA 		8-97321-645-1 01 1 1405-1509 ●
102 GROMMET
IMA 		8-97321-645-1 01 1 1405-1509 ●
102 GROMMET
EXC. FUEL LID OPENER<N08> IMA 		8-97321-645-1 01 1 1510- ● ●
104 BOLT; KNOB
FUEL LID OPENER<N08> M6X16 FLANGE IMA 		0-28650-616-0 02 1 1405-1509 ●
104 BOLT; KNOB
M6X16 FLANGE IMA 		0-28650-616-0 02 1 1405-1509 ●
104 BOLT; KNOB
FUEL LID OPENER<N08> M6X16 FLANGE IMA 		0-28650-616-0 02 1 1510- ● ●
104 BOLT; KNOB
M6X16 FLANGE IMA 		0-28650-616-0 02 1 1510- ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (A) D=5.8 		5-09709-081-0 02 1 1510- ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 IMA 		8-98158-303-0 04 1 1405-1509 ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 IMA 		8-98158-303-0 04 1 1405-1509 ●
105 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 IMA 		8-98158-303-0 04 1 1510- ● ●
105 CLIP; CABLE,FUEL LID OPENER
(B) ID=7 IMA 		8-98158-303-0 04 1 1510- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
